خصائص كابل اللوحة الشمسيةطلب:يعد كابل اللوحة الشمسية مناسبًا للاستخدام في تطبيقات الطاقة الشمسية التي تتطلب تصنيف 600 فولت. للاستخدام في الترابط على الأرض وأنظمة الطاقة الكهروضوئية غير المطواة.معيار كابل اللوحة الشمسية:تم تكييفه مع الأنظمة الكهروضوئية ، 2 PFG 1169 / 08.2007 و UL. المعلمات الكهربائية للكابلات الشمسية أحادية اللون:تصنيف الجهد: AC 0.6 / 1.0 كيلو فولت كحد أقصى. PV - جهد النظام: DC حتى 2.0 كيلو فولت ممكنة كحد أقصى. جهد التشغيل المسموح به في أنظمة التيار المتردد: 0.7 / 1.2 كيلو فولت كحد أقصى. جهد التشغيل المسموح به في أنظمة العاصمة: 0.9 / 1.8 كيلو فولت جهد اختبار: AC 6 KV / DC 10 KV...

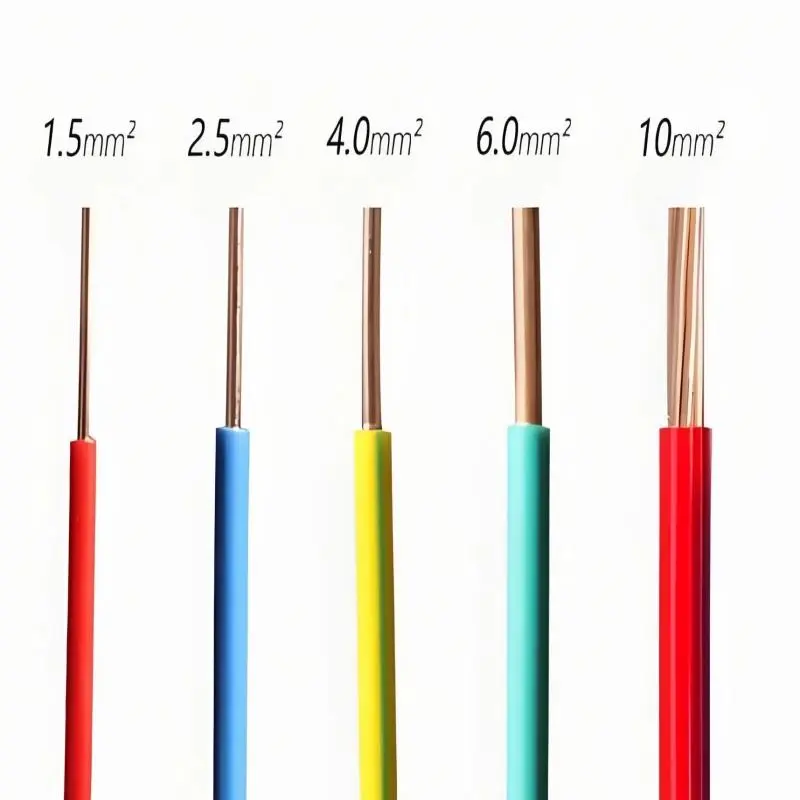

يتميز كابل Cu/PVC H07V-U بقطف موصل صلب صلب من الفئة 1 مع عزل PVC. يُعرف كابل H07V-U أيضًا باسم سلك البناء أو الأسلاك الكهربائية. كابلات H07V-U لها حجم طبيعي من 1-10 مم².نحن نوفر كابل H07V-U بعد IEC60227 ، BS EN 50525-2-31 مع الجهد 450/750V. بالنسبة لأستراليا ونيوزيلندا القياسي AS/NZS 5000.1 ، فإن سلك البناء يمتلكون جهدًا مختلفًا. هم 0.6/1KV بدلاً من 450V/750V.CU/PVC H07V-Promeوصف CU/PVC H07V-Uالموصل: الصلب الصلب النحاس الفئة 1الجهد المقدر: 450/750Vالعزل: PVCدائرة نصف قطر الانحناء: 15 مرة من القطر العامالمعيار: BS EN50525-2-31 ، IEC 60227 ، AS/NZS 5000.1درجة حرارة الدائرة القصيرة: +160 ℃مثبطات...

يتميز كابل Cu/PVC H07V-U بقطف موصل صلب صلب من الفئة 1 مع عزل PVC. يُعرف كابل H07V-U أيضًا باسم سلك البناء أو الأسلاك الكهربائية. كابلات H07V-U لها حجم طبيعي من 1-10 مم².نحن نوفر كابل H07V-U بعد IEC60227 ، BS EN 50525-2-31 مع الجهد 450/750V. بالنسبة لأستراليا ونيوزيلندا القياسي AS/NZS 5000.1 ، فإن سلك البناء يمتلكون جهدًا مختلفًا. هم 0.6/1KV بدلاً من 450V/750V.CU/PVC H07V-Promeوصف CU/PVC H07V-Uالموصل: الصلب الصلب النحاس الفئة 1الجهد المقدر: 450/750Vالعزل: PVCدائرة نصف قطر الانحناء: 15 مرة من القطر العامالمعيار: BS EN50525-2-31 ، IEC 60227 ، AS/NZS 5000.1درجة حرارة الدائرة القصيرة: +160 ℃مثبطات...

يتميز كابل Cu/PVC H07V-R بكونه موصلًا عاديًا من الفئة 2 مع عزل PVC. ومن المعروف أيضًا باسم سلك البناء أو الأسلاك الكهربائية. كابلات H07V-R لها حجم طبيعي من 1-400 مم مربع.نحن نوفر هذه الكابلات بعد IEC60227 ، BS EN 50525-2-31 مع الجهد 450/750V. بالنسبة لأستراليا ونيوزيلندا القياسي AS/NZS 5000.1 ، فإن سلك البناء يمتلكون جهدًا مختلفًا. هم 0.6/1KV بدلاً من 450V/750V.معلمة كابل Cu/PVC H07V-RAWGعدد النوى x المستعرض الاسميسماكة العزل الاسميةالقطر العام الاسميوزن النحاس الاسميالوزن الاسمي# x مم²ممممكجم/كمكجم/كم                             H07V-R16 (7/24)1 × 1.50.7314.42314 (7/22)1 × 2.50.83.6243512 (7/...

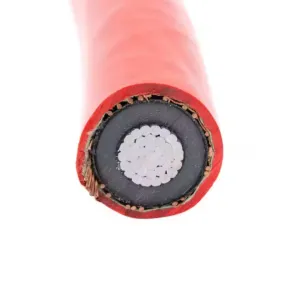

The single core aluminium conductor 1X300mm² 12/20kV XLPE insulated Na2XS2Y medium voltage cable features 300mm² aluminium conductor with cross-linked polyethylene (XLPE) insulation, rated for 12/20kV. Compliant with Na2XS2Y standard, it provides excellent electrical performance and mechanical strength, suitable for fixed installation in medium voltage distribution networks, particularly for power transmission in industrial plants and commercial buildings.

The medium voltage single core cable 12/20kV 1X240/50mm² Na2XS(FL)2Y features 240mm² aluminum conductor compliant with IEC 60228 Class 2, rated for 12/20kV. With XLPE insulation and double-layer sheath construction meeting German VDE 0276-620 standard, it's suitable for fixed installation in MV distribution systems, particularly for applications requiring high mechanical protection.

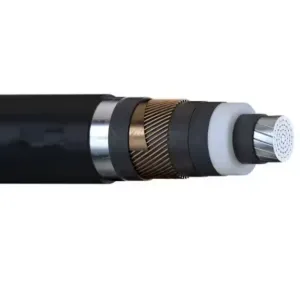

The 18/30kV single core cable series includes Na2XSY, Na2XS2Y and Na2XS(FL)2Y types, all featuring XLPE insulation. Rated at 18/30kV and compliant with German VDE 0276-620 standard, these cables are suitable for medium voltage distribution systems. Na2XSY is standard type, Na2XS2Y with copper tape screen, and Na2XS(FL)2Y features heavy-duty sheath design, allowing selection according to different installation requirements.

The 150mm² single-core copper conductor XLPE insulated 15kV underground power cable features high-quality annealed copper conductor and cross-linked polyethylene (XLPE) insulation, rated for 8.7/15kV. Suitable for urban distribution networks and industrial park power transmission, it offers excellent electrical performance, thermal resistance (90℃ continuous rating), and mechanical strength. Optional flame-retardant, UV-resistant, and armored designs cater to various installation environments. Compliant with IEC 60502-2 and GB/T 12706 standards, it's a reliable choice for modern underground power systems.

This product is a 1kV single-core aluminum conductor power cable, available in five sizes: 25mm², 35mm², 50mm², 70mm² and 95mm². Featuring XLPE insulation and PVC-ST2 sheath construction, it delivers excellent electrical performance, heat resistance and mechanical protection, suitable for fixed installation in power distribution systems. The aluminum conductor design offers cost-effective solution, particularly ideal for industrial and building electrical projects requiring high-current transmission.

This text describes a 1kV single-core cable with an aluminum conductor, XLPE-PVC insulation, and an St2-type outer sheath, available in various cross-sectional areas: 25mm², 35mm², 50mm², 70mm², and 95mm².

The Single Core Aluminum Conductor XLPE Insulated 1X95mm² ABC (Aerial Bundled Cable) stands as a high-performance solution for low-to-medium voltage overhead power distribution, merging efficiency with durability. Its core features a 95mm² single-core aluminum conductor, engineered for optimal conductivity and lightweight performance—critical for reducing pole load and simplifying installation.​ The cross-linked polyethylene (XLPE) insulation enhances electrical safety with high dielectric strength (>20kV/mm), enabling reliable operation in 0.6/1kV to 10kV networks. XLPE resists UV radiation, moisture, and temperature extremes (-40°C to 90°C), ensuring longevity in harsh outdoor environments, from humid coastal areas to arid regions.​ As part of an ABC system, this single-core cable is often bundled with neutral conductors, creating a compact, insulated overhead line that minimizes short circuits from vegetation or wildlife contact. The 95mm² conductor size balances current-carrying capacity (up to 250A) with flexibility, making it ideal for suburban, rural, and industrial feeder lines.​ Key advantages include low power loss, compatibility with existing ABC infrastructure, and reduced maintenance needs compared to bare conductors. Compliant with IEC 60502 and ASTM standards, it meets global safety and performance benchmarks, making it a versatile choice for utilities prioritizing reliability and cost-efficiency.

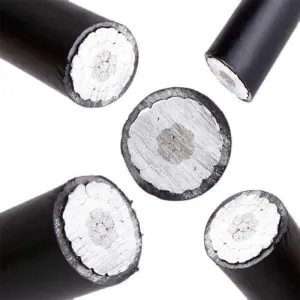

The 600V Single Core XLPE Insulated Aluminum Wire 6AWG 6/7 Cable is a versatile electrical solution designed for diverse applications. With a 6AWG size and a 6/7 stranding structure (6 strands of 7mm each), it balances flexibility and conductivity. The XLPE insulation ensures excellent resistance to high temperatures, chemicals, and moisture, making it suitable for 600V voltage environments.​ Crafted from aluminum, the conductor offers reliable electrical performance with lightweight properties, reducing installation burdens. This cable excels in computer systems, industrial construction, marine settings, and overhead use. Its single - core design simplifies wiring in tight spaces, while the robust insulation enhances durability in harsh conditions.​ Ideal for both indoor and outdoor applications, it meets the demands of high - precision equipment and heavy - duty industrial setups. Keywords: 600V single core cable, XLPE insulated aluminum wire, 6AWG 6/7 cable, industrial marine overhead wire, computer construction cable.
