1. Overview: Redefining Overhead Power Distribution
In the realm of low-to-medium voltage power distribution, the Single Core Aluminum Conductor XLPE Insulated 1X95mm² ABC (Aerial Bundled Cable) has emerged as a game-changer, offering a perfect blend of efficiency, durability, and safety. Designed to meet the diverse needs of modern power grids, this cable has become a preferred choice for utilities and project developers across the globe. Unlike traditional bare conductors that are prone to various issues like short circuits and weather-related damage, this ABC Cable comes with a host of features that make it stand out. Its single-core design, combined with high-quality materials, ensures reliable power transmission even in the most challenging environments. Whether it's suburban areas with dense populations, rural regions with vast landscapes, or industrial zones with heavy power demands, this cable proves its mettle by delivering consistent performance. 2. Conductor: The Backbone of Efficient Power Transmission

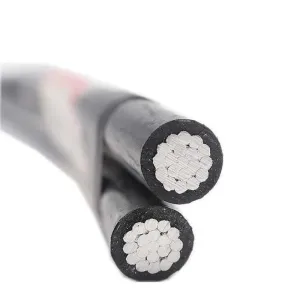

At the heart of this cable lies a 95mm² single-core aluminum conductor, which serves as the backbone for efficient power transmission. Aluminum was chosen as the Conductor Material for several compelling reasons. First and foremost, it offers excellent electrical conductivity, ensuring that power is transmitted with minimal loss. This is crucial for maintaining the efficiency of the power distribution network, especially over long distances. The 95mm² cross-sectional area of the conductor is carefully designed to handle substantial current loads. With a current-carrying capacity of up to 250A, it can easily meet the power demands of various applications, from residential neighborhoods to small industrial units. This makes it a versatile option that can be used in a wide range of scenarios without compromising on performance.
Another significant advantage of the aluminum conductor is its lightweight nature. Compared to Copper Conductors of the same cross-sectional area, aluminum is much lighter, which reduces the load on the supporting poles. This not only makes the installation process easier but also lowers the cost of pole infrastructure, as lighter loads mean less need for heavy-duty poles. Additionally, the lightweight property simplifies transportation and handling, further reducing overall project costs. The conductor is manufactured using high-purity aluminum, ensuring that it meets strict quality standards. The surface of the conductor is treated to enhance its corrosion resistance, making it suitable for use in environments with high humidity, coastal areas with salt-laden air, and industrial regions with chemical pollutants. This treatment significantly extends the lifespan of the conductor, ensuring long-term reliable operation.
3. XLPE Insulation: A Protective Shield
The cross-linked polyethylene (XLPE) insulation surrounding the aluminum conductor is a key feature that sets this cable apart. XLPE is a high-performance polymer that offers a wide range of benefits, making it ideal for insulation purposes in Power Cables. One of the most notable properties of XLPE is its high dielectric strength, which exceeds 20kV/mm. This means it can withstand high voltages without allowing electrical current to leak, ensuring safe and reliable operation in 0.6/1kV to 10kV power networks. This high dielectric strength is crucial for preventing electrical breakdown, which can lead to power outages and safety hazards.
XLPE insulation is also highly resistant to UV radiation, a common problem for cables used in outdoor Overhead Applications. Exposure to sunlight over an extended period can cause other types of insulation to degrade, leading to cracks and reduced performance. However, XLPE's inherent UV resistance ensures that the insulation remains intact and functional even after years of exposure to direct sunlight. Moisture resistance is another important attribute of XLPE. It does not absorb water easily, which prevents the formation of electrical paths that could cause short circuits. This makes the cable suitable for use in humid environments, such as coastal areas, rainforests, and regions with high levels of rainfall. Even in situations where the cable is exposed to water for extended periods, the XLPE insulation provides a reliable barrier, ensuring uninterrupted power transmission.
Temperature resistance is yet another strength of XLPE. It can operate efficiently within a wide temperature range, from -40°C in extremely cold climates to 90°C during peak load conditions. This ability to withstand extreme temperatures ensures that the cable performs consistently throughout the year, regardless of seasonal changes. It eliminates the risk of insulation cracking in cold weather or melting in high temperatures, which are common issues with other Insulation Materials. 4. ABC System Integration: Enhancing Safety and Compactness
As part of an Aerial Bundled Cable (ABC) system, this single-Core Cable plays a vital role in creating a safe and compact overhead power distribution network. In an ABC system, multiple cables, including phase conductors and neutral conductors, are bundled together. This bundling offers several advantages over traditional Overhead Lines with separate conductors. One of the primary benefits is enhanced safety. By bundling the conductors, the risk of short circuits caused by contact between conductors is significantly reduced. This is especially important in areas with vegetation, where branches can sway and come into contact with bare conductors. The insulated nature of the ABC system, combined with the bundling, prevents such contact from resulting in short circuits, minimizing power outages and the risk of electrical fires.
The compact design of the ABC system is another advantage. Bundling the conductors reduces the overall size of the overhead line, making it more aesthetically pleasing and reducing the space required on utility poles. This is particularly beneficial in urban and suburban areas where space is limited and maintaining a clean visual environment is important.
Integration into the ABC system also simplifies installation and maintenance. The bundled cables can be installed as a single unit, reducing the time and effort required compared to installing individual conductors. Maintenance tasks, such as inspections and repairs, are also made easier as the bundled conductors are easily accessible and identifiable.
5. Applications: Versatility Across Various Scenarios
The Single Core Aluminum Conductor XLPE Insulated 1X95mm² ABC Cable finds applications in a wide range of scenarios, thanks to its versatile design and impressive performance characteristics.
Suburban areas are one of the primary application areas. With the growing demand for electricity in residential neighborhoods, this cable can efficiently distribute power to hundreds of homes. Its ability to handle high current loads ensures that it can meet the needs of modern households with multiple electrical appliances. The safety features of the ABC system also make it a preferred choice in suburban areas, where the risk of accidental contact with Power Lines is higher due to the presence of children, pets, and recreational activities. Rural regions also benefit greatly from this cable. In rural areas, power distribution networks often cover large distances, and the cable's low power loss ensures that electricity is delivered efficiently to remote locations. The durability of the XLPE insulation and the aluminum conductor makes the cable suitable for rural environments, which may have harsh weather conditions and limited maintenance resources.
Industrial zones are another important application area. Industrial facilities require a reliable and high-capacity power supply to operate machinery and equipment. The 95mm² conductor's current-carrying capacity of up to 250A makes it suitable for powering small to medium-sized industrial units. The cable's resistance to industrial pollutants and extreme temperatures ensures that it can withstand the harsh conditions often found in industrial environments.
Other applications include commercial areas, such as shopping centers, office buildings, and hospitals, where a continuous and reliable power supply is critical. The cable's ability to integrate into the ABC system makes it easy to expand or modify the power distribution network as the needs of these commercial facilities change.
6. Compliance with International Standards
To ensure quality and reliability, the Single Core Aluminum Conductor XLPE Insulated 1X95mm² ABC Cable adheres to various international standards. Compliance with these standards is a testament to the cable's performance and safety.
It meets the requirements of IEC 60502, which is an international standard for power cables with extruded insulation and their accessories for rated voltages from 1kV up to 30kV. This standard specifies the construction, testing, and performance criteria for such cables, ensuring that they are suitable for use in power distribution networks.
The cable also complies with ASTM standards, which are widely recognized in the United States and other countries. ASTM standards cover various aspects of cable manufacturing, including conductor materials, insulation properties, and mechanical strength. Compliance with these standards ensures that the cable meets the high-quality requirements of the North American market and other regions that follow ASTM guidelines.
By adhering to these international standards, the cable provides utilities and project developers with the confidence that it will perform reliably and safely in any application. It also facilitates international trade, allowing the cable to be used in projects around the world without the need for extensive re-testing and certification.
7. Advantages Over Traditional Cables
When compared to traditional overhead power cables, the Single Core Aluminum Conductor XLPE Insulated 1X95mm² ABC Cable offers several distinct advantages.
Reduced power loss is one of the key benefits. The combination of the high-conductivity aluminum conductor and the low-loss XLPE insulation ensures that a minimal amount of power is wasted during transmission. This not only improves the efficiency of the power distribution network but also reduces energy costs for utilities and end-users.
Lower maintenance requirements are another advantage. The durable XLPE insulation and corrosion-resistant aluminum conductor minimize the need for frequent maintenance. Unlike traditional bare conductors, which require regular cleaning, inspection, and replacement due to corrosion and damage, this ABC cable can operate for years with minimal maintenance. This reduces the downtime associated with maintenance activities and lowers the overall cost of ownership.
Enhanced safety is a significant advantage. The insulated design and ABC system integration prevent accidental contact with live conductors, reducing the risk of electrical shock and fatalities. The reduced risk of short circuits also minimizes the occurrence of electrical fires, making the cable a safer option for both urban and rural areas.
Improved aesthetics is an added benefit. The compact and bundled design of the ABC system is less obtrusive than traditional overhead lines with multiple bare conductors. This makes it more acceptable to communities that are concerned about the visual impact of power infrastructure.
8. Conclusion: A Reliable Choice for Modern Power Grids
In conclusion, the Single Core Aluminum Conductor XLPE Insulated 1X95mm² ABC Air Bundled Overhead Power Cable represents a reliable and efficient solution for low-to-medium voltage power distribution. Its high-quality aluminum conductor ensures efficient power transmission with minimal loss, while the XLPE insulation provides excellent protection against various environmental factors.
Integration into the ABC system enhances safety, compactness, and ease of installation. The cable's versatility allows it to be used in a wide range of applications, from suburban neighborhoods to industrial zones. Compliance with international standards ensures that it meets the highest quality and safety requirements.
For utilities and project developers looking to upgrade their power distribution networks or implement new projects, this cable offers a host of benefits that make it a worthwhile investment. Its durability, efficiency, and safety features ensure that it will continue to play a crucial role in modern power grids for years to come.
