Rated Voltage: The rated voltage of this cable is 450/750V, which is carefully set to accurately adapt to the voltage requirements of medium and low-voltage power distribution systems. Among them, 450V can meet the stable power supply of various low-voltage equipment, such as small motors in workshops and air conditioners in office areas; 750V can cope with the transmission tasks of medium-voltage circuits, such as part of the main circuits in factories and power distribution trunks in large buildings. During actual operation, the working voltage of the cable is always stable within the rated voltage range, effectively avoiding safety hazards such as insulation layer breakdown caused by excessive voltage, and ensuring the stability and safety of power transmission.

Conductor Specification: The conductor is made of high-purity stranded copper with a purity of over 99.95%. Such high purity ensures its excellent conductivity, with a conductivity of more than 100% IACS, which can minimize energy loss during current transmission. The cross-sectional area of 80mm² endows the cable with super strong current-carrying capacity. When laid in air, the current-carrying capacity can reach 230-250A. However, the specific current-carrying capacity is affected by factors such as ambient temperature and laying method. When the ambient temperature rises to 40℃, the current-carrying capacity will decrease by about 18% compared with that at 25℃; when multiple cables are laid in parallel through a pipe, the current-carrying capacity decreases by about 25%. Even so, its current-carrying capacity is still sufficient to support the continuous operation of high-power equipment such as large transformers, industrial furnaces, and central air conditioning hosts in high-rise buildings.

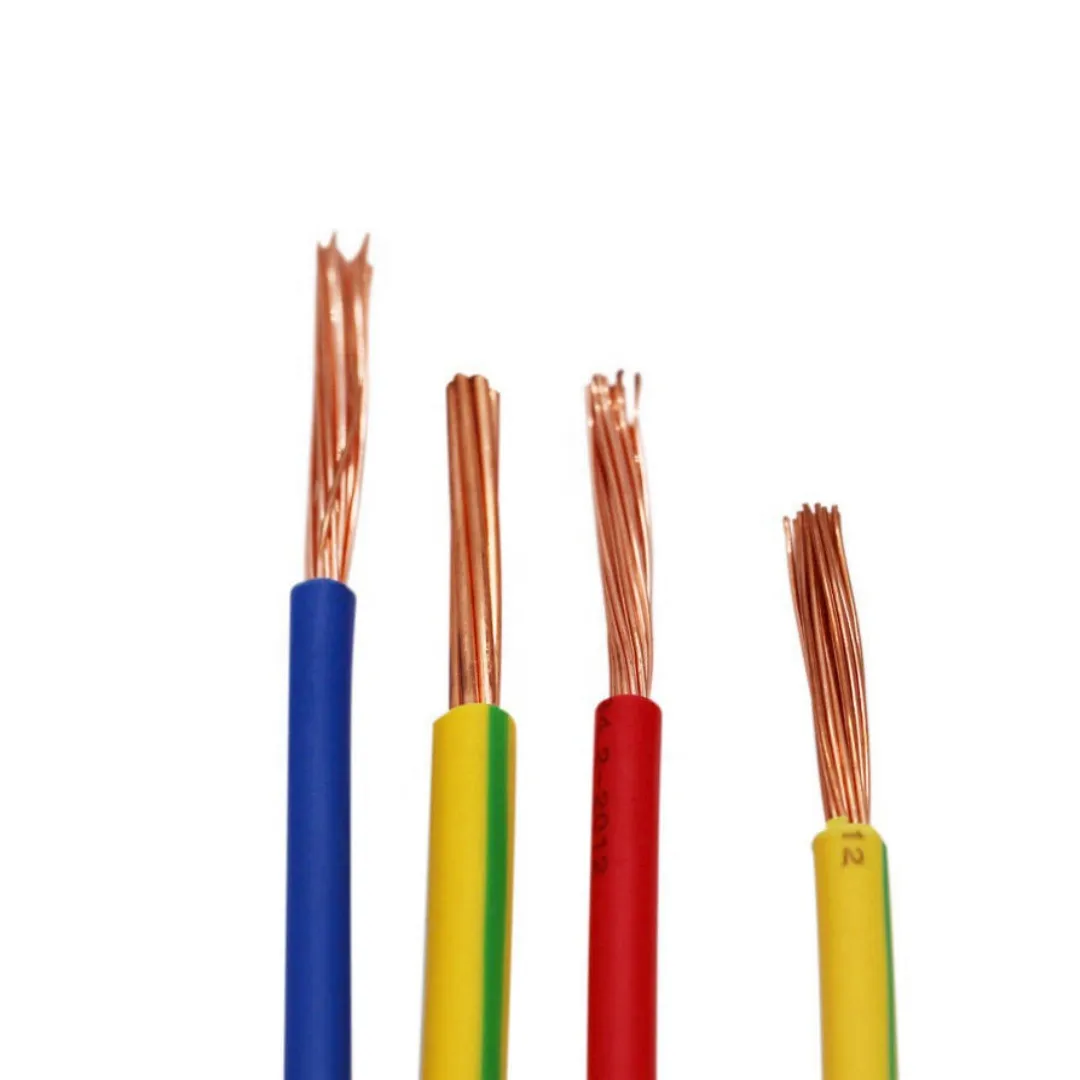

Conductor Structure: The stranded structure of the conductor is composed of more than 300 fine Copper Wires with a diameter of 0.65mm, stranded at a pitch of 25-30mm. This structural design not only greatly improves the Flexibility of the cable, enabling it to easily bend and thread in narrow spaces, facilitating construction operations, but also effectively reduces the loss caused by the skin effect and improves the efficiency of current transmission. At the same time, this structure also enhances the tensile and vibration resistance of the cable, with a tensile strength of ≥210MPa, which can withstand a certain degree of tension and vibration during construction and use, thereby prolonging the service life of the cable.

Insulation Layer Parameters: The insulation layer is made of high-quality weather-resistant PVC material with a thickness of 2.0-2.2mm and an insulation resistance of ≥100MΩ, which can effectively block current leakage and provide a solid guarantee for electrical safety. Its temperature resistance range is -15℃ to 70℃. In low-temperature environments, the cable can maintain good flexibility without embrittlement; in high-temperature environments, the insulation performance remains stable and reliable. The flame retardant grade reaches UL94 V-0, which can self-extinguish quickly when exposed to open fire without dripping, fully meeting strict fire safety standards. In addition, the PVC Insulation layer has good resistance to chemicals such as acids, alkalis, and oils with a concentration of ≤10%, and can adapt to erosion in complex environments such as industrial workshops and chemical parks.

Overall Size: The overall outer diameter of the cable is determined by the conductor diameter and the thickness of the insulation layer, which is about 12-13mm. This size design is reasonable, which not only ensures the stability of the internal structure of the cable but also facilitates laying in narrow spaces such as pipes and cable trays, without increasing the construction difficulty due to excessive outer diameter, thus improving the flexibility of construction.

Length Specification: Common cable lengths on the market include 100 meters, 200 meters, 300 meters, 500 meters, etc., in coiled packaging. They can also be customized according to the special needs of customers, with a maximum customization length of 1000 meters. The length error is strictly controlled within ±0.5% to ensure that the actual length is basically consistent with the marked length, meeting the laying needs of different projects and avoiding waste caused by insufficient or excessive length.

Weight Parameters: The weight of each meter of cable is about 0.8kg, and the weight of a 100-meter-long cable is about 80kg. This weight requires appropriate tools to assist in handling during transportation and installation to improve efficiency and safety.

Industrial Field: In the industrial field, the cable has a wide range of applications. It can be used as the main power distribution trunk of the factory to transmit power from the substation or generator room to various production workshops, providing core guarantee for the power supply of the entire factory. At the same time, it is also suitable for Power Cables of large production lines to supply power to heavy equipment such as rolling mills, injection molding units, and large machine tools. These equipment have large power and long running time, and have high requirements for the current-carrying capacity and stability of the cable. The 80mm² Stranded Copper Conductor PVC Insulated Cable 450/750V can perfectly meet their needs and ensure the continuous production.

Large Commercial Complexes and High-Rise Buildings: In large commercial complexes and high-rise buildings, the cable is suitable for the main line from the distribution room to the floor main distribution box. With the increasing number of electrical equipment in commercial complexes and high-rise buildings, such as central air conditioners, elevators, lighting systems, etc., the demand for electricity is also increasing. The strong current-carrying capacity of this cable can meet the centralized power supply demand of the entire building and ensure the normal operation of various equipment.

Energy Facilities: In terms of energy facilities, the cable can be used for low-voltage outgoing circuits of small and medium-sized Power Stations and substations to transmit power from power generation equipment or substations to the distribution network, realizing effective power distribution. In addition, it can also play an important role in the power supply lines of new energy charging pile clusters. With the popularization of new energy vehicles, the number of charging piles is increasing, and the requirements for power supply lines are also increasing. This cable can provide stable and reliable power support for charging pile clusters.

Outdoor Power Distribution Engineering: In outdoor power distribution projects, such as branch cables for urban power grid transformation and ring network power supply lines in industrial parks, the weather resistance of the cable enables it to operate stably for a long time in complex outdoor environments. Whether it is wind, sun, rain or snow, it will not have a great impact on its performance, ensuring the smooth transmission of outdoor power.

Conductor Material: The conductor is made of high-purity electrolytic copper with a purity of over 99.95%. Electrolytic copper is made by electrolytic refining process, which removes impurities and has extremely high conductivity. This kind of copper not only has high conductivity, which can effectively reduce energy loss during current transmission, but also has good ductility and toughness, which is not easy to break during stranding, ensuring the stability of the conductor structure. At the same time, the surface of electrolytic copper is smooth and not easy to oxidize, and can maintain good conductivity during long-term use, prolonging the service life of the cable.

Insulation Layer Material: The insulation layer is made of high-quality weather-resistant PVC material, which is made of polyvinyl chloride resin added with plasticizers, stabilizers, flame retardants and other additives. Weather-resistant PVC material has excellent weather resistance, which can resist the erosion of natural environmental factors such as ultraviolet rays, wind and rain, and prolong the service life of the cable. At the same time, it has good insulation performance, mechanical strength and flame retardant performance, which can effectively ensure the safe operation of the cable.

Style Design: The cable is cylindrical in shape with a smooth and flat appearance. The insulation layer adopts standard colors such as black or gray, which not only conform to industry practices but also have good dirt resistance, so they are not easy to get dirty when used in outdoor and industrial environments. The cable is packaged in coils, and the reel is made of high-strength plastic. The inner diameter of the reel is 100-120mm, and the outer diameter depends on the length of the cable. For example, the outer diameter of the reel for a 100-meter-long cable is about 500mm. There are baffles at both ends of the reel to prevent the cable from loosening during storage and transportation and protect the cable from damage.

Copper Smelting and Drawing: First, high-purity copper raw materials are put into a melting furnace for smelting. The smelting temperature is controlled at 1100-1200℃ to remove impurities in the copper, and copper water with a purity of more than 99.95% is obtained. The copper water is made into copper rods with a diameter of 8mm through continuous casting process. After cooling, the copper rods enter the wire drawing process. During the drawing process, the copper rod is gradually drawn through multiple wire drawing dies with different apertures, and finally made into fine copper wires with a diameter of 0.65mm. The drawing speed is controlled at 8-10m/s, and the mold is cooled by water at the same time to ensure that the diameter of the copper wire is uniform, the surface is smooth, and there are no scratches, cracks and other defects. The drawn copper wire is annealed at 400-450℃ for 2-3 hours to eliminate the internal stress generated during the drawing process and improve the flexibility and ductility of the copper wire.

Conductor Stranding: More than 300 fine copper wires with a diameter of 0.65mm are stranded at a pitch of 25-30mm by stranding equipment. The stranding equipment adopts a multi-head stranding machine, which can accurately control the tension of each copper wire to ensure that the Stranded Conductor has a compact and round structure, and the cross-sectional size meets the requirements of 80mm². During the stranding process, the diameter of the conductor is monitored in real-time, and the deviation is controlled within ±0.1mm. After stranding, the conductor is inspected for appearance to ensure that there are no loose strands, broken wires and other phenomena.

Insulation Layer Extrusion: The extrusion molding process is used to wrap the PVC insulation layer on the outer layer of the stranded conductor. First, high-quality weather-resistant PVC particles are added into the hopper of the extruder and heated to melt, with the melting temperature controlled at 160-180℃. The molten PVC material is evenly coated on the surface of the conductor through the die of the extruder. The size of the die is determined according to the thickness of the insulation layer and the diameter of the conductor to ensure that the thickness of the insulation layer reaches 2.0-2.2mm. The extrusion speed is matched with the traction speed of the conductor, controlled at 5-8m/min to ensure that the insulation layer is uniform. The extruded cable is cooled in a cooling water tank to make the insulation layer solidify quickly.

Quality Inspection: Strict quality inspection procedures are set up in each link of the production process. After copper wire drawing, parameters such as diameter, tensile strength and elongation of the copper wire are tested; after conductor stranding, DC resistance, cross-sectional area and appearance of the conductor are tested; after insulation layer extrusion, thickness, insulation resistance, voltage resistance performance and flame retardant performance of the insulation layer are tested. The finished cable also needs to undergo bending test, wear test, aging test, etc. For example, in the withstand voltage test, the cable must not break down under 2500V voltage for 5 minutes; in the bending test, the cable is bent 180 degrees with a radius 6 times the outer diameter of the cable, and after 10 repetitions, the insulation layer has no cracks. Only products that pass all inspection items can leave the factory.

Packaging Materials: The cable uses high-strength plastic reels as the main packaging material. The plastic reels are made of polypropylene (PP), which has the characteristics of compression resistance, drop resistance and corrosion resistance, and can bear the weight of the cable and the impact force during transportation. The two ends of the reel are provided with metal flanges to enhance the strength of the reel. For coiled cables, first wrap a layer of moisture-proof paper, which has good moisture-proof performance and can effectively prevent the cable from getting damp. Then wrap with plastic film, which not only plays a dust-proof role but also fixes the cable on the reel to prevent the cable from loosening. For cables with longer length and larger weight, a wooden frame is also put on the outside of the reel to further protect the cable from damage during transportation.

Packaging Method: The cable is neatly wound on the plastic reel, and each layer must be tightly arranged without crossing or twisting. After winding, wrap the outer layer of the cable with moisture-proof paper, and the overlapping width of the moisture-proof paper is not less than 50mm to ensure the moisture-proof effect. Then wrap the plastic film from one end of the reel to the other end, keeping appropriate tension during winding to make the plastic film closely fit the cable. On the obvious position of the package, labels are used to mark the product name, model, specification (80mm², 450/750V), length, production date, batch number, execution standard, manufacturer name and contact information. For cables packaged with wooden frames, the frame and the reel are fixed with bolts to prevent the reel from shaking in the frame.

Packaging Marks: In addition to basic product information, the package also prints some warning marks, such as "Keep Away from Fire", "Moisture-Proof", "Handle with Care", "Stacking Limit", etc. The "Stacking Limit" mark indicates the maximum number of layers that the packaged cables can be stacked, usually no more than 2 layers, to prevent the lower package from being damaged by pressure. The marks are printed with sun-resistant and wear-resistant ink to ensure that they do not fade or blur during outdoor storage and long-distance transportation and are clearly readable.

Transportation Methods: According to the customer's geographical location and order quantity, select the appropriate transportation method. For short-distance transportation (such as within a radius of 500 kilometers), road transportation is adopted, and van trucks with rainproof and sun-proof facilities are selected. The bottom of the truck's carriage is paved with moisture-proof wooden boards to prevent the cables from getting damp. For long-distance transportation, railway transportation or water transportation is adopted. Railway transportation uses container transportation, and the container is kept dry and clean; water transportation stores the cables in the cabin, away from water sources and corrosive substances, and takes good fixing measures to prevent the cables from shaking and colliding during navigation. For emergency orders, air transportation can be adopted, which is fast and can ensure that the products are delivered to customers in the shortest time, but the transportation cost is relatively high.

Transportation Precautions: During transportation, the cables should avoid severe collision, extrusion, exposure to the sun and rain. When loading, the cable reels should be placed horizontally, with the axis consistent with the driving direction of the vehicle, avoiding stacking too high. When stacking, wooden boards are placed between the upper and lower reels to prevent mutual extrusion. For cables packaged with wooden frames, the frames are fixed on the transport tool with steel wire ropes or fastening belts to ensure that they do not shift during transportation. During transportation, the cable should be avoided from contact with sharp objects to avoid damaging the insulation layer and packaging. At the same time, the temperature of the transportation environment should be controlled between -20℃ and 50℃, and the relative humidity should not exceed 85% to avoid extreme temperatures and humid environments affecting the performance of the cable.

Transportation Tracking: The company cooperates with professional logistics companies to provide customers with full transportation tracking services. Customers can query the transportation location, transportation status and estimated arrival time of the cable by entering the waybill number through the logistics query system on the company's official website or the customer service hotline of the logistics company. If abnormal situations such as traffic jams and bad weather are encountered during transportation, the logistics company will timely communicate with customers and the company, explain the situation and adjust the transportation plan to ensure that the cables can arrive on time.

Delivery Process: After receiving the customer's order, the sales department first conducts order review to confirm whether the product model, specification, quantity, delivery date, delivery address and other information are accurate. After passing the review, the order information is transmitted to the warehouse department. Warehouse personnel retrieve the corresponding cables from the inventory according to the order information, conduct quantity checking and appearance inspection to ensure that the cable packaging is intact, the logo is clear and there is no damage. After goods preparation is completed, warehouse personnel transport the cables to the delivery area and notify the logistics department to arrange transportation. The logistics department connects with the logistics company to determine the transport vehicle and transport route, and go through relevant transport procedures. Before delivery, the sales department notifies the customer of the delivery information (including logistics company name, waybill number, estimated arrival time, etc.) via SMS, email, etc., so that the customer can prepare for receipt.

Delivery Time: For products in stock, delivery is completed within 2-3 working days after order confirmation; for products that need customized lengths, production and delivery are completed within 7-10 working days according to the customized length and quantity. During the peak delivery period, the company will arrange production and stock up in advance, increase inventory to ensure timely delivery without delaying the customer's project progress.

Delivery Inspection: Before delivery, quality inspectors conduct a final inspection of the cables, including appearance quality (whether the insulation layer is damaged or scratched, whether the color is uniform, etc.), whether the marks are clear and complete, and whether the length meets the requirements. At the same time, some cables are randomly selected for electrical performance testing, such as insulation resistance testing and DC resistance testing, to ensure that the product quality meets relevant standards. Only products that pass the inspection can be shipped, preventing unqualified products from entering the market.

Sample Provision: To enable customers to better understand the performance and quality of the product, the company provides sample services. Customers can apply for samples from the company, specifying the required specifications, quantity and purpose of the samples, usually 1-2 meters. The production process and quality standards of the samples are consistent with those of bulk products, which can truly reflect the actual situation of the products, allowing customers to have an intuitive understanding of the products before purchasing.

Sample Fees: The samples themselves are provided free of charge, but the transportation cost of the samples is borne by the customer. Customers can choose to pay the freight by cash on delivery or pay the freight to the company in advance, and the company will arrange the transportation on their behalf. If the customer places a bulk order within 3 months after receiving the sample, the transportation cost of the sample can be deducted from the payment for goods, saving costs for the customer.

Sample Delivery: After the samples are prepared, they will be sent to customers by express within 1-2 working days. The samples are packaged in small plastic reels or sealed bags, with the product name, specification and sample logo marked on the package. The company will promptly inform the customer of the express tracking number to facilitate the customer to track the logistics information of the sample and ensure that the sample can be delivered smoothly.

Quality Assurance: The company provides a 3-5 year quality guarantee period for the 80mm² stranded copper conductor PVC insulated cable 450/750V, and the specific guarantee period depends on the use scenario of the product. For cables used in industrial environments, the quality guarantee period is 3 years; for cables used in relatively stable environments such as commercial buildings and energy facilities, the quality guarantee period is 5 years. During the quality guarantee period, if the failure or damage is caused by the product's own quality problems (such as substandard conductivity of the conductor, aging and cracking of the insulation layer, non-compliant flame retardant performance, etc.), the company will provide free repair or replacement services for the customer.

After-sales Service Response: The company has set up a special after-sales service department, equipped with professional technical personnel and customer service personnel, providing 24-hour after-sales service hotline and online customer service support. Customers can contact the after-sales service department by phone, email, online customer service, etc. when encountering any problems during use. After receiving the customer's feedback, the after-sales service personnel will respond within 1 hour to understand the details of the problem; for problems requiring technical support, they will arrange technical personnel to answer or propose solutions within 24 hours; for problems requiring on-site handling, they will dispatch technical personnel to the site within 48-72 hours according to the distance from the customer's location.

Technical Support: The company provides professional technical support services for customers, including product selection consultation, installation guidance, use and maintenance training, etc. In the stage of customer's project design, technical personnel can recommend suitable cable models and specifications for customers according to factors such as the project's power load and environmental conditions; during the installation process, technical personnel can provide on-site guidance to ensure that the installation meets the specifications and requirements, avoiding safety hazards caused by improper installation; after the cable is put into use, the company will regularly conduct return visits to understand the use of the cable and provide maintenance suggestions to extend the service life of the cable.

Complaint Handling: If customers have complaints about the product or service, the after-sales service department will record and handle them in a timely manner. The handling process will be fed back to the customer regularly, and the problem will be solved within 7 working days. The company takes customer complaints seriously, summarizes and analyzes the causes of complaints, and continuously improves product quality and service level to avoid similar problems from happening again.
