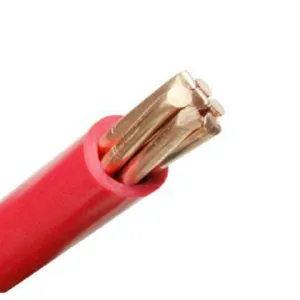

The H07z-K Low Smoke Zero Halogen (LSZH) cable is a high-performance cable specifically designed for industrial installation scenarios. With a cross-sectional area of 25mm², stranded copper conductor, and rated voltage of 450/750V, it can meet the power transmission needs of medium to high-power equipment in industrial environments. Fully compliant with IEC 60754-1 and IEC 61034 standards, it excels in safety, environmental protection, and reliability.​ In terms of core structure, the conductor of this cable adopts a multi-strand stranded copper wire design. The 25mm² cross-sectional area is achieved through a precisely calculated combination of the number and diameter of copper wires. The stranding process not only enhances the flexibility of the cable, making it easy to bend and thread through pipes in the complex wiring environment of industrial workshops, but also improves the mechanical strength of the conductor, enabling it to withstand slight stretching and vibration during installation and long-term use. The high-purity copper conductor (purity ≥99.95%) ensures excellent conductivity, allowing efficient current transmission under rated voltage, reducing line losses, and ensuring the stable operation of industrial equipment.​ The insulation layer and sheath are made of LSZH materials, which is the core advantage distinguishing it from traditional PVC cables. LSZH materials do not release toxic hydrogen halide gases or large amounts of smoke when burned, which can significantly reduce the risk of casualties in fires and minimize corrosive damage to equipment. They are particularly suitable for enclosed environments such as industrial plants with limited ventilation and underground facilities. In addition, this material also has good temperature resistance (long-term operating temperature from -40℃ to 90℃), oil resistance, and chemical corrosion resistance, which can resist erosion from common oil stains, dust, and chemical reagents in industrial environments, extending the service life of the cable.​ In terms of electrical performance, the rated voltage of 450/750V makes it suitable for scenarios such as power circuits, motor connections, and distribution cabinet wiring in industrial fields, and can be adapted to various equipment such as small and medium-sized motors, pumps, and production line control systems. Compliance with IEC 60754-1 (test standard for halogen acid gas emission) and IEC 61034 (test standard for cable smoke density) means that the cable has passed strict environmental and safety tests: the halogen acid gas emission is ≤5mg/g, and the smoke density light transmittance is ≥60%, fundamentally solving the problem of "secondary disasters" of traditional halogen-containing cables in fires.​ In practical applications, the 25mm² H07z-K cable has a current-carrying capacity of approximately 85A (when laid in air, 30℃ environment), which can meet the power supply needs of three-phase equipment (380V) with a power of about 18kW. It is widely used in industrial places with strict safety and environmental protection requirements, such as automobile manufacturing workshops, chemical factories, data center computer rooms, and metallurgical production lines. Its UV resistance also allows it to be used in some outdoor industrial areas, and it can resist aging caused by direct sunlight without additional protection.​ In summary, the H07z-K LSZH cable (25mm²) has become an ideal choice for industrial installations that balance safety, efficiency, and environmental protection, thanks to its high-conductivity stranded copper conductor, environmentally friendly LSZH materials, compliant safety performance, and voltage and current-carrying capacity adapted to industrial scenarios. It provides dual guarantees for the stability of industrial production and personnel safety.

600V 12 AWG Thw-Ls copper wire is an excellent low-voltage wire with wide applications. It adopts stranded copper conductor and low-smoke PVC insulation layer, and is available in red, black, blue, white and green colors, playing an important role in various electrical systems.​ In terms of specification parameters, the rated voltage of this wire is 600V, which can meet the power supply needs of most low-voltage electrical equipment. 12 AWG (American Wire Gauge) corresponds to a cross-sectional area of approximately 3.31mm². This specification gives it a strong current-carrying capacity. When the ambient temperature is 30℃, the continuous current-carrying capacity can reach about 20A, which can be adapted to a variety of medium-power electrical equipment. The conductor is made of multiple strands of fine copper wires stranded together, which not only improves the flexibility of the wire, making it easy to bend and lay in complex environments, but also enhances its fatigue resistance and prolongs its service life. At 20℃, the maximum resistance of the conductor does not exceed 5.21Ω/km, ensuring efficient current transmission and low energy loss. The insulation layer is made of low-smoke PVC material with a thickness of about 0.8-1.0mm, which has good electrical insulation performance. The insulation resistance is greater than 100MΩ·km at room temperature, which can effectively isolate current and prevent leakage and short circuits. At the same time, the low-smoke PVC material emits less smoke and low toxic gas when burned, meeting environmental protection and safety requirements. The outer diameter of the wire is about 4.5-5.0mm, which is suitable for conventional wire tubes and installation spaces, making construction convenient. Its operating temperature range is usually -15℃ to 90℃, and it can maintain stable performance in a wide temperature range.​ In terms of characteristic uses, this wire has a wide range of application scenarios due to its various colors and excellent performance. In the field of industrial control, it can be used as signal transmission lines and control lines for automation equipment. Different colors are convenient for distinguishing different circuits, reducing the risk of wiring errors. In commercial buildings, it is suitable for wiring of lighting systems and socket circuits. Its low-smoke characteristic can reduce smoke hazards in fire in crowded places. In residential decoration, it is often used as power supply lines for household appliances, such as refrigerators, washing machines, TVs, etc. A variety of colors facilitate the distinction between live wires, neutral wires and ground wires, improving electrical safety. In the field of ships and rail transit, due to its low-smoke and environmental protection characteristics, it can be used as wiring for internal electrical systems to meet safety requirements in special environments. In addition, it can also operate reliably in emergency power supply systems, communication equipment power supply and other scenarios to ensure stable power supply for equipment.​ In terms of materials, the stranded conductor is made of high-purity electrolytic copper with a purity of more than 99.9%, which has excellent conductivity, can transmit current efficiently and reduce energy loss. At the same time, copper has good ductility and toughness, making the stranded conductor structure stable and not easy to break. The insulation layer is made of low-smoke PVC material, which in addition to good insulation performance, also has wear resistance, acid and alkali corrosion resistance and other characteristics, and can adapt to a variety of complex environments. Low-smoke PVC produces low smoke concentration when burned, with high light transmittance, which is helpful for personnel evacuation and rescue work in case of fire, and releases less toxic gas, which can reduce harm to human body and equipment. The insulation layers of various colors are made with special formulas, with bright colors that are not easy to fade, in line with industry identification specifications, and convenient for circuit identification and maintenance.​ In terms of production process, the wire is made through multiple strict processes. First, copper wire drawing, drawing high-purity copper rods into fine copper wires of required diameter; then stranding, stranding multiple strands of fine copper wires into conductors according to specific processes to ensure uniform and tight stranding; next, insulation layer extrusion, wrapping low-smoke PVC material around the outer layer of the conductor through an extruder, and making into red, black, blue, white, green and other colors according to requirements to ensure uniform thickness and smooth surface of the insulation layer; then cooling and solidification to shape the insulation layer; then spark test to detect the integrity of the insulation layer to ensure no pinholes, cracks and other defects; finally, taking up, cutting and packaging. Each process has strict quality control to ensure that the products meet relevant standards.​ In terms of general information, the packaging adopts reels or cartons according to different lengths, and the outer layer is wrapped with moisture-proof plastic film to prevent moisture and dust during transportation and storage. During transportation, severe collision, exposure to sunlight and extreme temperatures should be avoided to prevent damage to the insulation layer. A comprehensive quality inspection will be carried out before delivery to ensure that the products are qualified. The manufacturer provides sample services to facilitate user testing and adaptation. In terms of after-sales service, a 1-3 year warranty period is provided. A professional technical team can provide installation guidance and technical support. If there are quality problems, they will be handled in a timely manner to ensure the safety and rights of users.

This product is a 2.5mm² polyvinyl chloride (PVC) insulated stranded copper wire, featuring a multi-strand stranded conductor design that offers excellent electrical conductivity and mechanical strength. The conductor is made of high-purity electrolytic copper, which, after stranding, not only reduces the hardness of the wire for easier bending and installation but also enhances its tensile resistance, making it suitable for frequent movement or vibration in complex wiring environments. The insulation layer is made of high-quality PVC material, which has good insulation performance, corrosion resistance, and weather resistance. It can effectively prevent current leakage and ensure electrical safety. This insulation layer can work stably in an ambient temperature range of -15℃ to 70℃, applicable to indoor dry places, humid environments, and some industrial scenarios, meeting the electricity needs of households, commercial buildings, small industrial equipment, etc. The product has a rated voltage of 300/500V and complies with the International Electrotechnical Commission (IEC) 60227 standard. This standard strictly regulates the conductor structure, insulation thickness, voltage resistance, mechanical properties, etc., ensuring that the product quality meets international general standards with wide compatibility and interchangeability. The wire is available in four colors: red, blue, yellow, and green. Each color corresponds to different electrical functions, facilitating the distinction between live wires, neutral wires, ground wires, etc., reducing the risk of misoperation during wiring and improving the efficiency of circuit maintenance. Among them, yellow and green are usually used for ground wires, while red and blue are mostly used for live wires or neutral wires, in line with the general color coding specifications in the electrical industry. In terms of application scenarios, the 2.5mm² wire diameter provides a moderate current-carrying capacity, which can carry high-power electrical equipment such as air conditioners, electric water heaters, microwave ovens, etc., and is also suitable for indoor power distribution lines such as lighting systems and socket circuits. The combination of the stranded conductor structure and PVC insulation layer gives it good flexibility during installation, allowing it to easily pass through narrow spaces such as walls and pipes, reducing construction difficulty. In addition, the product undergoes strict quality inspection during production, including conductor resistance testing, insulation resistance testing, voltage resistance testing, aging testing, etc., to ensure that each batch of wires meets the standard requirements. The selection of high-quality materials and process control ensures a long service life of the wire, reducing the cost of later replacement and maintenance, and providing reliable electrical connection guarantees for users. To sum up, this 2.5mm² PVC insulated stranded copper wire, with its excellent performance, international standard-compliant quality, diverse color options, and wide applicability, becomes an ideal choice for indoor and outdoor low-voltage power distribution systems. It can not only meet the safety needs of household and commercial electricity use but also adapt to basic wiring requirements in industrial scenarios.

The low smoke zero halogen cable (400 Mcm stranded copper conductor polyolefin insulation 600V) is an excellent cable product in terms of safety and performance. With its unique materials and structure, it plays an important role in various scenarios with high safety requirements.​ In terms of specification parameters, 400 Mcm (thousand circular mils) corresponds to a cross-sectional area of approximately 202mm². The conductor is composed of multiple strands of copper wires twisted together. This multi-strand structure enhances the flexibility of the cable, making it easier to bend during wiring and able to adapt to complex installation environments. At 20°C, its maximum DC resistance does not exceed 0.039Ω/km, with excellent conductivity, which can effectively reduce energy loss during current transmission. The rated voltage of the cable is 600V, which meets the standards of low-voltage power distribution systems. It has a wide long-term operating temperature range, usually between -40°C and 90°C, and can operate stably in cold or high-temperature environments. The short-term overload temperature can reach 130°C, coping with sudden high-load situations. In addition, its insulation layer thickness is about 1.5mm, and the overall outer diameter is about 18mm, which can be adapted to conventional wiring pipes, meeting the installation needs of different scenarios.​ In terms of materials, the conductor is made of high-purity stranded copper with a purity of more than 99.95%, ensuring good conductivity. At the same time, the stranded structure improves the fatigue resistance and mechanical strength of the cable, making it not easy to break in environments with frequent vibration or bending. The insulation layer is made of polyolefin material, which has the characteristics of low smoke and zero halogen. When burned, it will not release toxic and harmful halogen gases and a large amount of smoke, which can effectively reduce the harm to personnel and equipment in case of fire. The polyolefin insulation layer also has excellent chemical corrosion resistance, weather resistance, and insulation performance, with a volume resistivity greater than 1×10¹⁴Ω·cm, which can effectively block current, prevent electric leakage accidents, and maintain stable performance in harsh environments such as humidity and dust.​ In terms of characteristic uses, due to its low smoke and zero halogen characteristics, the cable is widely used in places with extremely high safety requirements. In high-rise buildings, it can be used as the power supply line for emergency lighting and fire protection systems. In case of fire, it can reduce the generation of smoke and toxic gases, striving for valuable time for personnel evacuation and fire rescue. In enclosed spaces such as subways and tunnels, the cable can reduce the risk of fire and ensure the safe operation of the transportation system. In key areas of hospitals such as operating rooms and intensive care units, its safety performance can ensure that medical equipment can supply power stably in any case without affecting the development of medical work. In addition, the cable also plays an important role in places with dense personnel or precision equipment such as data centers, nuclear power plants, and large shopping malls, providing reliable guarantee for power transmission.​ At the same time, due to its excellent high and low temperature resistance, the cable is also suitable for some special outdoor environments, such as outdoor distribution lines in cold areas and internal wiring in high-temperature workshops. Its good flexibility also makes it widely used in scenarios with vibration such as ships and rail transit, which can adapt to the vibration generated during equipment operation and ensure the continuous supply of electricity.​ In conclusion, the low smoke zero halogen cable (400 Mcm stranded copper conductor polyolefin insulation 600V), with its excellent safety performance, good conductivity, and wide environmental adaptability, has become an ideal choice for various scenarios with high requirements on safety and performance, providing a solid guarantee for the safe and stable power transmission.
