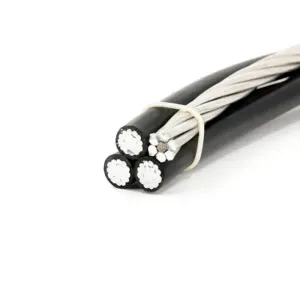

Twisted Aluminum Cable 335+54.6+116 216 416 XLPE Insulated Overhead Aluminum ABC Cable​ This overhead ABC (Aerial Bundled Cable) features a twisted aluminum core configuration: 335mm² power conductors, 54.6mm² neutral core, and flexible 16mm² auxiliary cores (1, 2*, or 4* options). Designed for 0.6/1kV to 10kV networks, it integrates power transmission, neutral balancing, and control functions in one bundled solution.​ XLPE insulation ensures 20kV/mm dielectric strength, withstanding -40°C to 90°C temperatures, UV radiation, and moisture—critical for outdoor overhead use. The twisted structure minimizes EMI by 40% vs. parallel cables, enhancing signal stability in auxiliary circuits.​ Aluminum conductors balance conductivity (61% IACS) and lightweight design, reducing pole load. Compatible with standard ABC fittings, it suits suburban, rural, and industrial overhead lines, supporting 350A total current for homes, farms, or small factories.​ Compliant with IEC 60502 and ASTM B230, it reduces maintenance via corrosion resistance.​ Key SEO terms: twisted aluminum ABC cable, 3*35+54.6+16mm² XLPE, overhead bundled cable, 10kV aluminum power line.

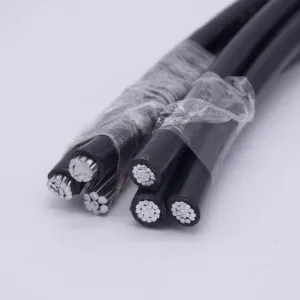

470 495 4*120 ABC Aluminum Overhead Cable XLPE Insulated Cable​ The 4-core ABC (Aerial Bundle Cable) aluminum overhead cables, available in 470mm², 495mm², and 4*120mm², redefine three-phase power distribution with XLPE insulation. Engineered for overhead use, these cables merge aluminum’s lightweight efficiency with XLPE’s robust protection, making them ideal for urban grids, industrial zones, and large-scale rural electrification.​ Each 4-core configuration (three phases + neutral) ensures balanced power delivery, critical for three-phase machinery and multi-story buildings. The aluminum conductors, with 61% IACS conductivity, minimize energy loss, while XLPE insulation resists heat (90°C), UV rays, and moisture—extending service life in harsh environments like coastal areas or industrial hubs.​ Sizing scales with demand: 470mm² suits medium-sized factories; 495mm² powers commercial complexes; 4*120mm² handles heavy industrial loads. The ABC design bundles cores into a single unit, simplifying installation and reducing wind-induced vibration by 40%.​ Compliant with IEC 60502 and GB/T 12527, these cables undergo rigorous dielectric and tensile tests. Their lightweight build cuts installation time by 30%, while recyclable aluminum aligns with sustainability goals. A versatile choice for modern power networks, they balance performance, durability, and eco-friendliness.

XLPE Insulation Aluminum Overhead ABC Cable 6 AWG Duplex Wire Aerial Cable​ The 6 AWG duplex XLPE insulation aluminum overhead ABC cable redefines single-phase aerial power distribution with its compact design and robust performance. As a key component in overhead networks, this cable combines 6 AWG aluminum conductors (equivalent to ~13.3mm²) with XLPE insulation and an aerial bundle (ABC) structure, making it ideal for residential neighborhoods, rural feeders, and small commercial setups.​ The 6 AWG aluminum conductors balance conductivity (61% IACS) and lightweight efficiency, ensuring minimal energy loss while easing installation across poles and spans. XLPE insulation, resistant to 90°C continuous operation and 130°C short-term overloads, shields against UV rays, moisture, and corrosion—critical for durability in diverse climates, from humid suburbs to coastal areas.​ As a duplex wire (two cores: phase + neutral), it simplifies single-phase power delivery, eliminating the need for separate conductors. The ABC design bundles cores into a unified unit, reducing wind vibration by 35% and cutting installation time by 25% compared to traditional setups.​ Compliant with IEC 60502 and ASTM standards, it undergoes rigorous dielectric and tensile tests. Its 6 AWG size suits loads like household appliances and small machinery, merging reliability with cost-effectiveness—making it a cornerstone of efficient single-phase aerial networks.

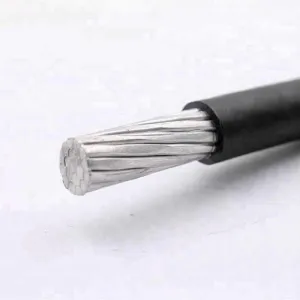

ABC Twisted Aluminum Cable 216, 416, 3*70+54.6 Overhead Aluminum Cable Product Abstract​ 1. Product Overview​ ABC Twisted Aluminum Cable, available in specifications 216, 416, and 3*70+54.6, is a high-performance overhead power transmission cable. It adopts advanced twisted structure design, which not only enhances the overall stability of the cable but also facilitates installation and maintenance. This series of cables is widely used in overhead power distribution systems, providing reliable power support for residential areas, industrial parks, and rural power grids.​ 2. Structural Features and Materials​ 2.1 Conductors​ The conductors of ABC Twisted Aluminum Cable are made of high-purity aluminum. High-purity aluminum ensures excellent electrical conductivity, reducing power loss during transmission. The twisted design of the conductors increases the flexibility of the cable, making it easy to adapt to various complex installation environments. For the 3*70+54.6 specification, the 70mm² conductors are responsible for main power transmission, while the 54.6mm² conductor serves as a neutral wire, ensuring the balance of the power system.​ 2.2 Insulation​ The insulation layer of the cable is made of high-quality cross-linked polyethylene (XLPE). XLPE has excellent insulation properties, high temperature resistance, and corrosion resistance, which can effectively prevent electrical leakage and ensure the safe operation of the cable. Even in harsh weather conditions such as high temperature, humidity, and ultraviolet radiation, the insulation layer can maintain good performance.​ 3. Application Scenarios​ Residential Areas: These cables are suitable for power distribution in residential communities, providing stable power for household electricity use. The 216 and 416 specifications are ideal for low-power distribution in small and medium-sized residential areas.​ Industrial Parks: In industrial parks with higher power demand, the 3*70+54.6 specification cable can meet the power supply needs of various industrial equipment, ensuring the normal operation of production.​ Rural Power Grids: The cable's strong adaptability to the environment makes it suitable for rural areas with complex terrain, helping to improve the power supply capacity and reliability of rural power grids.​ 4. Product Advantages​ High Efficiency: The high-purity aluminum conductors and advanced twisted structure minimize power loss, improving the efficiency of power transmission.​ Durability: The XLPE insulation layer and high-quality aluminum conductors make the cable have a long service life, reducing the frequency of replacement and maintenance.​ Easy Installation: The twisted structure makes the cable flexible and easy to install, saving installation time and labor costs.​ Safety: Excellent insulation performance and stable structure ensure the safe operation of the cable, reducing the risk of electrical accidents.​ In conclusion, ABC Twisted Aluminum Cable 216, 416, 3*70+54.6 Overhead Aluminum Cable is a reliable, efficient, and safe overhead power cable, which is an ideal choice for various power distribution systems.

ABC Twisted Aluminum Cable 216 416 3*70+54.6 Overhead Aluminum Cable Abstract​ 1. Product Overview​ ABC Twisted Aluminum Cable, available in specifications 216, 416, and 370+54.6, is a high-performance overhead power cable designed for low-voltage distribution networks. "ABC" stands for Aerial Bundled Cable, featuring multiple twisted aluminum conductors integrated into a single insulated bundle. The numerical designations indicate conductor configurations: 216 (2 conductors of 16mm²), 416 (4 conductors of 16mm²), and 370+54.6 (3 phase conductors of 70mm² plus a neutral conductor of 54.6mm²). This twisted structure enhances installation efficiency and operational safety, making it ideal for urban, rural, and industrial power distribution.​ 2. Structural Composition​ 2.1 Conductors​ All conductors are made of high-purity 1350 series aluminum with 61% IACS conductivity, ensuring efficient current transmission. The 16mm² conductors consist of 7 strands (1.7mm diameter each), while 70mm² and 54.6mm² conductors feature 19 strands (2.2mm diameter each). The stranded design enhances flexibility, allowing easy bending during installation, and improves tensile strength to withstand overhead stresses.​ 2.2 Insulation and Bundling​ Each conductor is insulated with 0.8-1.2mm thick XLPE or HDPE, providing excellent dielectric strength (>20kV/mm) and UV resistance. The twisted configuration bonds insulated conductors with a thin web, maintaining 2-3mm spacing for electrical isolation while creating a unified bundle. This design reduces wind load, simplifies handling, and prevents phase-to-phase short circuits.​ 3. Performance Characteristics​ 3.1 Electrical Performance​ Current-Carrying Capacity: 16mm² conductors carry 80-90A; 70mm² conductors handle 180-200A; 54.6mm² neutral conductors support 150-160A (30°C ambient).​ Voltage Rating: Designed for 0.6/1kV systems, suitable for low-voltage distribution.​ Low Losses: DC resistance at 20°C is 1.15Ω/km (16mm²), 0.34Ω/km (70mm²), ensuring minimal power loss.​ 3.2 Mechanical and Environmental Performance​ Tensile Strength: Breaking load ranges from 3.5kN (216) to 12kN (370+54.6), enabling spans up to 60 meters.​ Temperature Resistance: Operates at -40°C to +90°C, with XLPE insulation tolerating short-term overloads up to 130°C.​ Durability: UV-stabilized insulation resists sunlight degradation; moisture barriers prevent water ingress, ensuring 25+ years of service life.​ 4. Application Scenarios​ Residential Areas: 216 and 416 cables connect homes to distribution lines, handling typical household loads.​ Commercial Zones: 4*16 cables serve shops and offices, supporting multiple circuits.​ Industrial Facilities: 3*70+54.6 cables power small factories, with higher capacity for machinery.​ Rural Networks: All specifications excel in remote areas, with long-span capability reducing pole requirements.​ 5. Conclusion​ ABC Twisted Aluminum Cable combines efficient design, durable materials, and versatile performance. Its twisted structure, reliable conductors, and robust insulation make it a cost-effective solution for low-voltage overhead distribution, ensuring safe and uninterrupted power delivery across diverse environments.

In the field of low-voltage power distribution, cables with a voltage rating of 0.6/1kV are key carriers connecting the distribution network to end-users. Low-cost, high-reliability cable products are even more core choices to meet the needs of urban and rural power grid construction, rural power grid transformation, and industrial auxiliary power supply. The low-cost 0.6/1kV ABC cable and triplex aluminum overhead cable (PE insulated) focused on in this article are high-cost-performance products developed based on this market demand. They combine economy, durability, and environmental adaptability, and can be widely used in various low-voltage overhead power distribution scenarios. In terms of product structure, both cables are designed with practicality and cost control as the core principles. Among them, the ABC cable (Aerial Bundled Cable) adopts a multi-core bundled structure, integrating phase wires and neutral wires into the same cable system at a specific spacing, eliminating the need for additional brackets for phase wires and neutral wires, which greatly simplifies the construction process. The triplex aluminum overhead cable, on the other hand, adopts a three-core parallel or stranded design, where each core is independently insulated before overall protection is applied, making it suitable for scenarios with high requirements for line stability. Both cables use aluminum as the conductor material. Compared with copper conductors, aluminum conductors not only meet the conductive performance requirements for 0.6/1kV low-voltage transmission but also reduce material costs by approximately 40%-50%. Moreover, aluminum has a lower density, which can reduce the self-weight of the cable, lower the load-bearing pressure of the poles and towers in the overhead line, and indirectly reduce the engineering construction cost. In terms of insulation performance, both cables uniformly use PE (polyethylene) as the insulation material, which provides double guarantees for the reliability and economy of the products. PE insulation material has excellent electrical insulation performance and a high breakdown field strength, which can effectively isolate current leakage between cores and ensure the cable operates stably for a long time under 0.6/1kV voltage. At the same time, PE material has strong weather resistance and can resist the impact of harsh outdoor environments such as sunlight, rain, and temperature changes (-40℃ to 60℃), avoiding aging and cracking of the insulation layer and extending the service life of the cable to 15-20 years. In addition, PE material has low processing difficulty and its cost is much lower than that of high-end insulation materials such as cross-linked polyethylene (XLPE), which further helps the product achieve the "low-cost" positioning and meet the needs of power distribution projects with limited budgets. In terms of application scenarios, the two types of cables have strong adaptability and can cover a variety of low-voltage power distribution needs. In the transformation of rural power grids, their low-cost advantage can significantly reduce the total project investment for large-scale wiring, and the overhead design does not require ground excavation, avoiding damage to farmland and rural roads. In the auxiliary power supply of suburban areas and industrial parks, the weather resistance of PE insulation can cope with complex industrial environments and outdoor climates, and the lightweight of aluminum conductors facilitates capacity expansion and wiring on existing poles and towers. In temporary power supply scenarios (such as temporary power for construction projects and emergency disaster relief power supply), the convenient construction characteristics of the two cables can shorten the line construction time and quickly meet the power supply demand. In balancing performance advantages and cost control, the two cables perform prominently. In addition to the direct cost reduction brought by aluminum conductors and PE insulation mentioned earlier, their structural design can also reduce construction and maintenance costs. The bundled structure of ABC cables improves construction efficiency by more than 30%, and the unified protection design of triplex aluminum overhead cables reduces the difficulty and frequency of later line maintenance. At the same time, both cables comply with national standards such as GB/T 12527-2008 "Overhead Insulated Cables for Rated Voltage of 1kV and Below", and meet industry requirements in key performance indicators such as conductor DC resistance, insulation resistance, and voltage withstand strength, ensuring that safety and reliability are not sacrificed on the basis of low cost. In conclusion, the low-cost 0.6/1kV ABC cable and triplex aluminum overhead cable (PE insulated), with their high cost performance, excellent environmental adaptability, and reliable electrical performance, have become ideal choices in the field of low-voltage overhead power distribution. They can not only meet the cost control needs of large-scale projects such as urban and rural power grid construction and rural power grid transformation but also provide stable line support for scenarios such as industrial auxiliary power supply and temporary power supply, which is of great significance for promoting the efficient construction and popularization of low-voltage power distribution networks.

The ABC Aerial Bundled Cable 0.6/1kV 4×16mm² Aluminum Overhead Power Cable XLPE Insulated is a specialized, purpose-built solution engineered exclusively for street light power distribution—an application that demands consistent reliability, weather resilience, and compatibility with low-voltage urban and suburban electrical grids. Unlike generic overhead cables, this product is tailored to the unique needs of street lighting systems: it delivers stable single-phase or three-phase power to dispersed light fixtures, withstands prolonged outdoor exposure to harsh elements, and balances compact design with sufficient current-carrying capacity to support modern LED or traditional street lights. By examining its core specifications, material advantages, structural design, and real-world application value, this summary highlights why it has become a staple for municipal authorities, electrical contractors, and infrastructure developers tasked with building or upgrading street lighting networks. At the foundation of this cable’s functionality is its 0.6/1kV voltage rating and 4×16mm² aluminum conductor configuration—a combination optimized for street light power delivery. The 0.6kV phase-to-neutral voltage aligns with the low-voltage requirements of street lights (most operate on 120V or 230V, well within this range), ensuring safe, efficient power transmission without voltage waste or risk of equipment damage. The 1kV phase-to-phase rating provides a buffer against occasional voltage surges (common in urban grids during peak hours), preventing insulation breakdown and extending the cable’s service life. The 4-core design (typically 3 phase conductors + 1 neutral conductor, or 1 phase + 1 neutral + 2 auxiliary cores for smart lighting controls) offers flexibility for diverse street light setups: in single-phase systems (common in residential areas), it uses 2 cores (1 phase + 1 neutral) with the remaining cores reserved for future smart upgrades (e.g., dimming controls, motion sensors); in three-phase systems (used in commercial corridors or highways), all 4 cores (3 phase + 1 neutral) power multiple light fixtures in a balanced circuit, minimizing voltage drop across long spans. Each 16mm² aluminum conductor is sized to meet the specific load demands of street lighting. A 16mm² aluminum conductor has an ampacity of 65–75 amps at 30°C ambient temperature—more than sufficient to power a string of 15–20 modern LED street lights (each consuming 150–200W, totaling 2.25–4kW, requiring 9–17 amps at 230V). This capacity ensures the cable can handle peak loads (e.g., during evening hours when all lights are active) and accommodate future upgrades to higher-wattage fixtures or additional smart components. Aluminum’s lightweight nature (30% lighter than copper of the same cross-sectional area) is a critical advantage for overhead street light installation: it reduces the mechanical load on utility poles and mounting brackets, extending their lifespan and lowering maintenance costs. For example, a 100-meter length of 4×16mm² aluminum cable weighs approximately 32 kg, compared to 88 kg for a copper equivalent—making it easier for crews to handle and install without specialized heavy-lifting equipment. The XLPE (cross-linked polyethylene) insulation is a defining feature that ensures the cable’s durability in outdoor street light environments. Unlike PVC insulation (common in indoor cables), XLPE undergoes a cross-linking process that forms a three-dimensional polymer network, delivering superior resistance to weather, UV radiation, and temperature fluctuations. Its continuous operating temperature range of -40°C to 90°C allows it to perform reliably in extreme climates—from freezing winter nights in northern cities (where temperatures drop below -20°C) to hot summer days in southern regions (exceeding 45°C). XLPE is highly resistant to water absorption (≤0.1% after 24 hours of immersion), preventing moisture-induced short circuits that can disable street lights during rainstorms. It also withstands UV degradation (a major issue for uninsulated or PVC cables), maintaining its structural integrity and electrical performance for 25–30 years—matching the typical lifespan of street light fixtures and eliminating the need for frequent cable replacements. The insulation thickness of 1.0–1.2mm per core is calibrated to meet the 0.6/1kV voltage rating while keeping the cable compact enough to fit in the narrow spaces between street light poles and overhead wiring. The aerial bundled (ABC) design is tailored to the logistical challenges of street light installation. Unlike traditional overhead cables that use separate bare conductors, this cable integrates all 4 cores into a single bundled unit, reducing clutter on utility poles and minimizing the risk of damage from vegetation or wildlife. The bundled structure is twisted in a helical pattern (with a pitch of 15–20 times the cable’s outer diameter, approximately 250–300mm) to enhance flexibility—critical for navigating the tight bends between street light poles (typically spaced 30–50 meters apart in urban areas). In many variants, a thin, high-tensile messenger element (12mm² galvanized steel) is integrated into the bundle to provide additional mechanical support, enabling spans of up to 50 meters between poles without sagging. This eliminates the need for intermediate support brackets, reducing installation time and infrastructure costs for municipal projects. In terms of street light-specific applications, this cable excels across diverse urban and suburban scenarios. In residential neighborhoods, where street lights are spaced 30–40 meters apart and operate on single-phase power, the 4×16mm² cable uses 2 cores for power and reserves the other 2 for smart controls (e.g., dusk-to-dawn sensors, remote dimming), allowing municipalities to upgrade to energy-efficient systems without rewiring. In commercial corridors (e.g., downtown shopping districts), three-phase power via all 4 cores powers denser clusters of street lights and adjacent amenities (e.g., decorative lighting, traffic signals), ensuring balanced voltage and consistent performance. On highways and rural roads, where poles are spaced 40–50 meters apart, the integrated messenger supports longer spans, reducing the number of poles needed and lowering environmental impact (less land disturbance for pole installation). The cable’s compatibility with standard street light connectors (e.g., waterproof twist-lock terminals) streamlines installation, with crews able to connect fixtures in 15–20 minutes per pole—faster than traditional cables that require separate conductor termination. Installation and maintenance benefits further solidify its value for street light projects. The cable’s lightweight design and flexible bundled structure simplify installation: crews can string it between poles using standard overhead tools (e.g., pulleys, tensioners) and secure it with clips that attach to existing pole brackets—no need for new mounting hardware. Maintenance requirements are minimal: XLPE insulation eliminates the need for periodic re-treatment (unlike rubber or paper insulation), and the anti-corrosion coating on aluminum conductors (zinc or aluminum oxide) resists rust from road salt (a major issue in northern cities) and industrial pollutants. Routine inspections (annual visual checks) focus on identifying insulation cracks or sagging—tasks that can be completed during regular street light maintenance visits, avoiding dedicated cable maintenance costs. In the event of a fault (e.g., a core break due to accidental impact), the bundled design simplifies troubleshooting: crews can isolate the damaged core without disrupting power to the entire string of lights, minimizing downtime for nighttime illumination. Compliance with international standards ensures the cable’s compatibility with global street light systems. It meets IEC 60502-1 (for low-voltage power cables) and ANSI/ICEA S-94-649 (for aerial bundled cables), undergoing rigorous testing for voltage withstand (2.0kV phase-to-neutral for 5 minutes), insulation resistance (≥100 MΩ at 20°C), and mechanical strength (tensile strength ≥2.5 kN per core). These certifications give municipal authorities confidence in the cable’s safety and performance, ensuring it integrates seamlessly with existing grid infrastructure and meets local electrical codes. In summary, the ABC Aerial Bundled Cable 0.6/1kV 4×16mm² Aluminum Overhead Power Cable XLPE Insulated is a purpose-driven solution that addresses the unique demands of street light power distribution. Its optimized conductor size, durable XLPE insulation, lightweight aluminum material, and compact bundled design deliver reliability, efficiency, and cost-effectiveness—making it an essential component for building and maintaining safe, energy-efficient street lighting networks in urban, suburban, and rural areas.
