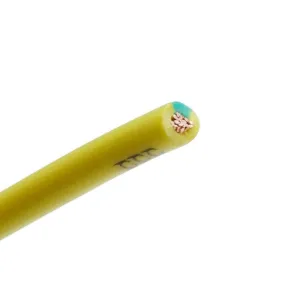

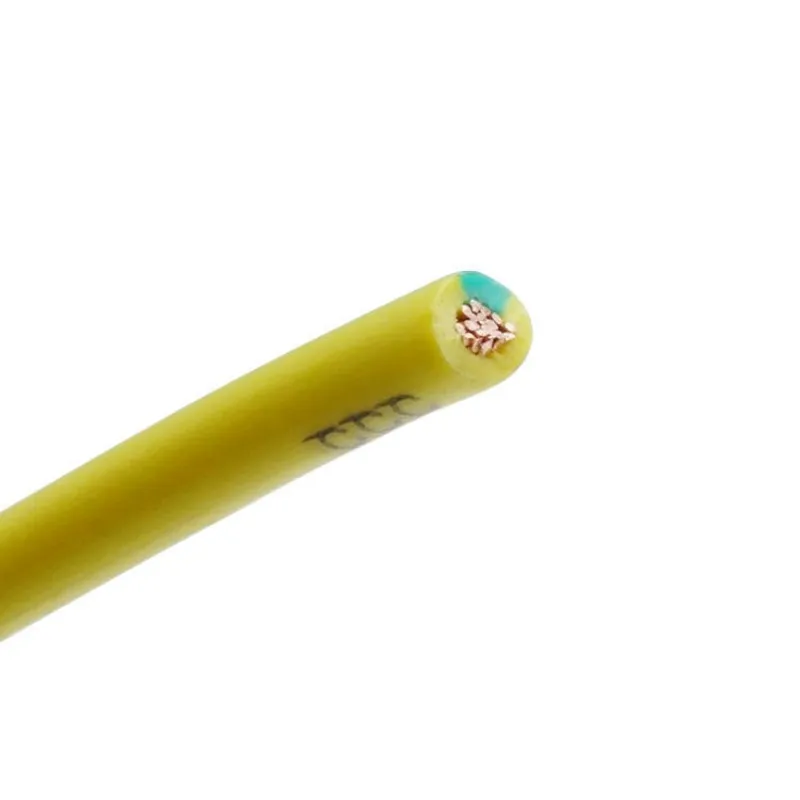

THW-2-LS / THHW-2-LS Stranded Copper Power Cable Introduction In the intricate ecosystem of heating systems, where safety, efficiency, and adaptability are non-negotiable, the THW-2-LS / THHW-2-LS Stranded Copper Power Cable emerges as a cornerstone of reliable electrical connectivity. Engineered specifically for heating applications, this cable combines precision design with robust materials to meet the diverse demands of residential, commercial, and industrial environments. Available in 14, 12, 10, 8, 6, and 4 AWG, featuring 19 strands of high-purity copper, PVC Insulation, and a 600V Rated voltage, it stands as a testament to compliance with stringent THW-2-LS and THHW-2-LS standards. These certifications ensure exceptional performance across dry, damp, and wet conditions, making it a versatile solution for everything from residential thermostats to industrial furnaces. This comprehensive introduction explores the cable’s construction, material science, performance attributes, and real-world applications, highlighting why it has become a trusted choice for professionals seeking uncompromising quality in heating system wiring. At the heart of the THW-2-LS / THHW-2-LS cable lies its 19-strand Copper Conductor—a design that marries conductivity with Flexibility to address the unique challenges of heating system installations. Unlike solid-core conductors, which are rigid and prone to fatigue when bent or routed through tight spaces, the 19-strand configuration consists of multiple thin Copper Wires twisted together. This structure grants the cable exceptional pliability, a critical advantage in heating environments where wiring must navigate around boilers, furnace chambers, underfloor heating mats, and complex ductwork. In residential settings, for example, the 14 AWG variant—with its fine 19 strands—easily snakes through wall cavities to connect thermostats to baseboard heaters or underfloor heating controls. Its flexibility eliminates the risk of kinking, which could compromise electrical flow or damage the insulation. In commercial kitchens, where space is at a premium and heating equipment like ovens and grills are densely packed, the 10 or 8 AWG Cables maneuver around pipes and ventilation systems with ease, ensuring a secure connection without sacrificing performance. Industrial facilities, with their large-scale furnaces and heat exchangers, benefit from the 6 or 4 AWG variants, whose 19 strands balance flexibility with the ability to carry high currents, even when routed through crowded machinery bays. Beyond ease of installation, the stranded design enhances durability by distributing mechanical stress across multiple strands. Heating systems are dynamic environments: pumps vibrate, fans generate constant motion, and thermal expansion/contraction exert pressure on wiring. The 19-strand conductor absorbs these forces, reducing the risk of breakage or fatigue over time. This resilience translates to a longer service life, minimizing maintenance costs and ensuring uninterrupted operation—critical for heating systems that are often the lifeline of residential comfort and industrial productivity.

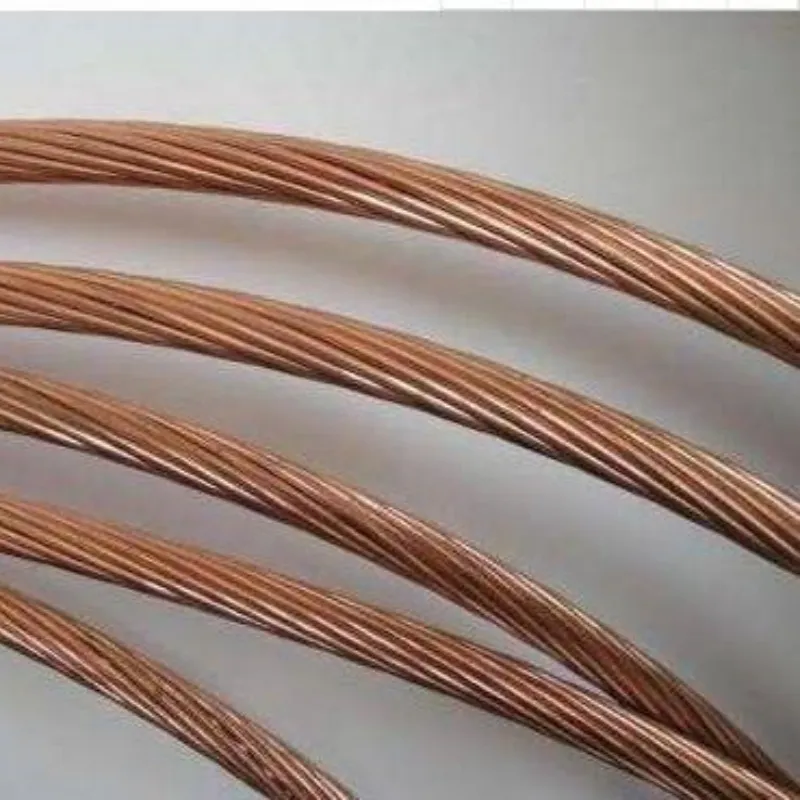

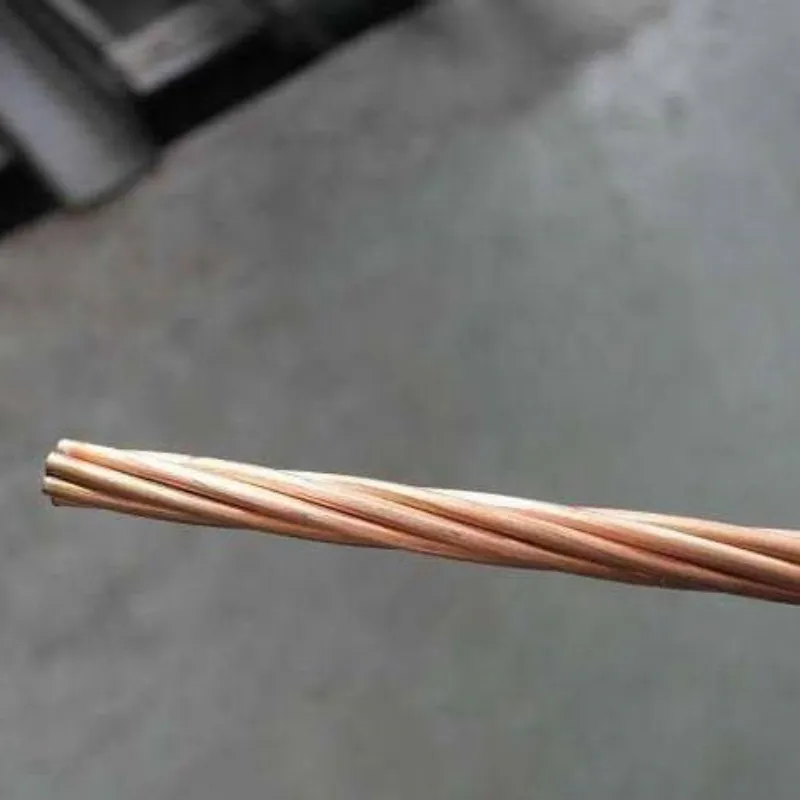

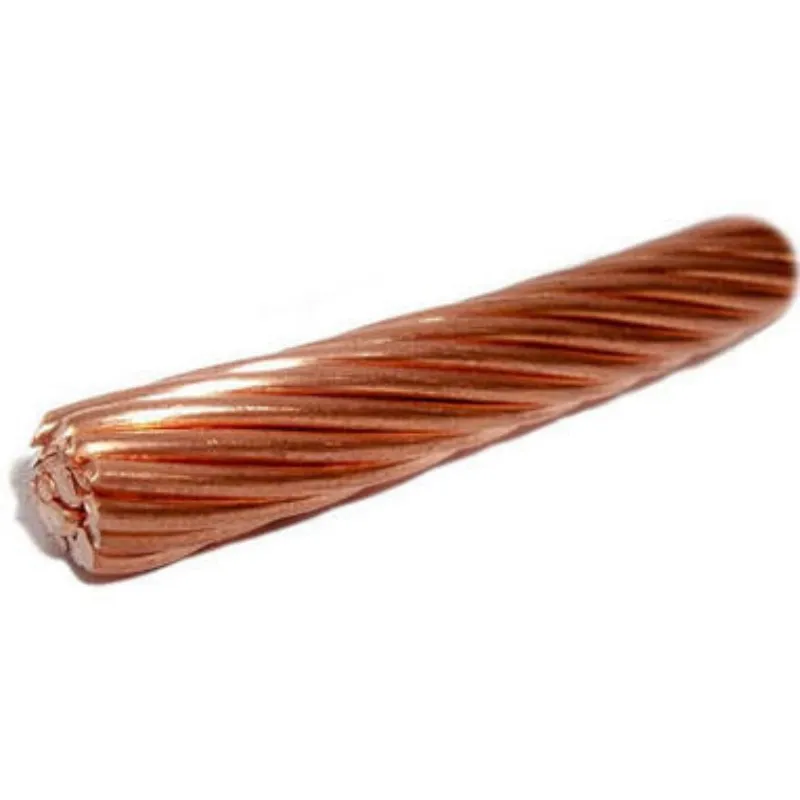

The copper used in the 19 strands is of high purity, a deliberate choice to maximize electrical conductivity. Copper is renowned as an optimal conductor of electricity, with low resistance that ensures efficient power transmission with minimal energy loss. In heating applications, where energy efficiency is paramount, this translates to lower operational costs and reduced environmental impact. Whether powering a small residential boiler or a large industrial furnace, the high-purity Copper Strands ensure that electrical energy is delivered precisely where it is needed, without waste. Moreover, copper’s natural resistance to corrosion—when protected by the cable’s PVC insulation—ensures long-term performance even in the moderately humid conditions common in heating systems. Boiler rooms, for instance, often have elevated moisture levels due to condensation, but the copper strands remain stable, maintaining their conductivity over decades of use. This reliability is further enhanced by the stranded design, which minimizes the impact of any localized corrosion, ensuring that the conductor remains functional even if minor damage occurs to individual strands.
Encasing the 19-strand copper conductor is a robust layer of PVC (Polyvinyl Chloride) insulation, formulated to meet the rigorous demands of THW-2-LS and THHW-2-LS standards. PVC is a tried-and-tested Insulation Material in the electrical industry, valued for its exceptional combination of thermal stability, moisture resistance, and mechanical strength—properties that are indispensable in heating environments. The THW-2-LS designation signifies that the cable is suitable for use in dry, damp, and wet locations, withstanding temperatures up to 90°C in dry conditions and 75°C in wet conditions. This thermal resilience is critical in proximity to heat sources like furnace burners, boiler heating elements, or radiant heating panels, where ambient temperatures can rise significantly. Unlike inferior insulators that may melt, crack, or become brittle under heat, the PVC insulation in these cables retains its integrity, ensuring a reliable barrier between the conductor and the environment.
For wet locations—such as underfloor heating systems installed in concrete slabs, outdoor heating equipment exposed to rain, or industrial washdown areas—the THHW-2-LS certification provides an extra layer of protection. The PVC insulation is engineered to resist water penetration, preventing moisture from reaching the copper conductor and causing short circuits or corrosion. This waterproofing capability is particularly valuable in residential basements with radiant heating, where groundwater seepage or condensation could otherwise compromise wiring safety.
Beyond heat and moisture resistance, the PVC insulation offers robust protection against abrasion, chemicals, and physical impact. During installation, the cable may rub against metal conduit, concrete, or sharp edges of heating equipment, but the tough PVC layer withstands such contact without tearing or puncturing. In industrial settings, where exposure to oils, solvents, or cleaning agents is common, the insulation resists degradation, ensuring the conductor remains shielded. This durability extends the cable’s lifespan, reducing the need for premature replacements and lowering long-term maintenance costs.
The THW-2-LS / THHW-2-LS cable is available in a carefully calibrated range of AWG sizes—14, 12, 10, 8, 6, and 4—each tailored to specific current-carrying requirements. AWG (American Wire Gauge) is a standard system where smaller numbers indicate larger conductors, with higher ampacity (current-carrying capacity). This range ensures that there is a precise solution for every heating application, from low-power residential components to high-load industrial systems.
The 14 AWG and 12 AWG variants are ideal for low to medium-power residential heating systems. The 14 AWG cable, with its 19 fine strands, is perfect for connecting thermostats, small electric baseboard heaters, or the control modules of residential boilers. Its compact size and flexibility make it easy to install in tight spaces like wall cavities or behind furniture, ensuring a neat and unobtrusive setup. The 12 AWG variant steps up to handle slightly higher currents, making it suitable for larger baseboard heaters, water heater elements, or underfloor heating mats in smaller rooms.
Moving to medium-power applications, the 10 AWG and 8 AWG cables cater to commercial heating systems and larger residential equipment. The 10 AWG cable is well-suited for commercial-grade water heaters, mid-sized boilers in apartment buildings, or radiant heating systems in retail spaces. The 8 AWG variant, with its increased conductor size, handles higher currents required by larger boilers, industrial-grade space heaters, or heating zones in hotels and office complexes. Both sizes retain the 19-strand flexibility, ensuring easy installation in commercial construction environments.
At the high-power end, the 6 AWG and 4 AWG cables are engineered for industrial heating applications. The 6 AWG variant powers large industrial furnaces, heat treat ovens, and boiler systems in manufacturing facilities, while the 4 AWG cable handles the most demanding loads, such as those in steel mills, chemical processing plants, or power generation facilities. These larger cables balance their high ampacity with the 19-strand design, ensuring they can be routed through industrial machinery without sacrificing flexibility.
The cable’s 600V rated voltage is a deliberate specification that aligns with the operational needs of most heating systems. Residential heating equipment typically operates at 120V or 240V, while commercial and industrial systems use 240V or 480V. This 600V rating provides a substantial safety margin, ensuring the cable can handle not only nominal voltages but also transient spikes caused by power surges or the cycling of large heating elements. These spikes, if unmanaged, can damage insulation and create fire hazards, but the THW-2-LS / THHW-2-LS cable’s robust design ensures it remains resilient, maintaining safe operation even in fluctuating electrical conditions.
In residential applications, the THW-2-LS / THHW-2-LS cable is the backbone of safe and efficient heating. For example, in a home with a gas boiler, the 14 AWG cable connects the boiler’s control panel to the thermostat, enabling precise temperature regulation. The 12 AWG variant may power the boiler’s ignition system or circulation pump, where slightly higher current is required. In homes with electric underfloor heating, the 10 AWG cable routes power to heating mats installed beneath floors, its moisture resistance and flexibility making it ideal for this challenging environment.
Commercial buildings benefit from the cable’s versatility across diverse heating scenarios. In hotels, the 8 AWG cable connects to boilers serving multiple guest rooms, while the 10 AWG variant powers radiant heating in lobbies and conference spaces. Restaurants rely on the 6 AWG cable for commercial ovens and grills, where high temperatures and heavy use demand a durable wiring solution. The THHW-2-LS certification ensures that in commercial kitchens—where steam, water, and cleaning chemicals are prevalent—the cable remains protected, preventing electrical hazards.
Industrial settings place the highest demands on the THW-2-LS / THHW-2-LS cable, and it rises to the challenge. Manufacturing plants use the 4 AWG and 6 AWG variants to power industrial furnaces for metalworking, where temperatures exceed 1,000°C and current demands are massive. Chemical processing facilities rely on the cable’s Chemical Resistance to connect heating systems for reactors and distillation units, ensuring safe operation in corrosive environments. Wastewater treatment plants use the THHW-2-LS-rated cable in wet areas, where heating systems prevent freezing, with the PVC insulation protecting against water and chemical exposure. Compliance with industry standards is a cornerstone of the THW-2-LS / THHW-2-LS cable’s design. It meets or exceeds requirements set by global bodies such as the International Electrotechnical Commission (IEC) and regional authorities like the National Electrical Code (NEC) in the United States. These standards govern critical aspects including conductor purity, insulation thickness, flame resistance, and ampacity. For example, NEC Article 314 specifies safety criteria for conductors in wet locations, which the THHW-2-LS variant satisfies through rigorous testing. Compliance not only ensures safety but also simplifies inspections and approvals, making the cable a practical choice for projects spanning multiple regions.
Installation of the THW-2-LS / THHW-2-LS cable is designed to be user-friendly, thanks to its 19-strand flexibility and durable insulation. Electricians appreciate how easily it can be stripped, terminated, and routed, even in complex heating systems. The Stranded Copper Conductor is compatible with standard connectors and lugs, ensuring secure, low-resistance connections that minimize energy loss. In residential installations, this ease of use reduces labor time, making the cable a cost-effective option for homeowners. In industrial settings, where time is critical, the cable’s maneuverability helps keep projects on schedule, minimizing downtime for heating system upgrades. Maintenance requirements are minimal, a testament to the cable’s robust construction. Routine inspections should focus on checking the insulation for signs of damage—such as cuts, abrasions, or discoloration—and ensuring connections remain tight. The PVC insulation’s resistance to UV radiation and chemicals means that even in outdoor or industrial environments, the cable retains its protective properties over time. With proper installation and occasional checks, the THW-2-LS / THHW-2-LS cable can provide reliable service for decades, even in the demanding conditions of heating systems.
Sustainability is an increasingly important consideration in modern electrical design, and the THW-2-LS / THHW-2-LS cable aligns with these goals. Copper is one of the most recyclable materials, with a recycling rate exceeding 90% in many regions. At the end of its service life, the cable’s copper strands can be recycled with minimal energy input, reducing environmental impact. Additionally, the cable’s long lifespan minimizes waste from frequent replacements, while its efficient conductivity reduces energy consumption in heating systems. For environmentally conscious builders and facility managers, these factors make it a responsible choice.
In conclusion, the THW-2-LS / THHW-2-LS Stranded Copper Power Cable represents the pinnacle of engineering for heating system applications. Its 19-strand copper conductor delivers exceptional flexibility and conductivity, while the PVC insulation—compliant with THW-2-LS and THHW-2-LS standards—ensures resilience across dry, damp, and wet environments. The range of AWG sizes caters to every power demand, from residential thermostats to industrial furnaces, while the 600V rating provides a critical safety margin. Backed by global certifications and a focus on durability, this cable offers peace of mind to professionals and end-users alike, ensuring safe, efficient, and reliable heating system operation. Whether in a small home, a bustling hotel, or a large factory, the THW-2-LS / THHW-2-LS cable stands as a vital component that connects performance, safety, and sustainability in the world of heating.
