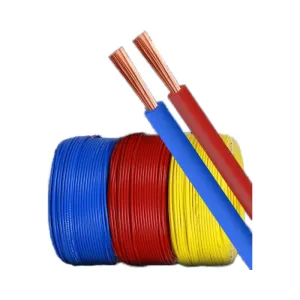

Detailed Introduction to PVC Insulated Copper Electrical Wire (2.5-16mm², 450/750V, for Home/Industrial Use)
I. From the Perspective of the Product Itself
(1) Specification Parameters
The PVC insulated
Copper Electrical Wire (2.5-16mm², 450/750V) has rich and precise specification parameters, providing a solid foundation for its application in different scenarios.
In terms of cross-sectional area, the wire covers various specifications such as 2.5mm², 4mm², 6mm², 10mm², and 16mm². The 2.5mm² wire has a conductor composed of multiple strands of
Copper Wire twisted together, with a single strand diameter of approximately 0.26mm, showing good
Flexibility overall. This specification has a current-carrying capacity of about 25 amperes, which can meet the power needs of small household appliances such as lighting fixtures, TVs, and refrigerators in homes, and is a common choice for lighting and ordinary socket circuits in home decoration.
The 4mm² wire has a slightly larger single strand diameter of about 0.32mm, with a current-carrying capacity of up to 32 amperes. It is sufficient to support the operation of medium-sized appliances such as air conditioners, electric water heaters, and microwave ovens. In homes, it is often used to connect these relatively high-power appliances to ensure their stable operation.
The 6mm² wire has a single strand diameter of about 0.39mm and a current-carrying capacity of approximately 40 amperes, suitable for small motors and local
Power Lines in industrial fields. For example, in small processing plants, the power supply lines of some small machine tools and conveyors can use this specification of wire.
The 10mm² wire has a single strand diameter of about 0.49mm and a current-carrying capacity of 60 amperes, mostly used as branch lines of industrial distribution boxes. It can distribute power from the main distribution box to the control boxes of various small equipment, ensuring the coordinated operation of multiple devices.
The 16mm² wire has a single strand diameter of about 0.64mm and a current-carrying capacity of 80 amperes, mainly used as power leads for large equipment. For example, large fans and water pumps in factories require this large-specification wire to provide sufficient and stable power.
The rated voltage of the wire is 450/750V, which is of great significance. 450V indicates the voltage to ground that the wire can withstand during normal operation, and 750V is the phase-to-phase voltage that the wire can withstand. This enables it to be compatible with 220V single-phase circuits in homes to supply power to various household devices, and also meet the needs of 380V three-phase low-voltage systems in industry, playing a role in scenarios such as workshop power lines, thus being compatible with various power distribution scenarios.
In addition, the insulation thickness of the wire varies with specifications. The insulation thickness of 2.5mm² and 4mm² wires is about 0.8mm, 6mm² is about 1.0mm, and 10mm² and 16mm² are about 1.2mm. Sufficient insulation thickness can effectively block current, prevent electric leakage accidents, and also enhance the wire's resistance to the external environment.
The outer diameter of the wire also changes with specifications. The outer diameter of 2.5mm² is about 4.5mm, 4mm² is about 5.2mm, 6mm² is about 6.0mm, 10mm² is about 7.5mm, and 16mm² is about 9.0mm. Different outer diameters need to consider the size of the threading pipe during wiring to ensure smooth installation.
(2) Characteristic Applications
The PVC insulated
Copper Electrical wire (2.5-16mm², 450/750V) has distinctive applications in both home and industrial fields due to its various specifications and excellent performance.
In home scenarios, 2.5mm² and 4mm² wires are the mainstays of decoration wiring. The 2.5mm² wire is often used for wall embedding and ceiling pipe threading, connecting lighting fixtures in various areas such as living rooms, bedrooms, and kitchens. Whether it is ceiling lights, chandeliers, or downlights, they can obtain stable power supply through this specification of wire. At the same time, it is also used in ordinary socket circuits to provide power for low-power devices such as mobile phone chargers, desk lamps, and small fans.
The 4mm² wire is mainly responsible for supplying power to medium-sized appliances in the home. In the living room, it connects the air conditioner to ensure that the air conditioner can operate normally in hot summers or cold winters to adjust the indoor temperature; in the kitchen, it transmits power to equipment such as electric water heaters, microwave ovens, and induction cookers to meet the family's cooking and hot water needs. Its good current-carrying capacity and stability ensure that these appliances will not fail due to insufficient power during use.
In industrial scenarios, wires of 6mm² and above are widely used. The 6mm² wire is often used in workshop power lines to provide power support for small motors, conveyors, and other equipment. In the production workshops of some electronic processing plants, small assembly equipment on the assembly line relies on this specification of wire to maintain operation, ensuring the continuity of production.
The 10mm² wire is mostly used as a branch line of industrial distribution boxes, distributing power from the main distribution box to the sub-distribution boxes in various production areas, and then the sub-distribution boxes transmit power to specific equipment. This distribution method can make power supply more orderly, facilitating management and maintenance.
The 16mm² wire is the "energy channel" for large equipment. Large equipment such as large fans, water pumps, and compressors in factories need to obtain sufficient power through this large-specification wire to ensure that the equipment can start normally and operate continuously, meeting the high-intensity needs of industrial production.
In addition to home and industrial fields, the wire also plays a role in other scenarios. In agricultural greenhouses, 2.5mm² and 4mm² wires can be used for power supply of lighting systems and irrigation equipment, providing suitable light and water conditions for the growth of crops. In commercial places such as shopping malls, supermarkets, and office buildings, wires of 6mm² and below are used for power supply of public lighting systems, elevators, escalators, and other equipment, ensuring the normal operation of commercial activities.
(3) Material and Style
The PVC insulated copper electrical wire (2.5-16mm², 450/750V) fully considers practicality and reliability in material selection and style design.
The conductor is made of high-purity electrolytic copper with a purity of ≥99.95%. High-purity copper has excellent conductivity, allowing current to flow more smoothly during transmission and reducing energy loss. Compared with low-purity copper, its resistance value is lower. The resistance of 2.5mm² wire per kilometer is ≤7.41Ω, and that of 16mm² is ≤1.15Ω, which means more electricity can be saved at the same transmission distance. At the same time, electrolytic copper has good ductility and toughness, and is not easy to break during stranding processing, ensuring the quality and service life of the wire.
The insulation layer is made of weather-resistant PVC material, which has many excellent properties. It has good insulation resistance (≥100MΩ·km), which can effectively block current, prevent electric leakage, and ensure electrical safety. Its temperature resistance performance is excellent, and it can work stably in the environment of -15℃ to 70℃, maintaining good performance in cold winters and hot summers.
In home environments, kitchens and bathrooms are often humid. The
PVC Insulation layer can resist the erosion of this humid environment, preventing the wire from affecting the insulation performance due to moisture. In industrial places, the air may contain substances such as dust and slight oil stains. PVC material can also resist the erosion of these substances, protecting the internal
Copper Conductor from damage.
The wire is available in two styles: single-core and
Multi-Core. The single-core wire is composed of a relatively thick copper conductor and an outer PVC insulation layer, with a simple structure and relatively high hardness, suitable for fixed wiring such as wall embedding and pipeline laying. Its advantage is good heat dissipation performance, which can maintain stable performance during long-term use.
The multi-core wire is composed of multiple strands of fine copper wire twisted together, wrapped with a PVC insulation layer, and has better flexibility, which is convenient for bending and moving, suitable for connecting mobile devices such as vacuum cleaners and electric drills. This characteristic of multi-core wires makes them perform well in occasions that require frequent movement, reducing damage caused by frequent bending.
The wires also come in a variety of colors, commonly red, blue, yellow, green, black, etc. Different colors can be used to distinguish different circuits, such as live wires, neutral wires,
Ground Wires, etc., which is convenient for installers to identify and connect during construction, reducing the probability of wiring errors and improving construction efficiency and safety.
(4) Production Process
The production process of PVC insulated copper electrical wire (2.5-16mm², 450/750V) is rigorous and meticulous, with each link strictly controlled to ensure the quality and performance of the product.
The first step is the production of
Copper Conductors. High-purity electrolytic copper ingots are melted to remove impurities, obtaining copper liquid that meets the purity requirements. Then, the copper liquid is cast into copper rods through a continuous casting machine, and the diameter of the copper rods depends on the specifications of the wire. Next, the copper rods enter the wire drawing machine for drawing treatment, and through different specifications of dies, the copper rods are drawn into copper wires of the required diameter. During the drawing process, it is necessary to control the drawing speed and tension to ensure that the diameter of the copper wire is uniform and the surface is smooth.
For wires with multi-strand conductors, stranding treatment is also required. Multiple copper wires are stranded according to a certain stranding method and pitch. Stranding can enhance the flexibility and mechanical strength of the conductor, making the wire not easy to break during bending and use. During the stranding process, it is necessary to ensure that the tension of each strand of copper wire is uniform to avoid loose or tight strands.
Then is the extrusion of the insulation layer. The
Stranded Copper Conductor is fed into the extruder, and at the same time, PVC particles are added to the hopper of the extruder. The PVC particles are heated and melted in the extruder to become molten PVC material. Under the pressure of the extruder, the molten PVC material is evenly wrapped around the outer layer of the copper conductor to form an insulation layer.
During the extrusion process, it is necessary to accurately control the extrusion temperature, extrusion speed, and die size. Excessively high extrusion temperature will cause decomposition of the PVC material, affecting the insulation performance; excessively low temperature will cause insufficient melting of the PVC material, resulting in rough and uneven surface of the insulation layer. The extrusion speed and die size directly affect the thickness and outer diameter of the insulation layer, and must be set strictly in accordance with product specifications to ensure that the thickness of the insulation layer is uniform and meets the requirements.
After extrusion, the wire enters the cooling water tank for cooling. Cooling can make the PVC insulation layer solidify and shape quickly, ensuring the dimensional stability and performance of the insulation layer. During the cooling process, it is necessary to control the water temperature to cool the wire evenly, avoiding internal stress in the insulation layer due to uneven cooling, which affects the quality of the wire.
The cooled wire also needs to undergo a spark test, which is an important link to detect defects in the insulation layer. The wire passes through a high-voltage electrode. If there are defects such as pinholes or cracks in the insulation layer, spark discharge will occur, and the equipment will automatically alarm and mark the defective parts for subsequent processing.
Finally, the wire is printed and taken up. The printing machine prints the product's specifications, model, rated voltage, manufacturer, and other information on the surface of the wire's insulation layer, facilitating user identification and traceability. Then, the wire is neatly wound on a reel and packaged into the warehouse.
Throughout the production process, quality inspection runs through. From the inspection of raw materials to the sampling inspection of each production process, and then to the full inspection of finished products, there are strict standards and processes. Only products that pass the inspection can leave the factory for sale, ensuring that high-quality wire products are provided to users.
II. From the Perspective of General Product Information
(1) Packaging
The packaging design of PVC insulated copper electrical wire (2.5-16mm², 450/750V) fully considers the needs of protecting products, facilitating transportation and storage.
For small-specification and short-length wires, such as 2.5mm² and 4mm² with a length of less than 100 meters, plastic reels are usually used for packaging. Plastic reels are lightweight, have high strength, and are not easy to damage. The wire is neatly wound on the reel, and there are baffles on both sides of the reel, which can effectively prevent the wire from slipping during transportation and storage. A layer of transparent plastic film is 套在 the outside of the reel, which can play a role in moisture-proof and dust-proof, protecting the wire from pollution by the external environment. The plastic film is also printed with basic product information, such as specifications, length, rated voltage, etc., to facilitate users' quick identification.
For large-specification and long-length wires, such as 6mm² and above with a length of 100 meters and above, wooden reels are generally used for packaging. The wooden reel is made of solid wood, which can bear a large weight and provide solid support for the wire. The wire is tightly wound on the reel, and metal flanges are installed at both ends of the reel, which not only enhances the stability of the reel but also facilitates handling with equipment such as forklifts. A label is attached to the surface of the reel, indicating detailed product information, including specifications, length, production batch number, production date, etc., facilitating product traceability and management.
Whether it is plastic reel or wooden reel packaging, during the packaging process, it is necessary to ensure that the wire is wound tightly and neatly to avoid looseness and knotting. For multi-roll packaged wires, strapping is also used for 捆绑固定 to prevent collision and displacement during transportation.
In addition, the packaging also considers environmental factors, selecting recyclable and easily degradable materials to reduce environmental pollution. At the same time, the packaging design strives to be simple and practical, reducing packaging costs, thereby providing users with more cost-effective products.
(2) Transportation
A series of measures need to be taken during the transportation of PVC insulated copper electrical wire (2.5-16mm², 450/750V) to ensure the safety and integrity of the product.
In terms of transportation methods, road transportation, railway transportation, or water transportation can be adopted according to the distance and the quantity of transportation. For short-distance transportation and small-batch transportation, road transportation is a more convenient choice, usually using trucks for transportation. The truck compartment needs to be kept clean and dry to avoid pollution and moisture of the wire. When loading the wire, it is necessary to fix it firmly. Ropes or brackets can be used to fix the plastic reel or wooden reel in the compartment to prevent shaking and collision during vehicle bumping, which may cause damage to the wire.
For long-distance transportation and large-batch transportation, railway transportation and water transportation are more economical. Railway transportation has the advantages of large transportation volume, fast speed, and good stability, and is suitable for long-distance transportation of a large number of wires. In railway transportation, the wires are loaded into freight cars and also need to be firmly fixed to prevent displacement. Water transportation is suitable for situations with a large amount of transportation, and the wires are transported to the destination by cargo ships. During water transportation, it is necessary to do a good job in moisture-proof and anti-corrosion treatment, because the marine environment has high humidity and may contain salt, which is easy to erode the packaging and insulation layer of the wire. Moisture-proof paint can be applied to the outside of the wooden reel, and waterproof cloth can be covered on the plastic reel to ensure that the wire is not damp.
During transportation, it is also necessary to avoid the wire being exposed to direct sunlight and extreme temperatures. Direct sunlight will increase the temperature of the wire, which may cause aging and deformation of the PVC insulation layer; extreme low temperature may make the PVC insulation layer brittle, reducing its flexibility. Therefore, during transportation in summer, a sunshade cloth can be covered on the top of the carriage; during transportation in winter, thermal insulation measures should be taken to avoid the wire being in a low-temperature environment for a long time.
Transportation personnel need to have certain professional knowledge and understand the characteristics and transportation requirements of the wire. During loading and unloading, they should handle with care, avoid rough operation, and prevent damage to the packaging and internal structure of the wire. For wires packaged in wooden reels, attention should be paid to the fork position when using a forklift to avoid deformation of the reel.
During transportation, it is necessary to regularly check the condition of the wire, check whether the packaging is intact, and whether the fixation is firm. If problems are found, timely measures should be taken to ensure that the wire can be delivered to the destination safely and on time.
(3) Shipment
The shipment process of PVC insulated copper electrical wire (2.5-16mm², 450/750V) is standardized and orderly, aiming to provide customers with efficient and accurate services.
When a customer places an order, the sales staff will promptly enter the order information into the system, including product specifications, quantity, delivery address, delivery time, etc. The system will automatically transmit the order information to the warehouse department, and the warehouse management personnel will prepare goods according to the order information.
During the goods preparation process, warehouse management personnel will carefully check the product specifications, models, quantities and other information to ensure consistency
with the order. They will pick the corresponding products from the warehouse shelves, check if the product packaging is intact and if the products are within the shelf life. For orders with special requirements, such as specific lengths or colors, they will conduct special selection and sorting.
After the goods are prepared, the warehouse management personnel will transfer the products to the shipping area, waiting for the logistics personnel to pick up the goods. At the same time, they will generate a delivery note, which records detailed information such as product information, customer information, and logistics information.
When the logistics personnel arrive at the warehouse, they will hand over with the warehouse management personnel, checking whether the information on the delivery note is consistent with the actual products. After verification, the logistics personnel will sign on the delivery note and then load the products onto the transport vehicle.
During the shipment process, the sales staff will promptly feedback the logistics information to the customer, including the logistics company name and waybill number, to facilitate the customer to query the transportation status of the goods. If the customer has urgent needs, the sales staff will communicate with the logistics department to arrange shipment priority, ensuring that the products can be delivered as soon as possible.
For bulk orders or special orders that may require customized production, the delivery time will be determined according to the production cycle. The sales staff will communicate with the customer in advance, informing them of the expected shipment time and delivery time, so that the customer can make corresponding preparations.
If unexpected situations occur during the shipment process, such as product damage or quantity shortage, the warehouse management personnel and sales staff will communicate with the customer in a timely manner to negotiate solutions, such as reissuing or replacing products, to ensure that the customer's interests are not damaged.
(4) Samples
To allow customers to fully understand the performance and quality of the PVC insulated copper electrical wire (2.5-16mm², 450/750V) before purchasing, the company provides sample services.
Customers can apply for samples from the company through various means such as phone calls, emails, and online customer service. When applying for samples, they need to provide detailed customer information, such as company name, contact person, contact information, address, as well as the specifications and quantity of the required samples. The company's sales staff will promptly handle the customer's application and make records.
For eligible sample applications, the company will prepare the samples within 1-3 working days. The length of the samples is usually 1-5 meters, which can meet the customer's preliminary inspection needs for product appearance, size, flexibility, insulation layer quality, etc. When preparing the samples, it is ensured that the samples are of the same quality as the mass-produced products, truly reflecting the product's performance.
The packaging of the samples is similar to that of the formal products, using small plastic reels or wrapping paper for packaging to prevent damage during transportation. The packaging will be marked with the sample's specifications, model, and other information for easy customer identification.
The transportation method of the samples depends on the customer's address. For domestic customers, express delivery is usually used, which can deliver the samples to the customer in a short time; for international customers, international express or logistics will be chosen to ensure the samples arrive smoothly.
In terms of sample fees, for customers with cooperative intentions, the company usually provides samples free of charge, and the express fee is borne by the company or handled according to the agreement between both parties. If a customer only wants to understand the product without a clear intention to cooperate, the company may charge a certain sample fee and express fee, and the sample fee can be deducted from the payment when the customer places a formal order later.
After receiving the sample, the customer can conduct various tests and evaluations on the sample. If satisfied with the sample, they can place a formal order; if they have any questions or need further information about the product, the company's sales and technical personnel will promptly provide answers and support.
(5) After-sales Service
The after-sales service system of the PVC insulated copper electrical wire (2.5-16mm², 450/750V) is perfect, aiming to provide customers with comprehensive support and protection.
In terms of product quality assurance, the company promises that all sold wires are qualified products, meeting relevant quality standards and technical requirements. The product has a warranty period of 1 year. Within the warranty period, if the product has quality problems caused by non-human factors, such as insulation layer cracking, copper conductor breaking, etc., the company will provide customers with free replacement of new products or maintenance.
When customers encounter any problems during use, they can contact the company's after-sales service personnel through phone calls, emails, online customer service, etc. The after-sales service personnel will respond to the customer's needs within 24 hours and provide professional solutions. If the problem is more complex and requires on-site handling by technical personnel, the company will arrange for technical personnel to arrive at the site within the agreed time to assist the customer in solving the problem.
In terms of product installation, the company's technical personnel can provide customers with installation guidance services. Through phone calls, videos, etc., they will introduce the installation methods and precautions of the wire to the customer in detail to ensure that the customer can install the wire correctly and ensure electrical safety. For large-scale installation projects, the company can also send technical personnel to the site for installation guidance and supervision.
The company will conduct regular return visits to customers to understand the use of the products and the customer's needs. Through return visits, customer opinions and suggestions are collected to continuously improve product and service quality. At the same time, new products and services of the company will also be introduced to customers to provide more choices for customers.
If the customer needs to return or exchange the goods, under the premise of meeting the company's return and exchange policy, the company will handle the return and exchange procedures for the customer in a timely manner. For returned or exchanged products, the company will conduct inspection and evaluation and provide corresponding solutions according to the actual situation.
In conclusion, the PVC insulated copper electrical wire (2.5-16mm², 450/750V) has excellent performance in terms of specification parameters, characteristic applications, material style, production process, etc. At the same time, it also provides thoughtful services in packaging, transportation, shipment, samples, after-sales and other general information. It can meet the power supply needs of different customers in home and industrial scenarios, and is a safe, reliable and cost-effective electrical wire product.
