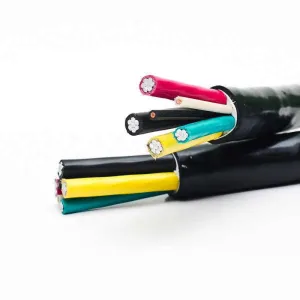

Technical Specification for N2XH, N2XH-J & N2XH-O 3×25mm²/5×25mm² XLPE Insulated Hffr Sheathed Power Cable 0.6/1kV
The N2XH series includes three variants:
N2XH: Standard multiCore Cable
N2XH-J: Compact round design
N2XH-O: Space-saving oval design
Rated for 0.6/1kV, compliant with IEC 60502, GB/T 12706.1 and EN 50525, suitable for fire-safe installations in crowded areas.
Common structure:
Conductor: Class 2 stranded copper (IEC 60228)
Insulation: XLPE (0.7mm thickness)
Cabling:
N2XH/N2XH-J: Concentric stranded
N2XH-O: Parallel laid oval
Filler: Halogen-free material
Sheath: HFFR (1.5mm thickness)
Special design:
N2XH-O: 1:1.3 short/long axis ratio, saves 25% space
| Parameter | 3×25mm² | 5×25mm² |
|---|---|---|
| Conductor dia.(mm) | 5.64 | 5.64 |
| Insulation OD(mm) | 7.04 | 7.04 |
| Cable OD(mm) | N2XH: 22.3 | N2XH: 28.6 |
| N2XH-J: 20.8 | N2XH-J: 26.2 | |
| N2XH-O: 18.5×24.0 | N2XH-O: 22.0×28.6 | |
| 20℃ resistance(Ω/km) | 0.727 | 0.727 |
| Min.bending radius | 6×OD | 6×OD |
Fire safety:
Flame retardant: IEC 60332-1
Halogen-free: pH≥4.3, conductivity≤10μS/mm (IEC 60754)
Mechanical:
Sheath tensile strength≥10N/mm²
N2XH-O 15% higher crush resistance
Environment:
Operating temp: -30℃～+90℃
Installation temp: ≥-15℃
N2XH-J: Conventional cable trays
N2XH-O: Metro tunnel side slots
Data center power distribution
Hospital emergency circuits
