Specification | 35mm² Cable | 50mm² Cable |
Rated Voltage | 1kV (rms) | 1kV (rms) |
99.95% Purity Electrolytic Copper | 99.95% Purity Electrolytic Copper | |
Conductor Stranding | 19 Strands (1.5mm Diameter Each) | 19 Strands (1.8mm Diameter Each) |
Conductor Resistance (20°C) | ≤0.524Ω/km | ≤0.378Ω/km |
Fault Current Withstand (1s) | 800A | 1200A |
Insulation Resistance (20°C) | ≥100MΩ (1kV Megohmmeter) | ≥100MΩ (1kV Megohmmeter) |
Dielectric Strength | 2kV AC (5 Minutes, No Breakdown) | 2kV AC (5 Minutes, No Breakdown) |
Max Operating Temperature | 70°C | 70°C |
Min Operating Temperature | -15°C | -15°C |
Conductor and Insulation Dimensions:
The 35mm² conductor has a total diameter of ~7.5mm (stranded), with a 1.0mm-thick PVC Insulation layer—resulting in an overall cable outer diameter (OD) of ~9.5mm.
The 50mm² conductor has a diameter of ~9.0mm, paired with a 1.2mm PVC insulation layer, giving an OD of ~11.4mm.
Flexibility and Bending Radius:
The Stranded Conductor design (19 strands) enhances flexibility, with a minimum bending radius of 10× the cable’s OD—95mm for 35mm², 114mm for 50mm². This allows the cable to be routed around corners, through wall cavities, and under floorboards without damaging the insulation or conductor.
Fatigue resistance is tested by bending the cable around the minimum radius 100 times—after testing, conductor resistance increases by <5%, and no insulation cracks form, ensuring durability during installation and maintenance.
Weight and Tensile Strength:
The 35mm² cable weighs ~0.42kg/m, and the 50mm² variant weighs ~0.58kg/m—light enough for electricians to handle 50m lengths (21kg and 29kg, respectively) without specialized lifting equipment.
Tensile strength (the maximum force the cable can withstand before breaking) is ≥300N for 35mm² and ≥400N for 50mm², ensuring it can be pulled through conduits or over long distances without snapping.
Electrical Conductivity: Copper has a conductivity of 58 MS/m (at 20°C), 61% higher than aluminium. This ensures minimal resistance, allowing fault currents to flow quickly to the ground—critical for triggering circuit breakers within the required 0.5–1 second window. For example, a 50mm² Copper Cable dissipates a 1200A fault current 40% faster than a 50mm² Aluminium Cable, reducing the risk of equipment damage.
Corrosion Resistance: Copper forms a thin, stable oxide layer (CuO) when exposed to air, which acts as a protective barrier against further corrosion. Unlike aluminium, which forms a porous oxide layer (Al₂O₃) that increases resistance over time, copper’s resistance rises by <1% over 10 years—even in humid environments (e.g., bathrooms, basements). This ensures consistent grounding performance throughout the cable’s lifespan.
Malleability and Ductility: Copper can be bent repeatedly without cracking (up to 100 cycles at the minimum bending radius) and stretched by 30% of its length without breaking. This makes it easy to terminate—electricians can strip the insulation, crimp lugs, or twist the conductor into grounding clamps without damaging the core. The stranded design further enhances malleability, as strands distribute bending stress evenly.
Base Resin and Additives:
Base Resin: Rigid PVC resin (SG-5 grade) is used for its high dielectric strength (≥20kV/mm) and low water absorption (<0.1% after 24-hour immersion). This prevents current leakage and ensures the insulation remains effective in damp conditions.
Flame Retardants: Calcium carbonate (15–20% by weight) and antimony trioxide (3–5%) are added to meet IEC 60332-1 standards. When exposed to fire, calcium carbonate releases CO₂ to suppress flames, while antimony trioxide amplifies the flame-retardant effect— the insulation self-extinguishes within 30 seconds of removing the ignition source, with no burning droplets.
UV Stabilizers: Carbon black (2–3%) is added to outdoor-rated variants to block UV radiation. Without stabilizers, PVC degrades within 6 months of outdoor exposure, becoming brittle and cracking. With carbon black, the insulation maintains 80% of its flexibility after 5 years of sun exposure.
Plasticizers: Diisononyl phthalate (DINP, 10–15%) enhances flexibility, allowing the insulation to bend without cracking at -15°C. This is critical for cold environments (e.g., unheated garages, outdoor winter installations).
Antioxidants: Phenolic antioxidants (0.5–1%) slow down insulation aging, extending the cable’s service life from 10 years (standard PVC) to 15–20 years.

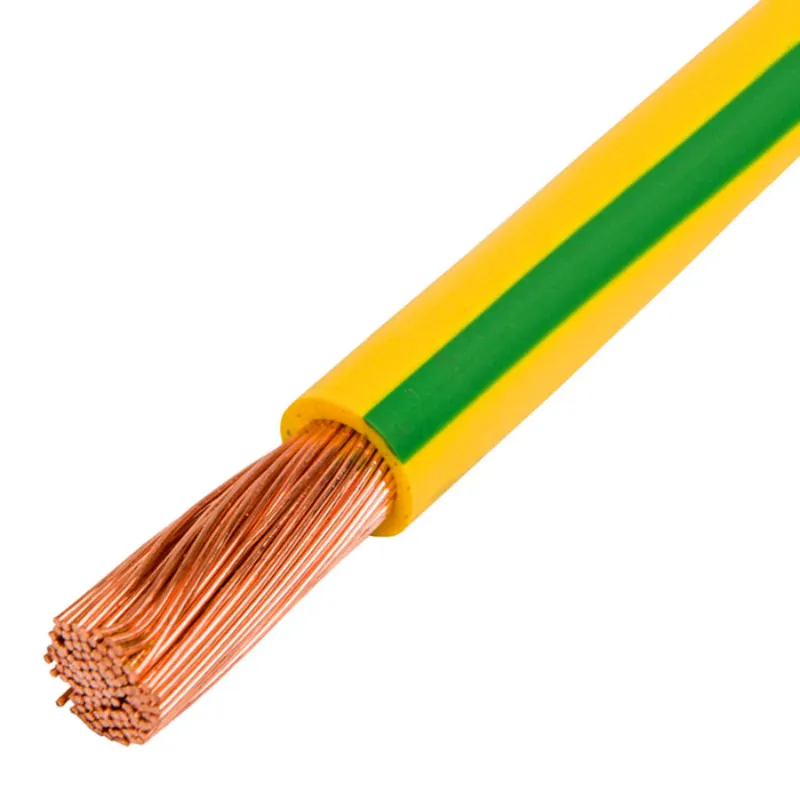

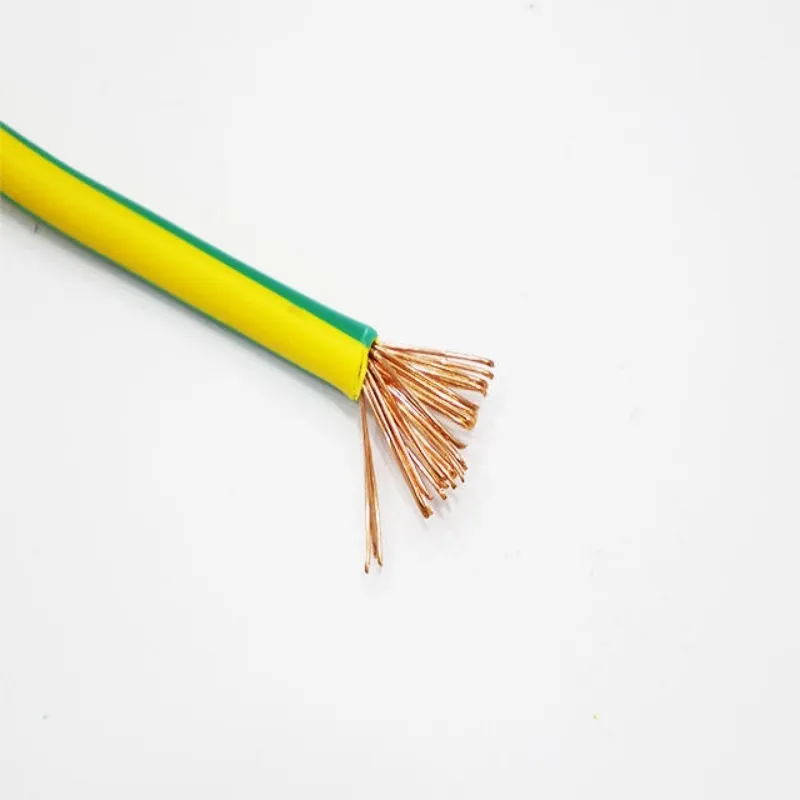

Yellow-Green Coloration:
Environmental Resistance:
Main Electrical Panel Grounding: The 35mm² cable connects the main panel’s grounding bus to the earth rod (typically 2.5m long, driven into the ground). This creates a primary grounding path for the entire home’s electrical system—if a phase wire touches the panel’s metal enclosure, the cable channels the fault current to the ground, tripping the main breaker (usually 60–100A) within 0.5 seconds.
Appliance Grounding: Large household appliances like electric ovens (4–6kW), refrigerators (150–300W), and water heaters (3–5kW) require dedicated grounding. The 35mm² cable is routed from the appliance’s grounding terminal to the panel’s grounding bus—its flexibility allows it to fit through the tight spaces behind appliances, even when installed in small kitchens.
Outdoor Fixture Grounding: EV charging stations (3.7–7.4kW), garden lights, and pool pumps (0.5–2kW) need grounding to protect users from shock in wet conditions. The 35mm² cable’s UV-resistant insulation and corrosion-resistant copper conductor make it suitable for outdoor use—even when buried in soil (with a conduit for protection) or exposed to rain.
HVAC System Grounding: Large commercial HVAC units (50–100kW) generate high fault currents if a motor winding shorts. The 50mm² cable grounds the unit’s metal frame to the building’s grounding grid, handling fault currents up to 1200A and triggering the 200–400A circuit breaker quickly. Its durability ensures it withstands the vibration and temperature fluctuations common in HVAC rooms.
Elevator and Escalator Grounding: Elevator motors (10–20kW) and escalator drives (5–15kW) require reliable grounding to protect passengers. The 50mm² cable is routed along the elevator shaft, connecting the motor’s grounding terminal to the building’s main grounding bus—its stranded design allows it to bend with the elevator’s movement without fatigue.
Backup Generator Grounding: Commercial backup generators (50–200kVA) need grounding to prevent shock when power is restored. The 50mm² cable connects the generator’s frame to the grounding grid, ensuring fault currents from the generator are safely dissipated—critical for hospitals, data centers, and shopping malls where power outages risk safety or business disruption.
Machinery Grounding: Small manufacturing machinery like lathes (5–15kW), milling machines (10–25kW), and conveyor belts (2–10kW) generate moderate fault currents. The 50mm² cable grounds the machinery’s metal housings, handling fault currents up to 1200A and protecting operators from shock. Its chemical-resistant insulation withstands oil and coolant spills common in machine shops.
Control Panel Grounding: Industrial control panels (used to regulate machinery) require grounding to protect sensitive electronics. The 50mm² cable connects the panel’s grounding bus to the facility’s grounding grid, preventing voltage spikes from damaging components—its low resistance ensures spikes are dissipated quickly.
Food Processing Equipment Grounding: Stainless steel equipment (e.g., mixers, ovens) in food plants needs grounding to comply with hygiene and safety standards. The 50mm² cable’s smooth PVC insulation is easy to clean (resistant to sanitizing chemicals) and prevents bacterial growth, making it suitable for food-safe environments.
Copper Rod Melting and Drawing:
High-purity electrolytic copper rods (99.95% purity) are melted in an induction furnace at 1085°C, then cast into 8mm-diameter billets.
The billets are pulled through a series of diamond dies in a wire-drawing machine to reduce their diameter to the required strand size: 1.5mm for 35mm² cables, 1.8mm for 50mm² cables. The drawing process uses a water-based lubricant to prevent overheating, with intermediate annealing steps (at 400°C) to maintain ductility.
Stranding:
The drawn strands are fed into a high-speed stranding machine (300–400 rpm) that twists 19 strands together to form the conductor. The lay length (distance between twists) is set to 15–20× the strand diameter (e.g., 22.5–30mm for 1.5mm strands) to ensure flexibility and prevent unraveling. The machine uses a “bunching” method, where strands are twisted around a central axis, with tension monitored in real time to ensure uniform stranding.
Annealing:
The stranded conductor is heat-treated in a continuous annealing furnace at 450–500°C for 10–15 seconds. Annealing reduces the conductor’s hardness (from 120 HV to 60 HV) and increases its ductility, which is essential for flexibility. The conductor is then cooled in a water bath (20–30°C) and dried with compressed air to remove surface moisture.
Conductor Inspection:
A laser micrometer measures the conductor’s diameter every 10cm to ensure it meets specifications (tolerance ±0.02mm). A micro-ohmmeter tests the conductor’s resistance at 20°C—samples from each batch must meet ≤0.524Ω/km (35mm²) or ≤0.378Ω/km (50mm²). Any conductors with defects (e.g., scratches, uneven stranding) are cut and recycled.
PVC Compound Preparation:
The PVC blend is mixed in a high-speed mixer (1500 rpm) at 120°C for 10 minutes. The mixture includes SG-5 PVC resin (60–65% by weight), DINP plasticizer (10–15%), calcium carbonate (15–20%), antimony trioxide (3–5%), carbon black (2–3% for outdoor variants), yellow-green pigments (3.5% total), and antioxidants (0.5–1%). The mixer ensures all additives are uniformly distributed, creating a homogeneous compound. The compound is then cooled to 40°C in a cooling mixer to prevent premature curing.
Extrusion:
The PVC compound is fed into a single-screw extruder (screw diameter 65mm, length-to-diameter ratio 25
Cooling and Sizing:
The Insulated Cable exits the extruder and enters a three-stage cooling system to solidify the PVC:
First Stage: A water bath at 60°C to cool the insulation gradually, preventing thermal shock that could cause cracks.
Second Stage: A water bath at 30°C to further lower the cable’s temperature and lock in the insulation’s shape.
Third Stage: A forced-air dryer (air temperature 50°C) to remove surface moisture, avoiding water spots or adhesion issues during winding.
Cooling time varies by size: 10–12 seconds for 35mm² cables and 12–15 seconds for 50mm² cables, as the thicker insulation of the 50mm² variant requires more time to solidify fully.
Winding:
The cable is fed into a precision winding machine equipped with tension control (20–30 N for 35mm² cables, 25–35 N for 50mm² cables) to prevent stretching or kinking.
For retail and small-quantity orders (50m–100m), the cable is wound onto plastic spools: 150mm-diameter spools for 50m lengths (weighing ~21kg for 35mm²) and 200mm-diameter spools for 100m lengths (weighing ~42kg for 35mm²). These spools feature a central hole (25mm diameter) for mounting on cable dispensers and a built-in safety cutter for clean, on-site cuts.
For bulk orders (200m–1000m), the cable is wound onto wooden or steel reels:
Wooden Reels: Constructed from 18mm-thick plywood with a 300mm-diameter central hub and 800mm-diameter flanges. Each reel can hold up to 500m of 50mm² cable (weighing ~290kg) and is reinforced with steel brackets at the hub to withstand lifting forces.
Steel Reels: Galvanized steel reels for heavy-duty use (e.g., construction sites, repeated reuse) with a 400mm-diameter hub and 1000mm-diameter flanges. These reels have a load capacity of 500kg+ and are stackable (up to 3 high) to save warehouse space.
Labeling:
Each spool or reel is labeled with a waterproof, UV-resistant sticker containing:
Product details: Size (35mm²/50mm²), conductor material (99.95% copper), insulation type (PVC), rated voltage (1kV), fault current withstand (800A/1200A), and operating temperature range (-15°C to 70°C).
Traceability information: Batch number, manufacturing date, and production line ID.
Compliance marks: IEC 60228, IEC 60446, CE, UL 44 (USA), GB/T 12706 (China), and a “Grounding Only” warning to prevent misuse as a phase/neutral conductor.
Bulk reels also include a document pouch attached to the flange, containing a certificate of compliance, batch test report, and installation guidelines.
In-Line Testing:
Conductor Diameter Check: A laser micrometer measures the stranded conductor’s diameter every 10cm, rejecting any sections with deviations beyond ±0.02mm.
Insulation Thickness Test: A laser gauge monitors insulation thickness continuously, triggering an alarm if it falls below 90% of the nominal value (0.9mm for 35mm², 1.08mm for 50mm²).
Spark Test: The insulated cable passes through a 5kV spark tester, which detects pinholes or cracks in the insulation—any cable that triggers a spark is automatically cut and removed from the production line.
Color Uniformity Check: A color sensor verifies the yellow-green ratio (60:40) and consistency; cables with uneven color (e.g., faded green or patchy yellow) are discarded.
Offline Testing (Batch Sampling):
Electrical Tests:
Insulation Resistance Test: A 1kV megohmmeter measures insulation resistance for 10 samples per batch—minimum acceptable value is 100MΩ at 20°C.
Voltage Withstand Test: Samples are submerged in water and subjected to 2kV AC for 5 minutes; no breakdown (current leakage >1mA) is allowed.
Conductor Resistance Test: A micro-ohmmeter measures resistance at 20°C, ensuring compliance with ≤0.524Ω/km (35mm²) or ≤0.378Ω/km (50mm²).
Fault Current Withstand Test: Samples are connected to a high-current test rig and exposed to their rated fault current (800A/1200A) for 1 second. After testing, the conductor’s temperature must not exceed 150°C, and the insulation must show no signs of melting or cracking.
Mechanical Tests:
Bending Test: Samples are bent around a mandrel (10× OD) 100 times, then inspected for insulation cracks—no damage is allowed, and conductor resistance must increase by <5%.
Abrasion Test: A rotating drum with 120-grit sandpaper rubs the insulation for 100 cycles; thickness loss must be <10% of the original (0.1mm for 35mm², 0.12mm for 50mm²).
Tensile Test: The insulation is pulled at 50mm/min until breaking; tensile strength must be ≥12 MPa, and elongation ≥150%.
Environmental Tests:
Flame Test: Samples undergo IEC 60332-1—after removing the ignition source, the flame self-extinguishes within 30 seconds, and no burning droplets are produced.
UV Resistance Test: Outdoor-rated samples are exposed to a 340nm UV lamp for 168 hours; insulation resistance must remain ≥80% of the initial value, and no brittleness is allowed.
Chemical Resistance Test: Samples are immersed in 10% motor oil, 5% acetic acid, or 10% sodium hydroxide for 72 hours; weight gain/loss must be <5%, and no insulation swelling or cracking is permitted.
Plastic Spools with Cardboard Boxes: Each plastic spool (150mm/200mm diameter) is placed in a double-walled corrugated cardboard box (250mm×150mm×80mm for 50m, 300mm×200mm×100mm for 100m) printed with product details, safety warnings, and a QR code linking to installation videos. The box is lined with foam padding to cushion the spool during transit.
Moisture Protection: A 5g silica gel packet is included in each box to absorb humidity, preventing insulation degradation during storage in damp environments (e.g., basements, construction site sheds).
Tamper-Evident Sealing: The box is sealed with 50mm-wide tamper-evident tape, alerting customers to any unauthorized opening.
Wooden Reels: As noted in 1.4.3, wooden reels are wrapped with two layers of 15μm stretch film to shield against dust and light moisture. For outdoor storage or sea shipping, an additional layer of 50μm waterproof polyethylene film is applied, sealed with butyl tape to prevent water ingress. A corrugated cardboard sleeve is placed around the reel’s flanges to prevent abrasion during handling.
Steel Reels: Steel reels are wrapped with a single layer of stretch film and labeled with a barcode for inventory tracking. They are shipped on wooden pallets (1200mm×1000mm) to distribute weight evenly and facilitate forklift handling.
Cargo Containers for Large Orders: Orders of ≥5000m are shipped in 20ft dry containers, with reels secured to the container floor using steel braces and wooden dunnage to prevent movement during transit. The container is lined with a vapor barrier film to reduce condensation, and 10kg silica gel packets are placed inside to absorb moisture.
Pre-Cut Lengths: The cable can be cut to custom lengths (1m–50m) and packaged in individual polyethylene bags (100μm thick) labeled with the length, size, and batch number. These bags are then placed in a cardboard carton with foam dividers to prevent rubbing.
Waterproof Packaging: For marine or outdoor applications, the cable is wrapped in IP67-rated waterproof film and placed in sealed plastic containers, suitable for long-term storage in humid or wet environments.
Branded Packaging: Distributors or large customers can request packaging with their logo, contact information, and branding colors—including custom-printed boxes, reel labels, and even branded spools.
Truck Types:
Enclosed Vans: Used for retail packaging and small reels (≤500kg), these vans have climate control (15°C–25°C) to prevent insulation damage from extreme temperatures (e.g., -10°C winters or 40°C summers). The interior is lined with non-slip mats to keep boxes/spools in place.
Flatbed Trucks: Used for bulk reels (>500kg), these trucks are fitted with steel rails and winches to secure the reels. Reels are placed on wooden pallets and secured with ratchet straps (50mm wide, 5t load capacity) with rubber padding to avoid scratching the reels or cable.
Transit Monitoring: All trucks are equipped with GPS tracking, allowing the manufacturer and customer to monitor the shipment’s location in real time via a web portal. A dedicated logistics coordinator provides daily updates, and any delays (e.g., traffic, road closures) are communicated within 1 hour.
Delivery Scheduling: Customers can choose between standard delivery (3–5 business days) or expedited delivery (1–2 business days) for an additional fee. For bulk orders, a 24-hour delivery window is confirmed in advance to ensure the customer has personnel and equipment (e.g., forklifts) ready to unload.
Container Selection:
20ft Dry Containers: Can hold up to 12 wooden reels (500m each) or 8 steel reels (1000m each), with a total weight ≤20,000kg. The container is inspected for leaks or damage before loading to ensure the cable remains dry.
40ft High-Cube Containers: Used for orders ≥10,000m, these containers have extra height (2.7m) to accommodate taller reels and are fitted with load-bearing beams to secure the cargo.
Loading and Securing: Reels are loaded using a forklift with a reel clamp attachment to avoid damage to the flanges or cable. Wooden dunnage (200mm×100mm×500mm) is placed between reels to prevent movement, and steel braces are bolted to the container floor. The container is sealed with a tamper-proof bolt, and the seal number is shared with the customer for verification upon arrival.
Customs and Documentation: The manufacturer works with a global customs broker to prepare all required documents, including:
Commercial Invoice: Detailing product, quantity, unit price, total value, and payment terms.
Packing List: Itemizing each reel’s size, length, and weight.
Certificate of Origin: Proving the cable was manufactured in the stated country (e.g., China, Germany) to qualify for preferential tariffs.
Certificate of Compliance: Verifying adherence to IEC/regional standards.
Bill of Lading (BOL): Serving as a contract between shipper and carrier.
Cargo Preparation: Small quantities (≤500m) are packed into air cargo-approved cartons (UL 94 V-0 flame rating) to meet airline safety standards. Bulk reels are disassembled, and the cable is coiled into 50m bundles wrapped in bubble wrap to reduce size and weight.
Airline Selection: Partnerships with DHL, FedEx, and UPS ensure next-day delivery for domestic orders and 2–3 day delivery for international orders. Shipments are labeled as “Priority Cargo” to bypass standard sorting queues.
Cost and Tracking: Air freight costs 5–10 times more than sea freight but is critical for urgent needs (e.g., a hospital’s backup generator grounding failure). Customers receive a tracking number immediately after shipment, with real-time updates via the airline’s app. A logistics coordinator is assigned to resolve issues (e.g., delayed customs clearance) within 2 hours.
Order Verification: The sales team reviews details (size, quantity, packaging, delivery address) within 1 hour. Discrepancies (e.g., out-of-stock sizes) are resolved by contacting the customer—alternatives (e.g., 50mm² instead of 35mm²) are proposed with lead times and cost differences.
Inventory Check: For in-stock products, the warehouse confirms availability within 2 hours. For custom orders (e.g., pre-cut lengths, outdoor-rated insulation), the production team schedules manufacturing and provides a lead time (7–10 business days), with weekly progress updates.
Production Scheduling (Custom Orders): A detailed timeline is shared with the customer, including conductor stranding, insulation extrusion, and testing. Photos/videos of the production process are provided upon request to build trust.
Packaging and Quality Check: The cable is packaged per the customer’s requirements, and a final quality check verifies label accuracy, packaging integrity, and compliance with specifications.
Notification Email: Sent within 24 hours, it includes the tracking number, carrier name, transportation mode, expected delivery date, and digital copies of all documents (invoice, BOL, certificates).
Delivery Reminder: On the day before delivery, the customer receives a text/email reminder with the delivery window. For bulk orders, the carrier confirms that the customer has unloading equipment (e.g., forklifts) available to unload the reels safely.
Proof of Delivery (POD): After successful delivery, the customer signs a digital or physical POD, which the carrier forwards to the manufacturer within 24 hours. The manufacturer then shares the POD with the customer via email, serving as official confirmation of receipt. A post-delivery follow-up call or email is made by the sales team 1–2 days later to confirm the cable’s condition and address any immediate concerns.
Return Request Initiation:
The customer must submit a return request within 7 days of receiving the shipment via the manufacturer’s website, email, or dedicated customer service hotline. The request must include:
Order number, batch number, and product size (35mm²/50mm²).
Clear photos or videos of the issue (e.g., damaged insulation, incorrect color, conductor corrosion).
A detailed description of the problem (e.g., “35mm² cable received has uneven yellow-green insulation, failing to meet IEC 60446 color standards”).
Return Authorization (RA) Review:
The after-sales team reviews the request within 24 hours. If additional information (e.g., installation photos, test results from a local lab) is needed, the team contacts the customer promptly to avoid delays.
If the request is approved, the customer receives an RA number, a prepaid shipping label, and detailed instructions for packaging the return (e.g., “Wrap reels in original stretch film to prevent damage during transit”). The RA number must be clearly marked on the outer packaging to ensure proper processing.
Inspection and Resolution:
Upon receiving the returned cable, the quality control (QC) team conducts a thorough inspection to verify the issue and determine its root cause. For example:
If insulation damage is found, the QC team checks if it was caused by manufacturing defects (e.g., thin insulation) or mishandling during transit (e.g., punctures from sharp objects).
If the conductor resistance exceeds specifications, the team tests multiple samples from the same batch to confirm if it is a batch-wide issue.
Based on the inspection, the manufacturer offers one of the following resolutions within 3 business days:
Replacement: A new cable of the correct size and specification is shipped immediately, with the manufacturer covering all shipping costs (including return shipping for the defective product). For urgent replacements (e.g., a hospital’s grounding cable failure), air transportation is used at no extra charge.
Refund: A full refund is processed to the customer’s original payment method (e.g., credit card, bank transfer) within 3–5 business days. For partially used cables, a pro-rated refund is issued based on the unused length.
Repair: For minor defects (e.g., small insulation tears that do not affect electrical performance), the manufacturer sends a repair kit (including PVC insulation tape, heat-shrinkable sleeves, and instructions) or dispatches a certified technician to repair the cable on-site, free of charge.
Root Cause Analysis and Prevention:
After resolving the customer’s issue, the QC team conducts a root cause analysis to prevent similar problems from recurring. For example:
If insulation thickness is inconsistent, the extruder’s die settings are recalibrated, and additional in-line thickness checks are added to the production process.
If color uniformity fails, the pigment mixing ratio is adjusted, and a second color sensor is installed in the extrusion line.
A summary of the analysis and corrective actions is shared with the customer to build trust and demonstrate the manufacturer’s commitment to quality.
Online Sample Request Portal:
The manufacturer’s website features a user-friendly sample request form where customers can:
Select the cable size (35mm²/50mm²), insulation type (standard PVC/outdoor-rated UV-resistant PVC), and sample length (1m–5m, free of charge for up to 2 samples per customer).
Provide their contact information (name, company, email, phone number) and delivery address.
Add application notes (e.g., “For residential main panel grounding” or “Light industrial machinery grounding”) to help the sales team provide tailored recommendations.
The form is submitted electronically, and the customer receives an immediate confirmation email with an estimated delivery date (3–5 business days for domestic samples, 7–10 days for international samples).
Direct Contact with Sales Team:
Customers can also request samples via email, phone, or video call with the sales team. The sales team provides personalized advice based on the customer’s application—for example, recommending the outdoor-rated PVC variant for a customer planning to ground garden lighting or the standard PVC variant for indoor commercial panel grounding.
For large-scale projects (e.g., a housing development requiring 10,000m of cable), the sales team may offer extended samples (10m–20m) to allow for more comprehensive testing.
Trade Shows and Industry Events:
At major electrical trade shows (e.g., Hannover Messe, Electrical Expo, China International Industry Fair), the manufacturer distributes free 1m samples of both 35mm² and 50mm² cables, along with product brochures and batch test reports. Customers can speak directly with engineers at the booth to ask technical questions (e.g., “What is the maximum fault current the 50mm² cable can handle in a 400V system?”) and view live demonstrations of the cable’s flexibility and flame-retardant properties.
Physical Sample:
The sample cable (1m–5m long) is wound onto a small plastic spool (50mm diameter) for easy handling. The spool is labeled with the sample size, insulation type, batch number, and manufacturing date for traceability.
Technical Documentation:
Sample Test Report: A one-page report containing key test results for the sample’s batch, including:
Conductor resistance (e.g., “0.51Ω/km for 35mm² cable at 20°C”).
Insulation resistance (e.g., “180MΩ for 50mm² cable at 20°C”).
Fault current withstand capacity (e.g., “1200A for 1 second for 50mm² cable”).
Flame test results (e.g., “Self-extinguished in 15 seconds, no burning droplets—compliant with IEC 60332-1”).
Application Guide: A tailored brochure that outlines recommended uses for the sample size—for example, the 35mm² guide includes wiring diagrams for residential main panel grounding, while the 50mm² guide focuses on commercial HVAC and light industrial machinery grounding.
Comparison Chart: A side-by-side comparison of the 35mm² and 50mm² cables, highlighting differences in ampacity, weight, outer diameter, and fault current withstand capacity to help customers select the right size for their needs.
Testing Tools and Resources:
For customers who want to conduct on-site tests, the sample package includes a small mandrel (10× the cable’s outer diameter) and instructions for the bending test (“Bend the cable around the mandrel 10 times—no cracks in the insulation indicate good flexibility”).
A QR code on the sample spool links to the manufacturer’s YouTube channel, where customers can watch tutorial videos on testing insulation resistance with a megohmmeter and terminating the cable to grounding clamps.
Technical Consultation:
The customer can schedule a free 30-minute video call with a senior electrical engineer to discuss test results, ask questions (e.g., “Will the 35mm² cable be sufficient for a 600A fault current in my residential complex?”), or get advice on installation best practices (e.g., “How to properly terminate the cable to an earth rod”).
The engineer may also review the customer’s grounding system design and suggest optimizations—for example, recommending the 50mm² cable for longer runs (over 50m) to minimize voltage drop.
Bulk Order Incentives:
If the customer places a bulk order within 30 days of receiving the sample, the manufacturer waives any sample fees (if applicable) and offers a 5% discount on the first order. For orders ≥5000m, the discount increases to 8%, and a dedicated account manager is assigned to oversee the order from production to delivery.
For repeat customers, the manufacturer offers a “Sample Loyalty Program,” where each sample request earns points that can be redeemed for discounts on future orders or free accessories (e.g., grounding clamps, cable glands).
Feedback Collection:
The sales team follows up with the customer 1 week after sample delivery to collect feedback on the sample’s performance, packaging, and the overall sample service experience. This feedback is used to improve the sample program—for example, if customers request more detailed test reports, the manufacturer adds additional metrics (e.g., tensile strength, elongation) to future reports.
Installation Resources:
Digital Installation Manual: A detailed, downloadable manual is available on the manufacturer’s website, covering:
Step-by-step installation instructions for different scenarios (e.g., grounding main electrical panels, connecting to earth rods, grounding industrial machinery).
Safety guidelines (e.g., “Turn off the main power supply before stripping insulation,” “Use a dedicated wire stripper to avoid nicking the copper conductor,” “Maintain the minimum bending radius to prevent insulation damage”).
Troubleshooting sections for common installation issues (e.g., “How to fix a loose termination that causes high resistance,” “What to do if the cable overheats during initial testing”).
Video Tutorials: Short, 2–3 minute videos on the manufacturer’s YouTube channel and website demonstrate key installation steps, such as:
Stripping PVC insulation without damaging the conductor (showing the correct tool pressure and angle).
Crimping copper lugs to the conductor (using the right crimping tool for 35mm²/50mm² cables).
Testing the grounding system with a megohmmeter to ensure it meets safety standards.
Mobile App: The manufacturer’s mobile app includes an “Installation Helper” tool that allows customers to input the cable size, installation method, and ambient temperature. The tool then generates a customized checklist to ensure no steps are missed and provides real-time tips (e.g., “In humid environments, apply anti-corrosion grease to the termination to prevent copper oxidation”).
On-Site Support:
Residential and Small Commercial Projects: For projects involving ≤1000m of cable (e.g., a small office building or a single-family home), the manufacturer can send a technical representative to the site for a 1-day consultation. The representative reviews the installation plan, advises on cable routing (e.g., avoiding heat sources like boilers or HVAC ducts), and answers the electrician’s questions. This service is free for orders ≥500m.
Large-Scale Commercial and Industrial Projects: For projects involving ≥5000m of cable (e.g., a shopping mall, factory, or housing development), the manufacturer provides on-site supervision during installation. A team of 2–3 certified engineers visits the site weekly to inspect the installation (e.g., checking the cable’s bending radius, verifying termination torque, testing insulation resistance) and ensure compliance with local electrical codes (e.g., NEC 2023 in the USA, IEC 60364 in Europe). This service is available for an additional fee, but it is free for orders ≥10,000m.
Training Programs:
Contractor Training Workshops: The manufacturer hosts quarterly training workshops at regional facilities, teaching electricians and contractors about the cable’s features (e.g., flexibility, flame retardancy, corrosion resistance), installation best practices, and safety standards. The workshops include hands-on sessions where participants practice installing both 35mm² and 50mm² cables, using different tools and installation methods. Participants receive a “Certified Installer” certificate upon completion, which qualifies them for priority support and exclusive discounts on bulk orders.
Online Training Courses: For customers who cannot attend in-person workshops, self-paced online courses are available on the manufacturer’s learning platform. These courses include interactive quizzes, video demonstrations, and a final exam, with a certificate awarded to those who score ≥80%. The courses are updated annually to reflect changes in electrical codes and standards.
Standard Warranty Terms:
Coverage: The warranty covers defects in materials and workmanship, including:
Insulation breakdown due to faulty PVC material (e.g., pinholes, uneven thickness) that causes current leakage or fails the dielectric strength test.
Copper conductor corrosion resulting from inadequate processing (e.g., insufficient cleaning before insulation) that increases resistance beyond the specified limit (≤0.524Ω/km for 35mm², ≤0.378Ω/km for 50mm²).
Premature aging of the insulation (e.g., brittleness, cracking, or color fading) within 5 years of installation, under normal operating conditions (temperature: -15°C to 70°C, voltage: ≤1kV).
Exclusions: The warranty does not cover damage caused by:
Improper installation (e.g., exceeding the minimum bending radius, using the cable as a phase or neutral conductor instead of a grounding conductor, terminating with incorrect torque).
Misuse or abuse (e.g., exposing the cable to temperatures above 70°C, submerging non-waterproof variants in water, physical damage from heavy machinery).
External factors (e.g., rodent bites, lightning strikes, natural disasters like floods or earthquakes).
Normal wear and tear (e.g., slight insulation discoloration after 5+ years of use, minor conductor resistance increases within 10% of the initial value).
Claim Process:
The customer notifies the manufacturer in writing (email or official letter) within 7 days of discovering the defect, providing the order number, batch number, photos/videos of the defect, and a detailed description of the issue.
The after-sales team reviews the claim within 48 hours and may request additional information (e.g., installation records, test results from a third-party lab).
If the claim is approved, the manufacturer offers a resolution (replacement, refund, or repair) within 3 business days, as outlined in Section 2.3.3.
Extended Warranty Options:
10-Year Extended Warranty: Available for commercial and industrial customers at 8% of the total order value, this warranty extends coverage to 10 years and includes additional benefits:
Annual Maintenance Checks: A certified technician visits the customer’s site once a year to inspect the cable’s condition (e.g., checking insulation for cracks, testing conductor resistance, verifying terminations), providing a detailed maintenance report with recommendations for repairs or replacements if needed.
Priority Technical Support: After-sales inquiries are escalated to a dedicated team of engineers, with response times within 2 hours (compared to 24 hours for standard warranty customers).
Accidental Damage Coverage: Minor damage caused by accidental cuts during maintenance or temporary exposure to moisture (up to 48 hours) is covered, with no additional fees for repairs or replacements.
15-Year Extended Warranty: Designed for critical infrastructure projects (e.g., hospitals, data centers, power plants) at 15% of the order value, this warranty includes all 10-year benefits plus:
Quarterly Inspections: More frequent site visits to monitor the cable’s performance in high-stress environments (e.g., high-temperature industrial facilities, coastal areas with salt spray).
Replacement of Related Components: If a warranty-covered cable defect damages connected grounding components (e.g., earth rods, clamps), the manufacturer covers the cost of replacing those components (up to $1000 per claim).
Emergency On-Site Support: In the event of a critical grounding failure (e.g., a cable fault that risks equipment damage or personnel safety), a technician is dispatched to the site within 24 hours (domestic) or 48 hours (international) to resolve the issue.
Proactive Maintenance Guidelines:
Customized Annual Checklists: Every year, customers receive a personalized maintenance checklist via email, tailored to the cable’s size, installation environment, and usage. For example:
Indoor Residential/Commercial Cables: Tasks include “Inspect insulation for cracks, discoloration, or peeling,” “Tighten grounding clamps to 25 N·m torque (35mm²) or 30 N·m (50mm²),” and “Test insulation resistance with a 1kV megohmmeter (minimum 80MΩ at 20°C).”
Outdoor/Industrial Cables: Additional tasks such as “Check for UV damage (brittle insulation, faded yellow-green color),” “Remove debris or vegetation from around cable runs to prevent moisture buildup,” and “Inspect terminations for corrosion (apply anti-corrosion grease if needed).”
Lifecycle Tracker Tool: The manufacturer’s mobile app includes a “Grounding Cable Lifespan Manager” that lets customers log key details (installation date, location, size, insulation type) for each cable run. The tool sends automated reminders for maintenance (e.g., “Test 35mm² Outdoor Cable insulation in 30 days”) and alerts when the cable approaches the end of its recommended lifespan (e.g., “50mm² Industrial Cable needs replacement in 2 years”). It also stores maintenance records and test results, creating a digital audit trail for compliance with electrical codes.
Troubleshooting Support:
24/7 Technical Hotline: A toll-free hotline is staffed by electrical engineers with 5+ years of experience in grounding systems. Customers can call to resolve urgent issues, such as:
“Insulation resistance of my 35mm² cable dropped to 40MΩ—what should I do?” (Engineers advise cleaning the cable surface with a dry cloth, checking for moisture ingress at terminations, and re-testing; if resistance remains low, they recommend replacing the affected section to avoid current leakage.)
“My 50mm² cable’s termination is corroded, causing high resistance—how to fix it?” (Engineers suggest disconnecting the cable, cleaning the conductor with a wire brush and mild detergent, drying it thoroughly, applying anti-corrosion grease, and reattaching the clamp with the correct torque.)
Remote Diagnostics for Industrial Customers: For large-scale installations (e.g., factories with 1000m+ of cable), the manufacturer offers remote diagnostics via the app. Customers connect a wireless sensor (provided by the manufacturer) to the cable, which measures real-time insulation resistance, conductor temperature, and fault current history. The data is encrypted and sent to the manufacturer’s cloud platform, where engineers analyze it and provide a diagnostic report within 2 hours—identifying issues like “Insulation degradation due to prolonged exposure to 75°C ambient temperature” or “Loose termination causing a 15% increase in conductor resistance.”
End-of-Lifecycle Services:
Sustainable Recycling Program: When the cable reaches the end of its lifespan, the manufacturer offers a free recycling service to reduce environmental impact. Customers schedule a pickup via the app or website, and the manufacturer’s logistics partner collects the old cables. The cables are processed at certified recycling facilities:
Copper Conductor: Melted down and refined into new copper rods (99.95% purity), which are reused in manufacturing new cables—reducing the need for raw copper mining and cutting carbon emissions by 75% compared to producing virgin copper.
PVC Insulation: Shredded, cleaned, and repurposed into plastic products (e.g., pipe fittings, floor tiles) or converted into energy via waste-to-energy facilities (compliant with EU Waste Framework Directive).
A recycling certificate is provided to the customer, detailing the quantity of cable recycled and the environmental savings (e.g., “100m of 50mm² cable recycled saved 80kg of CO₂ emissions”), which can be used to meet corporate sustainability goals or regulatory requirements.
Replacement Planning and Support: Two years before the cable’s recommended lifespan ends, the manufacturer’s account manager contacts the customer to discuss replacement options. The manager provides:
A detailed quote for new cables, including volume discounts for bulk orders.
A delivery schedule aligned with the customer’s maintenance timeline (e.g., scheduling delivery during a factory shutdown to minimize downtime).
Technical support for transitioning to the new cable, including on-site guidance for removing old cables and installing new ones.
For critical applications (e.g., hospital backup generator grounding), the manufacturer offers a “Seamless Replacement” service, where new cables are installed alongside old ones before the old ones are removed—ensuring continuous grounding protection during the transition.
شركة Hongtai Cable Technology Co. ، Ltd
البريد الإلكتروني: export@qlcables.com
sales@qlcables.com
Tel/Whatsapp:+86-18032066271
إضافة ： منطقة التنمية الصناعية Xiaokou ، مقاطعة نينغجين ، مدينة Xingtai ， مقاطعة Hebei ، الصين
حقوق الطبع والنشر © Hongtai Cable Technology Co. ، Ltd الدعم الفني:Ronglida Technology
يستخدم هذا الموقع ملفات تعريف الارتباط لضمان حصولك على أفضل تجربة على موقعنا.
English
Español
Portugues
Pусский
Français
ไทย
Türk dili
Indonesia
Tiếng Việt
هاتف
صندوق البريد
