In the intricate web of electrical systems, where power flows through wires to illuminate homes, run industries, and power modern life, there exists a silent guardian that often goes unnoticed yet stands as the last line of defense against catastrophic failures: the grounding cable. Among the many options available, the Core X single core CU/PVC grounding cable series has emerged as a paragon of reliability, designed to protect both equipment and lives across residential, commercial, and industrial settings. Available in 10 mm², 16 mm², 25 mm², and 35 mm², these cables are engineered with precision, combining high-purity Copper Conductors and robust PVC Insulation in the universally recognized green/yellow color scheme, all rated for 450/750V applications. This comprehensive guide explores the engineering, performance, applications, and unwavering commitment to safety that define the Core X grounding cable series. At the heart of every Core X grounding cable lies a conductor crafted from high-purity electrolytic copper, a material chosen for its unparalleled electrical conductivity. Electrolytic copper undergoes a stringent purification process that eliminates impurities such as oxygen, sulfur, and metallic contaminants, resulting in a conductor with a conductivity rating of 100% IACS (International Annealed Copper Standard) or higher. This exceptional conductivity is not merely a technical specification but a critical safety feature: in the event of a fault—such as a short circuit or insulation failure—grounding cables must provide an unimpeded path for fault currents to flow into the earth, diverting them away from equipment and human contact. A high-conductivity conductor ensures that these currents are dissipated rapidly, reducing the duration of exposure to dangerous voltages and minimizing the risk of electric shock, fires, or equipment damage.
Beyond conductivity, the electrolytic copper used in Core X cables boasts remarkable mechanical properties that enhance durability and ease of installation. Its inherent ductility allows the conductor to be bent, twisted, and routed through tight spaces—such as within wall cavities, conduit systems, or industrial machinery—without cracking or breaking. This Flexibility is particularly valuable in complex installations where the grounding path must navigate around structural obstacles. Additionally, copper’s natural resistance to corrosion ensures that the conductor remains intact even in humid environments, such as basements, outdoor enclosures, or industrial facilities with high moisture levels. Over time, this resistance to degradation prevents the formation of oxide layers that could increase resistance, ensuring the cable maintains its low-impedance path for decades. Encasing the copper conductor is a robust layer of polyvinyl chloride (PVC) insulation, engineered to protect the conductor while maintaining the cable’s functional integrity. The PVC used in Core X cables is formulated for high performance, with additives that enhance its resistance to heat, chemicals, and physical abrasion. Unlike standard PVC, which may soften or degrade under extreme temperatures, the insulation in Core X cables remains stable across a wide range—from -15°C to 70°C—making it suitable for both indoor and outdoor applications, including unheated garages, industrial freezers, and sun-exposed outdoor grounding points. This thermal stability ensures that the insulation does not crack in cold weather or melt in high-heat environments, preserving the conductor’s protection and preventing accidental contact with live components.
The insulation’s resistance to chemicals is another critical attribute, especially in industrial settings where exposure to oils, solvents, or cleaning agents is common. Core X’s PVC insulation resists swelling, cracking, or dissolving when in contact with these substances, maintaining its insulating properties and structural integrity. Physical durability is equally important: the insulation is designed to withstand the rigors of installation, including pulling through conduits, being stepped on, or encountering sharp edges, without tearing or puncturing. This ruggedness reduces the risk of insulation damage during installation—a common cause of grounding failures—and extends the cable’s service life.

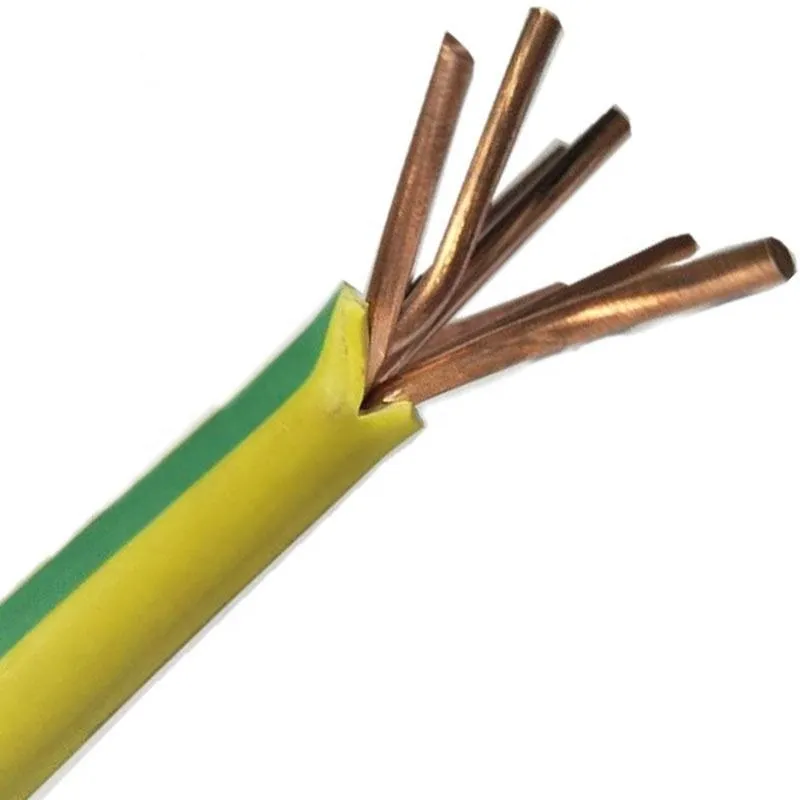

Perhaps the most visually distinctive feature of Core X grounding cables is their green/yellow color scheme, a universal code recognized by electrical safety standards worldwide. This color combination is not arbitrary but a deliberate design choice mandated by organizations such as the International Electrotechnical Commission (IEC) and the National Electrical Code (NEC) to ensure that grounding conductors are instantly identifiable. In complex electrical systems, where dozens of cables may run parallel to each other, this visual distinction prevents misconnection— a critical error that could render the grounding system ineffective. For electricians and inspectors, the green/yellow insulation simplifies compliance checks, allowing them to quickly verify that grounding paths are correctly installed and intact. This clarity reduces the likelihood of human error during installation and maintenance, further enhancing overall system safety.
The Core X series is available in four carefully calibrated cross-sectional areas—10 mm², 16 mm², 25 mm², and 35 mm²—each tailored to specific current-carrying requirements and application scenarios. This range ensures that there is a Core X cable suitable for every grounding need, from small residential systems to large industrial complexes.
The 10 mm² and 16 mm² cables are the workhorses of residential and light commercial grounding. In homes, 10 mm² cables are typically used to ground individual circuits, such as those powering kitchen appliances, air conditioning units, or home entertainment systems. They provide a reliable path for fault currents generated by these devices, protecting both the equipment and occupants. The 16 mm² variant, with its higher current-carrying capacity, is often employed in main distribution panels, where it connects the building’s electrical system to the earth electrode. This application is critical, as the main panel serves as the central hub for power distribution, and a robust grounding connection here ensures that faults anywhere in the system are safely diverted.
In commercial settings—such as offices, retail stores, and hospitals—the 16 mm² cable is frequently used to ground lighting systems, server racks, and medical equipment. These environments often have higher power demands and more complex wiring, making a reliable grounding system essential to prevent data loss, equipment downtime, or risks to patient safety. The 10 mm² cable, meanwhile, is ideal for grounding smaller devices like printers, cash registers, and security cameras, ensuring that even low-power equipment contributes to the overall safety of the system.
Stepping up to industrial applications, the 25 mm² and 35 mm² Core X cables are designed to handle the high fault currents generated by heavy machinery, power generation equipment, and large-scale industrial systems. In manufacturing plants, 25 mm² cables ground motors, conveyors, and robotic systems, where a single fault could disrupt production or cause catastrophic equipment failure. The 35 mm² cable, the largest in the series, is reserved for critical applications such as grounding transformers, switchgear, and renewable energy installations—including solar farms and wind turbines. These systems operate at high voltages and currents, and a robust grounding connection is essential to protect workers, prevent fires, and ensure compliance with strict industrial safety standards.
Across all sizes, Core X cables maintain a balance of flexibility and strength that simplifies installation. Unlike rigid grounding conductors, which may require specialized tools or fittings, Core X’s stranded copper design allows for easy bending and termination, reducing installation time and labor costs. This flexibility is particularly valuable in retrofitting projects, where existing structures may limit access to grounding points, or in industrial settings where machinery is frequently reconfigured.
Safety in electrical systems is not merely a matter of performance but of compliance with global standards, and Core X grounding cables are engineered to meet or exceed the most stringent requirements. These cables are certified to comply with IEC 60228, the international standard for Electrical Conductors, which specifies requirements for Conductor Materials, dimensions, and electrical properties. They also carry the CE mark, indicating compliance with European Union directives on health, safety, and environmental protection, making them suitable for use across the EU and in countries that recognize CE certification. In addition to international standards, Core X cables adhere to regional regulations, such as the NEC in the United States, BS 7671 in the United Kingdom, and AS/NZS 3000 in Australia. These standards dictate specific requirements for grounding systems, including conductor size, insulation type, and installation methods, ensuring that Core X cables integrate seamlessly into local electrical codes. For contractors and engineers operating in global markets, this multi-standard compliance eliminates the need for multiple product lines, simplifying procurement and ensuring consistency in safety across projects.
The rigorous testing that underpins these certifications is worth highlighting. Core X cables undergo extensive evaluations, including conductor resistance testing, insulation resistance testing, flame retardancy testing, and mechanical stress testing. These tests verify that the cables perform as intended under real-world conditions, from extreme temperatures to physical abuse. For example, flame retardancy testing ensures that the PVC insulation does not support combustion, preventing the spread of fire in the event of an electrical fault. Insulation resistance testing, conducted at high voltages, confirms that the insulation remains intact and does not allow current leakage, a critical factor in maintaining the integrity of the grounding path.
Installation and maintenance are often overlooked aspects of grounding systems, yet they play a vital role in ensuring long-term performance. Core X cables are designed with installer-friendly features that simplify both initial setup and ongoing upkeep. The cables’ flexibility, as noted earlier, allows for easy routing through conduits, around corners, and into tight spaces, reducing the risk of damage during installation. The green/yellow insulation, in addition to aiding identification, is printed with durable markings that indicate the cable’s size, voltage rating, and certification information, ensuring that installers can quickly verify that the correct cable is being used for the application.
Termination— the process of connecting the grounding cable to electrodes, panels, or equipment— is simplified by the cable’s stranded design. Unlike solid conductors, which may require crimping or soldering, Stranded Copper Conductors in Core X cables can be easily terminated using standard lugs or clamps, ensuring a secure, low-resistance connection. This simplicity reduces the likelihood of poor terminations, which are a leading cause of grounding system failures. For maintenance personnel, the cables’ durability minimizes the need for frequent inspections or replacements. Routine checks—such as visual inspections for insulation damage or resistance testing to verify conductivity—are straightforward, thanks to the cable’s robust construction. In the rare event that a cable needs to be replaced, its standardized design ensures that it can be swapped out with minimal disruption to the electrical system. This ease of maintenance is particularly valuable in critical environments, such as hospitals or data centers, where downtime must be kept to a minimum.
In an era where sustainability is a global priority, Core X grounding cables are designed with environmental responsibility in mind. Copper, the primary material in the conductor, is one of the most recyclable metals on the planet, with a recycling rate exceeding 90% in many regions. At the end of their service life, Core X cables can be recycled, with the copper reclaimed and reused in new products—reducing the demand for virgin copper mining and the associated environmental impact. This recyclability aligns with circular economy principles, ensuring that the cables contribute to a more sustainable electrical industry.
The PVC insulation used in Core X cables is also formulated to minimize environmental harm. While PVC has historically faced criticism for its environmental impact, modern formulations—like those used in Core X—incorporate non-toxic stabilizers and are designed for durability, reducing the need for frequent replacements. Additionally, the cables’ long service life means fewer resources are consumed over time, further lowering their environmental footprint. For organizations committed to green building standards—such as LEED or BREEAM—Core X cables offer a responsible choice that supports sustainability goals without compromising safety.
The reliability of Core X grounding cables is not merely theoretical but is validated by countless real-world applications across the globe. In a residential development in Scandinavia, 10 mm² and 16 mm² Core X cables were installed to ground over 500 homes, withstanding harsh winter temperatures as low as -25°C and ensuring safe operation during frequent thunderstorms. In a bustling retail mall in Asia, 16 mm² cables were used to ground lighting systems and escalators, providing consistent protection in a high-traffic environment where equipment reliability is critical to business operations.
In industrial settings, Core X cables have proven their mettle in challenging conditions. A automotive manufacturing plant in Europe utilized 25 mm² cables to ground robotic assembly lines, where constant vibration and exposure to lubricants could compromise lesSer Cables. The Core X cables’ durable insulation and corrosion-resistant conductors ensured uninterrupted operation, contributing to a 30% reduction in unplanned downtime related to electrical faults. Similarly, a solar farm in Australia deployed 35 mm² Core X cables to ground its inverter systems, withstanding extreme heat and UV exposure while maintaining low resistance—critical for protecting expensive solar equipment and ensuring efficient power generation. These case studies underscore a common theme: Core X grounding cables deliver consistent performance across diverse environments, from freezing winters to scorching deserts, from quiet homes to bustling factories. This reliability has earned them the trust of electrical engineers, contractors, and facility managers worldwide, who recognize that a grounding system is only as strong as its weakest link—and that Core X cables are built to be the strongest link in that chain.
In conclusion, the Core X single core CU/PVC grounding cable series represents the pinnacle of grounding technology, combining high-purity Copper Conductors, robust PVC insulation, and thoughtful design to deliver uncompromising safety and reliability. From its exceptional conductivity that ensures rapid fault current dissipation to its durable insulation that withstands harsh conditions, every aspect of Core X cables is engineered with one goal in mind: to protect. Available in a range of sizes to suit any application, compliant with global standards, and designed for easy installation and maintenance, these cables are more than mere components—they are essential safeguards in the complex world of electrical systems. As technology advances and electrical systems become more interconnected, the importance of reliable grounding will only grow. Whether in a smart home, a state-of-the-art factory, or a renewable energy plant, Core X grounding cables stand ready to meet the challenges of tomorrow, ensuring that safety remains at the heart of every electrical system. For those who prioritize protection, compliance, and peace of mind, Core X is not just a cable—it is a commitment to excellence in electrical safety.
