I. From the Perspective of the Product Itself
(1) Specification Parameters
The 12 AWG
Copper Ground Wire is meticulously designed in terms of specification parameters to meet the strict requirements of grounding in various electrical systems, providing reliable protection for electrical safety.
The conductor of this ground wire is composed of 7 strands of high-purity electrolytic
Copper Wires with a diameter of 0.80mm. This structure not only ensures the
Flexibility of the conductor but also enhances its overall mechanical strength. According to the American Wire Gauge (AWG) standard, 12 AWG corresponds to a conductor cross-sectional area of approximately 3.31mm², which can effectively meet the demand for conducting leakage current in the grounding loop.
In terms of conductive performance, the DC resistance of this ground wire at room temperature is ≤5.21Ω/km. A lower DC resistance means that in the event of a fault, leakage current can be quickly conducted to the ground, reducing the retention time of current on the ground wire, thereby lowering the risk of electric shock and equipment damage. Its rated voltage is 600V. Although the actual voltage in conventional grounding loops is much lower than this value, the higher rated voltage provides sufficient redundancy for safe operation under extreme conditions. For example, when there is an abnormal fluctuation in the power grid or a serious fault occurs in the equipment, it can withstand instantaneous high-voltage impacts without being broken down.
The THW-type insulation layer is an important part of this ground wire, which is made of temperature-resistant polyvinyl chloride material. This material has excellent high-temperature resistance, with a long-term allowable operating temperature of up to 90℃, and can adapt to the relatively high-temperature environment generated during the operation of electrical equipment. In the case of a short circuit (with a maximum duration of no more than 5 seconds), the insulation layer can withstand a high temperature of not less than 160℃, ensuring the integrity of the grounding loop in the event of a sudden fault and avoiding the loss of grounding function due to insulation layer failure.
In addition, the insulation layer of this ground wire has a thickness of 0.8mm, which can not only provide good insulation performance but also offer effective mechanical protection for the conductor. The insulation resistance is ≥100MΩ, ensuring that there is no unnecessary current leakage on the ground wire under normal working conditions, thus guaranteeing the stability and reliability of the grounding loop. Its minimum bending radius is only 4 times the outer diameter of the cable, a feature that allows the ground wire to be easily bent and routed in narrow spaces, greatly improving the convenience of construction.
(2) Characteristic Uses
With its excellent performance, the 12 AWG copper ground wire has extensive and important applications in many fields and is a key component for ensuring electrical safety.
In the construction field, this ground wire is widely used for grounding in the power distribution systems of various buildings such as residential buildings and commercial buildings. In residential buildings, it connects the main distribution box, the distribution boxes in each room, as well as metal pipes (such as water pipes, gas pipes, etc.) and grounding electrodes to form a complete grounding network. When a leakage occurs in the power distribution system, the leakage current can be quickly conducted to the ground through the ground wire, thereby preventing residents from electric shock accidents. In commercial buildings, due to the large number of electrical equipment and high power, grounding is more important. The 12 AWG copper ground wire can provide reliable grounding protection for the complex power distribution systems in places such as shopping malls and office buildings, ensuring the safe operation of various electrical equipment and avoiding serious accidents such as fires caused by leakage.
In industrial scenarios, the 12 AWG copper ground wire also plays an irreplaceable role. In factory production workshops, the metal enclosures of large industrial equipment such as machine tools and production line equipment need reliable grounding. When the internal insulation of these equipment fails, the metal enclosures may become live. At this time, the ground wire can conduct the leakage current to the ground in a timely manner, not only avoiding damage to the equipment due to leakage but also, more importantly, preventing operators from casualties caused by touching the live enclosures. For example, this ground wire can be seen on welding robots in automobile manufacturing workshops and CNC machine tools in mechanical processing workshops, providing a solid guarantee for the safe conduct of industrial production.
The household appliance field is also an important application market for the 12 AWG copper ground wire. High-power household appliances such as refrigerators, air conditioners, washing machines, and electric water heaters mostly use this specification of cable for the grounding terminal of their power plugs. During the use of these appliances, due to the complex internal circuits, there is a certain risk of leakage. By connecting the metal enclosures of the appliances to the ground wire, when leakage occurs, the current can quickly flow into the ground through the ground wire, thereby protecting the personal safety of users. For instance, if an electric water heater leaks, without grounding protection, users touching the water heater enclosure may get an electric shock. With reliable grounding, the leakage current will be conducted away by the ground wire, greatly reducing the risk of electric shock.
In addition to the above main fields, the 12 AWG copper ground wire is also widely used in communication base stations, data centers, hospitals, and other places. In communication base stations, a large number of communication equipment need stable grounding to ensure the quality of signal transmission and the safety of the equipment; the servers and other precision equipment in data centers have extremely high requirements for grounding, and this ground wire can provide a stable and reliable grounding environment for them; the medical equipment in hospitals is related to the lives of patients, so reliable grounding is essential, and the 12 AWG copper ground wire can meet the strict grounding standards of medical equipment.
(3) Material and Style
In terms of material selection and style design, the 12 AWG copper ground wire fully considers its functional requirements and use environment, ensuring the high quality and practicality of the product.
In terms of materials, the conductor is made of high-purity electrolytic copper. Electrolytic copper has extremely high conductivity, which can ensure the smooth conduction of leakage current on the ground wire and reduce energy loss. At the same time, electrolytic copper has good ductility and toughness. After stranding, it can form a soft and unbreakable conductor structure, meeting the bending and installation needs of the ground wire in different scenarios. High-purity electrolytic copper also has good oxidation resistance and corrosion resistance, which can extend the service life of the ground wire and ensure that it maintains good conductive performance for a long time.
The insulation layer is made of temperature-resistant polyvinyl chloride (PVC) material, namely THW-type
Insulation Material. This material has excellent insulation performance, which can effectively block current and prevent short circuits between the ground wire and other conductors. At the same time, its temperature resistance is outstanding, and it can maintain stable performance in a relatively high-temperature environment, adapting to the heat generated during the operation of electrical equipment. In addition, polyvinyl chloride material also has a certain degree of chemical corrosion resistance, which can resist the erosion of moisture, dust, and some slight chemical substances in the daily environment, protecting the internal conductor from damage.

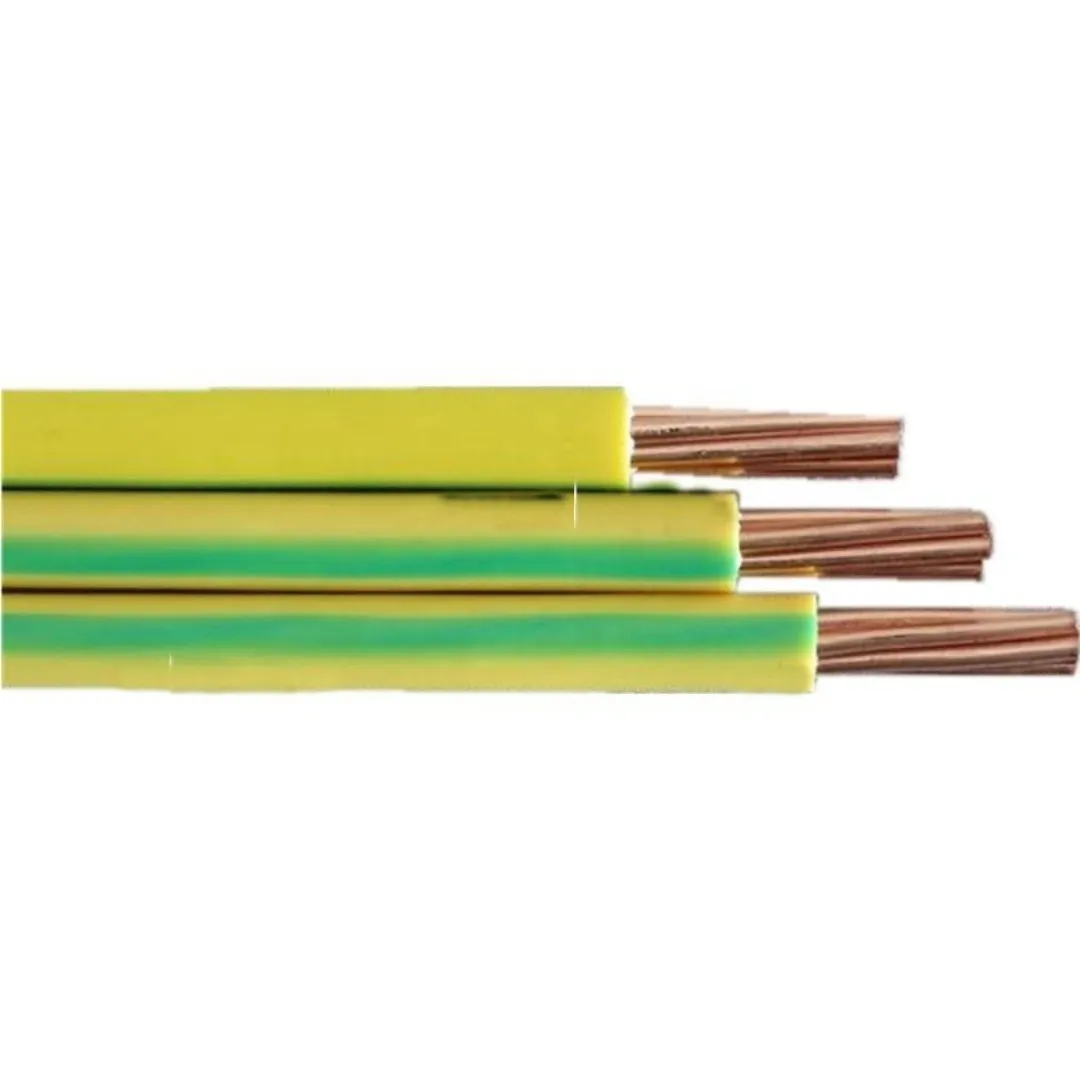

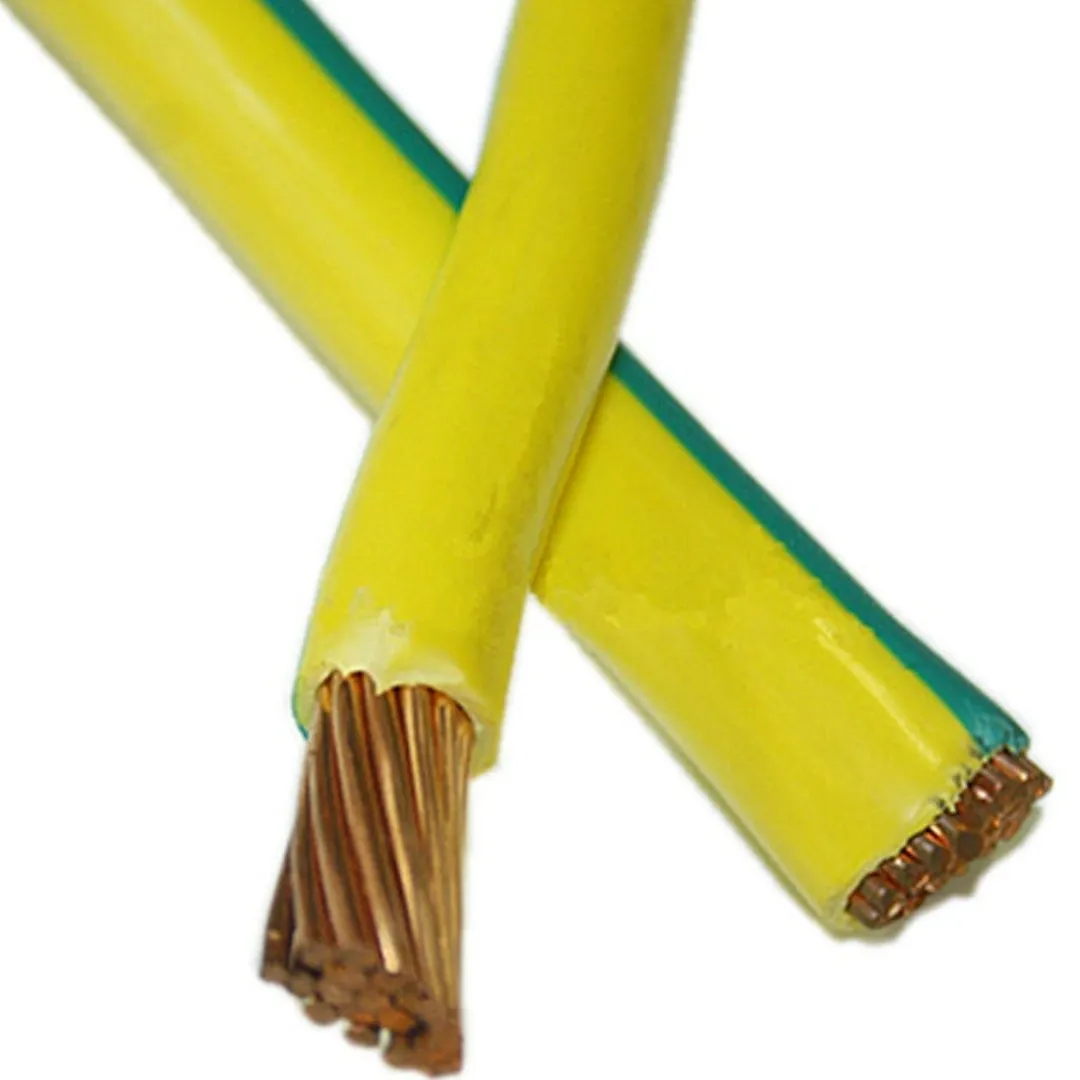

In terms of style design, the 12 AWG copper ground wire adopts a green-yellow 双色 insulation layer, which is an internationally accepted grounding identifier. It allows construction personnel and users to quickly identify the grounding function of the cable, avoiding misconnection during wiring, and improving the accuracy and safety of construction.

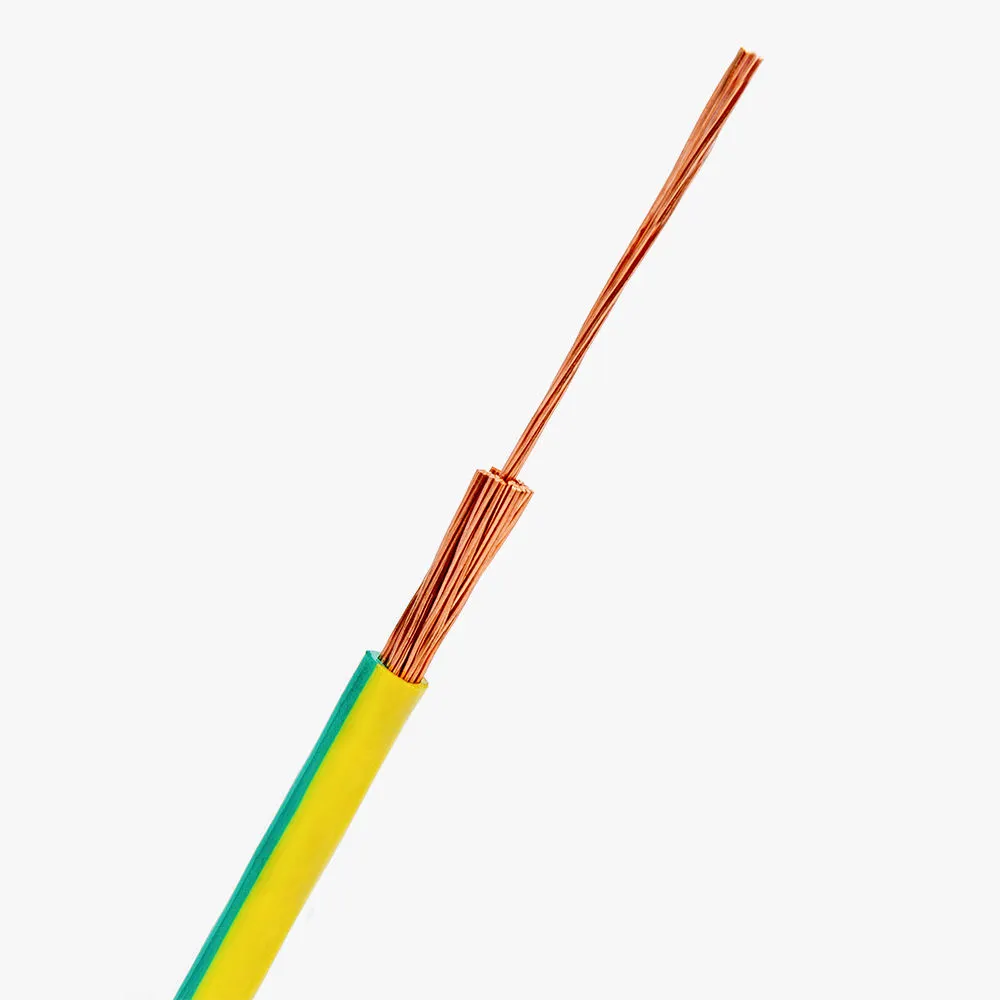

The overall structure of the cable is circular, with a uniformly wrapped green-yellow 双色 insulation layer on the outer layer and 7 strands of stranded
Copper Conductors inside. This structural design makes the cable have good flexibility and mechanical strength, facilitating installation and wiring in various complex environments. The surface of the cable is smooth and flat without burrs or protrusions, which not only facilitates threading and laying during construction but also reduces friction with other objects, lowering the risk of damage to the insulation layer.

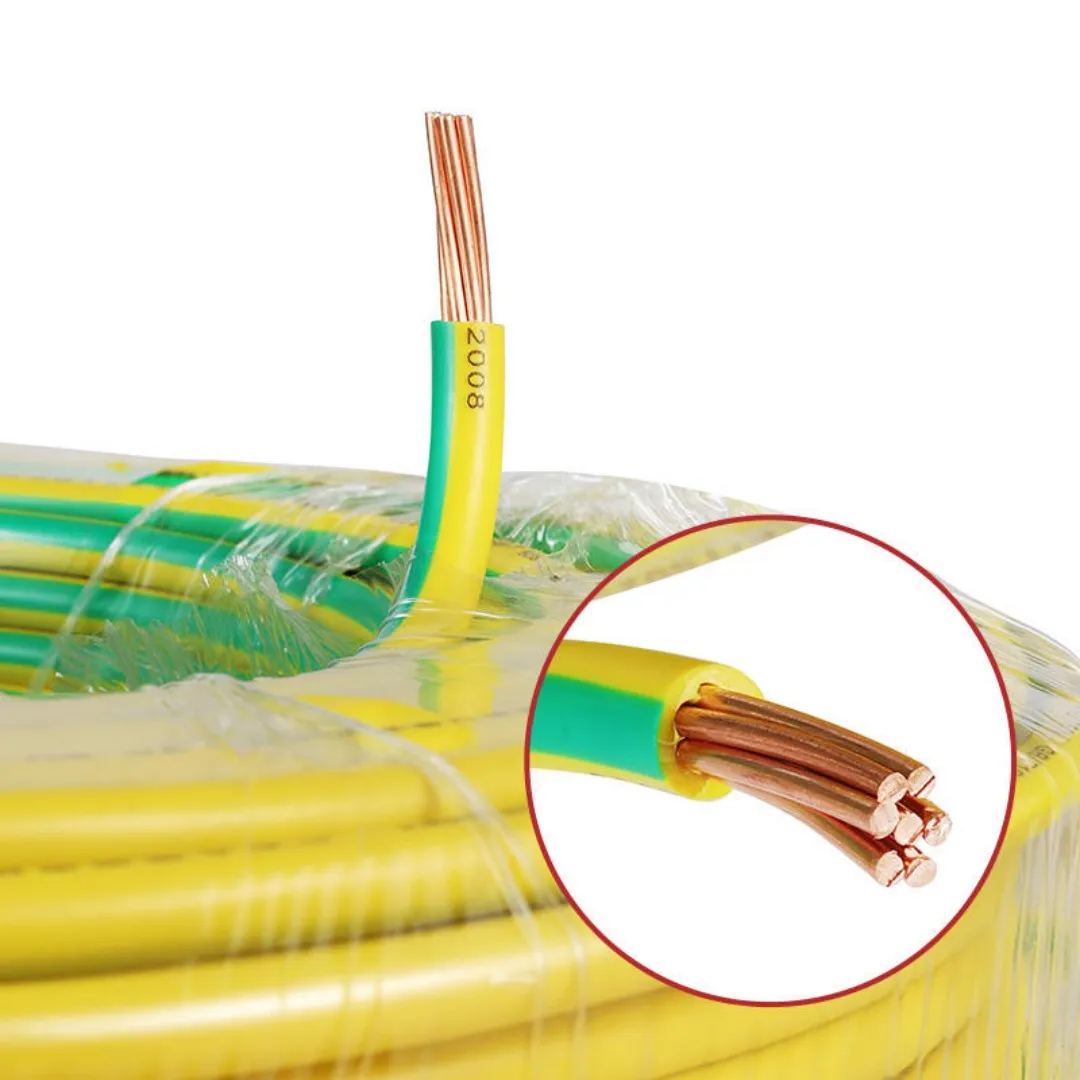

Each roll of 12 AWG copper ground wire is available in two lengths: 50 meters and 100 meters, which can meet the needs of different construction scenarios. The shorter 50-meter specification is suitable for small-scale construction such as home decoration and grounding of small equipment; while the 100-meter specification is more suitable for large-scale grounding projects such as large buildings and industrial workshops, reducing the number of joints and improving the reliability of the grounding loop.
In addition, the surface of the cable is printed with clear marks, including specification parameters (12 AWG), conductor structure (7/0.80mm), rated voltage (600V), certification marks (such as UL 44 standard certification), manufacturer information, and meter scales, etc. These marks are printed with wear-resistant printing technology, which can remain clearly distinguishable during long-term use, facilitating construction personnel to check and operate during cutting and installation, and improving construction efficiency.
(4) Production Process
The production process of 12 AWG copper ground wire is rigorous and meticulous. Each link from the processing of raw materials to the inspection of finished products undergoes strict quality control to ensure that the products meet relevant standards and requirements.
The first step is the processing of copper materials. High-purity electrolytic copper ingots are selected as raw materials, heated to a molten state, and then made into copper rods through continuous casting process. During the casting process, parameters such as temperature and casting speed need to be accurately controlled to ensure the purity, diameter uniformity, and surface quality of the copper rods. The quality of the copper rods directly affects the performance of the subsequent conductors, so this link is crucial.
Next is the wire drawing process of the copper rods. The copper rods are put into a wire drawing machine and drawn through a series of dies of different specifications to gradually draw the copper rods into fine copper wires with a diameter of 0.80mm. During the drawing process, the copper wires will be subjected to a large pulling force. In order to eliminate the internal stress of the copper wires and improve their flexibility and ductility, the drawn copper wires need to be annealed. Annealing is usually carried out in an annealing furnace. The copper wires are heated to a specific temperature and kept for a certain time, then slowly cooled, so that the crystal structure of the copper wires is more uniform and the performance is more stable.
Then is the stranding of copper wires. According to the design requirements, 7 strands of fine copper wires with a diameter of 0.80mm are stranded by a stranding machine to form a 12 AWG conductor. During the stranding process, it is necessary to accurately control the stranding pitch and tension to ensure that the stranded conductor has a compact and round structure, as well as good flexibility and mechanical strength. A reasonable stranding pitch can make the conductor 受力 evenly when bent, avoiding excessive stress on a single strand of copper wire that may cause breakage.
After stranding, the insulation layer is extruded. Temperature-resistant polyvinyl chloride (PVC) particles are added to the extruder and heated to melt into a molten melt. At the die head of the extruder, the molten PVC melt is evenly extruded and wrapped around the
Stranded Copper Conductor through a die to form a THW-type insulation layer. During the extrusion process, it is necessary to strictly control the extrusion temperature, extrusion speed, and die size to ensure that the insulation layer has a uniform thickness (up to 0.8mm), a smooth surface, and is closely combined with the conductor without defects such as bubbles and impurities. At the same time, during the extrusion process, specific pigments need to be added to make the insulation layer appear green-yellow 双色 to meet the identification requirements of the
Grounding Cable.
The cable after extrusion of the insulation layer needs to be cooled, usually by means of water cooling. The cable is introduced into a cooling water tank, and through the rapid cooling effect of cold water, the
PVC Insulation layer is quickly solidified and shaped to ensure the dimensional stability and performance stability of the cable. The cooled cable is tested by a spark tester. By applying high-voltage electricity, it is checked whether the insulation layer has defects such as pinholes and damage to ensure that the insulation performance of the insulation layer meets the requirements (insulation resistance ≥100MΩ).
Subsequently, the cable enters the traction and take-up process. The traction machine pulls the cable at a constant speed to ensure uniform tension of the cable and avoid the cable being stretched or damaged due to excessive tension. The take-up machine neatly winds the cable on the reel to form 50-meter or 100-meter coiled products. During the take-up process, it is necessary to control the take-up speed and tension to ensure that the cable is arranged tightly and neatly on the reel, which is convenient for transportation, storage, and use.
During the production process, sampling tests are also required for the cable, including multiple indicators such as the DC resistance of the conductor, the thickness of the insulation layer, voltage resistance performance, insulation resistance, and flexibility. Only products that meet the relevant standards (such as UL 44 standard) in all indicators can be delivered as finished products. At the same time, the production workshop must maintain cleanliness to avoid the impact of dust, impurities, etc. on product quality, ensuring that the produced 12 AWG copper ground wire has stable and reliable performance.
II. From the Perspective of General Product Information
(1) Packaging
The packaging design of 12 AWG copper ground wire fully considers the needs of product protection, transportation, storage, and use, ensuring that the product remains in good condition before reaching the user.
This ground wire is packaged in rolls, with each roll available in two lengths: 50 meters and 100 meters. The reels are usually made of hard paper or plastic materials, which have a certain strength and rigidity, can support the weight of the cable, and prevent deformation during transportation and storage. Paper reels have the characteristics of environmental protection and low cost, and can be recycled, in line with environmental protection requirements; plastic reels have better moisture resistance and wear resistance, suitable for storage and transportation in humid environments.
When the cable is wound on the reel, mechanical winding is adopted to ensure that the cable is arranged neatly and tightly, avoiding mutual extrusion, winding, and wear. After winding, a layer of transparent plastic film is 套在 the outside of the reel. This layer of plastic film can play the role of moisture-proof, dust-proof, and anti-pollution, protecting the insulation layer of the cable from the influence of the external environment, such as preventing moisture and dust in the air from adhering to the surface of the cable and avoiding contamination or corrosion of the insulation layer. At the same time, the plastic film can also prevent the cable from loosening and falling off the reel during transportation and storage, ensuring the integrity of the cable.
On the side or end face of the reel, there will be a detailed product label pasted or printed. The label clearly indicates the product name (12 AWG copper ground wire), specification parameters (7/0.80mm stranded conductor, THW type, 600V), length (50 meters or 100 meters), certification marks (such as UL 44 standard certification), manufacturer name, production date, batch number, etc. This information is convenient for users to check when receiving and accepting products, ensuring that the received products meet the order requirements, and also provides convenience for product traceability.
For products transported in batches, multiple reels will be neatly stacked on wooden pallets or sturdy cartons. Wooden pallets have the characteristics of strong bearing capacity and being easy to handle with forklifts, suitable for the transportation of large batches of products; cartons are suitable for the transportation of small batches of products, with the advantages of being lightweight and easy to stack. During stacking, partitions or buffer materials (such as foam boards, bubble films, etc.) will be placed between the reels to reduce mutual collision and friction, further protecting the products from damage.
In addition, the selection of packaging materials also focuses on environmental protection, and efforts are made to choose recyclable and degradable materials to reduce environmental pollution. For example, paper reels and cartons can be recycled and reused, and plastic films are also made of recyclable polyethylene materials. At the same time, in the packaging process, excessive packaging is avoided, and under the premise of ensuring product safety, packaging materials are saved and packaging costs are reduced.
(2) Transportation
The transportation process of 12 AWG copper ground wire needs to strictly abide by relevant regulations and operating procedures to ensure that the products are not damaged during transportation and arrive at the destination safely.
In terms of transportation mode selection, road transport, railway transport, or express transport can be chosen according to the transportation distance, quantity, and customer requirements. Road transport has the characteristics of high flexibility, fast transportation speed, and being able to achieve door-to-door service, suitable for medium and short-distance transportation and small-batch cargo transportation. For long-distance transportation and large quantities of goods, railway transport is a more economical choice. Railway transport has the advantages of large transport capacity, low cost, and little impact from weather, which can ensure the stable transportation of goods. Express transport is suitable for small batches and urgent orders, which can provide faster transport speed and convenient services to meet the urgent needs of customers.
Before transportation, the packaged ground wires need to be properly fixed. For ground wires packaged with reels, when loading into transport vehicles or containers, they should be neatly stacked together and fixed with ropes or strapping to prevent shaking, collision, and dumping during transportation. For products stacked on wooden pallets, the pallets and products should be tightly wrapped together with stretch film to enhance the overall stability and avoid scattering during transportation.
During transportation, effective protective measures should be taken to prevent the ground wires from direct sunlight, rain, snow, and high-temperature exposure. Direct sunlight and high-temperature exposure will cause the temperature of the cables to rise, which may affect the performance of the insulation layer, reducing its temperature resistance and insulation; rain and snow will make the cables damp, leading to a decrease in insulation resistance, affecting the grounding performance, and may even cause aging and damage to the insulation layer. Therefore, during transportation, transport vehicles or containers need to be covered with tarpaulins, etc., to protect the ground wires from harsh weather. At the same time, the ground wires should be kept away from sharp objects and corrosive substances to prevent the insulation layer from being scratched or corroded, ensuring that the performance of the cables is not affected.
Transport vehicles must abide by traffic rules during driving, maintain stable driving, avoid sudden braking, sharp turns, overspeeding, etc., to reduce the impact and vibration on the ground wires. For ground wires transported over long distances, drivers or transport personnel should conduct regular inspections. They need to check whether the fixing of the ground wires is loose, whether the packaging is damaged, and whether there is any sign of moisture or contamination on the surface of the cables. If any problems are found, timely measures should be taken to deal with them, such as re-fixing the loose ground wires, replacing the damaged packaging, or wiping the contaminated cable surfaces, to ensure that the ground wires remain in good condition during transportation.
In the process of loading and unloading, appropriate equipment and tools should be used, such as forklifts, cranes, or hand trucks, to avoid manual handling of heavy reels. Manual handling not only easily causes damage to the ground wires but also may lead to personal injury. When using loading and unloading equipment, it is necessary to operate carefully to avoid collision or extrusion between the reels and the equipment or between the reels themselves. The reels should be lifted and placed gently to ensure that they are stably placed in the transport vehicle or storage area, preventing them from tipping over or falling during transportation.
(3) Shipping
The shipping process of 12 AWG copper ground wire is designed to be efficient and accurate, ensuring that the products are delivered to customers in a timely manner and meet their expectations.
After receiving the customer's order, the sales department will promptly sort out and verify the order information, including the product specification (12 AWG), quantity, delivery address, contact person, and contact information. Once the order is confirmed, it will be quickly transferred to the warehouse department for processing.
The warehouse staff will first check the inventory according to the order requirements. If there is sufficient stock, they will start the shipping preparation work within 24 hours. If the stock is insufficient, the warehouse department will communicate with the production department in a timely manner to arrange production. The production department will formulate a production plan based on the order quantity and delivery time, ensuring that the products are produced and delivered to the warehouse as scheduled.
Before shipping, the warehouse staff will conduct a comprehensive inspection of the ground wires to be shipped. They will check whether the product specification, quantity, and packaging are consistent with the order requirements. They will also inspect the appearance of the ground wires, including whether the insulation layer is intact, whether there are scratches or cracks, whether the color of the green-yellow is uniform, and whether the marks on the surface are clear. In addition, they will randomly check the performance indicators of some ground wires, such as insulation resistance, to ensure that the products meet the relevant standards and quality requirements.
After passing the inspection, the ground wires will be packed and labeled. The packaging will be reinforced according to the transportation mode and distance to ensure that the products are not damaged during transportation. The shipping label will clearly indicate the customer's information, product information, and shipping information, facilitating the identification and delivery of the goods by the logistics company.
The warehouse department will choose a suitable logistics company according to the customer's requirements and the actual situation. For domestic shipments, common logistics methods include road transport, railway transport, and express delivery. For international shipments, sea freight or air freight may be selected according to the customer's needs and the urgency of the order. The warehouse staff will coordinate with the logistics company to arrange the pickup time and ensure that the goods are loaded and transported in a timely manner.
Once the goods are shipped, the sales department will promptly inform the customer of the shipping information, including the logistics company name, waybill number, estimated delivery time, and contact information of the logistics company. This allows customers to track the transportation status of the goods in real-time and make relevant receiving preparations. For international shipments, the warehouse department will also prepare the necessary customs declaration documents, such as commercial invoices, packing lists, and product certification documents, to ensure that the goods can pass through customs smoothly.
During the shipping process, the customer service department will track the transportation status of the goods. If there is any delay or abnormal situation, they will communicate with the logistics company in a timely manner to find out the reason and take measures to solve it. At the same time, they will keep the customer informed of the progress, reducing the impact of the abnormal situation on the customer.
(4) Samples
To help customers better understand the performance and quality of 12 AWG copper ground wire, the company provides a sample service, allowing customers to test and evaluate the product before making a large purchase.
Customers can apply for samples through various channels, such as the company's official website, email, phone call, or online customer service. When applying for samples, customers need to provide basic information, including the company name, contact person, contact information, and the purpose of the sample. The company will process the sample application within 1-2 working days.
The sample of 12 AWG copper ground wire is usually a section of 1-2 meters in length. It is cut neatly and packed in a small plastic bag or carton to prevent damage during transportation. The sample will be labeled with basic information such as product specification, conductor structure, insulation type, and production batch number, facilitating customers' identification and testing.
In general, the company provides samples free of charge, but customers need to bear the shipping cost. For long-term cooperative customers or customers with large potential orders, the company may waive the shipping cost as a courtesy. The samples will be shipped through express delivery, and the customer will be provided with the tracking number after shipment, allowing them to track the sample's transportation status.
After receiving the sample, customers can conduct various tests according to their needs. For example, they can check the flexibility of the ground wire by bending it repeatedly; test the insulation performance by using a megohmmeter to measure the insulation resistance; observe the appearance of the conductor by stripping off a small part of the insulation layer to check whether the copper wire is pure and whether the stranding is uniform.
If customers have any questions about the sample or need technical support during the testing process, they can contact the company's technical department. The technical staff will provide professional answers and guidance to help customers better understand the product's performance and application.
The company attaches great importance to customers' feedback on samples. After customers test the samples, the sales staff will conduct a follow-up to understand their opinions and suggestions. This feedback will be used to improve the product quality and service level, providing better products and services for customers.
(5) After-sales Service
The company is committed to providing high-quality after-sales service for 12 AWG copper ground wire, ensuring that customers can use the product with confidence and solving any problems they may encounter during use.
Warranty Service: The 12 AWG copper ground wire provided by the company has a warranty period of 5 years from the date of delivery. During the warranty period, if the product has quality problems due to material defects or manufacturing errors, such as insulation layer damage, conductor breakage, or failure to meet the specified performance indicators, the company will provide free replacement or repair services. Customers need to provide the purchase invoice and product photos to prove the problem, and the company will send the replacement product or arrange maintenance personnel to deal with it in a timely manner after verifying the situation.
Technical Support: The company has a professional technical team to provide customers with technical support. Customers can consult the technical team about the installation, use, maintenance, and troubleshooting of the ground wire through phone calls, emails, or online customer service. The technical team will provide detailed answers and solutions, helping customers solve problems quickly. For example, if customers encounter difficulties in the grounding construction, the technical team can provide on-site guidance or formulate a specific construction plan according to the actual situation.
Complaint Handling: If customers have any complaints about the product or service, they can feedback to the company's customer service department. The customer service staff will record the complaint information in detail and respond to the customer within 24 hours. They will investigate the cause of the complaint, communicate with relevant departments to find a solution, and keep the customer informed of the progress. The company will try its best to resolve the customer's complaint satisfactorily, ensuring that the customer's rights and interests are protected.
Product Training: For large customers or customers with special needs, the company can provide product training services. The training content includes the performance characteristics, installation methods, maintenance precautions, and safety precautions of 12 AWG copper ground wire. The training can be conducted in the form of on-site lectures, video tutorials, or written materials, helping customers better understand and use the product, improving the safety and reliability of the grounding system.
Regular Follow-up: After the sale, the customer service department will conduct regular follow-up visits to customers to understand the use of the ground wire and collect their opinions and suggestions. This not only helps the company understand the product's performance in actual use but also allows customers to feel the company's attention and care, enhancing customer satisfaction and loyalty. If any potential problems are found during the follow-up, the company will take measures to deal with them in advance, avoiding the occurrence of serious problems.
In summary, the 12 AWG copper ground wire has excellent performance and a wide range of applications. With strict production processes, careful packaging, reliable transportation, thoughtful sample services, and perfect after-sales service, it provides customers with a comprehensive solution for electrical grounding, ensuring the safety and stability of electrical systems.
