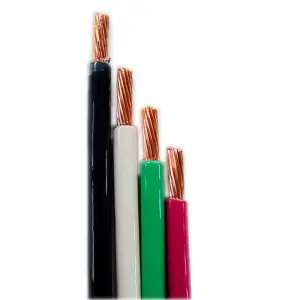

THW-2-LS / THHW-2-LS 600V 90c 14AWG 12AWG 10AWG 8AWG 6AWG Copper Wire

THW-2-LS: The "THW" stands for Thermoplastic Heat and Water-resistant. This indicates that the wire features a thermoplastic insulation that can withstand both high temperatures and moisture. The "-2" denotes an enhanced temperature rating, allowing the wire to operate at up to 90°C, a significant upgrade from standard THW wires which typically max out at 75°C. The "LS" suffix is critical—it stands for Low Smoke, a safety feature that minimizes smoke emission in the event of a fire, reducing visibility impairment and toxic fume inhalation.

THHW-2-LS: The "THHW" builds on THW, with the additional "H" signifying High Heat Resistance. Like THW-2-LS, it is rated for 90°C and features low smoke emission. The primary distinction lies in the insulation formulation, which offers slightly enhanced heat resistance in dry conditions, making it ideal for environments where ambient temperatures may fluctuate or reach higher extremes.

Voltage Rating: Both THW-2-LS and THHW-2-LS are rated for 600V, a voltage level that aligns with the needs of most residential, commercial, and light industrial electrical systems. This rating ensures that the wires can safely handle the electrical load in branch circuits, feeder lines, and distribution panels, providing a reliable connection between power sources and devices. The 600V rating also offers a safety margin, allowing the wires to withstand temporary voltage spikes without insulation breakdown—a critical feature in areas prone to electrical surges.

Temperature Resistance: The 90°C rating is a game-changer for versatility. This high-temperature tolerance means the wires can operate in close proximity to heat sources such as lighting fixtures, motors, and heating equipment without insulation degradation. In wet conditions, both wires maintain a 90°C rating, a significant advantage over many alternatives that see their temperature limits drop in moisture-rich environments. This makes them suitable for damp locations like basements, bathrooms, and outdoor installations, where humidity or occasional water exposure is common.

Gauge Options: The wires are available in 14AWG (American Wire Gauge) to 6AWG, a range that caters to diverse current-carrying needs. The AWG system follows an inverse scale—smaller numbers indicate thicker wires with higher ampacity (current-carrying capacity):

14AWG: The smallest in the range, 14AWG is rated for up to 15 amps, making it ideal for lighting circuits, small appliances (such as fans and blenders), and low-power devices. Its thin profile simplifies installation in tight spaces, such as within wall cavities or behind fixtures.

12AWG: With a 20-amp rating, 12AWG is suitable for higher-power applications, including kitchen outlets, space heaters, and medium-sized motors. It strikes a balance between Flexibility and current capacity, making it a workhorse in residential and light commercial settings.

10AWG: Rated for 30 amps, 10AWG handles heavier loads such as air conditioning units, electric water heaters, and larger power tools. Its thicker conductor ensures minimal voltage drop over longer distances, maintaining efficiency in extended wiring runs.

8AWG: Designed for 40 amps, 8AWG is used in feeder circuits, subpanels, and industrial equipment like compressors and welders. Its robust construction makes it suitable for continuous operation under high demand.

6AWG: The largest in the range, 6AWG supports up to 55 amps, catering to heavy-duty applications such as main service entrances, large HVAC systems, and industrial machinery. Its high ampacity makes it a cornerstone of power distribution in commercial and industrial facilities.

High-Purity Copper Conductors: At the heart of each wire is a conductor made from high-purity copper, typically with a purity level of 99.9% or higher. This purity is essential for maximizing conductivity, as impurities can increase resistance and reduce the wire’s ability to transmit electricity efficiently. High-purity copper ensures that energy loss in the form of heat is minimized, lowering operational costs and reducing the risk of overheating. The conductors are stranded—composed of multiple small-gauge Copper Strands twisted together—enhancing flexibility. This stranded design allows the wires to bend and route easily around corners, through conduit, and in tight spaces, simplifying installation and reducing the risk of conductor damage during handling.

Thermoplastic Insulation: The insulation surrounding the copper conductor is a specially formulated thermoplastic material, designed to meet the wires’ high-temperature and moisture-resistant requirements. For THW-2-LS, the insulation is a PVC (polyvinyl chloride) compound modified to withstand 90°C and resist water absorption. THHW-2-LS uses a similar but enhanced formulation, often incorporating additives to improve heat resistance in dry conditions. Both insulations are flame-retardant, meaning they resist ignition and slow the spread of fire if exposed to a flame source. This flame resistance, combined with the low smoke (LS) feature, significantly enhances safety in fire emergencies by reducing the release of toxic gases and maintaining visibility.

Low Smoke Emission (LS): The "LS" designation is perhaps the most critical safety feature, especially in enclosed spaces such as apartments, offices, and industrial facilities. In the event of a fire, standard Electrical Wires can emit thick, toxic smoke that obscures vision and contains harmful chemicals like hydrogen chloride, which can cause respiratory distress. The LS insulation in these wires is formulated to minimize smoke production, allowing for clearer evacuation routes and reducing the risk of inhalation injuries. This feature is particularly valuable in buildings with limited exits or where occupants may have limited mobility, such as hospitals or schools.

Flame Resistance: The insulation’s flame-retardant properties work in tandem with low smoke emission to slow the spread of fire. By resisting ignition and self-extinguishing when the flame source is removed, the insulation helps contain fires, giving firefighters more time to respond and reducing property damage. This compliance with flame resistance standards, such as UL 94 V-0 (a high rating for plastic materials), ensures that the wires meet strict fire safety criteria.

Moisture and Chemical Resistance: The insulation’s resistance to moisture prevents corrosion of the copper conductor, which can degrade conductivity and lead to system failures. This makes the wires suitable for use in damp locations, such as basements, laundry rooms, and outdoor outlets, where exposure to water or humidity is common. Additionally, the insulation is resistant to many chemicals, including cleaning agents, oils, and mild solvents, ensuring performance stability in commercial kitchens, laboratories, and light industrial settings.

Compliance with Safety Standards: Beyond their inherent features, the wires comply with a range of safety standards, including NEC Article 314 for outlet boxes, Article 344 for rigid metal conduit, and IEC 60332 for fire performance. These standards ensure that the wires are tested for factors such as voltage withstand, insulation integrity, and flame propagation, providing third-party validation of their safety and reliability.

Residential Applications: In homes, these wires are used for everything from lighting circuits (14AWG) to kitchen outlets (12AWG) and electric water heaters (10AWG). Their moisture resistance makes them ideal for bathrooms and basements, while the low smoke feature adds an extra layer of safety in family homes. The flexibility of Stranded Conductors simplifies installation in walls, ceilings, and floors, ensuring a neat and efficient wiring system.

Commercial Buildings: Offices, retail stores, and restaurants benefit from the wires’ high-temperature tolerance and durability. 12AWG and 10AWG Wires power HVAC systems, point-of-sale equipment, and kitchen appliances, while 8AWG and 6AWG handle feeder circuits and subpanels. The low smoke emission is particularly valuable in commercial spaces with large occupant loads, where fire safety is a top priority.

Light Industrial Settings: Factories, workshops, and warehouses use these wires to power machinery, conveyor belts, and industrial lighting. The 6AWG and 8AWG options are well-suited for heavy-duty equipment, while the moisture and chemical resistance ensures reliability in environments where oils, coolants, or cleaning agents are present. The high-temperature rating allows for installation near motors and heating elements without performance degradation.

Outdoor and Damp Locations: Outdoor lighting, pool pumps, and garden sheds benefit from the wires’ ability to withstand moisture. Whether buried in conduit or exposed to the elements, the insulation protects the conductor from rain, snow, and humidity, ensuring year-round performance.

Bending Radius: The stranded design allows for flexibility, but the wires should not be bent beyond their minimum recommended radius (typically 10 times the wire diameter). Excessive bending can damage the insulation and conductor, leading to resistance buildup and potential failure.

Pulling Tension: When pulling wires through conduit or enclosures, avoid excessive tension, which can stretch the conductor and thin the insulation. Use appropriate tools and lubricants to reduce friction, ensuring that tension remains within manufacturer-specified limits.

Termination: Secure and proper termination is critical. Use terminals and lugs rated for the wire gauge and apply the correct torque to ensure a tight, low-resistance connection. Loose connections can cause arcing, overheating, and energy loss.

Environmental Protection: In outdoor or extremely damp locations, use waterproof connectors and sealant to prevent moisture ingress. For direct burial, ensure the wires are rated for such use (consult manufacturer specifications) and are installed at the recommended depth.

Inspection: After installation, inspect the wires for damage to the insulation, such as cuts, abrasions, or cracks. Conduct continuity and insulation resistance tests to verify that the wires are functioning correctly before energizing the system.
