The specification parameters of the THHN/THWN Copper Power Cable (250mm²/500kcmil) are carefully designed to fully meet the actual requirements of local power transmission and distribution in the Philippines. Each parameter directly affects the cable's operational performance, safety, and stability, serving as the foundation for ensuring the efficient operation of the power system.

In terms of conductor specifications, the cross-sectional area of 250mm² is equivalent to 500kcmil (thousand circular mils). This conversion relationship stems from measurement differences between different standard systems. mm² (square millimeter) is an internationally accepted unit for cross-sectional area, while kcmil is widely used in North America and some other countries/regions. 500kcmil corresponds to a cross-sectional area of approximately 251.5mm², which is close to 250mm². This is an industry-recognized equivalent specification, facilitating the unification of specifications in international procurement and local production within the Philippine market.

This cross-sectional area design endows the cable with strong current-carrying capacity. In accordance with the Philippine National Standard (PNS) and UL standards (complied with by some products), at a normal operating temperature of 90°C, its rated current-carrying capacity can reach 430A (when installed in air) and 550A (when directly buried), easily meeting the power demands of high-power equipment. Meanwhile, the cable has a wide range of voltage level adaptability. Regular products can meet the requirements of 600V/1000V low-voltage power distribution systems, and some customized models can be extended to the medium-voltage field, covering the voltage needs of industrial, commercial, municipal, and other scenarios in the Philippines.

Regarding dimensional and weight parameters, the outer diameter of the cable (including insulation layer and sheath) is usually controlled between 28 - 32mm, with a weight per meter of approximately 2.8 - 3.2kg. This dimensional design not only ensures a sufficient cross-sectional area for the internal conductor of the cable but also avoids installation inconvenience caused by an excessively large outer diameter. For long-distance installation scenarios, the length of each cable reel can be customized according to customer needs. Regular reel lengths are 100 meters and 200 meters, and for some large-scale engineering projects, large reels of over 500 meters can be provided to reduce the number of joints and lower the risk of failures. In addition, the bending radius of the cable is also a key parameter. The static bending radius is not less than 6 times the outer diameter of the cable, and the dynamic bending radius is not less than 10 times the outer diameter. This feature enables it to adapt to complex wiring environments in Philippine buildings, such as narrow cable shafts and curved pipelines.

Relying on its excellent performance, the THHN/THWN copper power cable (250mm²/500kcmil) has an extremely wide range of application scenarios in the Philippine market. From industrial production to commercial operations and municipal infrastructure construction, it can provide stable and reliable power transmission solutions, becoming an indispensable core power component in various fields.

In the industrial sector, this cable is the first choice for heavy manufacturing, processing plants, and industrial parks. Taking an important auto parts production base in the Philippines as an example, high-power equipment in the factory, such as stamping machines, welding equipment, and painting production lines, has a single operating power of tens or even hundreds of kilowatts and needs to operate continuously for 24 hours, which places extremely high requirements on the stability and continuity of power supply. The 250mm²/500Kcmil Cable can easily carry the large current generated during the operation of the equipment, avoiding cable overheating or tripping caused by insufficient current-carrying capacity. At the same time, its heat and humidity resistance properties can adapt to the high-temperature, dusty, and high-humidity environment in the factory workshop (the humidity in some workshops can reach 60% - 80% due to production process requirements), effectively extending the service life of the cable.

In addition, in the mineral processing industry of the Philippines, such as copper and nickel mining and smelting plants, cables need to be installed in outdoor open or semi-open environments, facing challenges such as rain erosion and direct sunlight. The combination of the water resistance of the THWN model and the high-temperature resistance of the THHN model can ensure the normal operation of the cable in harsh environments, guaranteeing the continuous production of mineral processing.

The commercial sector is another important application scenario for this cable, covering shopping malls, office buildings, hotels, large supermarkets, and more. Taking a large shopping mall in Manila, the capital of the Philippines, as an example, its construction area is usually over 100,000 square meters, including hundreds of stores, large catering areas, cinemas, amusement parks, etc. At the same time, it is equipped with central air-conditioning systems, elevators (dozens or even hundreds), lighting systems, security systems, etc., resulting in an extremely high total power load. This specification of cable is used in the main power distribution circuit of the shopping mall, transmitting power from the substation to the distribution rooms on each floor, and then distributing it to various electrical terminals through branch cables.

In summer, the temperature in Manila can exceed 35°C, and the central air-conditioning in the shopping mall operates at full load. The cable needs to work continuously in a high-temperature environment. The upper limit of the normal operating temperature of the THHN/Thwn Cable, which is 90°C, can effectively meet this challenge. In addition, the humidity in areas such as the underground parking lot and pump room of the shopping mall is relatively high, and the water resistance of the cable can avoid insulation failures caused by moisture, ensuring the stability of commercial operations.

This cable also plays an important role in municipal infrastructure construction. In urban road lighting projects, there are a large number of street lamps on both sides of the main roads and expressways in major cities such as Manila. These street lamps need to operate outdoors for a long time and face the impact of natural factors such as rain and typhoons (the Philippines is hit by multiple typhoons every year). Using this specification of cable for street lamp power supply, its water resistance and weather resistance can ensure that the street lamps are normally lit in harsh weather, guaranteeing road traffic safety. At the same time, the large cross-sectional area design can reduce line losses and lower the operating cost of municipal power.

In sewage treatment plants, cables need to be installed in Underground Cable trenches or directly buried, with a high probability of coming into contact with groundwater or moist soil. The water resistance of the THWN model can prevent the insulation layer of the cable from being damaged by moisture, ensuring the normal operation of sewage treatment equipment (such as water pumps and mixing equipment in aeration tanks and sedimentation tanks) and avoiding the interruption of sewage treatment due to power failures. In addition, in Philippine public transportation hubs, such as Manila International Airport and long-distance bus stations, there is a large flow of people and dense electrical equipment (such as security inspection equipment, charging piles, and lighting systems). This cable can provide stable power support for them, ensuring the smooth operation of public transportation.

Material selection is a core factor determining cable performance. The THHN/THWN copper power cable (250mm²/500kcmil) uses high-quality materials in key parts such as conductors, insulation layers, and sheaths, and at the same time provides a variety of style options to meet the usage needs of different scenarios in the Philippines.

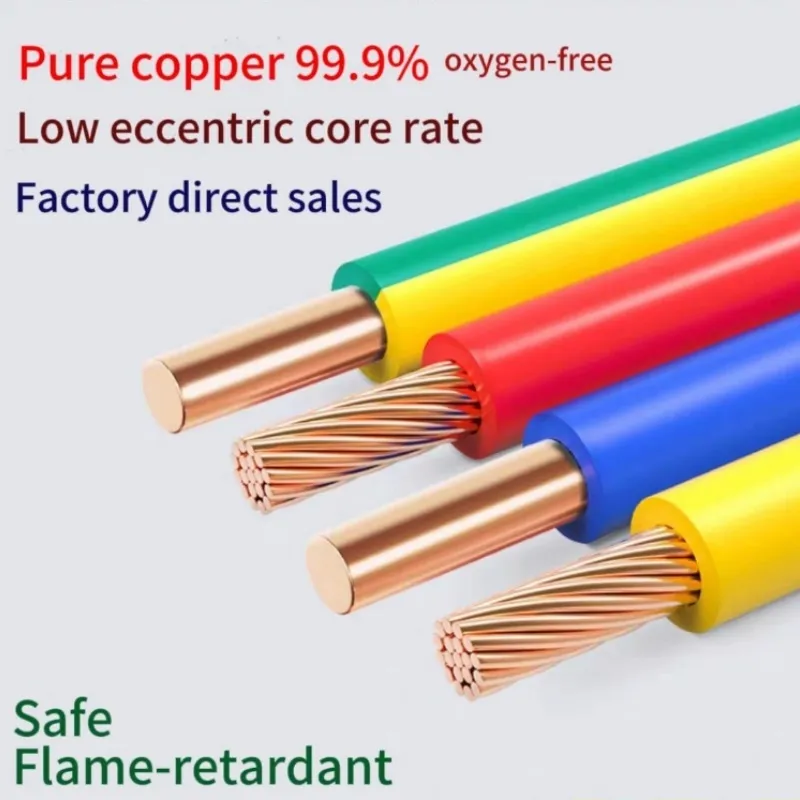

In terms of Conductor Materials, the cable adopts high-purity electrolytic copper with a purity of over 99.95%. High-purity copper has an extremely low resistivity (only 0.0172Ω·mm²/m at 20°C), which is much lower than that of other conductive materials such as aluminum, and can effectively reduce power loss during current transmission. In the Philippines, where power resources are relatively tight, reducing line losses is of great significance for energy conservation and reducing power costs.

In addition, high-purity copper also has excellent thermal conductivity. When the cable carries a large current, a certain amount of heat is generated, and good thermal conductivity can quickly dissipate the heat, avoiding the accelerated aging of the insulation layer caused by local overheating. At the same time, copper has excellent ductility and mechanical strength, which is not prone to breakage, deformation, and other problems during the transportation and installation of the cable, reducing construction losses.

To further improve the performance of the conductor, the conductor is manufactured using a multi-strand stranding process, composed of hundreds of thin Copper Wires twisted together. Compared with a single-strand conductor, the multi-strand Stranded Conductor has better Flexibility and bending performance, which is convenient for installation in complex wiring environments. At the same time, it can reduce the stress concentration of the conductor during the bending process, extending the service life.

The insulation layer material is crucial for ensuring the safe operation of the cable. The insulation layer of the THHN/THWN cable uses thermoplastic polyvinyl chloride (PVC) or cross-linked polyethylene (XLPE) materials (selected according to different models and customer needs). The PVC Insulation layer has good insulation performance (volume resistivity ≥10¹⁴Ω·cm), oil resistance, and chemical corrosion resistance, which can effectively isolate the conductor from the outside world and prevent electric leakage accidents. At the same time, it has excellent processing performance and relatively low cost, making it suitable for large-scale production.

The XLPE insulation layer has more advantages in high-temperature resistance. Its long-term operating temperature can reach 90°C - 125°C, and it also has better aging resistance and mechanical strength. It is suitable for scenarios with higher requirements for cable high-temperature resistance and aging resistance, such as long-term outdoor installation in the high-temperature environment of the Philippines or close-range power supply for high-power equipment. In addition, flame retardants are added to the insulation layer to make the cable have flame-retardant properties, which meets the requirements for cable flame-retardant grades in the Philippine National Electrical Code (usually UL94 V-0 or higher). In the event of a fire, it can effectively prevent the spread of flames and reduce fire losses.

In terms of sheath materials, the outer layer of the cable uses a nylon (PA) sheath. Nylon material has extremely high wear resistance (several times that of ordinary rubber), oil resistance, and chemical corrosion resistance, which can protect the cable insulation layer from external mechanical damage, such as friction with pipelines and cable trays during cable installation, or extrusion and collision by heavy objects during use. At the same time, the Nylon Sheath has excellent waterproof performance, which can effectively prevent moisture from entering the interior of the cable and ensure the insulation performance of the insulation layer, which is particularly important for the rainy and high-humidity environment in the Philippines.

In terms of style design, the cable provides a variety of color options, commonly including black, red, blue, yellow, etc. Cables of different colors are convenient for distinguishing phase wires, neutral wires, and Ground Wires during the wiring process, reducing the probability of wiring errors during construction and improving construction efficiency and safety. In addition, according to customer needs, the cable can also provide two styles: non-armored and armored. The non-armored style is lightweight and flexible, suitable for installation in indoor cable trays and pipelines. The armored style adds a Steel Tape or steel wire armor layer outside the nylon sheath, which has higher mechanical strength and can resist more severe mechanical impacts and external damages. It is suitable for harsh environments such as outdoor direct burial installation, mine shafts, and tunnels. For example, in some remote areas of the Philippines, power transmission projects require direct burial of cables underground, facing risks such as soil extrusion and rodent bites, and the armored style can effectively cope with these problems.

The production process of the THHN/THWN copper power cable (250mm²/500kcmil) strictly complies with international standards and Philippine national regulations, adopting a series of refined and automated production processes. Every link from raw material procurement to finished product inspection is strictly controlled to ensure the stable and reliable quality of the final product.

In the conductor manufacturing process, the first step is the selection and pretreatment of copper rods. High-purity electrolytic copper rods that meet the GB/T 3952 standard are selected, with a diameter usually of 8mm - 12mm. The copper rods are drawn into thin copper wires with a diameter of 0.1mm - 0.3mm through a wire drawing machine. During the wire drawing process, a continuous annealing process is adopted. By controlling the annealing temperature (usually 350°C - 450°C) and annealing speed, the internal stress generated in the copper wires during the wire drawing process is eliminated, and the flexibility and conductive performance of the copper wires are restored.

After annealing, the thin copper wires undergo strict quality inspection, including indicators such as diameter deviation, tensile strength, elongation, and resistivity. Only qualified copper wires can enter the next process. Subsequently, a high-precision stranding machine is used to strand the thin copper wires to form a conductor. During the stranding process, the stranding pitch is strictly controlled (the pitch multiple is usually 12 - 16 times) to ensure the roundness and tightness of the conductor, reduce the gaps inside the conductor, and improve the conductive performance and mechanical strength of the conductor. After stranding, the conductor undergoes a surface finish inspection to avoid defects such as surface burrs and scratches affecting the coating quality of the subsequent insulation layer.

The insulation layer extrusion process is crucial for ensuring the insulation performance of the cable, adopting an extrusion molding process. First, the Insulation Material (PVC or XLPE) is pretreated to remove impurities and moisture from the material (PVC material needs to be dried at 80°C - 100°C for 2 - 4 hours, and XLPE material needs to be dried at 100°C - 120°C for 4 - 6 hours) to avoid defects such as bubbles and pinholes in the insulation layer caused by impurities or moisture.

Subsequently, the pretreated insulation material is added to the hopper of the extruder. The screw of the extruder heats and melts the material (the melting temperature of PVC is 160°C - 180°C, and the melting temperature of XLPE is 180°C - 200°C), and the molten insulation material is evenly coated on the surface of the conductor through a mold. During the extrusion process, an online diameter measuring instrument is used to monitor the thickness of the insulation layer in real time (the thickness of the insulation layer is determined according to the voltage level; the insulation layer thickness of 600V grade cables is usually 1.0mm - 1.5mm) to ensure that the thickness is uniform and meets the standard requirements.

For XLPE Insulation Materials, after extrusion, a cross-linking process is also required. Through hot water cross-linking or irradiation cross-linking, the XLPE molecules form a three-dimensional network structure, improving the high-temperature resistance, aging resistance, and mechanical strength of the insulation layer. After cross-linking, the insulation layer undergoes a voltage withstand test (applying 1.5 times the rated voltage for 1 minute without breakdown is considered qualified) and an insulation resistance test to ensure that the insulation performance meets the standards.

The sheath extrusion process is similar to the insulation layer extrusion process, but there are differences in the requirements for materials and process parameters. First, the nylon material is added to the extruder and heated to melt (the melting temperature of nylon is 220°C - 250°C), and the nylon sheath is evenly coated on the outside of the insulation layer through a special mold. During the sheath extrusion process, the extrusion temperature and speed are strictly controlled to ensure that the sheath and the insulation layer are tightly bonded without gaps or bubbles. At the same time, an online diameter measuring instrument is used to monitor the sheath thickness (the sheath thickness is usually 0.8mm - 1.2mm) to ensure uniform thickness.

After extrusion, the cable needs to be cooled. Water cooling or air cooling is used to quickly solidify and shape the sheath to avoid sheath deformation. In addition, for armored style cables, an armoring process is required before sheath extrusion: steel tape armoring adopts a lapping process, in which steel tape is lapped around the insulation layer at a certain angle. During the lapping process, the lapping pitch and overlap rate (usually 15% - 25%) are controlled to ensure that the armor layer is tight and flat; steel wire armoring adopts a stranding process, in which steel wires are stranded around the insulation layer. The stranding pitch and steel wire diameter are determined according to the mechanical strength requirements of the cable. After armoring is completed, sheath extrusion is carried out to ensure that the armor layer is completely wrapped, improving the overall protective performance of the cable.

The finished product inspection process is the final checkpoint in the production process and an important link to ensure product quality. First, the appearance of the cable is inspected to check whether the color of the cable is uniform, the surface is smooth, and there are no scratches, dents, bubbles, or other defects. Second, dimensional inspection is carried out, including the conductor cross-sectional area, insulation layer thickness, sheath thickness, cable outer diameter, etc., to ensure compliance with the design requirements. Then, electrical performance inspection is conducted, including insulation resistance test (using a 500V or 1000V megohmmeter, with an insulation resistance value ≥100MΩ), voltage withstand test (applying 2.5 times the rated voltage for 5 minutes without breakdown), and conductor DC resistance test (at 20°C, the conductor DC resistance ≤0.070Ω/km). Finally, mechanical performance inspection is performed, including tensile test (testing the tensile strength and elongation of the insulation layer and sheath), bending test (repeatedly bending

the cable at a specified bending radius to check for breakage or insulation cracking), and abrasion test (abrasion of the sheath with an abrasive wheel to test its wear resistance). Only after all inspection items are qualified can the cables be packaged and stored in the warehouse, ready for shipment to the Philippine market.

The packaging design of the THHN/THWN copper power cable (250mm²/500kcmil) fully considers the safety and convenience of the cable during storage and transportation, while combining the characteristics of the Philippine transportation environment (such as rough roads in some areas and severe jolting during transportation). Multi-layer protective packaging is adopted to ensure that the cable remains intact when it reaches the customer.

Regular packaging uses cable reels, which are divided into two types: wooden cable reels and plastic cable reels. High-quality pine or fir is selected for wooden cable reels, which undergo drying treatment (moisture content controlled at 12% - 15%). They have high mechanical strength and stability, and can bear the weight of the cable (a 100-meter reel of 250mm²/500kcmil cable weighs about 300kg, and a 200-meter reel weighs about 600kg), avoiding cable damage caused by reel deformation during transportation. The diameter of the wooden cable reel is determined according to the length of the cable reel. A 100-meter reel usually uses a cable reel with a diameter of 800mm - 1000mm, and a 200-meter reel uses a cable reel with a diameter of 1200mm - 1500mm. The width of the cable reel matches the outer diameter of the cable to ensure that the cable can be tightly and neatly wound on the cable reel, avoiding looseness or mutual friction.

After the cable is wound, the entire cable is wrapped with a high-strength plastic film (thickness ≥0.15mm) to form a sealed layer, preventing dust and moisture from entering the interior of the cable. At the same time, multiple layers of kraft paper or corrugated paper are wrapped around the plastic film to further enhance the protective performance and avoid damage to the cable due to collision or friction during transportation. For Armored Cables, due to their greater weight and higher mechanical strength, thicker wooden cable reels or plastic cable reels (high-strength HDPE material is used for plastic cable reels, which are lightweight, impact-resistant, and corrosion-resistant) can be selected, and metal protective plates are added on both sides of the cable reel to improve the load-bearing capacity and impact resistance of the cable reel.

In addition to the regular cable reel packaging, for some small-scale engineering projects or emergency replenishment needs in the Philippines, small-volume packaging (such as 20 meters/reel, 50 meters/reel) is also provided. The small-volume packaging uses a hard cardboard tube (inner diameter 50mm - 80mm, outer diameter 100mm - 150mm) as the inner core. After the cable is wound on the hard cardboard tube, it is sealed with a plastic film and then placed in a corrugated carton (the carton is made of five-layer corrugated paper with a bursting strength ≥1800kPa). Foam or bubble film is filled in the carton to provide buffer protection for the cable, preventing damage caused by jolting during transportation. The advantage of small-volume packaging is its light weight and small size, which is convenient for manual handling and storage, and is suitable for small-batch procurement or emergency use scenarios.

In addition, the identification information on the packaging is extremely complete to ensure that customers can quickly identify and use the cable. Each cable reel or packaging carton is marked with the product name (THHN/THWN Copper Power Cable), specification parameters (250mm²/500kcmil, voltage level, color, length), production date, batch number, implementation standards (PNS, UL standards, etc.), manufacturer information (name, address, contact information), and warning signs (such as "Avoid Heavy Impact", "Keep Away from Moisture", "Fire-Prone Area - Handle with Care"). For export to the Philippines, the packaging also includes English and Filipino bilingual labels to facilitate customs clearance and on-site acceptance by local customers.

The transportation of the THHN/THWN copper power cable (250mm²/500kcmil) to the Philippines requires a scientific and reasonable transportation plan, taking into account factors such as the country's geographical location, logistics infrastructure, and climate characteristics (such as frequent typhoons and heavy rains in some seasons) to ensure that the cable is delivered to the customer's designated location on time and in good condition.

In terms of transportation methods, according to the customer's location, order quantity, and delivery time requirements, a variety of transportation methods are provided, including sea freight, air freight, and land transportation. Sea freight is the most commonly used transportation method for large-batch orders. The Philippines is an archipelagic country with numerous ports, and major ports such as Manila Port, Cebu Port, and Batangas Port have convenient sea transportation connections with international ports. The cable, packaged in cable reels, is loaded into 20-foot or 40-foot containers (for 20-foot containers, about 20 - 25 reels of 100-meter cables can be loaded; for 40-foot containers, about 45 - 50 reels can be loaded). During container loading, wooden pallets are used to 垫高 the cable reels to prevent direct contact with the container floor and avoid moisture; at the same time, steel wires or tension belts are used to fix the cable reels to prevent them from shifting or colliding due to jolting during sea transportation. The transportation time by sea from major Chinese ports (such as Shanghai Port, Shenzhen Port) to Manila Port is usually 7 - 10 days, and to Cebu Port is about 12 - 15 days, which is cost-effective and suitable for customers with no urgent delivery requirements.

For small-batch orders or emergency replenishment needs (such as sudden cable damage in a customer's project, requiring urgent replacement), air freight is the preferred option. The major airports in the Philippines, such as Ninoy Aquino International Airport in Manila and Mactan-Cebu International Airport, have direct flights with international airports. The cable (usually in small-volume packaging) is transported by air, with a transportation time of 2 - 3 days, which can quickly meet the customer's urgent needs. However, air freight costs are relatively high, so it is generally recommended for customers to use it only when necessary.

For customers in areas adjacent to the Philippines (such as some regions in Southeast Asia that have land transportation connections with the Philippines), land transportation can be considered. Land transportation uses large trucks with a load capacity of 10 - 20 tons, and the cable reels are fixed on the truck bed with anti-slip mats and fixing devices to ensure safety during transportation. The transportation time is determined according to the distance, usually 3 - 5 days for short distances.

In terms of transportation monitoring and risk control, a full-process transportation monitoring system is adopted. After the cable leaves the factory, the customer is provided with a waybill number and a logistics tracking link, through which the customer can query the real-time location and transportation status of the goods at any time. For sea freight, cooperation with well-known international shipping companies (such as Maersk, COSCO Shipping) is prioritized to ensure the stability and reliability of transportation. At the same time, considering the impact of typhoons and heavy rains in the Philippines on transportation, the transportation schedule is reasonably arranged to avoid shipping during the typhoon season (usually June to November) as much as possible; if transportation during this period is unavoidable, additional waterproof measures are taken for the goods (such as wrapping the cable reels with waterproof cloth) and the shipping company is required to provide real-time weather updates to adjust the route in a timely manner.

In addition, transportation insurance is purchased for all goods to cover risks such as cargo damage, loss, or delay caused by force majeure (such as typhoons, earthquakes) or human factors (such as improper loading and unloading) during transportation. The insurance coverage amount is 110% of the value of the goods, ensuring that the customer's losses are minimized in case of unexpected situations. Before transportation, the loading process is recorded by video, and a loading checklist is signed by the manufacturer, logistics company, and customer representative (if the customer is present) to clarify the responsibility for the goods.

The shipping process of the THHN/THWN copper power cable (250mm²/500kcmil) for the Philippine market follows standardized procedures, from order confirmation to customs clearance, to ensure that the goods are delivered to the customer accurately and on time, avoiding delays or errors caused by non-standard operations.

In terms of order processing and shipping preparation, after the customer confirms the order, the sales team issues a production order to the factory, clearly indicating the product specifications (250mm²/500kcmil, voltage level, color, length), quantity, delivery time, and shipping address. The factory arranges production according to the production order, and after the production is completed, the quality inspection department conducts a final inspection of the goods. Only after passing the inspection can the goods be transferred to the warehouse for packaging. The warehouse department checks the goods against the order list, including the product model, quantity, and specifications, to ensure that there is no mismatch. At the same time, the documentation department prepares the necessary shipping documents, including commercial invoice, packing list, bill of lading (for sea freight) or air waybill (for air freight), certificate of origin (to enjoy preferential tariffs under the ASEAN-China Free Trade Area), product quality inspection report (compliant with PNS and UL standards), and customs declaration documents. All documents are reviewed by a dedicated person to ensure that the information is accurate and complete, avoiding customs clearance delays caused by incorrect document information.

In terms of customs clearance, a professional customs clearance team is established to be familiar with the Philippine customs clearance policies and procedures. Before the goods arrive at the Philippine port/airport, the customs clearance team submits the prepared documents to the Philippine customs in advance for pre-review, and communicates with the customs in a timely manner to resolve any problems found in the pre-review. For the Philippine market, the cable needs to comply with the Philippine Bureau of Customs (BOC) regulations, including product labeling requirements (bilingual labels in English and Filipino), quality certification (such as PNS certification), and tariff declaration. The customs clearance team calculates the tariff amount in advance according to the product value and tariff rate (the current tariff rate for Power Cables in the Philippines is about 5% - 10%, subject to the latest customs regulations) and informs the customer, so that the customer can prepare the payment in advance. After the goods arrive at the port/airport, the customs clearance team cooperates with the local customs broker to complete the customs inspection, tax payment, and cargo release procedures. The entire customs clearance process usually takes 3 - 5 working days for sea freight and 1 - 2 working days for air freight.

In terms of delivery to the customer's site, after the goods are released by the customs, the local logistics partner in the Philippines (cooperating with local well-known logistics companies such as LBC Express, 2GO Express) arranges for the last-mile delivery. The local logistics company dispatches suitable vehicles according to the quantity and packaging of the goods: for large-volume cable reels, trucks with cranes are used to facilitate loading and unloading; for small-volume packaging, vans are used for delivery. Before delivery, the local logistics company contacts the customer to confirm the delivery time and on-site receiving conditions (such as whether there is a loading and unloading platform, whether special equipment is needed), and adjusts the delivery plan according to the customer's requirements. During delivery, the driver provides real-time location updates to the customer, and arrives at the designated location within the agreed time. After arriving at the site, the customer inspects the goods (including appearance, quantity, packaging integrity), and signs a delivery receipt after confirming that there is no problem. The delivery receipt is scanned and sent to the manufacturer and the customer as a proof of delivery.

In terms of handling shipping delays, a contingency plan is formulated. If the shipping is delayed due to factors such as production problems, logistics disruptions, or customs clearance issues, the sales team informs the customer of the delay reason and the expected delivery time within 24 hours, and actively takes measures to resolve the problem. For example, if the production is delayed due to raw material shortages, the factory adjusts the production schedule and increases the production capacity of the corresponding production line; if the customs clearance is delayed due to document problems, the documentation department modifies the documents immediately and communicates with the customs to accelerate the clearance process. At the same time, compensation measures are provided according to the terms of the sales contract (such as deducting a certain percentage of the payment for each day of delay) to reduce the customer's losses.

To help customers in the Philippine market fully understand the performance and quality of the THHN/THWN copper power cable (250mm²/500kcmil) before placing a large order, a complete sample service system is provided, from sample application to sample testing guidance, to meet the customer's testing and verification needs.

In terms of sample application and provision, customers can apply for samples through multiple channels, including the official website, email, or sales representative. The sample application form requires the customer to fill in basic information (company name, contact person, contact information) and sample requirements (specifications, quantity, testing purpose, delivery address). After receiving the application, the sales team reviews the application within 1 working day. For regular samples (standard specifications, quantity ≤5 meters), the sample fee is usually waived, and only the shipping fee is borne by the customer; for customized samples (special voltage levels, special colors, or special lengths), a certain sample production fee is charged (usually 200 - 500 US dollars, depending on the complexity of customization), and the fee is refundable when the customer places a formal order with a quantity exceeding a certain threshold (such as 100 reels).

After the sample application is approved, the factory arranges the production of samples. The sample production follows the same production process and quality standards as the formal products to ensure that the sample performance is consistent with the batch products. The production cycle of regular samples is 3 - 5 working days, and the production cycle of customized samples is 7 - 10 working days. After the samples are produced, they undergo the same quality inspection as the formal products, including appearance inspection, dimensional inspection, and electrical performance testing, to ensure that the samples are qualified. The qualified samples are packaged in small-volume packaging (such as sealed plastic bags with labels) and sent to the customer's designated address in the Philippines via express delivery (cooperating with international express companies such as DHL, FedEx). The express delivery time is usually 3 - 5 working days, and the customer is provided with a tracking number to query the sample status.

In terms of sample testing support, a professional technical team is assigned to provide testing guidance to the customer. After the customer receives the sample, the technical team sends a detailed sample testing guide via email, which includes testing items (such as conductor resistance test, insulation resistance test, voltage withstand test, flame retardant test), testing methods (in accordance with PNS and UL standards), and testing equipment requirements. If the customer does not have professional testing equipment, the technical team can recommend local testing institutions in the Philippines (such as the Philippine Standards Bureau, PNS-accredited third-party testing laboratories) and provide contact information for the testing institutions. At the same time, the technical team is available 24/7 to answer the customer's testing-related questions via phone or email. For example, if the customer encounters problems during the insulation resistance test, the technical team can guide the customer to check the testing environment (temperature, humidity), adjust the testing equipment parameters, and ensure the accuracy of the test results.

In addition, after the customer completes the sample testing, the technical team actively communicates with the customer to understand the testing results. If the test results meet the customer's requirements, the sales team follows up to promote the formal order; if the test results do not meet the customer's expectations, the technical team analyzes the reasons for the inconsistency (whether it is due to testing method errors, sample storage problems, or product performance issues) and provides solutions. For example, if the insulation resistance of the sample is lower than the customer's requirement, the technical team first checks whether the sample was stored in a humid environment (which may cause moisture absorption of the insulation layer), and if so, recommends that the customer dry the sample and retest; if the retest result is still unqualified, the factory re-produces the sample and conducts a comprehensive inspection before sending it to the customer.

The after-sales service of the THHN/THWN copper power cable (250mm²/500kcmil) in the Philippines adheres to the concept of "customer-centric", providing comprehensive support covering pre-installation guidance, in-installation assistance, post-installation maintenance, and complaint handling, to solve the customer's worries and ensure the long-term stable operation of the cable.

First, in the pre-installation guidance stage, before the customer starts the cable installation, the technical support team will provide a detailed installation guide manual, which includes installation precautions (such as the minimum bending radius during installation, the distance between cables and other pipelines), tool requirements (such as crimping tools for cable joints, insulation testing tools), and safety operating procedures (such as wearing insulating gloves, using Grounding Wires). For large-scale projects (such as the construction of a new industrial park), the technical team will send professional engineers to the customer's project site to conduct on-site training for the installation team. The training content includes theoretical knowledge (such as the Structure and Performance of the cable) and practical operations (such as cable laying, joint production, and insulation testing), ensuring that the installation team masters the correct installation methods. In addition, the technical team will also assist the customer in formulating an installation plan, considering factors such as the project schedule, site environment, and cable specifications, to avoid installation errors caused by unreasonable plans.

Second, in the in-installation assistance stage, during the cable installation process, the technical support team maintains 24/7 online communication with the customer. If the installation team encounters problems (such as difficulty in passing the cable through a narrow pipeline, or abnormal insulation resistance during the test), they can contact the technical team at any time via phone, email, or video call. The technical team will provide solutions in a timely manner; if necessary, they will send engineers to the site for on-site assistance within 24 - 48 hours (for major cities such as Manila) or 48 - 72 hours (for remote areas). For example, if the insulation resistance of a section of cable is found to be lower than the standard value during the installation process, the technical engineer will go to the site to check the cause (such as whether the cable sheath is damaged, or whether the joint is not sealed properly) and guide the installation team to repair it (such as replacing the damaged cable section, re-sealing the joint), ensuring that the installation quality meets the requirements.

Third, in the post-installation maintenance stage, after the cable installation is completed and put into operation, the after-sales service team will conduct regular follow-up visits to the customer. The follow-up content includes understanding the operation status of the cable (such as the operating temperature, load current), checking whether there are potential safety hazards (such as cable sheath aging, joint loosening), and providing maintenance suggestions (such as cleaning the cable surface regularly, avoiding heavy objects pressing on the cable). A maintenance record form is established for each customer, recording the follow-up time, operation data, and maintenance measures, to track the long-term performance of the cable. For cables used in harsh environments (such as outdoor areas with frequent typhoons or high-humidity sewage treatment plants), the follow-up frequency is increased (from once every 6 months to once every 3 months) to detect and solve problems in a timely manner. In addition, the after-sales team will also provide the customer with a cable maintenance manual, introducing common faults and their solutions (such as how to handle cable overheating, how to repair minor sheath damage), enabling the customer to carry out daily maintenance independently.

Fourth, in the complaint handling stage, if the customer has complaints about the cable quality or after-sales service, a dedicated complaint handling team will respond within 2 hours of receiving the complaint. The team will first understand the details of the complaint (such as the problem description, occurrence time, and impact on the project), then conduct an investigation (such as checking the production records of the batch of cables, sending samples for re-testing, or sending engineers to the site for inspection). A complaint handling report will be issued within 3 working days, clarifying the cause of the problem and the solution. If the problem is caused by product quality (such as unqualified insulation performance), the company will provide free replacement of the defective cables and bear the transportation and installation costs; if the problem is caused by improper installation or use, the technical team will provide guidance on how to solve the problem and help the customer minimize losses. After the problem is solved, the complaint handling team will conduct a follow-up visit to the customer to confirm that the customer is satisfied with the solution, and summarize the experience to prevent similar problems from occurring again.

In addition, the THHN/THWN copper power cable (250mm²/500kcmil) provides a long-term quality warranty service. The standard warranty period is 5 years from the date of delivery, during which if the cable has quality problems (such as insulation layer aging, conductor oxidation) under normal use conditions (in accordance with the installation and maintenance requirements in the product manual), the company will provide free repair or replacement services. For key projects (such as national-level municipal infrastructure projects), the warranty period can be extended to 8 years according to the customer's requirements, further enhancing the customer's confidence in the product.

To improve the efficiency of after-sales service, a local after-sales service center has been established in Manila, the Philippines, equipped with professional engineers, maintenance tools, and a spare parts warehouse. The spare parts warehouse stores common spare parts such as cable joints, insulation tapes, and sheath repair materials, which can be quickly provided to customers in case of emergency. The local after-sales team is familiar with the local language and culture, and can communicate with customers more smoothly, understanding their needs more accurately, and providing more intimate after-sales service.
