I. From the Perspective of the Product Itself
(1) Specification Parameters
Thhn/Thwn-2 electrical wire has precise and diverse settings in terms of specification parameters to adapt to different electrical scenarios in residences.
The rated voltage of this wire is 600V, which perfectly meets the needs of residential electrical systems. It can be perfectly compatible with power distribution equipment, switches, sockets, etc. in homes, ensuring the stable operation of the entire electrical system.
In terms of specifications, there are various options such as 14, 12, 10, 8, 6, and 1/0 AWG. For the 14 AWG wire, its conductor diameter is approximately 1.63mm, and the safe current-carrying capacity is about 15A at room temperature. This current-carrying capacity makes it suitable for lighting circuits in residences and small household appliances such as table lamps, televisions, and routers. These devices have low power, and the 14 AWG wire can stably carry their working current.
The 12 AWG wire has a conductor diameter of about 2.05mm and a safe current-carrying capacity of approximately 20A. Compared with the 14
AWG specification, its current-carrying capacity is improved, making it suitable for appliances with slightly higher power, such as washing machines, refrigerators, and electric fans. These appliances require a more stable current supply during operation, and the 12 AWG wire can meet their needs.
The 10 AWG wire has a conductor diameter of about 2.59mm and a safe current-carrying capacity of approximately 30A. This specification of wire can be used for higher-power appliances in the kitchen, such as microwave ovens, electric ovens, and dishwashers. These appliances generate large currents during operation, and the 10 AWG wire can effectively handle their current load.
The 8 AWG wire has a conductor diameter of about 3.26mm and a safe current-carrying capacity of approximately 40A; the 6 AWG wire has a conductor diameter of about 4.11mm and a safe current-carrying capacity of approximately 55A. These two specifications of wires have strong current-carrying capacities and are suitable for power supply lines of high-power appliances in residences, such as air conditioners, electric water heaters, and electric heaters. When air conditioners are cooling or heating, and electric water heaters are heating water, they consume a lot of electricity and generate large currents. The 8 AWG and 6 AWG wires can ensure the stable transmission of current and avoid line overload.
The 1/0 AWG wire has a conductor diameter of about 8.25mm and a safe current-carrying capacity of approximately 125A. It has the strongest current-carrying capacity in this series and is often used in the main power distribution lines of residences. It introduces external power into the distribution box inside the residence and then distributes it to various branches through the distribution box, providing strong power support for the entire residential electrical system.
In addition, the insulation thickness of the wire varies with specifications. The insulation thickness of 14 AWG and 12 AWG is about 0.76mm; that of 10 AWG is about 0.81mm; that of 8 AWG and 6 AWG is about 0.86mm; that of 1/0 AWG is about 0.91mm. An appropriate insulation thickness can effectively ensure the insulation performance of the wire, prevent current leakage, and ensure electrical safety.
The outer diameter of the wire also increases with the increase of specifications. The outer diameter of 14 AWG is about 3.15mm; that of 12 AWG is about 3.66mm; that of 10 AWG is about 4.22mm; that of 8 AWG is about 5.08mm; that of 6 AWG is about 6.02mm; that of 1/0 AWG is about 10.08mm. The size of the outer diameter affects the threading and wiring of the wire. In residential wiring construction, appropriate pipes and wiring methods need to be selected according to specific specifications.
(2) Characteristic Uses
Thhn/Thwn-2 electrical wire has a wide range of characteristic uses in residential wiring due to its diverse specifications and excellent performance.
In the lighting system, the 14 AWG wire is an ideal choice. Lighting fixtures in residential areas such as living rooms, bedrooms, kitchens, and bathrooms, such as ceiling lamps, chandeliers, and spotlights, usually have low power. The 14 AWG wire can stably supply power to these fixtures, ensuring the normal switching on and off of lighting. It can reliably guarantee both daily home lighting and emergency lighting at night.
For small household appliances in bedrooms and living rooms, 14 AWG and 12 AWG wires can play an important role. For example, electric fans, humidifiers, and air purifiers in bedrooms, and televisions, stereos, and set-top boxes in living rooms. These appliances have low power, and 14 AWG wires can meet their power supply needs; while appliances with slightly higher power such as washing machines and refrigerators are suitable for 12 AWG wires to ensure that they do not malfunction due to power supply problems during operation.
The kitchen is an area with many electrical devices and high power in residences, where 10 AWG, 8 AWG, and other specifications of wires are very useful. Microwave ovens and electric ovens require high power when cooking food, and 10 AWG wires can provide stable power for them; while higher-power devices such as electric water heaters and built-in steam ovens in the kitchen require 8 AWG wires to ensure power supply and avoid affecting use due to line problems.
In the lines of air conditioners and heating equipment, 8 AWG and 6 AWG wires perform well. Wall-mounted air conditioners and cabinet air conditioners in living rooms and bedrooms consume a lot of electricity when cooling in summer and heating in winter. 8 AWG wires can meet their current needs; while high-power electric heaters, floor heating systems, etc., 6 AWG wires can ensure their normal operation, providing a comfortable temperature environment for the family.
The main power distribution line of a residence is the "main artery" of the entire household electricity. The 1/0 AWG wire assumes this important responsibility. It introduces electricity from the external power grid into the residence's distribution box and then distributes it to various rooms and electrical devices through switches in the distribution box, ensuring stable and reliable power supply for the entire residence and being a core component of the household electrical system.
(3) Material and Style
Thhn/Thwn-2 electrical wire fully considers the needs of residential wiring in material selection and style design, taking into account performance, safety, and practicality.
The conductor is made of high-purity electrolytic copper with a purity of over 99.95%. High-purity copper has excellent conductivity, which can reduce resistance during current transmission, reduce energy loss, improve power transmission efficiency, and make home electricity more economical. At the same time, copper has good ductility and toughness, so that the multi-
Stranded Conductor is not easy to break under bending, stretching, etc., and can adapt to the complex wiring environment in residences, extending the service life of the wire.
The insulation layer is made of polyvinyl chloride (PVC) material. PVC material has excellent insulation performance, which can effectively insulate current, prevent electric leakage, and ensure the electrical safety of family members. It also has good temperature resistance and can work normally in an ambient temperature of -40℃ to 90℃. Whether in the hot kitchen in summer or the cold balcony in winter, it can maintain stable insulation performance. In addition, PVC material has strong chemical corrosion resistance and can resist the erosion of some chemical substances that may be encountered in residences, such as cleaning agents and oil stains, ensuring that the performance of the wire is not affected.
In terms of style, the wire has a circular structure, presenting a cylindrical shape as a whole with a smooth and flat surface. This structural design makes the wire easy to thread and pay off during wiring, and can easily pass through narrow spaces such as pipes in walls, wire grooves under floors, and mezzanines in ceilings, reducing installation difficulty and improving construction efficiency.
The wire has a variety of colors. Different specifications of wires usually have different color identifiers. For example, 14 AWG may be black, white, or red, and 12 AWG may be yellow, blue, etc. Color differentiation is convenient for electricians to identify wires of different specifications and uses during construction, avoiding wrong wiring, and ensuring the accuracy and safety of wiring. At the same time, bright colors can also quickly find the corresponding lines during later maintenance and overhaul, improving work efficiency.

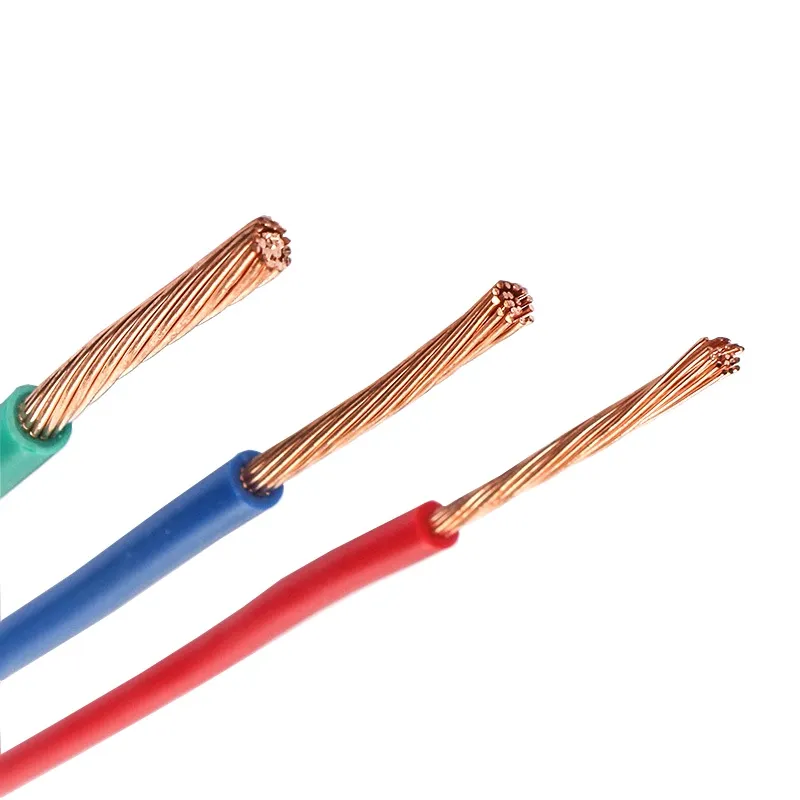

Multi-strand stranding is another important style feature of this wire. Multiple fine
Copper Wires are stranded together to form a conductor. Compared with a single-strand conductor, this design greatly enhances the
Flexibility of the wire. In residential wiring, it is often necessary to bend the wire into various angles. The multi-strand stranding design allows the wire to easily cope with these bends, and is not easy to break or have insulation layer damage, ensuring the service life and safety of the wire.
(4) Production Process
The production process of Thhn/Thwn-2 electrical wire adopts advanced and rigorous techniques to ensure that the product quality meets relevant standards and strict requirements for residential electricity use.
The first step is the copper material preparation process. High-purity electrolytic copper ingots are made into copper rods through heating, rolling, and other processes. The diameter of the copper rod is precisely adjusted according to the specifications of the wire. During the rolling process, the heating temperature and rolling speed are strictly controlled to ensure the uniformity and mechanical properties of the copper rod, preparing for the subsequent wire drawing process.
Next is the wire drawing process. The copper rod is drawn into multiple fine copper wires by a wire drawing machine. The wire drawing process adopts multi-pass drawing, and the drawing die and drawing speed of each pass are precisely calculated and controlled. By gradually reducing the diameter of the copper wire, fine copper wires that meet the requirements of different specifications are finally obtained. During the wire drawing process, a special lubricant is used to reduce friction between the copper wire and the die, prevent the surface of the copper wire from being scratched, and reduce the temperature of the copper wire to avoid affecting its performance due to overheating.
Then is the stranding process. Multiple fine copper wires are stranded according to a certain stranding method and pitch to form a conductor. The stranding method adopts regular stranding to ensure that each strand of copper wire is evenly stressed and reasonably distributed. The size of the stranding pitch affects the flexibility and conductivity of the conductor. By strictly controlling the pitch, the conductor has good flexibility and can ensure the uniform transmission of current. Special stranding equipment is used during the stranding process to ensure the accuracy and stability of stranding.
After stranding, the insulation extrusion process is carried out. An extruder is used to heat and melt polyvinyl chloride (PVC) material, which is then evenly extruded and coated on the outside of the conductor to form an insulation layer. During the extrusion process, the extrusion temperature, extrusion speed, and pressure are precisely controlled to ensure that the insulation layer has a uniform thickness, a smooth surface, is tightly combined with the conductor, and has no defects such as bubbles and impurities. The extruded insulation layer not only needs to have good insulation performance but also maintain good adhesion with the conductor to prevent falling off during use.
After extrusion, the wire needs to be cooled. The newly extruded wire is quickly cooled to room temperature by water cooling to solidify the PVC material, ensuring the dimensional stability and mechanical properties of the insulation layer. During the cooling process, the water temperature and cooling time are strictly controlled to avoid problems such as cracking and deformation of the wire due to improper cooling.
The cooled wire also needs to undergo a series of quality inspection processes. Including appearance inspection to check whether the surface of the wire is smooth, the color is uniform, and there are no scratches, bubbles, or other defects; size inspection to measure the outer diameter of the wire, the thickness of the insulation layer, etc., with special measuring tools to ensure compliance with design requirements; electrical performance inspection to conduct insulation resistance tests, voltage withstand tests, etc., to check the insulation performance and voltage withstand capacity of the wire; mechanical performance inspection to conduct tensile tests, bending tests, etc., to evaluate the flexibility and mechanical strength of the wire. Only wires that pass all inspections can enter the next process.
Finally, the coiling and packaging process is carried out. Qualified wires are coiled according to the specified length, and a coiling machine is used to neatly wind the wires on spools or reels for easy transportation and storage. During the coiling process, the tension is controlled to avoid excessive stretching or twisting of the wire. After coiling, the wire is packaged, usually with plastic film or cartons, to prevent the wire from being contaminated and damaged during transportation and storage.
II. From the Perspective of General Product Information
(1) Packaging
The packaging design of Thhn/Thwn-2 electrical wire focuses on protecting the product, facilitating transportation and storage, while emphasizing the clarity of identification and ease of use.
For coiled wires, different packaging methods are adopted according to different lengths. Wires with lengths of 100 meters and 200 meters usually use hard paper tubes as inner packaging. The diameter of the paper tube is adjusted according to the specifications of the wire to ensure that the wire can be tightly and neatly wound on it. Both ends of the paper tube are equipped with plastic end caps to prevent the wire from slipping off from both ends. After the wire is wound, it is wrapped with a layer of plastic film, which has the functions of moisture-proof and dust-proof, and can protect the surface of the wire from pollution and damage, especially preventing the insulation layer from being eroded by moisture during storage and transportation.
For shorter wires, such as 10 meters, 20 meters, and 50 meters, plastic packaging bags are used for packaging. The packaging bags are made of high-strength polyethylene material, which is wear-resistant and tear-resistant, and can protect the wire from damage during handling. Each packaging bag contains a coil of wire, and the bag mouth is designed with a self-sealing strip for easy opening and sealing, and can also prevent the wire from getting damp.
Whether it is paper tube packaging or plastic packaging bag packaging, product labels are affixed to prominent positions. The label details the product name, model, specifications (AWG number and length), rated voltage, execution standard, production date, batch number, manufacturer name, address, contact information, etc. The label is made of waterproof material to ensure that the information remains clearly visible in a humid environment, facilitating users to identify and check during receipt and use.
For wires transported in batches, multiple paper tubes or packaging bags are neatly placed in cartons or wooden boxes. The size of the carton or wooden box is customized according to the size of the packaged wire. Buffer materials such as foam boards and bubble films are filled inside to prevent the wires from colliding with each other during transportation and causing damage. The outer part of the box is also affixed with eye-catching signs, including product name, specifications, quantity, gross weight, net weight, etc., to facilitate logistics transportation and warehouse management.
(2) Transportation
The transportation process of Thhn/Thwn-2 electrical wire strictly follows relevant regulations to ensure that the products are delivered to the destination safely and timely.
The transportation method is selected according to the transportation distance and quantity. Domestic short-distance transportation usually adopts road transportation, using trucks for loading. The truck compartment must be clean, dry, and free of sharp objects and corrosive substances to prevent damage to the wire. When loading, the packaged wires are neatly stacked in the compartment, avoiding stacking too high to prevent excessive extrusion of the wires at the bottom. For wires packaged in paper tubes, they can be placed horizontally and fixed with ropes to prevent rolling due to vehicle bumps during transportation.
Long-distance transportation can choose railway transportation or water transportation. Railway transportation has the characteristics of large transportation volume and good stability, which is suitable for transporting large quantities of wires. The wires are loaded in railway boxcars or containers to ensure ventilation and dryness and avoid moisture. Water transportation is suitable for cross-regional transportation. The wires are loaded in the cargo hold of the freighter, and measures are taken to prevent moisture and salt spray erosion, such as covering a layer of waterproof film on the outside of the packaging.
During transportation, attention must be paid to avoiding direct sunlight, rain, and freezing of the wires. When transporting in summer, a sunshade net can be covered on the top of the compartment to prevent the wires from accelerating aging due to high temperature; when transporting in rainy days, ensure that the compartment is well sealed, or carry out waterproof covering for the wires; when transporting in winter, avoid severe impact on the wires at low temperatures to prevent brittle fracture of the insulation layer.
Transportation personnel need to be familiar with the characteristics and transportation requirements of the wires, and regularly check whether the packaging of the wires is intact and the fixation is firm. If packaging damage or wire displacement is found, it should be handled in a timely manner to prevent accidents. At the same time, traffic rules must be observed during transportation to avoid sudden braking, sharp turns, and other operations to reduce the impact on the wires.
(3) Shipping
The shipping process of Thhn/Thwn-2 electrical wire is standardized and orderly, aiming to provide customers with efficient and accurate services.
After the customer places an order, the sales department will verify the order information, including product specifications, quantity, delivery date, delivery address, etc., to ensure that the information is accurate. After verification, the order information is transmitted to the warehouse department.
After receiving the order, the warehouse department immediately checks the inventory. If the product is in stock, the goods are prepared according to the order requirements. During the preparation process, warehouse managers will carefully check the specifications, batch numbers, production dates, and other information of the products to ensure consistency with the order. At the same time, check the packaging of the wires to ensure that the packaging is intact.
If the product is out of stock, the sales department will promptly communicate with the production department to arrange a production plan. The production department organizes production according to the order requirements to ensure that production is completed and delivered to the warehouse within the specified delivery period.
After the goods are prepared, the warehouse department hands over the products to the logistics department and provides a detailed shipping list, which includes product name, specification, quantity, weight and other information. The logistics department selects an appropriate transportation method and transportation company according to the delivery address and customer requirements, and goes through relevant transportation procedures.
Before shipping, the sales department will notify the customer of the shipping information by SMS, email or phone call, including shipping time, transportation method, estimated arrival time, name and contact information of the transportation company, waybill number, etc., so that the customer can track the dynamics of the goods.
For urgent orders, the company will give priority to production and shipping to ensure delivery within the time required by the customer. During the shipping process, the logistics department will track the transportation status of the goods throughout the process. In case of abnormal situations (such as traffic jams, vehicle failures, etc.), it will communicate with the customer in a timely manner and take corresponding solutions.
After the goods are shipped, relevant shipping documents such as invoices, packing lists, and product certificates will be sent along with the goods or separately according to the customer's requirements.
(4) Samples
To allow customers to fully understand the performance and quality of Thhn/Thwn-2
Electrical Wires before bulk purchase, the company provides sample services.
Customers can request samples from the sales department via phone, email, online customer service, etc., specifying the required sample specifications, quantity, and purpose. After receiving the request, the sales department will confirm the sample details with the customer, such as whether a specific length is required and whether there are special packaging requirements.
For samples of conventional specifications, the company usually completes preparation and shipment within 1-3 working days. Samples are randomly selected from qualified products to ensure that their performance and quality are consistent with bulk products. The length of the sample is generally 1-5 meters, which meets the customer's testing needs for the appearance, flexibility, and insulation performance of the wire.
The cost of samples and freight is implemented in accordance with the company's regulations. For customers with clear purchase intentions, the company can provide free samples, but the customer needs to bear the freight; for ordinary consulting customers, a certain sample fee may be charged, and the sample fee can be deducted when the customer makes a subsequent bulk purchase.
The delivery method of the sample is selected according to the customer's urgency. Urgent samples can be shipped by express to ensure that the customer receives them as soon as possible; ordinary samples can be shipped by ordinary logistics to reduce the customer's cost.
After the sample is sent, the sales department will promptly inform the customer of the courier number or logistics information so that the customer can track the transportation status of the sample. After the customer receives the sample, the sales staff will conduct a return visit to understand the customer's evaluation and opinions on the sample, answer the customer's questions, and provide a reference for the customer's purchase decision.
(5) After-sales Service
The company attaches great importance to the after-sales service of Thhn/Thwn-2 electrical wires and provides customers with comprehensive after-sales support to ensure that customers have no worries in use.
If the customer finds quality problems with the wire during use, such as insulation layer damage, conductor breakage, abnormal conductivity, etc., they can contact the company's after-sales service department within 30 days of receiving the goods. The after-sales staff will record the customer's feedback in detail, including product model, batch number, problem description, etc., and guide the customer to provide relevant photos or videos to confirm the problem.
After receiving the customer's feedback, the after-sales service department will conduct an investigation and analysis. If the problem is caused by product quality, the company will provide solutions according to the actual situation, such as return, replacement, or repair. For returns and replacements, the company will arrange for the return of unqualified products and send qualified products to the customer in a timely manner, and bear the relevant freight. For repairs, the company's professional technicians will provide repair guidance or send personnel to the site for repair.
If the problem is caused by improper use or installation by the customer, the after-sales staff will provide professional technical guidance to help the customer solve the problem. They will explain the correct use methods and installation precautions of the wire to the customer to avoid similar problems from happening again.
The company also provides technical consultation services. Customers can consult the after-sales service department or professional technicians about wire selection, installation, maintenance, and other issues. The technicians will provide detailed answers and suggestions based on the customer's actual situation to help the customer use the product better.
In addition, the company will conduct regular follow-up visits to customers who have purchased the product to understand the use status of the product and customer needs, collect customer feedback and suggestions, and continuously improve product quality and service level.
The after-sales service department has a dedicated team and a complete service process to ensure that customer problems are handled in a timely and efficient manner. The company is committed to providing customers with reliable after-sales guarantees so that customers can use the product with confidence.
