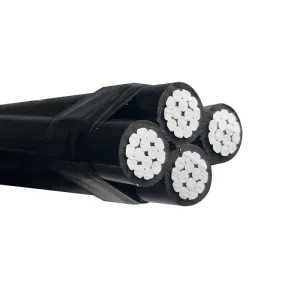

Prc Insulated Pre-Assembly Aluminum Cable 416 425 216 210

1. Introduction

The PRC Insulated Pre-Assembly Aluminum Cable series represents a revolution in efficient electrical installation, offering ready-to-use solutions for commercial and industrial wiring. Available in 4×16mm², 4×25mm², 2×16mm², and 2×10mm² configurations, these Pre-Assembled Cables eliminate the need for on-site conductor assembly, reducing installation time by up to 50% compared to traditional wiring methods.

Crafted with 1350-H19 Aluminum Conductors (61% IACS conductivity) and XLPE insulation, these cables deliver reliable performance across a wide range of applications. Their integrated design—combining multiple Insulated Cores within a single flame-retardant PVC Sheath—ensures consistent quality while simplifying inventory management and installation processes.

This comprehensive guide explores the engineering excellence behind these pre-assembled cables, from their individual conductor strands to their outer protective sheath. We’ll examine their electrical and mechanical properties, compliance with international standards, installation methodologies, and real-world applications, demonstrating why they have become the preferred choice for contractors and engineers seeking efficiency, reliability, and cost savings in electrical systems.

2. Core Construction: Pre-Assembled Design Excellence

Each cable in the PRC series features a precision-engineered Multi-Core construction:

2×10mm² Configuration: Two 10mm² conductors, each consisting of 7 strands of 1.3mm diameter 1350-H19 aluminum, providing:

35A continuous current at 90°C

45A short-term current at 130°C

850N breaking force per conductor

1.8kg/m total weight (including insulation and sheath)

Ideal for lighting circuits, small motor connections, and low-power distribution.

2×16mm² Configuration: Two 16mm² conductors, each with 7 strands of 1.6mm diameter 1350-H19 aluminum, delivering:

55A continuous current at 90°C

70A short-term current at 130°C

1,350N breaking force per conductor

2.2kg/m total weight

Suitable for branch circuits, HVAC controls, and medium-power equipment feeds.

4×16mm² Configuration: Four 16mm² conductors (same strand design as 2×16mm²), offering:

65A continuous current per conductor at 90°C

85A short-term current per conductor at 130°C

1,350N breaking force per conductor

2.8kg/m total weight

Perfect for three-phase systems with neutral, commercial building distribution, and machinery wiring.

4×25mm² Configuration: Four 25mm² conductors, each with 19 strands of 1.3mm diameter 1350-H19 aluminum, featuring:

90A continuous current per conductor at 90°C

115A short-term current per conductor at 130°C

2,100N breaking force per conductor

3.2kg/m total weight

Designed for heavy-duty three-phase applications, industrial machinery, and renewable energy systems.

All conductors feature concentric stranding with a 12× lay length, ensuring Flexibility while maintaining structural integrity during installation and operation.

3. Insulation System: XLPE Performance

Each conductor is individually insulated with high-performance XLPE:

Material Properties: Cross-linked polyethylene insulation (1.2mm thickness) delivers:

20kV/mm dielectric strength, ensuring safe operation at 600V

-40°C to 90°C operating temperature range

Resistance to water, oils, and industrial chemicals

Excellent thermal stability under load cycling

This insulation system provides a 25-year service life in most environments.

Manufacturing Process: The XLPE undergoes:

Peroxide cross-linking for enhanced thermal and mechanical properties

Extrusion at precise temperatures to ensure uniform thickness

100% spark testing at 10kV to verify integrity

Post-extrusion curing to eliminate residual stresses

Insulation Performance:

Volume resistivity: >10¹⁴ Ω·cm

Dielectric loss tangent: <0.001 at 60Hz

Insulation resistance: >100MΩ/km at 20°C

Flame resistance: Self-extinguishing per UL 94 V-0

Color Coding: Individual conductors feature standard color identification:

Phase conductors: Brown, Black, Gray (4-core) or Brown, Black (2-core)

Neutral conductor: Blue

Ground conductor (when included): Green/Yellow stripe

This color coding simplifies phase identification during installation.

This XLPE insulation ensures electrical safety and mechanical protection for each conductor within the pre-assembled cable.

4. Outer Sheath: PVC Protection

The integrated outer sheath provides additional protection and structural integrity:

Material Composition: Flame-retardant PVC compound with:

1.5mm thickness (2-core) to 2.0mm thickness (4-core)

UL 94 V-0 flammability rating

-40°C to 90°C operating temperature range

UV stabilizers for outdoor applications

Sheath Properties:

Tensile strength: >15MPa

Elongation at break: >200%

Impact resistance: Passes -40°C impact test

Abrasion resistance: >10,000 cycles per Taber test

Protective Features:

Resistance to oils, greases, and mild chemicals

Water resistance (IP66 rating when properly terminated)

Resistance to rodent and insect damage

Protection against mechanical abuse during installation

Jacket Construction:

Extruded over the insulated cores in a single process

Bonded to individual insulations to prevent core migration

Uniform wall thickness for consistent protection

Smooth outer surface for easy pulling through conduit

This PVC outer sheath ensures the pre-assembled cable can withstand the rigors of installation and operation in diverse environments.

5. Electrical Performance: 600V Power Distribution

The PRC pre-assembled cables deliver exceptional electrical performance:

Voltage Rating: 600V phase-to-phase, 347V phase-to-ground, suitable for:

Single-phase 120/240V systems (2-core)

Three-phase 208Y/120V systems (4-core)

Three-phase 480Y/277V systems (4-core)

DC systems up to 600V

Current-Carrying Capacity:

For 2×10mm²: 35A continuous at 90°C, 45A short-term at 130°C per conductor.

For 2×16mm²: 55A continuous at 90°C, 70A short-term at 130°C per conductor.

For 4×16mm²: 65A continuous at 90°C, 85A short-term at 130°C per conductor.

For 4×25mm²: 90A continuous at 90°C, 115A short-term at 130°C per conductor.

All ratings apply to ambient temperatures up to 30°C, with derating factors available for higher temperatures.

Voltage Drop Characteristics:

2×10mm²: <3% at 35A over 40-meter runs

2×16mm²: <3% at 55A over 50-meter runs

4×16mm²: <3% at 65A over 50-meter runs

4×25mm²: <3% at 90A over 60-meter runs

These low voltage drops ensure efficient power delivery to connected equipment.

Short-Circuit Withstand:

15kA for 2 seconds (2-core)

20kA for 2 seconds (4-core)

This withstand capability provides ample time for protective devices to operate.

These electrical properties make the PRC pre-assembled cables suitable for a wide range of 600V power distribution applications.

6. Mechanical Properties: Durability and Flexibility

The cables offer impressive mechanical performance for versatile installation:

Physical Dimensions:

2×10mm²: 12.5mm outer diameter, 1.8kg/m weight

2×16mm²: 14.0mm outer diameter, 2.2kg/m weight

4×16mm²: 16.5mm outer diameter, 2.8kg/m weight

4×25mm²: 18.5mm outer diameter, 3.2kg/m weight

Flexibility:

Minimum bend radius: 8× outer diameter (fixed installations)

12× outer diameter (dynamic applications)

16× outer diameter (low-temperature installations below -20°C)

This flexibility allows installation in tight spaces and around obstacles.

Tensile Performance:

Overall cable breaking force: 3,500N (2×10mm²) to 8,500N (4×25mm²)

Safe pulling tension: 10% of breaking force

Maximum sidewall pressure: 5kN/m

Environmental Resistance:

Operating temperature: -40°C to 90°C

Storage temperature: -50°C to 100°C

Humidity resistance: 95% relative humidity at 40°C for 1,000 hours

Altitude rating: Up to 2,000 meters without derating

These mechanical properties ensure the pre-assembled cables can be installed in diverse environments and configurations with confidence.

7. Installation Advantages: Pre-Assembled Efficiency

The pre-assembled design offers significant installation benefits:

Time Savings:

Eliminates on-site core assembly (saves 2-3 hours per 100 meters)

Reduces labor requirements by 50% compared to separate conductors

Simplifies inventory management (single SKU vs. multiple components)

Faster termination due to pre-identified conductors

Installation Methods:

Conduit installation: Compatible with EMT, PVC, and rigid metal conduit

Cable tray installation: Suitable for ladder, solid-bottom, and wire mesh trays

Direct burial: Approved for underground installation with proper protection

Outdoor installation: UV-stabilized sheath allows exposed runs

Termination Process:

Factory-cut ends for precise termination

Compatible with Standard Aluminum compression lugs

Color-coded conductors simplify phase identification

Pre-stripped options available for faster termination

Handling Benefits:

Available on 100-meter and 200-meter reels

Reinforced reel flanges for protection during transport

Clear labeling for easy identification

Lightweight design reduces installer fatigue

Special Installation Considerations:

Maximum pull length: 150 meters without intermediate pull points

Recommended pulling tension: <10% of breaking force

Conductor fill: 40% maximum in conduit

Temperature during installation: >-20°C for standard pulling

These installation advantages translate to significant cost savings and project timeline reductions.

8. Standards Compliance: Global Recognition

The PRC pre-assembled cables meet rigorous international standards:

IEC 60502-1: International standard for Power Cables with rated voltages up to 1kV

UL 44: Underwriters Laboratories standard for XLPE-Insulated Cables

UL 94: V-0 flammability rating for both insulation and sheath

ASTM B230: Standard specification for 1350 aluminum Electrical Conductors

CSA C22.2 No. 210: Canadian standard for Flexible Cables and cords

RoHS: Compliance with restriction of hazardous substances directive

Certifications:

UL Listed

CSA Certified

CE Marked

RoHS Compliant

ISO 9001 Quality Management System

This comprehensive compliance ensures the cables can be specified for projects worldwide with confidence in their performance and safety.

9. Application Versatility: Diverse Usage Scenarios

The PRC pre-assembled cables excel in various applications:

Commercial Buildings:

Office tower power distribution

Retail store electrical systems

Hotel and restaurant wiring

Healthcare facility non-critical circuits

Educational institution electrical systems

Industrial Facilities:

Manufacturing plant machinery wiring

Warehouse distribution systems

Food processing facility electrical circuits

Automotive production line power

Pharmaceutical facility utilities

Infrastructure Projects:

Transportation hubs (airports, train stations)

Sports stadium electrical systems

Convention center power distribution

Data center auxiliary circuits

Telecommunication facility wiring

Renewable Energy Systems:

Solar farm inverter connections

Wind turbine auxiliary systems

Battery energy storage interconnections

Renewable microgrid distribution

Biogas facility electrical systems

Specialized Applications:

Mobile equipment Power Cables

Temporary event power distribution

Emergency backup systems

Marine shore power connections

Agricultural facility wiring

In each application, the pre-assembled design ensures reliable performance with reduced installation time and costs.

10. Cost Efficiency: Total Value Analysis

The PRC pre-assembled cables deliver exceptional value:

Material Cost Savings:

35% lower than equivalent Copper Cables

Reduced shipping costs due to lighter weight

Lower inventory carrying costs (single product vs. multiple components)

Reduced waste (precisely cut lengths)

Installation Cost Reduction:

50% lower labor costs compared to separate conductors

Faster project completion (earlier revenue generation)

Reduced equipment rental time

Fewer callbacks due to assembly errors

Lifecycle Savings:

25-year service life minimizes replacement costs

Low maintenance requirements

Energy efficiency (61% IACS conductivity)

Reduced downtime due to reliable performance

Total Cost of Ownership:

40% lower than copper cable systems over 25 years

30% lower than traditional multi-conductor systems

Fast return on investment (typically within 1-2 years)

These cost advantages make the pre-assembled cables an economically superior choice for most commercial and industrial electrical projects.

11. Maintenance and Reliability

The cables are designed for long-term reliability with minimal maintenance:

Service Life Expectancy:

25 years in normal indoor environments

20 years in outdoor or industrial environments

15 years in harsh or corrosive environments

Maintenance Requirements:

Visual inspection every 5 years

Thermal imaging every 10 years for critical circuits

Torque verification of terminations every 15 years

No regular cleaning or treatment required

Troubleshooting Advantages:

Color-coded conductors simplify identification

Integrated design reduces potential failure points

Consistent construction enables predictable performance

Compatible with standard testing equipment

Repair Capabilities:

Splice kits available for section replacement

Sheath repair using heat-shrink sleeves

Individual conductor repair possible within sheath

Compatible with standard electrical test equipment

This low-maintenance profile ensures the pre-assembled cables provide reliable service with minimal ongoing costs.

12. Conclusion

The PRC Insulated Pre-Assembly Aluminum Cable series represents the perfect fusion of performance, convenience, and economy in electrical distribution. By integrating multiple XLPE-insulated Aluminum Conductors within a flame-retardant PVC sheath, these pre-assembled cables eliminate the need for on-site assembly, dramatically reducing installation time and labor costs.

Available in 2-core and 4-core configurations ranging from 10mm² to 25mm², they deliver tailored current capacities from 35A to 90A, all at 600V. Their combination of 1350-H19 aluminum conductors (61% IACS conductivity) and XLPE insulation ensures efficient power delivery across a wide temperature range (-40°C to 90°C).

Compliant with international standards and backed by a 25-year service life expectancy, these pre-assembled cables offer 35-40% cost savings compared to copper alternatives while providing equivalent reliability. Their versatility makes them suitable for commercial buildings, industrial facilities, infrastructure projects, and renewable energy systems.

As the demand for efficient, cost-effective electrical solutions continues to grow, the PRC Pre-Assembled Aluminum cables stand ready to meet the challenges of modern electrical distribution, proving that innovation in design can deliver both performance and value.
