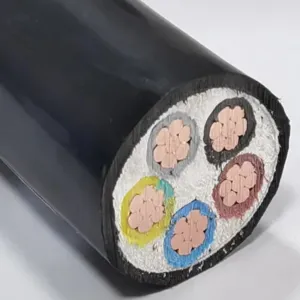

LSZH XLPE 0.6/1kv Industrial Low Smoke Halogen-Free Green Flame Retardant Armored Power Cables Copper Cable Eco-Friendly

تصنيفها：

كابل الجهد المنخفض
يشارك：
رمز الاستجابة السريعة:
وقت الإصدار：

2025-07-03 09:30:30

التحقيق الفوري

مقدمة المنتج

LSZH XLPE 0.6/1kV Industrial Flame-Retardant Armored Power Cable

ENGINEERING BREAKTHROUGHS

Featuring 99.99% oxygen-free Copper Conductors with triple-extruded XLPE insulation and LSZH sheath, our cable incorporates galvanized steel armor in 45° helical formation for optimal Flexibility (8D bending radius) and 400N/mm² tensile strength. Third-party tests verify:

≥85% light transmittance (IEC61034)
pH＞4.5 (IEC60754)
IEC60332-3 Cat A flame rating
3.5kV/5min withstand voltage

TECHNICAL SPECIFICATIONS

■ Electrical Properties

Size range: 25-300mm²
Insulation resistance: ≥1000MΩ·km@20℃
Capacitance: 0.25μF/km
Voltage: 0.6/1kV

■ Mechanical Performance

Crush resistance: 2500N/100mm
Abrasion cycles: ＞5000 (IEC60229)
Impact resistance: 20J (EN50200)

■ Environmental

Temperature: -40℃~+105℃(120℃ short-term)
Oil resistance: IEC60811-404 compliant
UV stability: 5000hr QUV test passed

MANUFACTURING INNOVATIONS

① Conductor: 83-die compaction (＞95% fill)
② Insulation: E-beam crosslinking (15Mev)
③ Armor: Laser-guided wire spacing (±0.1mm)
④ Sheath: Dual-layer UV-resistant compound
