Detailed Introduction of High Quality 100m Electrical Copper Cable 1.5mm to 4mm Sizes for House Installation
I. From the Perspective of the Product Itself
(1) Specification Parameters
High quality 100m electrical
Copper Cables, available in 1.5mm², 2.5mm², and 4mm² sizes, are engineered with precise specification parameters to ensure safe and reliable performance in residential electrical installations. These parameters adhere to international standards such as IEC 60228, IEC 60811, and BS 6004, guaranteeing consistency, safety, and compatibility with global electrical systems.
Conductor Specifications: The stranded
Copper Conductors are designed with specific stranding configurations to balance
Flexibility and conductivity:
The copper used is high-purity electrolytic grade (99.95% minimum), with a conductivity of ≥58 MS/m at 20°C, ensuring efficient current transmission with minimal energy loss.
Current-Carrying Capacity: The ampacity (current-carrying capacity) varies by size and installation method, critical for matching the cable to specific household loads:
For every 5°C increase in ambient temperature above 30°C, the current rating is derated by 8% to prevent overheating. Short-term overloads (up to 5 seconds) are permitted at 120% of the continuous rating.
Voltage Rating: The cables are rated for 450V (phase-to-earth) and 750V (phase-to-phase), making them compatible with standard 230V single-phase household electrical systems. They can withstand transient overvoltages up to 2.5kV for 1 second, meeting IEC 61000-4-5 standards to protect against power surges.
Insulation Parameters: The high-grade
PVC Insulation has precise thickness specifications:
All insulation types provide a dielectric strength of ≥15kV/mm, ensuring effective electrical isolation to prevent short circuits. The insulation resistance exceeds 1000MΩ·km at 20°C, confirming minimal leakage current.
Temperature Performance: The cables operate reliably within a temperature range of -15°C to 70°C for continuous use. The PVC insulation retains flexibility at -15°C (no cracking in bend tests) and resists melting at 70°C, ensuring performance in cold attics, warm boiler rooms, and other temperature-variable areas of a home. Short-term exposure to 105°C (for up to 5 seconds) is permitted during overloads.
Mechanical Properties: The minimum bend radius (critical for installation in tight spaces) is 6× the cable outer diameter for static installations:
For dynamic flexing (e.g., during installation), the minimum bend radius is 10× the outer diameter. The cables withstand a tensile force of ≥150N without conductor damage, suitable for the pulling forces encountered during routing through walls and conduits.
Flame and Safety Ratings: The PVC insulation meets IEC 60332-1-2 for vertical flame propagation, self-extinguishing within 60 seconds after flame removal. It has a smoke density index (SDI) ≤75 when tested to IEC 61034-2, reducing visibility hazards in case of fire. The cables are also RoHS-compliant, free from hazardous substances like lead and cadmium.
(2) Special Purpose
The 1.5mm² to 4mm² 100m electrical copper cables are designed for specialized applications in residential electrical systems, each size tailored to specific household loads and installation requirements.
1.5mm² Cables: These are primarily used for lighting circuits and low-power devices in homes. They excel in powering:
LED lighting fixtures (both recessed and surface-mounted) throughout the house, including living rooms, bedrooms, and hallways. A single 1.5mm² circuit can support up to 10-15 LED light points without exceeding its 16A capacity.
Smart home devices such as smart switches, dimmers, and motion sensors, which draw minimal current (typically <1A each).
Their flexibility makes them ideal for routing through ceiling cavities and wall channels, where space is often limited. The 100m length is practical for wiring entire floors, as most residential lighting circuits span 20-50m, allowing for multiple runs from a single spool with minimal waste.
2.5mm² Cables: As the standard for power outlet circuits, 2.5mm² cables handle the majority of household appliances and general-purpose outlets:
General power outlets in living rooms, bedrooms, and home offices, powering devices like TVs, laptops, vacuum cleaners, and small kitchen appliances (toasters, blenders).
A typical 2.5mm² circuit can support 8-10 power outlets, making the 100m spool suitable for wiring an average-sized home (3-4 bedrooms) with multiple outlet circuits. Their 27A capacity ensures they can handle simultaneous operation of several devices without overheating.
4mm² Cables: These are reserved for high-power circuits in homes, specifically designed to handle heavy-duty appliances that draw significant current:
The 100m length of 4mm² cable is practical for wiring from the main distribution board to these high-power appliances, even in larger homes where the distance from the consumer unit to the appliance (e.g., an electric shower in an upstairs bathroom) can be 15-20m.
Whole-House Integration: Together, these cables form a complete residential electrical system: 1.5mm² for lighting, 2.5mm² for general outlets, and 4mm² for high-power appliances. This tiered approach ensures each circuit is appropriately sized for its load, enhancing safety and efficiency. Electricians can use the 100m spools to wire entire sections of a home, from the distribution board to individual fixtures and appliances, ensuring consistent quality across all circuits.
(3) Material and Style
The materials and design of these electrical copper cables are carefully selected to optimize performance, safety, and ease of installation in residential environments.
Conductor Material: The
Stranded Conductors use high-purity electrolytic copper (99.95% Cu) to maximize conductivity. The copper is drawn from oxygen-free copper rods to minimize impurities that could reduce performance or cause embrittlement. The strands are annealed (heat-treated at 400-500°C in a nitrogen atmosphere) to soften them, enhancing flexibility and reducing brittleness—critical for withstanding the bending and routing required in home installations.
Insulation Material: The high-grade PVC insulation is a specialized compound formulated for residential use, consisting of:
This formulation makes the insulation resistant to moisture, common household chemicals (e.g., cleaning agents), and abrasion from contact with building materials.

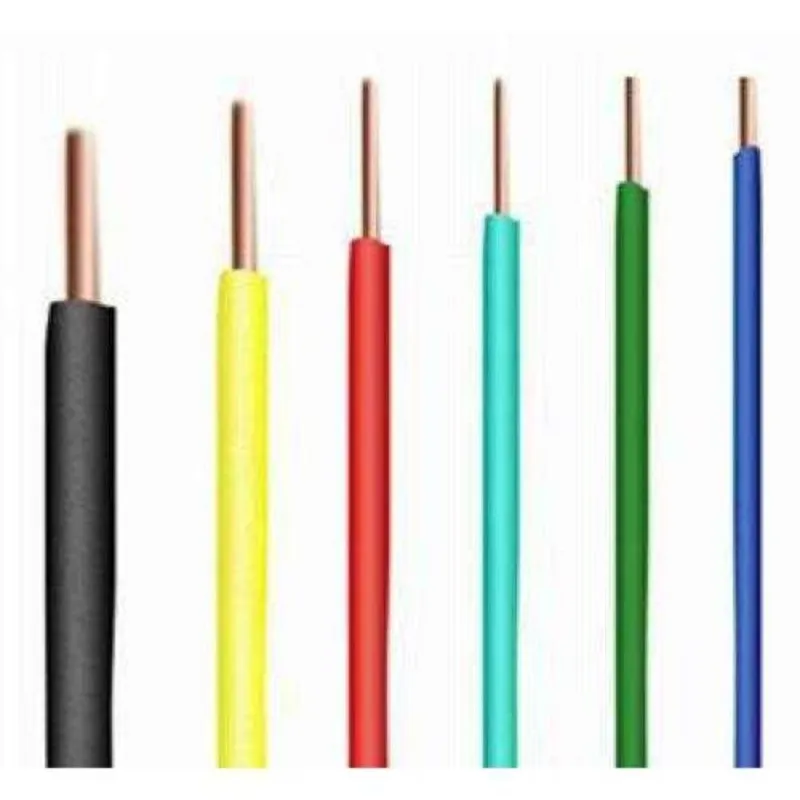

Color Coding: The insulation is color-coded according to international standards for easy identification and safe installation:
This consistent color coding reduces the risk of wiring errors, which is critical for passing electrical inspections and ensuring occupant safety.
Style Variations:
Moisture-Resistant: A variant with enhanced water resistance, used in bathrooms, kitchens, and basements where humidity is high. The insulation includes additional hydrophobic additives to repel moisture.
Low-Smoke Zero-Halogen (LSZH): For homes where smoke toxicity is a concern (e.g., multi-story buildings), this variant uses halogen-free insulation that emits minimal smoke and toxic gases when burned.
All styles come on 100m spools with a flanged design to prevent tangling during installation. The spools are made from durable cardboard or plastic, with a central core that fits
Standard Cable dispensers used by electricians.
(4) Production Process
The manufacturing of these high quality electrical copper cables involves precise processes to ensure the performance and safety required for residential installations, with strict quality control at each stage.
Copper Strand Drawing: High-purity copper rods (99.95% Cu) are drawn through a series of diamond dies to produce strands of the required diameter (0.25mm or 0.30mm). This is done in a continuous drawing machine with water-based lubrication to prevent overheating, ensuring the copper retains its ductility. The drawing process reduces the rod diameter from 8mm to the final strand size with a tolerance of ±0.01mm.
Stranding: The annealed strands are twisted together in a planetary stranding machine, which rotates the strands around a central axis to form the conductor. The machine is programmed to achieve the precise number of strands and lay length for each size:
Strands are layered (1+6+12+...), with each layer twisted in the opposite direction to the previous one to prevent unraveling. Tension is carefully controlled (±5N) to ensure uniform strand distribution, with online cameras monitoring for gaps or overlaps.
PVC Compounding: The insulation compound is prepared in a batch process to ensure consistency. Raw materials (PVC resin, plasticizers, stabilizers, flame retardants, colorants) are weighed to exact proportions and mixed in a high-speed mixer, which heats the mixture to 120-140°C to melt plasticizers and disperse additives. The molten mixture is cooled to 40°C, then pelletized using a strand cutter. Each batch is tested for melt flow rate (1.5-3.0 g/10min at 190°C/2.16kg) to ensure consistent extrusion properties.
Insulation Extrusion: The stranded conductor is fed into an extrusion line where the PVC compound is applied as insulation. The extrusion machine's barrel is heated to 160-180°C, melting the PVC pellets, which are then forced through a crosshead die to form a uniform layer around the conductor. The die is sized to achieve the specified insulation thickness (0.7mm to 1.0mm), with vacuum sizing ensuring dimensional accuracy (tolerance ±0.1mm). After extrusion, the cable is cooled in a water bath at 20°C to solidify the PVC, then dried with compressed air.
Quality Testing: Each production batch undergoes rigorous testing before spooling:
Conductor resistance: Measured using a micro-ohmmeter, must be ≤12.1Ω/km for 1.5mm², ≤7.41Ω/km for 2.5mm², and ≤4.61Ω/km for 4mm² at 20°C.
Spooling: Qualified cables are wound onto 100m spools using a spooling machine with tension control (50-100N) to prevent kinking. The spools are made from recycled cardboard or high-density polyethylene (HDPE) with flanges (200mm diameter) to contain the cable. Each spool is labeled with size, length, batch number, compliance marks, and manufacturing date before packaging.
II. From the Perspective of General Product Information
(1) Packaging
The 100m electrical copper cables are packaged to protect their quality during storage, transportation, and handling, while ensuring convenience for electricians and homeowners.
Spool Packaging: Each 100m cable is wound onto a sturdy spool designed for practical use:
Bulk Packaging for Trades: For electricians and construction companies purchasing multiple spools:
Palletized shipments: 50 spools per pallet (10 bundles of 5), with a wooden pallet base and shrink wrap covering the entire pallet. Each pallet is labeled with total quantity, sizes, and weight (approximately 150kg per pallet).
Retail Packaging for DIYers: For home improvement stores catering to DIY enthusiasts:
Storage Instructions: All packaging includes clear guidelines for optimal storage:
(2) Transportation
Transportation of the 100m electrical copper cables is managed to ensure the product reaches customers in pristine condition, with precautions to prevent physical damage and environmental exposure.
Land Transportation:
For domestic shipments, land transportation primarily uses enclosed box trucks to shield cables from weather and physical damage. Palletized spools are loaded using forklifts, with wooden dunnage placed between pallets to prevent friction and abrasion. Each pallet is secured to the truck floor with ratchet straps (tension set to 500N) to avoid shifting during transit. For smaller orders (1-5 spools), packages are placed in cardboard cartons with foam inserts to cushion against impacts, and cartons are labeled with "Fragile" stickers to alert handlers.
Trucks are equipped with temperature monitoring systems to ensure cargo remains within 0°C to 40°C, with heating or cooling activated if external temperatures exceed this range. During loading and unloading, drivers follow a checklist to verify spool integrity—checking for damaged flanges or torn protective film—before signing off on shipments.
Sea Transportation:
International shipments rely on container shipping, with 20ft or 40ft containers used based on order volume. Pallets are stacked no more than 3 layers high to prevent crushing, and each layer is secured with cross-strapping. Desiccant packs (100g per cubic meter of container space) are placed to control humidity, keeping it below 60% to avoid condensation on PVC insulation.
Containers are ventilated with passive vents to circulate air, and cable spools are wrapped in waterproof plastic film as an extra moisture barrier. Bills of lading include detailed descriptions of contents (e.g., "100 spools 2.5mm²
Electrical Cable, 100m each") and compliance certificates to facilitate customs clearance.
Air Transportation:
Urgent orders (e.g., last-minute construction needs) use air freight, with individual spools packed in lightweight cardboard boxes lined with bubble wrap. Boxes are limited to 30kg per unit to meet airline weight restrictions, and each package includes a pressure-sensitive indicator to detect rough handling (showing red if subjected to forces exceeding 100G).
Air cargo is stored in temperature-controlled holds (15°C to 25°C) to prevent insulation damage, and tracking numbers are provided to customers for real-time shipment monitoring.
Handling Guidelines:
All shipping documents include strict handling instructions:
(3) Delivery
The delivery process is streamlined to ensure timely and accurate fulfillment, with systems tailored for both professional and DIY customers.
Order Processing:
For trade customers (electricians, contractors), orders are processed via a dedicated portal with integration to inventory management systems. In-stock items (1.5mm² and 2.5mm²) are confirmed within 2 hours, with 4mm² typically available within 24 hours. Custom variants (e.g., LSZH insulation) require 3-5 business days.
Retail customers ordering online receive automated confirmations with estimated delivery dates (2-3 days for domestic, 7-10 days for international). The system flags address errors (e.g., incorrect postcodes) and prompts customers to correct them before dispatch.
Warehouse Operations:
Warehouses use barcode scanning to pick spools, with a two-step verification process: first scanning the spool label, then cross-referencing with the order slip to ensure size and insulation type match. Spools are packed in order of dispatch, with priority given to next-day delivery orders.
For bulk orders, a dedicated team assembles pallets, checking each spool for damage before shrink-wrapping. A packing list is attached to each pallet, detailing quantities and batch numbers for traceability.
Shipping Options:
Delivery Confirmation:
Customers receive email and SMS notifications when shipments are dispatched, including tracking links. For residential deliveries, couriers offer flexible time slots (e.g., evening or weekend) to ensure someone is present to receive the spools. Delivery photos are taken as proof of receipt, stored in the system for 6 months.
(4) Samples
Providing samples is a key service to help customers verify quality before bulk purchases, particularly for contractors specifying cables for large projects.
Sample Requests:
Samples can be requested via the website, email, or phone. The request form requires:
Samples are free for business customers, with shipping costs charged at cost price (waived for orders over 100 spools placed within 30 days).
Sample Preparation:
Samples are 1m lengths cut from production batches to ensure they represent the actual product. Each sample includes:
A labeled tag with size, insulation type, batch number, and test results (conductor resistance, insulation thickness).
Moisture-resistant and LSZH samples include additional test reports (e.g., water immersion results for moisture-resistant variants).
Shipping Samples:
Samples are shipped via express courier (1-2 days domestic, 3-5 days international) in padded envelopes to prevent damage. Tracking information is provided, and a follow-up email is sent 2 days after delivery to check if customers need further information.
(5) After-Sales Service
The after-sales service ensures customer satisfaction, with support throughout the product lifecycle.
Warranty:
All cables come with a 10-year warranty covering defects in materials and workmanship. The warranty excludes damage from:
To file a claim, customers submit:
Claims are reviewed within 48 hours by a technical team, with approved claims resolved via replacement or refund (customer’s choice).
Technical Support:
A team of electrical engineers provides support via phone, email, or video call. Common queries include:
For complex projects, on-site consultations are available for a fee, with engineers inspecting installations and providing written reports.
Training Resources:
The company offers free online webinars for electricians, covering:
Recorded webinars are available on the website, along with downloadable guides (e.g., "10 Common Wiring Mistakes to Avoid").
Feedback and Returns:
Customers are surveyed 3 months after purchase to rate quality and service. Feedback is analyzed to identify improvement areas (e.g., adding new insulation types).
Unused, unopened spools can be returned within 30 days for a full refund, minus shipping costs. Returned items are inspected and restocked if in good condition.
Recall Procedures:
In the unlikely event of a product recall (e.g., batch-specific insulation defects), customers are notified via email, phone, and registered mail. The recall process includes:
A dedicated recall hotline is set up, with response times guaranteed within 2 hours.
In summary, these high-quality 100m electrical copper cables (1.5mm² to 4mm²) combine precise engineering, durable materials, and comprehensive support to meet the demands of residential installations. From strict production standards to robust after-sales service, every aspect is designed to ensure safe, reliable, and long-lasting performance in homes worldwide.
