I. From the Perspective of the Product Itself
(1) Specification Parameters

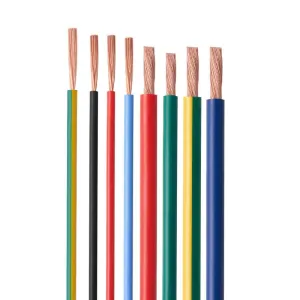

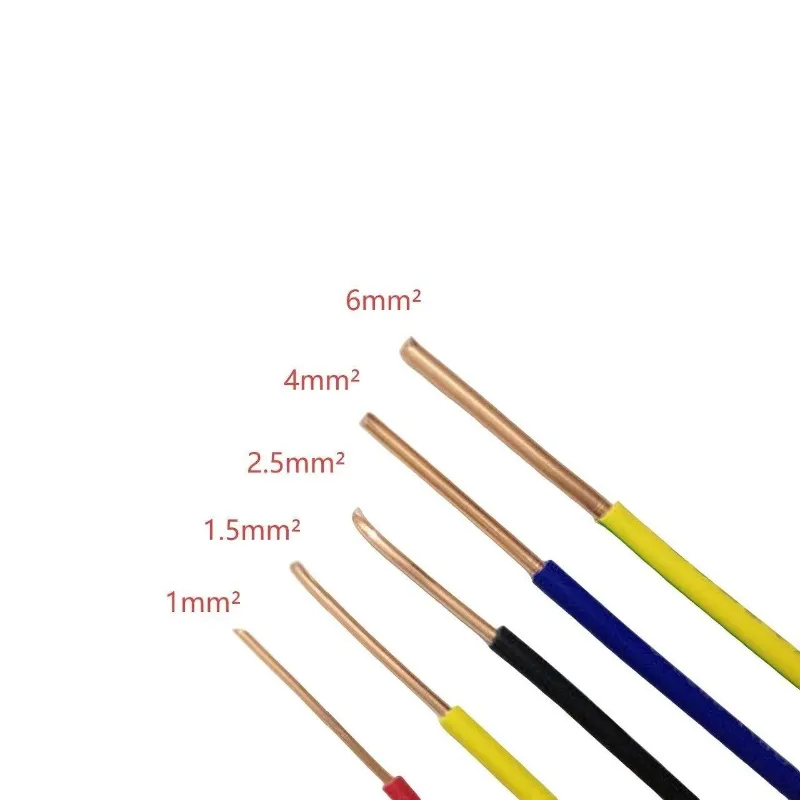

Class 5 flexible single-core
Copper Cables with 450/750V
PVC Insulation are engineered with precise specification parameters to ensure reliable performance in diverse
Electrical Wiring applications. These parameters adhere to international standards such as IEC 60228, IEC 60811, and BS 6004, guaranteeing consistency, safety, and compatibility with global electrical systems.
Conductor Specifications: The Class 5 designation refers to a highly flexible stranding configuration defined by IEC 60228. The conductor consists of multiple fine
Copper Strands, with the number and diameter varying by cross-sectional area:
The strands are twisted in a uniform lay pattern with a twist pitch (distance per full twist) ranging from 8mm (for 0.5mm²) to 25mm (for 16mm²). This tight twisting enhances
Flexibility while ensuring structural stability, preventing strand separation during installation. The copper used is high-purity electrolytic grade (99.95% minimum), with a conductivity of ≥58 MS/m at 20°C, ensuring efficient current transmission.
Voltage Rating: The cable is rated for 450V (phase-to-earth) and 750V (phase-to-phase), making it suitable for low-voltage distribution systems in both single-phase (230V) and three-phase (400V) applications. It withstands transient overvoltages up to 2.5kV for 1 second, meeting the requirements of IEC 61000-4-5 for surge immunity, critical for protection against lightning-induced spikes.
Current-Carrying Capacity: Ampacity varies by cross-sectional area and installation method:
For every 5°C increase in ambient temperature above 30°C, the current rating is derated by 8% to prevent overheating.
Insulation Parameters: The PVC insulation has a nominal thickness ranging from 0.6mm (0.5mm²) to 1.2mm (16mm²), with a tolerance of ±0.1mm. It provides a dielectric strength of ≥20kV/mm, ensuring effective electrical isolation. The insulation resistance exceeds 1000MΩ·km at 20°C, confirming minimal leakage current.
Temperature Performance: The cable operates within a temperature range of -15°C to 70°C for continuous use, with short-term overload capability up to 105°C for durations not exceeding 5 seconds. The PVC insulation retains flexibility at -15°C (no cracking in bend tests) and resists melting at 70°C, ensuring performance in both cold and moderately warm environments.
Mechanical Properties: The minimum bend radius is 4× the cable outer diameter for static installations and 8× for dynamic flexing (e.g., wiring in moving parts of machinery). The cable withstands a tensile force of 150N for 0.5-2.5mm² and 300N for 4-16mm² without conductor damage. The insulation has a Shore A hardness of 80, balancing flexibility and resistance to abrasion.
Flame and Smoke Ratings: The insulation meets IEC 60332-1-2 for vertical flame propagation, self-extinguishing within 60 seconds after flame removal. It has a smoke density index (SDI) ≤75 when tested to IEC 61034-2, reducing visibility hazards in case of fire.
(2) Special Purpose
Class 5 flexible single-
Core Copper cables are designed for specialized applications requiring high flexibility, reliable conductivity, and compliance with low-voltage standards, making them indispensable across residential, commercial, and light industrial sectors.
Residential Wiring: In modern homes, these cables (0.5mm² to 2.5mm²) are used for lighting circuits, power outlets, and home automation systems. Their flexibility simplifies installation in wall cavities, under floors, and behind furniture, where
Rigid Cables would be difficult to route. 0.5mm² cables power low-current devices like LED lighting and smart switches, while 2.5mm² variants handle standard power outlets (up to 27A), supporting appliances such as refrigerators, TVs, and small kitchen devices. The color-coded insulation (brown for live, blue for neutral, green-yellow for earth) ensures safe wiring in accordance with household electrical codes.
Commercial Buildings: Offices, retail stores, and hotels utilize 1mm² to 6mm² cables for powering computers, POS systems, air conditioning units, and lighting fixtures. In open-plan offices, 2.5mm² to 4mm² cables are routed through suspended ceilings and raised floors, with their flexibility allowing easy adaptation to changing layouts. Retail spaces use 6mm² cables for heavy-duty outlets powering display refrigerators and commercial coffee machines, where the 750V rating ensures safe operation under continuous load.
Industrial Control Systems: Light industrial facilities employ 1mm² to 10mm² cables for control circuits in machinery, conveyor systems, and assembly lines. Their flexibility is critical for wiring in moving parts (e.g., robotic arms, sliding doors), where repeated bending would damage solid-
Core Cables. 4mm² to 10mm² variants connect sensors, relays, and motor controllers, with the PVC insulation resisting oil and coolant splashes common in factory environments.
Entertainment and Hospitality: Theatres, concert venues, and restaurants use 0.5mm² to 2.5mm² cables for stage lighting, sound systems, and AV equipment. Their flexibility allows quick reconfiguration of wiring setups for events, while the
Flame-Retardant Insulation enhances safety in crowded spaces. Hotels use them in modular furniture (e.g., movable partitions with integrated lighting), where the cable must bend without fatigue.
Medical Facilities: Clinics and hospitals utilize 1mm² to 4mm² cables in non-critical electrical systems, such as examination room lighting, patient monitors, and office equipment. The PVC insulation is low-emission (meeting ISO 10993 for biocompatibility), reducing the risk of chemical off-gassing in sensitive environments. Their flexibility simplifies wiring in medical carts and movable equipment.
Transportation Infrastructure: Train stations, airports, and bus terminals use 2.5mm² to 16mm² cables for public address systems, security cameras, and lighting. In underground stations, their moisture resistance (insulation resistance >100MΩ after 24-hour water immersion) prevents degradation in humid conditions. The 750V rating ensures compatibility with the varied electrical systems found in transportation hubs.
Renewable Energy Auxiliary Systems: Solar and wind farms use 4mm² to 16mm² cables for auxiliary systems, such as inverter cooling fans, monitoring sensors, and control panels. While not used for high-voltage power transmission, they provide reliable low-voltage connections in outdoor environments, with UV-stabilized PVC insulation resisting degradation from sunlight.
(3) Material and Style

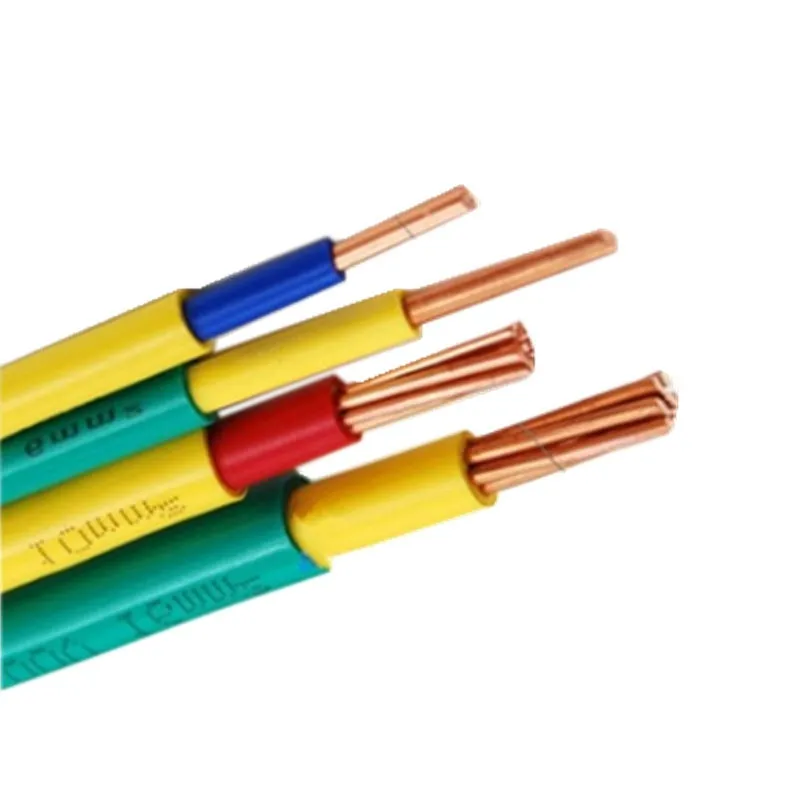

The materials and design of Class 5 flexible
Single-Core Copper Cables are carefully selected to balance flexibility, durability, and electrical performance, with variations tailored to specific application requirements.
Conductor Materials: The
Stranded Conductors use high-purity electrolytic copper (99.95% Cu) drawn from oxygen-free copper rods to minimize impurities. This ensures low electrical resistance and prevents embrittlement during stranding. For applications requiring enhanced corrosion resistance (e.g., coastal areas), conductors are tinned with a 0.5μm thick tin layer, applied via electroplating to ensure uniform coverage. Tinned copper resists oxidation in humid or salty environments, extending the cable’s lifespan by up to 30% compared to bare copper.
Insulation Materials: The insulation is a PVC compound formulated for flexibility and durability. It consists of:
The compound is mixed in a high-speed blender at 120°C to ensure homogeneity, then pelletized for extrusion.
Color Coding: The insulation is available in standard colors to denote conductor function, complying with IEC 60446 and regional standards:
Colors are formulated with UV-stable pigments to prevent fading, ensuring long-term visibility for maintenance.
Style Variations:
Moisture-Resistant: Features a semi-conductive layer under the insulation to drain moisture, used in bathrooms, kitchens, and outdoor protected areas.
Jacketed Variants: For bundled wiring (e.g., in conduit), some versions include a thin (0.2mm)
Nylon Jacket over the PVC insulation, reducing friction between cables and preventing abrasion during installation.
(4) Production Process
The manufacturing of Class 5 flexible single-core copper cables involves precise processes to ensure the high flexibility and consistent performance required for their applications, with strict quality control at each stage.
Copper Strand Drawing: High-purity copper rods (99.95% Cu) are drawn through diamond dies in a multi-stage process to produce fine strands of the required diameter (0.20mm to 0.40mm). The drawing machine uses water-based lubricants to reduce friction and heat, ensuring the copper retains its ductility. After drawing, strands undergo annealing in a nitrogen atmosphere furnace at 400-500°C for 1 hour, which softens the copper (reducing tensile strength by 25-30%) and enhances flexibility—critical for the Class 5 stranding configuration.
Stranding: Annealed strands are twisted together in a planetary stranding machine, which rotates the strands around a central axis to form the conductor. The machine is programmed to achieve the precise number of strands and twist pitch for each cross-sectional area (e.g., 50 strands with 12mm pitch for 2.5mm²). Strands are layered (1+6+12+...), with each layer twisted in the opposite direction to the previous one to prevent unraveling. Tension is carefully controlled to ensure uniform strand distribution, with online monitoring systems checking for gaps or overlaps.
PVC Compounding: The insulation compound is prepared in a batch process. Raw materials (PVC resin, plasticizers, stabilizers, flame retardants, colorants) are weighed and mixed in a high-speed mixer, which heats the mixture to 120°C to melt plasticizers and disperse additives. The molten mixture is cooled to 40°C, then pelletized using a strand cutter. Each batch is tested for melt flow rate (1.5-3.0 g/10min at 190°C/2.16kg) to ensure consistent extrusion properties.
Insulation Extrusion: The stranded conductor is fed into an extrusion line where the PVC compound is applied as insulation. The extrusion machine’s barrel is heated to 160-180°C, melting the PVC pellets, which are then forced through a crosshead die to form a uniform layer around the conductor. The die is sized to achieve the specified insulation thickness (0.6mm to 1.2mm), with vacuum sizing ensuring dimensional accuracy (tolerance ±0.1mm). After extrusion, the cable is cooled in a water bath at 20°C to solidify the PVC, then dried with compressed air.
Curing and Testing: The
Insulated Cable undergoes a post-curing process in an oven at 80°C for 2 hours to stabilize the PVC molecules, enhancing heat resistance. Samples from each production batch undergo rigorous testing:
Spooling and Cutting: Qualified cables are wound onto plastic or wooden spools (50m, 100m, 500m, or 1000m lengths) using a spooling machine with tension control to prevent kinking. For retail sales, cables are cut to standard lengths (1m, 5m, 10m) and coiled, with each coil labeled by size, color, and length.
II. From the Perspective of General Product Information
(1) Packaging
Class 5 flexible single-core copper cables are packaged to protect their flexible construction during storage, transportation, and handling, while ensuring ease of use for electricians and installers.
Bulk Spools for Contractors: For professional electricians and construction companies, cables are supplied on large spools:
A label on the spool includes: cable size, color, length, batch number, compliance marks (IEC, BS), and manufacturing date.
Retail Packaging for DIY and Small Projects: For home improvement stores and online retailers, cables are available in smaller lengths:
Custom Packaging for OEMs: Original equipment manufacturers (e.g., furniture makers, appliance producers) receive cables in custom packaging:
Storage Instructions: All packaging includes guidelines for optimal storage:
(2) Transportation
Transportation of Class 5 flexible single-core copper cables is managed to ensure the product reaches customers in pristine condition, with precautions to prevent physical damage and environmental exposure.
Land Transportation: For domestic shipments, bulk spools are transported in enclosed box trucks, secured with ratchet straps to prevent movement during transit. Palletized spools are loaded with forklifts, with wooden dunnage between pallets to avoid rubbing. The truck’s interior is temperature-controlled during extreme weather (below 0°C or above 35°C) to prevent insulation damage. For small retail packages, shipments are handled by courier services in climate-controlled vans, with packages cushioned to avoid crushing.
Sea Transportation: International shipments use 20ft or 40ft containers, with palletized spools secured to the container floor using twist locks. Desiccant packs (100g per cubic meter) are placed inside to control humidity, preventing condensation that could lead to mold growth on the insulation. Spools are wrapped in waterproof kraft paper as an extra barrier against moisture, and containers are ventilated to maintain air circulation. For tropical destinations, containers are fitted with thermal liners to prevent temperatures from exceeding 40°C.
Air Transportation: Urgent orders (e.g., replacement cables for construction projects) are shipped via air freight. Small spools and retail packages are packed into cardboard boxes with foam inserts to prevent shifting, with a maximum weight of 30kg per package to meet airline restrictions. Air cargo is temperature-controlled, ensuring cables are not exposed to extreme cold or heat in cargo holds.
Handling Guidelines: Shipping documents include detailed handling instructions:
(3) Delivery
The delivery process for Class 5 flexible single-core copper cables is designed to ensure timely and accurate fulfillment, with systems in place to handle orders of all sizes, from small retail purchases to large industrial contracts.
Order Processing: For large-volume orders (e.g., from construction companies or OEMs), the sales team confirms details (quantity, sizes, colors, delivery date) within 24 hours of receipt. The order is entered into an inventory management system to check stock availability; if in stock, a picking list is generated for the warehouse. For out-of-stock items, the production team is notified to schedule manufacturing, with customers updated on the expected lead time (typically 5-7 business days for standard sizes, 10-14 days for custom variants).
Warehouse Operations: Warehouse staff use barcode scanners to pick the correct spools or packages, ensuring accuracy. For bulk orders, spools are loaded onto pallets and shrink-wrapped for stability. Each order includes a packing list detailing the contents, which is cross-checked against the picking list before dispatch. For cut-to-length orders, cables are measured and cut using precision cutting machines (tolerance ±5mm) to ensure accurate lengths, then labeled with size and length information.
Dispatch and Tracking: Orders are dispatched via the customer’s preferred carrier (e.g., DHL, FedEx, local postal services) within 24 hours of order confirmation for in-stock items. A tracking number is provided to the customer via email or SMS, allowing them to monitor the shipment’s progress through the carrier’s online portal. For international orders, customs documentation (commercial invoice, certificate of conformity) is included to facilitate smooth clearance.
Delivery Times:
(4) Samples
Providing samples of Class 5 flexible single-core copper cables is an important service to help customers evaluate the product’s quality, flexibility, and suitability for their applications before placing bulk orders.
Sample Requests: Customers can request samples via the company’s website, email, or by contacting the sales team. The sample request form requires basic information: customer name, company, contact details, intended application, and the specific cable size and color required. This helps ensure the sample provided is relevant to the customer’s needs.
Sample Specifications: Standard samples are 1m lengths, wound on small cardboard spools (100mm diameter) for easy handling. Each sample includes a label with size, color, and batch number, along with a product data sheet containing detailed specifications and compliance information. For customers testing multiple sizes, sample kits are available containing 0.5m lengths of 0.5mm², 1mm², 2.5mm², and 4mm² cables in standard colors.
Cost and Shipping: Samples are provided free of charge for business customers with potential bulk orders. Customers are responsible for shipping costs, which are waived for orders exceeding $1,000 placed within 30 days of receiving the sample. Samples are shipped via express courier to ensure timely delivery, with tracking information provided to the customer.
Testing Support: The sample package includes a guide to testing the cable’s key properties, such as flexibility (bend test), insulation thickness (using a micrometer), and conductivity (using a multimeter). For customers requiring third-party testing, the company can arrange for tests (e.g., flame resistance, temperature cycling) through accredited laboratories, with results provided within 5-7 business days.
Follow-Up: The sales team follows up with the customer 3-5 days after sample delivery to gather feedback. This feedback is used to address any concerns (e.g., flexibility, color match) and provide additional information or alternative products if needed. Positive feedback often leads to bulk orders, while constructive criticism helps improve the product or service.
(5) After-sales Service
The after-sales service for Class 5 flexible single-core copper cables is designed to ensure customer satisfaction, resolve any issues promptly, and build long-term relationships.
Warranty Coverage: The cable comes with a 10-year warranty from the date of purchase, covering defects in materials and workmanship (e.g., insulation cracking, conductor breakage under normal use). The warranty does not cover damage from improper installation, misuse, or exposure to extreme conditions beyond the cable’s rated parameters. To claim the warranty, customers provide proof of purchase and photos/videos of the defect, which is reviewed by the technical team within 48 hours. Approved claims result in replacement cables or a refund.
Technical Support: A team of electrical engineers is available to provide technical support via phone, email, or video call. Support includes:
Installation Training: For large customers (e.g., construction companies, electrical contractors), on-site or online training sessions are available. These sessions cover proper handling, storage, and installation techniques to ensure the cable performs optimally. Training includes demonstrations of bending, cutting, and terminating the cable, as well as safety precautions (e.g., avoiding sharp edges).
Feedback and Complaints: The company actively seeks customer feedback through post-purchase surveys and follow-up calls. Feedback is used to identify areas for improvement, such as enhancing insulation flexibility or expanding color options. Complaints are handled by a dedicated customer service team, which acknowledges complaints within 24 hours and resolves them within 48-72 hours. The team investigates the issue, proposes a solution (e.g., replacement, refund, discount), and follows up to ensure customer satisfaction.
Recall Procedures: In the unlikely event of a product recall (e.g., due to a batch failing to meet flame resistance standards), customers are notified via email, phone, and registered mail. The notification includes details of the issue, the affected batch numbers, and instructions for returning the product. The company arranges for free pickup of affected cables and expedited delivery of replacements, with a dedicated team available to answer questions and provide support during the recall process.
Overall, the after-sales service ensures customers receive ongoing support throughout the product’s lifecycle, helping them maximize the performance and lifespan of Class 5 flexible single-core copper cables. Whether addressing technical questions, resolving defects, or providing training, the focus is on ensuring customer satisfaction and building trust.
