I. Product-Specific Details
1. Specification Parameters
The BV Electrical Wire 2.5mm² is engineered with precise technical specifications to ensure optimal performance in household wiring, combining safety, efficiency, and durability. These parameters are meticulously calibrated to meet the demands of residential electrical systems, where reliable power distribution is critical.
Conductor Specifications

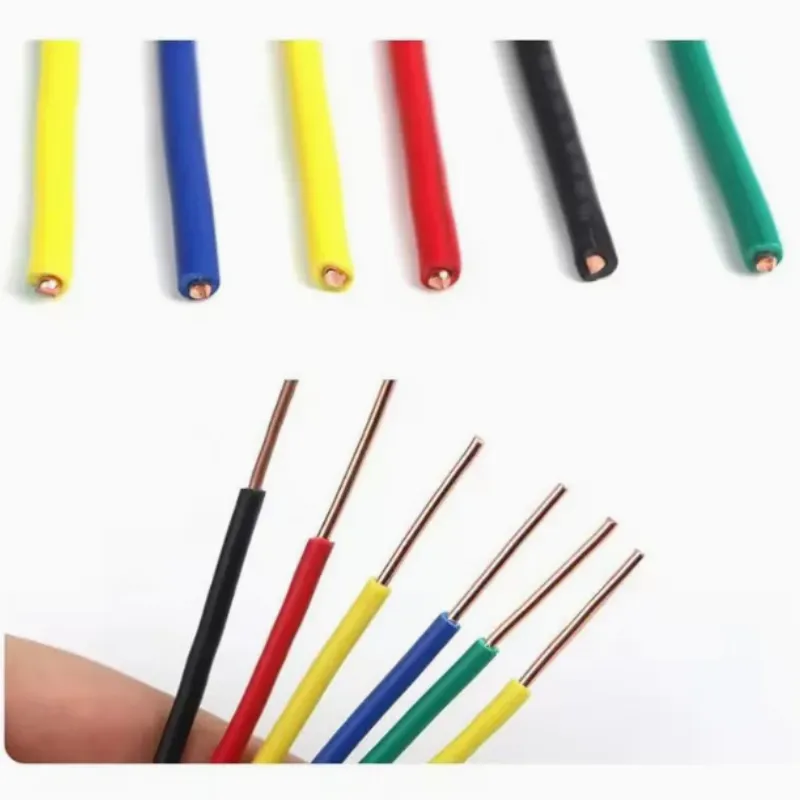

The core of the cable is a solid
Copper Conductor with a cross-sectional area of 2.5mm², corresponding to a diameter of 1.78mm. The copper used is 99.9% pure, ensuring high electrical conductivity of 580 S/m, which minimizes energy loss during transmission. This purity level also enhances corrosion resistance, a key factor for longevity in humid household environments. The conductor’s tensile strength is 220 N/mm², providing resistance to stretching during installation, while its elongation at break is 15%, allowing for minor bending without structural damage. The current-carrying capacity of the conductor is rated at 25A under normal operating conditions, sufficient to power multiple household devices simultaneously.
Insulation Properties
The copper conductor is encased in a PVC (polyvinyl chloride) insulation layer with a thickness of 0.8mm, resulting in an overall cable diameter of 4.0mm. This insulation is formulated to withstand the cable’s voltage rating of 450/750V, meaning it can safely handle phase-to-ground voltages up to 450V and phase-to-phase voltages up to 750V—well within the range of typical household electrical systems. The
PVC Insulation boasts a dielectric strength of 15 kV/mm, effectively preventing electrical leakage and short circuits. It also has a volume resistivity of ≥1×10¹⁴ Ω·cm, ensuring excellent insulating performance even in moist conditions.
Temperature and Environmental Ratings
The cable operates efficiently within a temperature range of -15°C to +70°C, with short-term overload tolerance up to +90°C for durations not exceeding 5 seconds. This range ensures reliable performance in various household environments, from unheated attics to warm utility rooms. The PVC insulation is resistant to moisture, with a water absorption rate of less than 0.5% by weight after 24 hours of immersion, making it suitable for use in bathrooms, kitchens, and basements. It also exhibits
Chemical Resistance to common household substances such as detergents, oils, and weak acids, ensuring stability in contact with cleaning agents or food spills.
Mechanical and Safety Standards
The cable features a minimum bending radius of 4 times its outer diameter (16mm) for fixed installations, allowing for easy routing around corners and through tight spaces. Its tensile strength for the insulation layer is 15 N/mm², with an elongation at break of 150%, providing
Flexibility to withstand minor impacts without cracking. The cable is flame-retardant, meeting IEC 60332-1-2 standards, which require it to self-extinguish within 60 seconds of ignition. It also complies with other international standards, including IEC 60228 (conductors for
Insulated Cables) and GB 5023.3 (Chinese standard for
PVC Insulated Cables), ensuring consistent quality and safety.
2. Unique Applications
The BV 2.5mm² cable’s design and specifications make it a versatile solution for various household wiring needs, proving indispensable in residential electrical systems. Its balance of current-carrying capacity, durability, and ease of installation positions it as a go-to choice for electricians and homeowners.
General-Purpose Power Outlets
One of the primary applications of the BV 2.5mm² cable is powering general-purpose outlets in living rooms, bedrooms, home offices, and hallways. These outlets supply electricity to a wide range of devices, including televisions, laptops, lamps, and small appliances like toasters and coffee makers. With a current rating of 25A, the cable can easily support multiple devices operating simultaneously on the same circuit, making it ideal for rooms where several electronic items are in use. For example, a living room with a TV, sound system, and gaming console can all draw power from outlets wired with this cable without overloading the circuit.
Kitchen Wiring
In kitchens, where power demands are higher due to the presence of multiple appliances, the BV 2.5mm² cable is commonly used for outlets serving microwaves, blenders, food processors, and electric kettles. Its ability to handle up to 25A ensures that even when several countertop appliances are in use—such as a microwave and a coffee maker—the cable remains safe and efficient. The insulation’s resistance to oils and food-related spills adds to its suitability in kitchen environments, where exposure to such substances is common. Additionally, the cable’s flame-retardant properties provide an extra layer of safety in areas where cooking activities may pose a fire risk.
Lighting Circuits
Beyond powering outlets, the BV 2.5mm² cable is frequently employed in lighting circuits, especially those with multiple fixtures or dimming systems. It can efficiently handle the current required for LED, incandescent, or fluorescent lights, ensuring stable power delivery without voltage drops that could affect light quality. For instance, a large bedroom with a ceiling fixture, wall sconces, and a vanity light can all be connected using this cable, providing consistent illumination. The cable’s rigidity simplifies routing through ceiling cavities and wall studs, making it easy to install in lighting layouts of varying complexity.
Utility Rooms and Basements
Utility rooms, which house washing machines, dryers, and water heaters (for smaller models), and basements, often used as additional living spaces or storage areas, benefit from the BV 2.5mm² cable’s durability. In utility rooms, the cable’s moisture resistance protects against the humid conditions generated by washing machines, while its chemical resistance stands up to detergent spills. In basements, which may be prone to dampness, the cable’s insulation ensures reliable performance over time, even in less ventilated spaces. It can power dehumidifiers, sump pumps, and basement lighting, contributing to the functionality of these often-overlooked areas of the home.
3. Material and Design Features
The BV 2.5mm² cable’s performance is a result of its high-quality materials and thoughtful design, which work together to deliver safety, efficiency, and longevity in household wiring applications.
Solid Copper Conductor
Copper is chosen as the
Conductor Material for its exceptional electrical conductivity, which minimizes energy loss during transmission—critical for maintaining efficiency in residential electrical systems. The solid core design, as opposed to
Stranded Conductors, provides superior structural rigidity, making the cable easier to handle during installation. This rigidity allows for straightforward routing through wall cavities, conduits, and tight spaces between floor joists without the risk of kinking or fraying. The solid core also ensures a stable connection when terminated to outlets, switches, or junction boxes, reducing the likelihood of loose joints that could cause arcing or overheating. Additionally, copper’s natural resistance to corrosion, when protected by the PVC insulation, ensures long-term conductivity, even in humid environments like bathrooms and kitchens.
PVC Insulation
The insulation layer is composed of a rigid PVC compound formulated with plasticizers to enhance flexibility and heat stabilizers to resist thermal degradation. This formulation ensures the insulation remains intact across the cable’s temperature range, avoiding brittleness in cold conditions or softening in heat. PVC is inherently resistant to water and moisture, preventing current leakage and short circuits in damp areas. The insulation is also flame-retardant, a key safety feature that inhibits the spread of fire in case of an electrical fault. Its smooth surface allows for easy stripping with standard tools, simplifying termination during installation. The insulation is typically color-coded—commonly red, blue, or black— to indicate phase, neutral, or earth conductors, facilitating correct wiring and reducing the risk of installation errors.
Overall Design
The cable’s monolithic structure—consisting of a single copper core encased in a continuous PVC layer—ensures uniformity and reliability. There are no gaps between the conductor and insulation, eliminating potential entry points for moisture or contaminants. The insulation is bonded to the conductor during manufacturing, preventing slippage that could expose the copper core. This bonding also enhances the cable’s resistance to mechanical stress, such as pulling or bending, ensuring the insulation remains intact even during rigorous installation. The compact diameter of 4.0mm maximizes space efficiency, allowing the cable to fit easily into narrow conduits or behind walls without occupying excessive space, which is particularly important in retrofit projects where space is limited.
4. Manufacturing Process
The production of the BV 2.5mm² cable adheres to strict quality control protocols to ensure consistency and compliance with industry standards. The process involves several key stages, from raw material preparation to final testing.
Conductor Formation
High-purity copper cathodes (99.9% pure) are melted in a furnace and cast into cylindrical billets. These billets are then hot-rolled into rods with a diameter of 8mm, which are subsequently drawn through a series of diamond dies to reduce their diameter to 1.78mm—the required size for the 2.5mm² conductor. This cold drawing process work-hardens the copper, increasing its tensile strength while maintaining conductivity. After drawing, the solid core is annealed in a controlled atmosphere furnace at 300–400°C to remove internal stresses, ensuring flexibility during installation without compromising structural integrity.
Insulation Extrusion
The annealed copper conductor is fed into an extrusion line, where molten PVC is applied uniformly around it. The PVC compound is pre-mixed with plasticizers, stabilizers, and flame retardants, then heated to 180–200°C to achieve a molten state. The extrusion die is precisely calibrated to ensure the insulation thickness is 0.8mm, with online laser gauges monitoring the diameter to within ±0.02mm. After extrusion, the cable passes through a water bath to cool and solidify the PVC, followed by a drying chamber to remove surface moisture.
Quality Testing
Each batch of cable undergoes rigorous testing to verify compliance with standards:
Cables that pass all tests are spooled onto reels for distribution.
II. General Product Information
1. Packaging
The BV 2.5mm² cable is packaged to protect against damage during storage, transportation, and handling, while ensuring ease of use for electricians and homeowners.
Reel Packaging
The cable is typically wound onto lightweight plastic or cardboard reels, available in lengths of 50m, 100m, 250m, and 500m. The 50m and 100m reels are designed for small-scale projects or home DIY installations, weighing 1.2kg and 2.4kg respectively, making them easy to carry by hand. Larger reels (250m and 500m) are intended for professional electricians and construction projects, weighing 6.0kg and 12.0kg. Each reel features flanges (100mm–200mm in diameter) to prevent the cable from slipping off during transport and storage. The central core of the reel is designed to fit
Standard Cable dispensers, allowing for easy unwinding during installation.
Protective Wrapping
Each reel is wrapped in a transparent polyethylene film to shield the cable from dust, moisture, and physical damage. For outdoor storage, an additional layer of waterproof kraft paper is applied, with a moisture indicator strip to alert users to potential water exposure. The reel’s flange is labeled with a barcode, product code, conductor size (2.5mm²), length, voltage rating (450/750V), manufacturing date, and compliance certifications (e.g., CE, CCC). This labeling ensures quick identification of the cable’s specifications, reducing the risk of incorrect installation.
Bulk Packaging
For large construction projects or wholesale orders, the cable is available in bulk packaging: 1000m coils wound onto steel-reinforced wooden drums. These drums have a diameter of 600mm and are fitted with steel lifting eyes for easy handling by forklifts or cranes. Bulk packaging reduces packaging waste and lowers transportation costs, as a single drum can supply enough cable for an entire residential building or multiple homes in a housing development. Each drum includes a detailed packing list and a test certificate verifying the cable’s compliance with standards.
2. Transportation
The transportation of the BV 2.5mm² cable is managed to ensure it reaches customers in optimal condition, with specific protocols for different modes of transport.
Road Transport
For domestic shipments, cables are transported by trucks equipped with climate-controlled trailers to maintain temperatures between -15°C and +50°C, preventing PVC degradation. Reels are secured to the trailer floor using ratchet straps, with wooden pallets placed between them to prevent friction and damage. Small reels (50m–100m) are packed into cardboard cartons with foam inserts to cushion against impacts, while larger reels and drums are strapped directly to the trailer. Drivers receive training on handling cables, including avoiding sudden stops or turns that could cause reels to shift.
Sea and Air Transport
International shipments rely on sea freight for cost efficiency, with cables packed into 20ft or 40ft shipping containers. Reels are stacked vertically to maximize space, with dunnage (wooden blocks) placed between layers to prevent movement. Desiccants (500g per cubic meter) are placed inside containers to absorb moisture, and temperature loggers record conditions during transit to ensure they remain within the cable’s tolerance range. For urgent orders, air freight is used, with small reels packed into lightweight crates that meet airline weight restrictions (typically ≤30kg per crate).
Handling Guidelines
Upon delivery, recipients are advised to inspect reels for signs of damage, such as cracked flanges, torn wrapping, or kinked cable. Cables should be stored in a dry, ventilated area away from direct sunlight and heat sources (e.g., radiators, heaters). When handling, reels should be rolled horizontally rather than dragged, to avoid damaging the cable’s insulation. Electricians are instructed to use cable pullers with smooth jaws to prevent tearing the PVC during installation, and to avoid bending the cable beyond its minimum radius of 16mm.
3. Shipping and Delivery
The company offers flexible shipping options to meet customer needs, with streamlined processes for order processing and tracking.
Order Processing
Orders are processed within 24 hours of receipt for in-stock items, with confirmation emails sent to customers containing order details and estimated delivery dates. Custom orders (e.g., specific lengths, colored insulation) require 3–5 business days for production, with progress updates provided via email or phone. The sales team works with customers to determine the optimal cable lengths, ensuring they have enough material for their projects without excessive waste.
Delivery Timeframes
International Shipments: 5–7 business days by air freight; 21–30 days by sea freight, depending on the destination port (e.g., 21 days to Europe, 30 days to Australia).
For construction projects with tight deadlines, expedited shipping is available at a 50% premium, with guaranteed delivery within 48 hours for domestic orders and 3–5 days for international air freight.
Shipping Costs
Shipping costs are calculated based on weight, volume, and destination, with transparent pricing provided at checkout. Domestic shipping for small reels starts at \(15, while bulk drum shipments cost \)100–\(300 depending on distance. International sea freight averages \)500–\(1500 per container, with air freight rates starting at \)50 per kg. Customers placing orders over $10,000 qualify for free shipping, with volume discounts available for construction companies and distributors.
4. Sample Provision
To assist customers in evaluating the BV 2.5mm² cable’s suitability for their projects, the company provides free samples with nominal shipping fees.
Sample Request Process
Samples can be requested via the company website, email, or phone, with customers specifying the required length (up to 5m). A dedicated sample coordinator processes requests within 24 hours, confirming availability and shipping details. For custom samples (e.g., colored insulation), a $50 fee is charged, which is refundable upon placing a bulk order of 1000m or more.
Sample Contents
Each sample package includes:
A technical datasheet detailing the cable’s specifications, including conductor size, current rating, insulation thickness, and compliance certifications.
A certificate of analysis from the quality control lab, verifying the results of conductivity, insulation resistance, and flame retardancy tests for the batch from which the sample was taken.
Samples are shipped via express courier (DHL, UPS) with tracking information provided, ensuring delivery within 3–5 business days for domestic orders and 5–7 days for international requests.
5. After-Sales Service
The company is committed to ensuring customer satisfaction through comprehensive after-sales support, including technical assistance, warranty coverage, and issue resolution.
Technical Support
A team of certified electrical engineers is available to provide technical guidance via phone, email, or video call. They assist with installation questions, such as proper termination techniques, bending radius requirements, and compatibility with different outlets or switches. For large projects, on-site support can be arranged, where engineers visit the worksite to provide hands-on training to electricians or troubleshoot installation challenges. The company also maintains an online resource center with video tutorials, FAQs, and wiring diagrams specific to household applications.
Warranty Coverage
The BV 2.5mm² cable is backed by a 15-year warranty against manufacturing defects, including:
Insulation flaws (e.g., uneven thickness, inadequate flame retardancy, poor bonding to the conductor).
The warranty does not cover damage from improper installation (e.g., exceeding the bending radius, using incompatible tools for stripping), misuse (e.g., exposing the cable to temperatures beyond its rating), or external factors (e.g., rodent bites, chemical exposure to substances not specified in the material resistance guidelines).
Claims Process
To file a warranty claim, customers must provide proof of purchase, photos or videos of the defect, and a description of the issue. Claims are reviewed within 48 hours by a technical team, which determines if the defect is covered under warranty. If approved, the company offers a replacement of the defective cable or a refund proportional to the damaged quantity. For urgent cases, such as a construction delay due to a defective cable, replacement shipments are prioritized and shipped within 24 hours at no additional cost.
Feedback and Continuous Improvement
The company actively seeks customer feedback to enhance product quality and service. After delivery, customers receive a satisfaction survey covering aspects such as product performance, packaging, shipping efficiency, and support quality. Feedback is analyzed monthly, with insights used to refine manufacturing processes (e.g., improving insulation bonding) or update support resources (e.g., adding more detailed installation videos). This commitment to continuous improvement ensures the BV 2.5mm² cable remains a leading choice for household wiring.
Conclusion
The BV Electrical Wire 2.5mm²
Solid Copper Core - PVC Insulated Hard Cable is a versatile, reliable, and safe solution for household wiring, designed to meet the diverse power distribution needs of modern homes. Its precise specifications—including a high-conductivity copper core, durable PVC insulation, and compliance with international standards—ensure efficient performance in general-purpose outlets, kitchen appliances, lighting circuits, and utility areas. Supported by robust packaging, flexible shipping options, and comprehensive after-sales service, the cable provides a seamless experience from purchase to installation and beyond.
Whether used in new home construction or wiring upgrades, this cable delivers consistent performance, ease of installation, and long-term durability, making it a trusted choice for electricians, contractors, and homeowners alike. Its ability to balance safety, efficiency, and practicality solidifies its position as a cornerstone of residential electrical systems, ensuring reliable power delivery for years to come.
