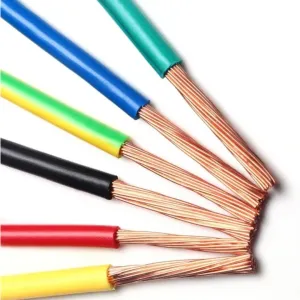

The bulk copper wires in the 250-750 MCM range are meticulously designed in terms of specification parameters to meet the medium and high-power transmission needs in various scenarios, providing stable and reliable power support for high-load circuits in industrial, commercial, and large-scale buildings.

The conductor cross-sectional area of the 250 MCM wire is approximately 50.5mm². This size enables it to adapt to a certain installation space while ensuring transmission efficiency. At room temperature, its DC resistance does not exceed 0.078Ω/km. The low resistance value means less energy loss during current transmission, which can effectively improve the efficiency of power transmission. The current-carrying capacity of this specification wire can reach 310A, making it suitable for power input of medium-sized industrial equipment, such as some medium-sized machine tools and compressors. It can also meet the control circuit requirements of district heating pipelines, ensuring the stable operation of the heating system.

As the specification increases, the performance of the wire improves accordingly. The 300 MCM wire has a conductor cross-sectional area of about 60.7mm², a DC resistance of no more than 0.065Ω/km, and a current-carrying capacity of approximately 350A, which can be used for slightly larger industrial equipment and the main control circuits of heating systems. The 400 MCM wire has a cross-sectional area of about 81mm², a DC resistance of approximately 0.049Ω/km, and a current-carrying capacity of 420A, suitable for power supply of some production lines in large factories and the main transmission lines of district heating. The 500 MCM wire has a cross-sectional area of about 101.2mm², a DC resistance as low as 0.039Ω/km, and a current-carrying capacity of 480A, which can meet the overall power supply needs of large industrial workshops and the power transmission requirements of large heating stations. The 600 MCM wire has a cross-sectional area of about 121.4mm², a DC resistance of approximately 0.033Ω/km, and a current-carrying capacity of 530A, which can be used for the main power supply lines in large industrial parks and the power connection of high-pressure heating equipment. The 750 MCM wire has a cross-sectional area of about 152mm², a DC resistance as low as 0.026Ω/km, and a current-carrying capacity of up to 600A, which can fully meet the main circuit transmission needs of large Power Stations and high-pressure heating boilers, providing stable power support for these high-power equipment.

All wires in this series have a rated voltage of 600V. This voltage level is much higher than the common working voltage of industrial-grade equipment, and can stably cope with voltage fluctuations during equipment operation, providing sufficient safety margin for continuous high-load operation, avoiding damage to equipment due to voltage instability, and ensuring the safe and reliable operation of the entire circuit system.

In addition, the insulation thickness of the wire varies according to the specification. The insulation thickness of the 250 MCM wire is about 1.2mm, 300 MCM is about 1.3mm, 400 MCM is about 1.4mm, 500 MCM is about 1.5mm, 600 MCM is about 1.6mm, and 750 MCM is about 1.7mm. Appropriate insulation thickness can effectively block current, prevent electric leakage accidents, and also protect the internal conductor of the wire from the external environment. The outer diameter of the wire also increases with the specification, with 250 MCM being about 10mm and 750 MCM being about 16mm, which provides a reference for the installation and laying of the wire, ensuring smooth installation in different environments.

In terms of temperature performance, the long-term allowable operating temperature of THHN type wires is 90℃, and the maximum temperature during a short circuit (with a maximum duration of no more than 5 seconds) does not exceed 250℃; the long-term operating temperature of XHHW type wires is also 90℃, and the maximum temperature during a short circuit can reach 250℃. This temperature performance ensures that the wire can maintain stable performance under normal working conditions and special situations such as short circuits, and will not affect its service life and safety due to excessive temperature.

The bulk copper wires in the 250-750 MCM range, relying on their different type characteristics and specification parameters, have a wide range of distinctive uses in industrial, commercial, large-scale building and other fields.

In industrial heating systems, this series of wires plays a core role. For the steam pipeline heating control loop in large chemical plants, 250-500 MCM THHN Wires are ideal choices. The environment in chemical plants is often complex, with factors such as oil pollution and moisture. The polyvinyl chloride (PVC) insulation layer used in THHN wires has good oil resistance and chemical corrosion resistance, enabling it to work stably in such environments, reliably connecting temperature control equipment and heating elements, ensuring precise and effective temperature control of steam pipelines, and guaranteeing the smooth progress of chemical production.

In the waste heat recovery system of coal-fired power plants, XHHW wires show their unique advantages. The waste heat recovery system is usually close to high-temperature equipment such as boilers, and the environmental temperature is high. The cross-linked polyethylene (XLPE) insulation layer used in XHHW wires has a high temperature resistance level and excellent anti-aging performance, which can work stably for a long time in such high-temperature environments, providing continuous and reliable power supply for heat conversion devices and improving energy utilization.

In the field of power transmission, different specifications of wires are suitable for different scenarios. 750 MCM XHHW wires are often used in the main distribution trunks of commercial complexes. They connect substations and low-voltage distribution cabinets and undertake the power distribution task of the entire building. Commercial complexes often gather a large number of shops, office buildings and entertainment venues, with large and complex electrical loads. The high current-carrying capacity and excellent performance of 750 MCM XHHW wires can ensure the stable distribution of electricity and meet the needs of various electrical equipment.

250 MCM THHN wires play an important role in the power supply of large shopping malls. Central air conditioning units, elevator group control systems and other high-power equipment in large shopping malls have large power demand and require stability. 250 MCM THHN wires can meet the power supply circuit needs of these equipment, ensuring stable current during equipment startup and operation, and avoiding equipment failures caused by power problems that affect the normal operation of the shopping mall.

In large industrial parks, 400-600 MCM wires are often used for the main power supply lines in the park. There are many factories and production workshops in the industrial park, with huge electrical loads. These wires can efficiently transmit electricity from the substation to various factories, ensuring the continuous progress of industrial production in the park.

In the power connection of high-pressure heating boilers, 750 MCM wires are the first choice. High-pressure heating boilers have extremely high power and high requirements for power transmission. The high current-carrying capacity and low resistance of 750 MCM wires can ensure stable power transmission, providing strong guarantee for the normal operation of the boiler.

In addition, the feature that this series of wires supports cutting by the foot makes it more advantageous in some special scenarios. For example, in the equipment transformation of factory production lines, it is often necessary to cut wires according to the actual equipment layout and line length. Cutting by the foot can accurately meet the needs and avoid material waste; in the circuit laying of building floors, the wiring distance in different areas is different, and the flexible cutting method can make the wires better adapt to different wiring needs and improve construction efficiency.

The bulk copper wires in the 250-750 MCM range, in terms of material selection and style design, fully consider their usage needs in high-load circuits, ensuring stable performance and convenient use of the wires.

In terms of materials, both types of wires use high-purity electrolytic copper as conductors. High-purity electrolytic copper has excellent electrical conductivity, which can effectively reduce energy loss during current transmission and improve power transmission efficiency. At the same time, electrolytic copper has good ductility and toughness, making the wire not easy to break during processing and installation, and able to adapt to a certain degree of bending and stretching.

The insulation layer of THHN wires is made of polyvinyl chloride (PVC) material. PVC material has good oil resistance, chemical corrosion resistance and insulation performance, which can effectively protect the conductor, prevent current leakage and erosion of the conductor by the external environment. This insulation layer makes THHN wires suitable for dry or humid industrial environments and can maintain stable performance in relatively complex environments.

The insulation layer of XHHW wires uses cross-linked polyethylene (XLPE) material. After cross-linking treatment, the heat resistance, anti-aging performance and mechanical strength of XLPE material are significantly improved. Compared with PVC materials, XLPE materials have a higher temperature resistance level, can work for a long time in higher temperature environments, and have excellent anti-aging performance and longer service life, making them particularly suitable for wiring in high-temperature heating systems.

In terms of style, this series of wires all have a single-core structure and are packaged in coils. The single-core structure makes the wire more efficient in transmitting electricity and reduces signal interference between Multi-Core wires. Coil packaging is convenient for storage, transportation and use of the wire, and can be cut according to needs to meet different length requirements.

The colors of the wires are also clearly distinguished for easy identification during installation and use. Usually, the insulation layer of THHN wires has various colors, such as black, red, blue, etc. Different colors can be used to distinguish different circuits and uses; the insulation layer of XHHW wires also has rich colors, commonly black, gray, etc., which are also easy to identify.

The surface of the wire is smooth and flat, without burrs and protrusions, which not only helps reduce friction resistance during installation, avoids damage to the insulation layer, but also ensures smoother wire laying through pipes. In addition, the surface of the wire is printed with clear specification marks, model information, rated voltage, certification marks and meter markers, etc. These marks are printed with wear-resistant printing technology, which can remain clear during long-term use, facilitating construction personnel to quickly identify and cut, and improving construction efficiency.

The production process of bulk copper wires in the 250-750 MCM range is complex and rigorous, and each link is subject to strict quality control to ensure that the performance of the wire meets the design requirements.

The first step is the smelting and purification of copper materials. High-quality copper ore is selected as the raw material, and copper concentrate is obtained through crushing, flotation and other processes. Then, the copper concentrate is smelted to remove impurities to obtain blister copper. Blister copper is then electrolytically refined to obtain high-purity electrolytic copper with a purity of more than 99.95% to ensure the conductivity of the conductor.

Next is the preparation of copper rods. High-purity electrolytic copper is heated to a molten state and then made into copper rods through continuous casting process. The diameter of the copper rod depends on the specification of the wire. During the casting process, parameters such as temperature and casting speed need to be accurately controlled to ensure uniform quality and smooth surface of the copper rod.

Then comes the drawing of the copper rod. The copper rod is drawn through a wire drawing machine, and through a series of dies of different specifications, the copper rod is drawn into a copper wire of the required diameter. During the drawing process, the copper wire needs to be annealed continuously to eliminate the internal stress generated during the drawing process of the copper wire and improve the Flexibility and ductility of the copper wire. Annealing treatment is usually carried out in a special annealing furnace, and the performance of the copper wire is achieved by controlling temperature and time.

For large-specification wires, multiple copper wires need to be stranded together to form a conductor. During the stranding process, it is necessary to ensure that the copper wires are arranged neatly and with uniform tension to ensure the roundness of the conductor and the uniformity of conductivity. The Stranded Conductor needs to be surface-treated to remove oil and impurities on the surface for the subsequent extrusion of the insulation layer.

The extrusion of the insulation layer is a key link in the production process. For THHN wires, polyvinyl chloride (PVC) particles are added to the extruder, heated and melted, and then evenly extruded and wrapped on the surface of the conductor through an extrusion die to form an insulation layer. During the extrusion process, it is necessary to accurately control the extrusion temperature, extrusion speed and die size to ensure that the insulation layer has uniform thickness, smooth surface, and is closely combined with the conductor without defects such as bubbles and impurities.

For XHHW wires, the extrusion process of the insulation layer is similar to that of THHN, but cross-linked polyethylene (XLPE) material is used. After extrusion, the XLPE insulation layer needs to be cross-linked. Cross-linking treatment usually adopts warm water cross-linking or steam cross-linking, by controlling temperature, pressure and time, so that XLPE molecules form a three-dimensional network structure, thereby improving its heat resistance, anti-aging performance and mechanical strength.

After the extrusion of the insulation layer, the wire needs to be cooled to quickly solidify and shape the insulation layer. Cooling usually adopts water cooling, and the wire is cooled through a cold water tank to ensure the dimensional stability of the wire.

The cooled wire undergoes a series of performance tests, including insulation resistance test, voltage resistance test, outer diameter measurement, thickness measurement, etc., to ensure that the performance of the wire meets relevant standards and requirements. Unqualified products will be reworked or scrapped.

Finally, the qualified wires are neatly wound on the reel by a take-up machine to form a coiled product. During the take-up process, it is necessary to control the take-up speed and tension to ensure that the wire is arranged tightly and neatly on the reel, which is convenient for storage, transportation and use. At the same time, the specifications, model, length, production date and other information of the product are marked on the reel for easy identification and traceability.

The packaging design of bulk copper wires in the 250-750 MCM range is mainly aimed at protecting the wires, facilitating transportation and storage, and also considering the convenience during use.

Wires are usually packaged in wooden or steel cable reels. For large-specification and long-length wires, steel cable reels are more commonly used because they have higher strength and bearing capacity, and can withstand the weight of the wires and the impact during transportation. Wooden cable reels are suitable for relatively small-specification or short-length wires, which are lighter in weight and lower in cost.

The size of the cable reel is determined according to the specification and length of the wire to ensure that the wire can be neatly wound on the cable reel to avoid mutual extrusion and wear of the wire. During the wire winding process, a certain tension should be maintained to make the wire arranged tightly without looseness. After winding, a layer of plastic film is wrapped around the outside of the wire, which can play a role in moisture-proof and dust-proof, protecting the insulation layer of the wire from pollution and damage by the external environment.

A label is fixed on the side of the cable reel, which clearly marks the product name, specification, model, length, rated voltage, manufacturer, production date, certification mark and other information. This information is convenient for users to check when receiving and accepting products, ensuring that the received products meet the order requirements.

For exported products, the packaging also needs to comply with relevant international transportation standards and requirements. For example, wooden cable reels need to be fumigated to prevent carrying pests and meet the quarantine regulations of importing countries. The marks on the packaging need to be in both Chinese and English for the convenience of international customers.

In addition, the selection of packaging materials also considers environmental factors. We try to choose recyclable and degradable materials to reduce environmental pollution. At the same time, in the packaging process, excessive packaging is avoided to save resources.

The transportation process of bulk copper wires in the 250-750 MCM range needs to strictly abide by relevant regulations and operating procedures to ensure that the wires are not damaged during transportation and arrive at the destination safely.

In terms of transportation mode selection, road transport, railway transport or water transport can be chosen according to the transportation distance, quantity and customer requirements. Road transport has the characteristics of high flexibility and fast transportation speed, suitable for short-distance transportation and small-batch cargo transportation, and can directly deliver the wires to the construction site or designated place. Railway transport is suitable for long-distance transportation and large quantities of goods, with relatively low transportation costs, less affected by weather, and a relatively stable transportation process. Water transport is suitable for long-distance transportation of bulk goods, especially for exported products, water transport is an economical choice.

Before transportation, the packaged wires need to be fixed. For wires packaged with cable reels, steel wires or chains should be used to firmly fix the cable reels on the transport vehicle to ensure that they will not roll or topple during transportation. When fixing, attention should be paid to uniform force to avoid damage to the cable reels.

During transportation, the wires should be avoided from direct sunlight, rain and snow. Direct sunlight will cause the wire temperature to rise, which may affect its insulation performance; rain and snow will make the wire damp, affecting its service life. Therefore, during transportation, the wires should be covered with tarpaulins or other materials to protect them from harsh weather.

At the same time, transport vehicles must abide by traffic rules during driving, maintain stable driving, avoid sudden braking, sharp turns and other operations, and reduce the impact and vibration on the wires. For wires transported over long distances, regular checks on the fixing status and packaging integrity of the wires are necessary. Any issues found should be addressed promptly to ensure the safety of the wires.

When loading and unloading goods, professional equipment such as forklifts and cranes must be used. Manual dragging or rolling of cable reels is strictly prohibited to prevent damage to the wires or personal injury. During the loading and unloading process, the wires must be handled with care to avoid severe impacts and collisions.

The shipping process for bulk copper wires in the 250-750 MCM range is well-organized to ensure that products are delivered to customers accurately and on time.

Upon receiving an order, the sales team promptly forwards the order details to the warehouse and production departments. Warehouse managers check and count the inventory products according to the order requirements. If the products are in stock, they will arrange for shipment as soon as possible; if production is required, the production department will organize production based on the order quantity and specifications and formulate a detailed production plan to ensure completion within the specified time.

Before shipping, warehouse managers conduct strict inspections on the products to be shipped. They check whether the packaging is intact, whether the labels are clear and accurate, and whether the product model, specification, and quantity match the order. At the same time, they also inspect the appearance of the products to ensure there are no obvious damages or defects. Only products that pass the inspection are allowed to be shipped.

During shipping, warehouse managers coordinate with the transportation company, providing detailed information such as the delivery address, contact person, and phone number, and clarifying the transportation requirements and delivery time. The transportation company arranges appropriate vehicles and drivers based on the goods and signs a transportation contract to clarify the rights and obligations of both parties.

After the goods are shipped, the sales team promptly informs the customer of the shipping information, including the transportation company name, license plate number, and waybill number, to facilitate the customer's tracking of the shipment status. Meanwhile, the sales team tracks the transportation progress and maintains close contact with the transportation company to promptly handle any issues that may arise during transportation, such as delays or damage to the goods, ensuring that the customer receives qualified products on time.

For urgent orders, the company activates a green channel, prioritizing production and shipping to meet the customer's urgent needs. Throughout the shipping process, the company always focuses on customer satisfaction, emphasizing service quality to ensure the accuracy and timeliness of shipments.

To help customers better understand the performance and quality of bulk copper wires in the 250-750 MCM range, the company offers sample services, allowing customers to test and evaluate before making bulk purchases.

Customers can apply for samples through various channels such as phone calls, emails, and online consultations. When applying, customers need to provide basic information such as the company name, contact person, and required specifications (including THHN or XHHW type and specific MCM size). For new customers, samples of up to 10 feet per specification are provided free of charge, with the customer only responsible for the freight; for long-term cooperative customers, both the sample and freight are waived.

The sample preparation cycle is 2-3 working days. Each sample is labeled with detailed information (model, specification, production date) and accompanied by a sample test report, which includes data on conductor resistance, insulation thickness, voltage resistance, and flame retardancy (for THHN and XHHW, relevant test results such as UL standards). Samples are packaged in small wooden or plastic reels with a protective box to prevent damage during transportation.

After the customer receives the sample, the technical support team proactively follows up within 3 working days to answer questions about the sample's performance and application. If the customer needs further tests (such as halogen content detection for Insulation Materials), the company can provide third-party test reports upon request to assist in purchasing decisions.

The company provides a comprehensive after-sales service system for bulk copper wires in the 250-750 MCM range to address customer concerns.

Quality Guarantee: All wires come with a 10-year quality warranty. If there is a quality problem (such as insulation cracking, conductor oxidation, or abnormal resistance) under normal use conditions within the warranty period, the company will provide free replacement after verifying the problem through photos or samples provided by the customer. For non-quality issues caused by improper use (such as damage due to excessive bending or mechanical impact), the company offers paid repair or replacement services.

Technical Support: A dedicated after-sales technical team is available 24/7 to provide professional advice. Customers can consult on installation methods, bending radius requirements, temperature resistance limits, and compatibility with other electrical components via phone or online platforms. For large-scale projects (such as industrial park power transformation or heating system upgrades), the company can dispatch technicians to the site for guidance on wire laying, connection, and performance testing to ensure compliance with design requirements.

Complaint Handling: The company has a 24-hour complaint response mechanism. After receiving a customer complaint, a dedicated staff member is assigned to follow up, conduct an investigation, and propose a solution within 1 working day. For example, if the received goods have specification errors or packaging damage, the company will arrange for replacement within 48 hours and bear the round-trip freight.

Regular Follow-up: For key customers, the company conducts semi-annual follow-up visits to understand the wire's usage status, collect feedback on product improvement, and provide maintenance suggestions (such as regular cleaning of insulation layers and inspection of connection points) to extend the wire's service life.

In addition, the company has established a complete after-sales service file system, recording each customer's purchase information, after-sales records, and feedback to continuously improve service quality and product performance, ensuring long-term and stable cooperation with customers.
