1. Product-Specific Information
1.1 Specification Parameters

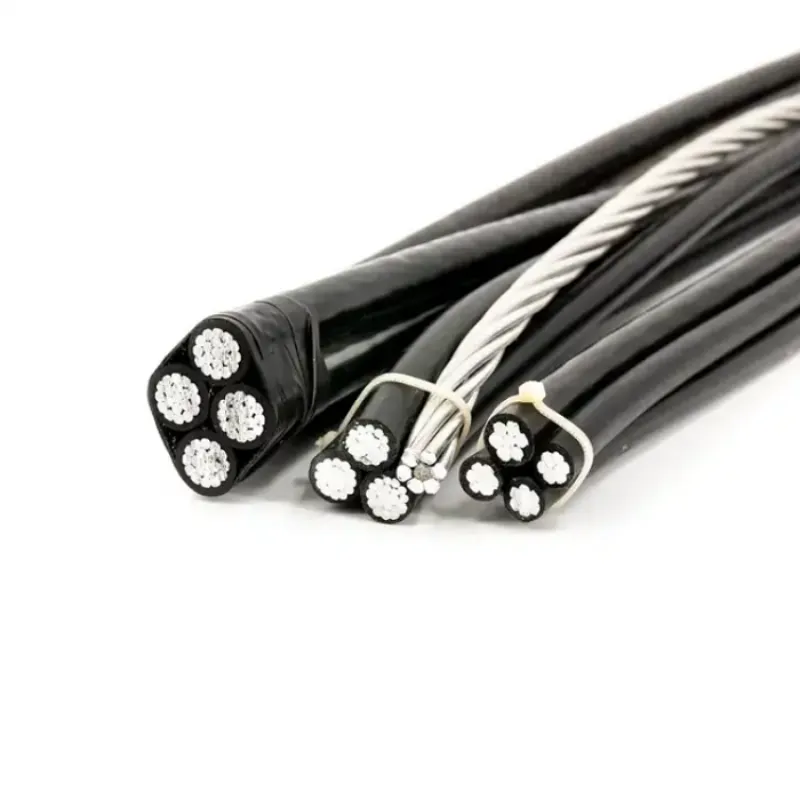

The Aluminum Alloy Conductor Low Voltage
Aerial Bundled Cable (ABC) - 4×16mm² is a meticulously engineered product tailored to meet the rigorous demands of low-voltage power distribution systems. Its specification parameters cover multiple critical aspects, including conductor characteristics, insulation performance, mechanical properties, and overall structural dimensions, all of which are optimized to ensure efficient, safe, and long-term operation.
In terms of the conductor, each of the
4 Cores features a cross-sectional area of precisely 16mm², a key parameter that directly determines the cable’s current-carrying capacity. The
Conductor Material is high-purity aluminum alloy, with an aluminum content of no less than 99.6%, supplemented by trace alloying elements such as magnesium (0.5-0.8%) and silicon (0.2-0.5%). This alloy composition is carefully calibrated to enhance both mechanical strength and electrical conductivity. After undergoing a specialized annealing process, the conductor achieves a conductivity of over 61% IACS (International Annealed Copper Standard), ensuring minimal power loss during transmission. At 20℃, the DC resistance of each 16mm² core is strictly controlled to be ≤1.15Ω/km, which is well within the limits set by international low-
Voltage Cable standards (such as IEC 60502-1). The conductor is stranded using a concentric stranding method, with 37 strands of aluminum alloy wire (each with a diameter of approximately 0.75mm) arranged in 6 layers around a central strand. This stranding structure not only improves the conductor’s
Flexibility—allowing it to be bent to a minimum radius of 12 times its outer diameter without damage—but also enhances its anti-fatigue performance, enabling it to withstand repeated mechanical stresses from wind, temperature fluctuations, and vibration during aerial operation.
For the insulation layer, two high-performance materials are commonly used: weather-resistant cross-linked polyethylene (XLPE) and high-density polyethylene (HDPE). The insulation thickness is uniformly controlled between 1.2mm and 1.5mm, a range that balances insulation strength and overall cable flexibility. The XLPE insulation, produced via a peroxide cross-linking process, exhibits excellent electrical and thermal properties. Its volume resistivity exceeds 1×10¹⁴Ω・cm at 20℃, ensuring effective insulation between the conductor and the external environment. The dielectric loss tangent (tanδ) of XLPE insulation is ≤0.0005 at 50Hz and 20℃, minimizing energy loss in the insulation system. HDPE insulation, on the other hand, offers superior impact resistance and chemical stability, with a tensile strength of ≥20MPa and an elongation at break of ≥600%, making it suitable for harsh industrial or agricultural environments. Both
Insulation Materials meet the power frequency withstand voltage requirement of ≥10kV/1min without breakdown, providing reliable protection against electrical leakage and short circuits in low-voltage (0.4kV) applications.
Mechanical properties of the cable are critical for its aerial installation and long-term operation. The aluminum alloy conductor itself has a tensile strength of ≥180MPa and an elongation at break of ≥15%, significantly outperforming pure
Aluminum Conductors (which typically have a tensile strength of 110MPa). This high tensile strength allows the cable to withstand the tension forces during installation，even when spanning distances of up to 100 meters between poles. The overall cable, including insulation and optional outer sheath, has a tensile strength of ≥12MPa and an elongation at break of ≥100%, ensuring it can resist mechanical impacts such as branch scraping or accidental contact during maintenance. The cable’s weight per unit length is approximately 1.8kg/m for the 4×16mm² specification，which is only one-third the weight of a copper-
Core Cable with the same cross-sectional area. This lightweight characteristic reduces the load on transmission poles，lowering the cost of tower construction and installation.
Environmental adaptability parameters further highlight the cable’s versatility. The insulation layer and optional outer sheath are designed to withstand extreme temperatures, operating reliably within a range of -40℃ to 90℃. This allows the cable to be used in diverse climatic conditions, from the freezing winters of northern regions to the hot and humid summers of southern areas. The cable also exhibits excellent UV resistance: after 1000 hours of accelerated UV aging testing (in accordance with IEC 60086-4), the insulation layer retains over 80% of its original tensile strength and shows no signs of cracking, discoloration, or degradation. In terms of
Chemical Resistance, the insulation and sheath materials can withstand exposure to 5% sulfuric acid, 5% sodium hydroxide, and common agricultural pesticides for 72 hours without significant damage, making the cable suitable for use in industrial zones and agricultural fields.
1.2 Featured Applications
The Aluminum Alloy Conductor Low Voltage Aerial Bundled Cable (ABC) - 4×16mm² is distinguished by its wide range of featured applications, driven by its compact structure, reliable performance, and cost-effectiveness. It has become a preferred solution in various low-voltage power distribution scenarios, addressing the unique challenges of each application.
One of the primary applications is in urban and rural distribution network transformation. In many older urban areas, traditional bare wires are still used for low-voltage power distribution, leading to issues such as phase confusion, high power loss, and safety hazards (e.g., electric shocks from accidental contact). The 4×16mm²
ABC Cable, with its integrated 4-core design (3 phase lines + 1 neutral line), eliminates phase confusion by bundling the conductors together. This not only simplifies installation but also reduces the risk of short circuits caused by crossed wires. In rural areas, where power grids are often spread over large distances and face harsh environmental conditions, the cable’s lightweight design and high tensile strength make it ideal for installation over farmland or remote areas. For example, in rural electrification projects, the cable can be quickly installed using existing poles，reducing the need for new tower construction and minimizing disruption to agricultural activities. The cable’s low power loss (due to the high conductivity of the aluminum alloy conductor) also helps improve the efficiency of rural power grids, ensuring stable voltage supply for farmers’ homes and agricultural machinery.
Residential community power supply is another key application area. Modern residential communities have a high density of electrical loads, including household appliances, elevators, and community lighting. The 4×16mm² ABC cable’s current-carrying capacity (which can reach hundreds of amperes in a single circuit at 0.4kV) is well-suited to meet these demands. The bundled design of the cable allows for easy installation along the edges of residential buildings or along existing road poles and towers，avoiding the need for underground cabling (which is more expensive and time-consuming to install). In addition, the cable’s insulated structure eliminates the risk of electric shock, making it safe for use in areas with high pedestrian traffic. For example, in a medium-sized residential community with 500 households, the cable can be used to supply power to multiple buildings, reducing the number of individual lines and simplifying maintenance. The cable’s long service life (30 years) also aligns with the lifespan of residential buildings, reducing the need for frequent cable replacement and lowering long-term maintenance costs.
Industrial park power distribution is a third major application. Industrial parks house a variety of small and medium-sized enterprises (SMEs) that require both three-phase power (for machinery and equipment) and single-phase power (for lighting and office appliances). The 4-core design of the ABC cable (3 phase lines + 1 neutral line) perfectly meets this dual demand, eliminating the need to lay separate neutral lines for single-phase loads. This not only reduces the number of cables required but also lowers installation and material costs. The cable’s chemical resistance and mechanical strength make it suitable for the industrial environment, where exposure to dust, chemicals, and mechanical vibrations is common. For instance, in a manufacturing park with 20 SMEs, the 4×16mm² ABC cable can be used to distribute power to each factory, ensuring stable and reliable power supply for production lines. The cable’s low power loss also helps reduce energy costs for enterprises, improving their overall operational efficiency.
Agricultural power grid upgrading is yet another important application. Agricultural activities such as irrigation, greenhouse cultivation, and livestock farming require a stable and reliable power supply. The 4×16mm² ABC cable’s weather resistance and corrosion resistance make it ideal for use in agricultural fields. It can withstand exposure to rain, snow, and agricultural chemicals, ensuring uninterrupted power supply for irrigation pumps and greenhouse climate control systems. The cable’s lightweight design allows for easy installation over large agricultural areas, even in remote locations where heavy machinery may not be accessible. For example, in a large-scale greenhouse complex covering 10 hectares, the cable can be used to supply power to ventilation fans, heating systems, and irrigation equipment, ensuring optimal growing conditions for crops. The cable’s long service life also reduces the need for frequent maintenance, which is crucial in agricultural settings where downtime can lead to significant crop losses.
1.3 Material and Style
1.3.1 Material Selection
The material selection of the Aluminum Alloy Conductor Low Voltage Aerial Bundled Cable (ABC) - 4×16mm² is a critical factor in determining its performance, durability, and cost-effectiveness. Each component of the cable—conductor, insulation, and optional outer sheath—is carefully chosen based on rigorous testing and industry standards to ensure optimal performance in low-voltage aerial applications.
The conductor material is high-purity aluminum alloy, which is selected for its unique combination of electrical conductivity, mechanical strength, and cost-effectiveness. The base aluminum used has a purity of ≥99.6%, which is essential for maintaining high electrical conductivity. To enhance mechanical properties, small amounts of alloying elements are added: magnesium (0.5-0.8%) improves tensile strength and corrosion resistance, while silicon (0.2-0.5%) enhances the alloy’s ability to be stranded and processed. The aluminum alloy is produced using a continuous casting and rolling process, which ensures a uniform grain structure and consistent mechanical properties throughout the conductor. This process involves melting the aluminum and alloying elements in a furnace, casting the molten metal into billets, and then rolling the billets into aluminum rods of the required diameter. The rods are then drawn into fine wires (with a diameter of approximately 0.75mm for the 16mm² core) and stranded using a concentric stranding machine to form the final conductor.
For the insulation layer, two main materials are used: cross-linked polyethylene (XLPE) and high-density polyethylene (HDPE). XLPE is preferred for applications where high temperature resistance and electrical performance are critical. It is produced by cross-linking linear polyethylene molecules into a three-dimensional network structure using a peroxide catalyst. This cross-linking process significantly improves the material’s thermal stability, allowing it to operate at temperatures up to 90℃ (compared to 70℃ for ordinary polyethylene). XLPE also has excellent dielectric properties, with a low dielectric loss tangent and high volume resistivity, ensuring minimal energy loss and reliable insulation. HDPE, on the other hand, is chosen for its superior impact resistance and chemical stability. It is produced through the polymerization of ethylene at high pressure and temperature, resulting in a dense molecular structure that resists mechanical damage and chemical corrosion. HDPE is particularly suitable for use in harsh environments, such as industrial zones or agricultural fields, where the cable may be exposed to impacts or chemicals.
Some models of the 4×16mm² ABC cable also include an outer sheath, which provides an additional layer of protection. The outer sheath is typically made of HDPE or a modified polyethylene material with enhanced UV resistance. The sheath is extruded over the bundled
Insulated Cores using an extrusion machine, forming a continuous, seamless layer that adheres tightly to the insulation. The outer sheath improves the cable’s resistance to mechanical damage (such as bird pecking or branch scraping) and further enhances its UV and chemical resistance. It also provides a smooth, uniform outer surface, making the cable easier to handle during installation.
1.3.2 Style and Structural Design
The style and structural design of the Aluminum Alloy Conductor Low Voltage Aerial Bundled Cable (ABC) - 4×16mm² are optimized for aerial installation, ease of use, and reliable performance. The cable features a compact, bundled structure that integrates 4 insulated cores (3 phase lines and 1 neutral line) into a single unit, distinguishing it from traditional multi-
Conductor Cables that require separate installation of each core.
The
4 Cores are arranged in a symmetrical pattern, with the neutral line typically positioned at the center and the three phase lines surrounding it. This arrangement ensures balanced electrical performance and uniform distribution of mechanical stress during installation and operation. Each core is individually insulated with either XLPE or HDPE, with a thickness of 1.2-1.5mm, as discussed earlier. The insulated cores are then bundled together using a stranding machine, which applies a slight tension to ensure the cores are tightly packed and maintain their relative positions. In models with an outer sheath, the bundled cores are passed through an extrusion die to apply the sheath, which forms a single, cohesive unit around the cores.
The overall diameter of the cable varies depending on the insulation material and the presence of an outer sheath. For a cable with XLPE insulation and no outer sheath, the outer diameter is approximately 18-20mm. Adding an HDPE outer sheath increases the diameter to 20-22mm. This compact design reduces the space required for installation, allowing the cable to be installed in narrow spaces such as between buildings or along existing poles without interfering with other infrastructure.
The cable’s style also includes practical design features for installation. For example, the outer surface of the insulation or sheath is often marked with identifying information, such as the manufacturer’s name, product model, rated voltage, and production date. This information is printed in a contrasting color (e.g., black on white) and repeated every meter, making it easy for installers to verify the cable’s specifications during installation. Some cables also include a ripcord—a small, strong thread embedded in the insulation or sheath—that allows installers to quickly and easily strip the insulation or sheath during termination, saving time and reducing the risk of damage to the conductor.
1.4 Production Process
The production process of the Aluminum Alloy Conductor Low Voltage Aerial Bundled Cable (ABC) - 4×16mm² is a highly controlled and automated sequence of steps, ensuring consistent quality and compliance with international standards. The process can be divided into several key stages: conductor production, insulation extrusion, core stranding, optional outer sheath extrusion, and quality testing.
1.4.1 Conductor Production
The first stage is the production of the aluminum alloy conductor. It begins with the preparation of raw materials: high-purity aluminum ingots (99.6% purity) and alloying elements (magnesium and silicon). These materials are melted in an electric furnace at a temperature of approximately 750℃. The molten metal is then refined to remove impurities (such as iron and copper) and homogenized to ensure a uniform alloy composition. Once the alloy is ready, it is cast into billets using a continuous casting machine. The billets are then heated to 500-550℃ and rolled into aluminum rods with a diameter of 9.5mm using a continuous rolling mill.
The next step is wire drawing: the 9.5mm aluminum alloy rods are drawn through a series of dies with decreasing diameters, reducing the wire diameter to the required 0.75mm for the 16mm² core. This drawing process is carried out in multiple passes, with each pass reducing the diameter by 10-15%. After each pass, the wire is annealed in a controlled atmosphere furnace at 300-350℃ to soften the metal and restore its ductility, which is essential for subsequent stranding. The annealed wires are then inspected for diameter, surface quality, and mechanical properties (tensile strength and elongation) to ensure they meet specifications.
Finally, the 0.75mm wires are stranded into the 16mm² conductor using a concentric stranding machine. The machine arranges 37 wires in 6 layers around a central wire, with each layer having a specific number of wires (1, 6, 12, 18 for the first four layers, etc.). The stranding process is carried out at a speed of 10-15 meters per minute, with the tension of each wire carefully controlled to ensure a compact, uniform conductor. The finished conductor is wound onto large spools and sent for insulation extrusion.
1.4.2 Insulation Extrusion
The second stage is the extrusion of the insulation layer onto the aluminum alloy conductor. The process begins with the preparation of the insulation material: XLPE or HDPE pellets. The pellets are dried in a hopper dryer at 80-100℃ for 2-4 hours to remove moisture, which can cause defects in the insulation (such as bubbles or voids). The dried pellets are then fed into an extruder, where they are melted at a temperature of 180-220℃ (depending on the material: XLPE requires a higher temperature than HDPE).
The molten insulation material is forced through a crosshead die, which is designed to apply a uniform layer of insulation around the conductor. The conductor is fed through the center of the die at a constant speed (synchronized with the extruder speed) to ensure the insulation thickness is consistent along the length of the conductor. For the 16mm² core, the insulation thickness is set to 1.2-1.5mm, and the extruder is equipped with a thickness monitoring system (using laser or ultrasonic sensors) to detect and correct any deviations in real time.
After extrusion, the insulated core is cooled in a water bath or air cooler to solidify the insulation. For XLPE insulation, an additional cross-linking step is required: the insulated core is passed through a continuous vulcanization (CV) tube, where it is heated to 200-250℃ under pressure. This heat treatment causes the linear polyethylene molecules to cross-link into a three-dimensional network, enhancing the insulation’s thermal and mechanical properties. The cooled insulated cores are then wound onto spools and inspected for insulation thickness, surface quality, and electrical properties (such as insulation resistance and dielectric strength).
1.4.3 Step 3: Core Bundling and Optional Sheath Extrusion
After insulation, the 4 insulated cores (3 phase + 1 neutral) are fed into a bundling machine, which arranges them in a parallel configuration. The cores are held together by a temporary tape (polyester film) to maintain alignment during subsequent processing. For cables with an outer sheath, the bundled cores are fed into a second extrusion line, where a HDPE sheath is extruded over the bundle. The sheath thickness is controlled at 1.5-2.0mm, and the extrusion temperature is 150-170℃. After extrusion, the
Sheathed Cable is cooled in a water bath and then passed through a laser diameter gauge to check the outer diameter (18-22mm, depending on configuration).
For cables without an outer sheath, the bundled cores undergo a bonding process: the insulation layers of adjacent cores are lightly heated (to 80-100℃) and pressed together, creating a weak bond that keeps the bundle intact during handling and installation. This bonding step is carefully controlled to avoid damaging the insulation or reducing its electrical properties.
1.4.4 Step 4: Final Testing and Spooling
The finished cable undergoes a series of final tests to ensure performance compliance. These tests include:
After passing all tests, the cable is spooled onto wooden or steel reels (diameter 1.2-1.5 meters) with a maximum length of 1000 meters per reel. Each reel is labeled with the product name, specification (4×16mm²), insulation type, manufacturing date, batch number, and test report reference. The reels are then stored in a dry warehouse until shipment.
2. Product General Information
2.1 Packaging
The packaging of the 4×16mm² ABC cable is designed to protect the product from damage during storage, transportation, and on-site handling, while also ensuring ease of use for installation teams.
2.1.1 Reel Packaging (Primary Packaging)
The cable is primarily packaged on wooden or steel reels, selected based on shipment distance and customer requirements. Wooden reels are made from pine or fir wood (moisture content ≤15%) to prevent warping or cracking. Each wooden reel has a diameter of 1.2-1.5 meters, a width of 0.6-0.8 meters, and a central steel axle (diameter 50mm) to facilitate cable unwinding during installation. The inner surface of the reel is lined with a 2mm-thick foam pad to prevent the cable from rubbing against the wood, which could scratch the insulation or sheath.
Steel reels are used for long-distance or sea shipments, as they offer superior durability. Made from galvanized steel (zinc coating thickness ≥80μm), these reels resist corrosion and can withstand heavy loads (up to 2 tons per reel). The steel reel design is similar to the wooden reel, with reinforced flanges (thickness 5mm) to prevent deformation under pressure.
The cable is wound onto the reel in a spiral pattern with a constant tension (controlled by a tensioning device) to avoid overlapping or tangling. Each layer of cable is separated by a thin kraft paper sheet (60g/m²) to reduce friction between layers, preventing insulation damage during unwinding. The maximum cable length per reel is 1000 meters—this length is chosen to balance transportation efficiency and on-site usability, as longer lengths would make the reel too heavy for manual handling.
2.1.2 Protective Coverings and Labeling
After winding, the entire reel is covered with a heavy-duty polyethylene (PE) film (thickness 0.2mm) to protect against moisture, dust, and UV radiation. The PE film is sealed at the seams with adhesive tape (acrylic-based, waterproof) to create a moisture barrier—critical for sea shipments, where condensation can form inside containers. For additional protection against mechanical damage (e.g., during loading/unloading), a layer of corrugated cardboard (3mm thick) is wrapped around the PE film, covering the reel’s flanges and edges.
Each reel is labeled with two tags: a primary tag attached to the reel’s axle and a secondary tag placed on the outer PE film. The primary tag includes detailed product information: product name (Aluminum Alloy Conductor Low Voltage ABC Cable), specification (4×16mm²), insulation type (XLPE/HDPE), sheath type (with/without), reel weight (cable + reel), length (1000 meters), manufacturing date, batch number, and the manufacturer’s name and contact information. The secondary tag features simplified information (product name, specification, length) and a barcode/QR code, which can be scanned to access the cable’s test reports and certification documents (e.g., IEC compliance certificate) via the manufacturer’s online portal.
2.1.3 Storage Guidelines
Stored reels must be kept in a dry, well-ventilated warehouse with a temperature range of -5℃ to 40℃ and relative humidity ≤75%. The warehouse floor should be flat and made of concrete to prevent reel tipping. Reels are placed on wooden blocks (height 100mm) to elevate them off the floor, avoiding moisture absorption from the ground. When storing multiple reels, a minimum distance of 300mm is maintained between reels to allow air circulation and prevent collision damage.
The recommended storage period is 12 months from the manufacturing date. If storage exceeds 12 months, the cable must undergo re-testing (insulation resistance and spark test) before installation to ensure no performance degradation has occurred. Additionally, reels should not be stacked—stacking can cause the bottom reel to collapse under weight, damaging the cable.
2.2 Transportation
Transporting the 4×16mm² ABC cable requires careful planning to ensure the product arrives at the destination in optimal condition, with considerations for mode selection, handling procedures, and regulatory compliance.
2.2.1 Mode of Transportation
Road Transportation: Used for domestic shipments within 500km. Flatbed trucks (load capacity 10-15 tons) are equipped with steel rails and wooden supports to secure the reels. Each truck can carry 5-8 wooden reels or 3-5 steel reels, depending on weight. The reels are placed parallel to the truck’s length, and steel straps (breaking strength ≥5 tons) are tightened over the reel flanges, anchored to the truck’s rails to prevent lateral movement during transit. For added stability, rubber anti-slip pads (thickness 10mm) are placed between the reels and the truck bed, reducing vibration that could loosen the cable windings. The maximum speed for road transportation is limited to 60km/h on highways and 30km/h on rural roads, as excessive speed increases the risk of reel shifting or cable damage.
Rail Transportation: Ideal for domestic long-distance shipments (over 500km) or cross-border transport within regions with interconnected rail networks. Specialized freight railcars (with a load capacity of 20-30 tons) are used, featuring reinforced floors and lashing points. Reels are secured using the same steel strap and anti-slip pad method as road transport, but with additional wooden wedges (made of oak, thickness 50mm) inserted between reels to prevent longitudinal movement during train acceleration or braking. Rail transportation offers lower vibration than road transport, reducing the risk of insulation wear and tear, and typically has a transit time 30% faster than long-haul road transport for distances over 1000km.
Sea Transportation: The primary mode for international shipments. Reels are loaded into 20-foot or 40-foot shipping containers, depending on quantity— a 20-foot container can hold 8-10 wooden reels or 5-7 steel reels, while a 40-foot container doubles this capacity. Before loading, the container floor is lined with moisture-absorbing desiccants (silica gel packets, 500g each, placed every 1.5 meters) to control humidity and prevent condensation, which could corrode steel reels or degrade the cable’s insulation. Reels are secured to the container’s internal lashing rings using steel chains (breaking strength ≥8 tons) and turnbuckles, which are tightened to eliminate any slack. For shipments to regions with high humidity (e.g., Southeast Asia) or extreme temperatures (e.g., the Middle East), the container is also fitted with a temperature-humidity logger that records conditions every 2 hours—this data is provided to the customer upon delivery to verify the cable was transported in suitable environments.
Air Transportation: Rarely used for full-size reels due to weight and volume constraints (a single 1000-meter reel weighs 1.8-2.2 tons), but may be used for small quantities of cable (e.g., 50-100 meters) or emergency replacements. The cable is cut into shorter lengths and packaged in heavy-duty fiberboard boxes (lined with foam) to meet airline weight limits (typically ≤50kg per box). Air freight is only recommended for urgent cases, as it costs 8-10 times more than sea transport.
2.2.2 Handling Procedures and Safety Compliance
All handling of cable reels requires specialized equipment and trained personnel to avoid damage. For loading and unloading, forklifts with drum clamps (capacity ≥3 tons) or cranes with soft slings (made of polyester, width 100mm) are used—sharp hooks or chains are strictly prohibited, as they can puncture the PE film or scratch the reel flanges. When lifting a reel, the equipment must be centered on the reel’s axle to prevent tilting; the maximum lifting angle is 45 degrees to avoid putting excessive stress on the reel.
Personnel involved in handling must wear personal protective equipment (PPE), including safety helmets, steel-toe boots, and gloves, to prevent injuries from falling debris or reel movement. Additionally, all transport vehicles and equipment must comply with local safety regulations—for example, in the EU, road transport must adhere to Directive 96/53/EC (regulating vehicle dimensions and weights), while sea transport must meet the International Maritime Organization (IMO)’s Safety of Life at Sea (SOLAS) Convention requirements for cargo securing.
Before departure, a pre-transport inspection is conducted to verify: the reels are properly secured, the PE film and cardboard covering are intact, and the labels are legible. Any damage found during this inspection is documented with photos, and the reel is repaired or replaced before shipment.
2.3 Shipping
The shipping process for the 4×16mm² ABC cable encompasses order processing, scheduling, customs clearance, and delivery tracking, all designed to ensure timely and transparent delivery to the customer.
2.3.1 Order Processing and Scheduling
Upon receiving a customer order, the manufacturer’s logistics team first confirms the details: quantity of reels, delivery address, desired transport mode, and any special requirements (e.g., expedited shipping, specific reel material). The team then coordinates with the production department to verify the cable’s availability—if the cable is in stock, shipment can be scheduled within 2-3 business days; if it needs to be manufactured, the lead time is 10-14 business days (consistent with the production cycle outlined in Section 1.4).
A detailed shipping schedule is created and shared with the customer, including: the expected departure date, transport mode, carrier name and tracking number, estimated arrival time (ETA), and contact information for the logistics coordinator. For international orders, the schedule also includes key milestones such as “container loading date” and “customs clearance deadline” to keep the customer informed of progress.
2.3.2 Customs Clearance for International Shipping
International shipments require extensive documentation to pass customs in the destination country. The manufacturer’s export team prepares a complete set of documents, including:
Commercial Invoice: Details the product description (4×16mm² ABC cable), quantity, unit price, total value, and terms of sale (e.g., FOB, CIF).
Packing List: Specifies the number of reels, reel material (wood/steel), weight per reel, total weight, and container number.
Compliance Certificates: Includes IEC 60502-1 (low-voltage cable standard), RoHS (restriction of hazardous substances), and any country-specific certifications (e.g., UL for the U.S., CSA for Canada).
The export team works with a local customs broker in the destination country to submit these documents and ensure compliance with local regulations. For example, in Brazil, the cable must be registered with the National Institute of Metrology, Quality, and Technology (INMETRO), and the broker will assist with this registration before clearance. Customs clearance typically takes 3-5 business days for standard shipments, but may take longer for countries with strict import controls (e.g., India, Russia)—the logistics team proactively communicates any delays to the customer and provides updates until clearance is completed.
2.3.3 Delivery Tracking and Confirmation
From the moment the cable departs the warehouse, the customer can track the shipment in real time using the provided tracking number. For road and rail transport, tracking is available via the carrier’s website or mobile app, showing the shipment’s current location, speed, and ETA. For sea transport, the customer can access the shipping line’s portal to view the container’s voyage status, including port calls and estimated arrival at the destination port.
The logistics team sends automated notifications to the customer at key stages:
Shipment Departure: An email is sent when the cable leaves the manufacturer’s warehouse, including the tracking number and carrier details.
In-Transit Update: A message is sent halfway through the journey (e.g., when the container is midway across the ocean) to confirm progress and reconfirm the ETA.
Arrival at Destination: The customer is notified when the shipment reaches the destination port/terminal, along with instructions for customs clearance (if the customer is handling it themselves).
Final Delivery: A 24-hour advance notification is sent before the cable is delivered to the customer’s site, allowing the customer to prepare for unloading (e.g., arranging forklifts).
Upon delivery, the customer is required to inspect the reels for damage and sign a Delivery Receipt. The receipt includes a checklist of items to verify: the number of reels matches the order, the PE film and cardboard are intact, and there is no visible damage to the cable or reels. If damage is found, the customer must note it on the receipt and take photos, which are submitted to the manufacturer’s claims department within 48 hours. The manufacturer will then arrange for a replacement reel or repair the damage at no cost to the customer, depending on the severity.
2.4 Samples
Providing high-quality samples is a critical step in the sales process for the 4×16mm² ABC cable, as it allows customers to verify performance, compatibility, and quality before placing a full order.
2.4.1 Sample Specifications and Preparation
The standard sample provided to customers is a 5-meter length of the 4×16mm² ABC cable, which is sufficient for conducting key tests and visual inspections. The sample is manufactured using the same materials and production processes as the full-length cable—this means the aluminum alloy conductor has the same 16mm² cross-section and alloy composition, the insulation layer (XLPE/HDPE) has the same thickness (1.2-1.5mm), and the optional sheath (if requested) is identical to that of the full product.
Before shipping, the sample undergoes a rigorous quality check by the manufacturer’s QC department, including:
Visual Inspection: The sample is checked for uniform insulation thickness, smooth sheath surface (no bubbles, scratches, or discoloration), and proper core bundling (no loose or misaligned cores).
After passing all tests, the sample is packaged in a compact fiberboard box (20cm × 15cm × 50cm) lined with foam to prevent damage during shipping. The box includes: the 5-meter cable sample, a copy of the QC test report (signed by the QC manager), a product data sheet (detailing specifications and performance), and a sample request form for future custom samples.
2.4.2 Sample Request and Delivery Process
Customers can request a sample via the manufacturer’s website, email, or phone. The sample request form requires basic information: customer name, company, contact details, intended application (e.g., “urban residential distribution”), insulation type preference (XLPE/HDPE), and whether a sheathed or unsheathed sample is needed.
Samples are provided free of charge for qualified customers (e.g., utility companies, electrical contractors, government agencies), but the customer is responsible for shipping costs. The manufacturer offers multiple shipping options:
Domestic Express: For local customers, delivery via a national courier (e.g., DHL, FedEx) takes 1-2 business days, with a shipping cost of \(20-\)50.
International Express: For global customers, delivery takes 3-5 business days, with costs ranging from \(50-\)150 depending on the destination (e.g., \(80 to Europe, \)120 to Australia).
Economy Shipping: For customers with no urgency, sea freight is available for bulk sample orders (e.g., 10+ samples), with a delivery time of 2-3 weeks and lower costs.
Once the sample is shipped, the sales team sends the customer a tracking number and follows up 2 days after delivery to ensure the sample was received in good condition. The team also offers technical support—if the customer needs assistance with testing (e.g., interpreting resistance results), the manufacturer’s engineers are available via video call or email to provide guidance.
2.4.3 Customized Samples and Feedback
For customers with specific requirements, the manufacturer offers customized samples. Common customizations include:
Colored Cores: To simplify phase identification during installation, the three phase cores can be colored (red, yellow, blue) and the neutral core white, instead of the standard black insulation.
Customized samples take 5-7 business days to produce and undergo the same QC tests as standard samples, plus additional tests to verify the customization (e.g., UV aging tests for special insulation). After the customer tests the customized sample, the manufacturer requests feedback to refine the product if needed—for example, if a customer reports the colored insulation fades in sunlight, the R&D team will adjust the pigment concentration and provide a revised sample.
2.5 After-Sales Service
The after-sales service for the 4×16mm² ABC cable is designed to ensure long-term reliable operation, address issues promptly, and build customer loyalty. It covers technical support, maintenance guidance, warranty claims, and training.
2.5.1 Technical Support
After installation, the manufacturer provides 24/7 technical support to customers. A dedicated support team, consisting of engineers with 5+ years of experience in low-voltage cables, can be reached via:
Common technical support requests include:
Installation Guidance: If the installation team encounters challenges (e.g., bending the cable around tight corners, connecting it to a distribution box), the engineers provide detailed drawings or step-by-step videos. For large projects (e.g., a city-wide grid upgrade), the manufacturer may send an on-site engineer to supervise the first day of installation, ensuring proper procedures are followed.
Troubleshooting: In the event of a cable fault (e.g., insulation breakdown, core overheating), the support team helps diagnose the issue. The team may request data from the customer’s power monitoring system (e.g., voltage, current, temperature readings) to identify the cause—for example, if a fault is due to overloading (current exceeding the cable’s capacity), the team will recommend reducing the load or upgrading to a larger cross-section cable.
Performance Optimization: As the cable operates, the support team provides recommendations to improve efficiency. For example, in hot climates, the team may suggest installing heat shields around the cable to reduce insulation degradation, or adjusting the load schedule to avoid peak currents during high-temperature periods.
2.5.2 Maintenance Guidance
To extend the cable’s 30-year design lifespan, the manufacturer provides a comprehensive Maintenance Manual to the customer. The manual includes a detailed schedule:
Monthly Inspections: Visual checks of the cable’s insulation/sheath for damage (e.g., cracks, bird peck marks, branch scratches) and loose connections at poles. Any debris (e.g., leaves, bird nests) near the cable should be removed to prevent fire risks.
The manual also includes guidelines for seasonal maintenance:
Winter: In snowy areas, remove snow and ice from the cable using a soft brush (avoid sharp tools) to prevent weight-induced stretching. Check for ice buildup on poles, which can increase the load on the cable.
The manufacturer’s technical team also offers annual maintenance training for the customer’s staff. The training is held at the customer’s site or the manufacturer’s facility and covers:
2.5.3 Warranty Claims
2.5.3 Warranty Coverage
The 4×16mm² ABC cable comes with a standard 10-year warranty from the date of installation, covering defects in materials and workmanship. The warranty applies to:
Sheath Defects: For sheathed cables, the warranty covers sheath cracking, peeling, or degradation that affects the cable’s performance.
To file a warranty claim, the customer must submit:
A completed warranty claim form (available on the manufacturer’s website), including details of the defect, installation date, and application.
Photos or videos of the defect, showing the extent of the damage and the surrounding installation.
A copy of the original purchase order and delivery receipt.
Any relevant test reports (e.g., insulation resistance measurements taken after the defect was discovered).
The manufacturer’s warranty team reviews the claim within 3 business days. If approved, the customer is offered one of three resolutions:
Replacement: The defective cable is replaced with a new one, and the manufacturer covers all shipping and handling costs. For on-site replacement, the manufacturer also sends an engineer to assist with removing the old cable and installing the new one.
Repair: For minor defects (e.g., localized insulation damage), the manufacturer provides free repair materials (e.g., heat-shrink sleeves or insulation compound) and technical guidance for on-site repair.
Refund: If the defect affects the entire order (e.g., a batch of cables with incorrect insulation thickness), the manufacturer provides a full refund of the purchase price.
The warranty does not cover damage caused by:
External events (e.g., lightning strikes, floods, or vandalism). However, the manufacturer offers an optional extended warranty (5 or 10 years) that covers these events, with pricing based on the application and order quantity.
2.5.4 Training Programs
To ensure customers’ installation and maintenance teams have the skills to work with the 4×16mm² ABC cable, the manufacturer offers comprehensive training programs. These programs are available both in-person and online, and are tailored to different audience roles:
Hands-on practice with sample cables, where participants practice bending, cutting, and joining the cable under the guidance of a trainer.
All training programs include a certification exam. Participants who pass receive a certificate valid for 3 years, which can be renewed by completing a short refresher course. The manufacturer also provides training materials—such as manuals, checklists, and video recordings of the course—for participants to reference after the training.
In summary, the 4×16mm² Aluminum Alloy Conductor Low Voltage Aerial Bundled Cable (ABC) combines advanced material science, precise manufacturing, and customer-centric support to meet the diverse needs of low-voltage power distribution. From its optimized conductor and insulation design to its robust packaging, reliable shipping, and comprehensive after-sales service, every aspect of the product is engineered to deliver efficiency, safety, and long-term value—making it a trusted choice for residential, industrial, and agricultural applications worldwide.
