1. Product - Specific Details
1.1 Specification Parameters

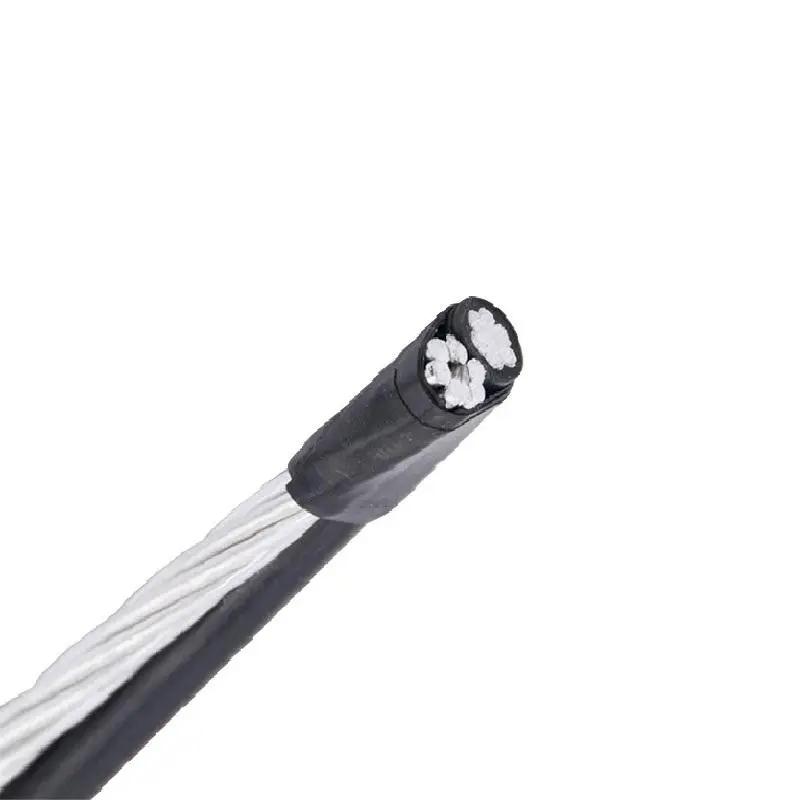

The ABC
Aerial Bundled Cable 2 Core 25mm² Insulated Overhead
Power Line is a precisely engineered low-voltage
Distribution Cable with a suite of well-defined specification parameters that govern its performance, safety, and compatibility in residential, rural, and small commercial electrical networks. These parameters are aligned with international industry standards and tailored to address the practical challenges of overhead power transmission in diverse environments.
1.1.1 Voltage Rating and Electrical Performance
This cable is designed for low-voltage applications, with a standard voltage rating of 0.6/1kV. The 0.6kV value represents the maximum phase-to-neutral voltage, which is the highest voltage permitted between the live (phase) conductor and the neutral conductor. This rating is critical for powering household appliances (such as refrigerators, air conditioners, and washing machines) and small commercial equipment (like POS terminals and lighting systems) that operate on phase-neutral connections, ensuring the cable does not experience electrical breakdown under normal operating conditions. The 1kV rating denotes the maximum phase-to-phase voltage, the highest voltage allowed between the two cores (though in single-phase applications, this scenario is rare).
To validate its electrical performance, the cable undergoes rigorous testing in accordance with international standards such as IEC 60502 (International Electrotechnical Commission standard for
Power Cables with extruded insulation) and ANSI/ICEA S-94-649 (American standard for
Aerial Bundled Cables). During the voltage withstand test, the cable is exposed to 2.0kV (phase-to-neutral) and 3.0kV (phase-to-phase) for 5 minutes without any signs of electrical breakdown, confirming its ability to handle voltage surges. Additionally, the cable’s insulation resistance—measured using a megohmmeter—is at least 100 MΩ at 20°C, ensuring minimal leakage current and efficient power transmission. The short-circuit current rating of the cable is 15 kA for 1 second, meaning it can withstand sudden current spikes (such as those caused by a short circuit) without sustaining permanent damage, protecting both the cable and connected electrical equipment.
1.1.2 Conductor Configuration and Dimensions
The
2-core 25mm² configuration is the defining structural feature of this cable, optimized for single-phase power transmission. Each core has a cross-sectional area of 25mm², a size carefully selected to balance current-carrying capacity and mechanical
Flexibility. In typical overhead installations, a 25mm²
Aluminum Conductor (the industry standard for this cable type) has an ampacity (current-carrying capacity) of 100–120 amps at 30°C ambient temperature. At 40°C (a common high-temperature threshold in urban and suburban areas), the ampacity decreases slightly to 90–110 amps to prevent overheating of the conductor and insulation. This capacity is sufficient to power 8–12 average households (each with a peak load of 8–10 kW) or a small commercial space like a convenience store or a 500-square-meter office.
The 25mm² conductors are stranded to enhance flexibility, a critical attribute for overhead installation. Each conductor is composed of 19 strands of 1.3mm diameter
Aluminum Wire, twisted together in a helical pattern with a pitch of 10–12 times the conductor’s diameter (approximately 13–15mm). This stranding not only makes the conductor easier to bend around utility poles and obstacles but also increases its mechanical strength, with a minimum breaking strength of 2.5 kN. The two cores (phase and neutral) are identical in size and stranding, ensuring balanced current distribution and simplifying installation (electricians do not need to distinguish between cores based on size).
The overall dimensions of the cable are carefully controlled to balance performance and practicality. The bundled assembly (two
Insulated Cores, plus an optional messenger) has an outer diameter of 18–22mm, making it compact enough to be installed on utility poles with limited space. The weight per unit length of the cable is approximately 0.8–1.0 kg/m, which is lightweight enough to minimize stress on utility poles while being heavy enough to maintain stability in high winds. For variants with an integrated messenger (16mm² galvanized steel), the weight per unit length increases slightly to 1.1–1.3 kg/m, but the additional weight is offset by the messenger’s mechanical support.
1.1.3 Insulation System Properties
The insulation system is a critical component that significantly contributes to the cable’s safety and durability in overhead environments. Two primary
Insulation Materials are used for this cable: cross-linked polyethylene (XLPE) and polyvinyl chloride (PVC), each with distinct properties suited to different applications.
XLPE Insulation: XLPE is the preferred insulation material for harsh or long-term applications. It undergoes a cross-linking process that transforms the linear polyethylene polymer into a three-dimensional network structure, enhancing its thermal, electrical, and mechanical properties. The continuous operating temperature range of XLPE is -40°C to 90°C, making the cable suitable for use in extreme climates—from cold northern regions (where temperatures drop below -30°C) to hot, humid coastal areas (where temperatures exceed 45°C). Unlike
PVC Insulation, XLPE maintains its structural integrity at high temperatures, allowing the cable to handle high current loads without insulation degradation.
XLPE also has excellent electrical insulation properties, with a dielectric strength of 20 kV/mm (significantly higher than PVC’s 15 kV/mm) and a low dielectric loss tangent (tan δ) of less than 0.001 at 50Hz. This means minimal electrical energy is lost as heat in the insulation, improving the cable’s overall efficiency. Additionally, XLPE is highly resistant to water absorption (with a water absorption rate of less than 0.1% after 24 hours of immersion), preventing water-induced electrical breakdown. It is also resistant to UV radiation, oils, and most industrial chemicals, ensuring long-term reliability in harsh environments—such as coastal areas with saltwater spray or industrial zones with chemical pollutants. The thickness of XLPE insulation on each core is typically 1.2mm, calibrated to meet the 0.6/1kV voltage rating.
PVC Insulation: PVC is a cost-effective alternative for less demanding environments, such as mild-temperature suburban areas. It has a continuous operating temperature range of 0°C to 70°C, which is sufficient for regions where extreme temperatures are rare. PVC insulation offers basic protection against dust, dirt, and light moisture, and it is highly flexible, making installation easier in tight spaces. However, PVC has lower thermal and
Chemical Resistance than XLPE: it softens at temperatures above 70°C and can become brittle at temperatures below 0°C, limiting its use in extreme climates.
PVC insulation has a dielectric strength of 15 kV/mm and a dielectric loss tangent of 0.005 at 50Hz, which is higher than XLPE’s, resulting in slightly more energy loss. It also has a higher water absorption rate (0.5% after 24 hours of immersion) than XLPE, requiring additional protection in humid environments. The thickness of PVC insulation on each core is typically 1.0mm, which is thinner than XLPE but still sufficient to meet the 0.6/1kV voltage rating.
1.1.4 Optional Messenger Element Specifications
Many variants of this
ABC Cable include an
integrated messenger element to provide additional mechanical support, enabling longer spans between utility poles. The messenger is typically a 16mm² galvanized steel or aluminum-clad steel wire, chosen for its high tensile strength and corrosion resistance.
Galvanized Steel Messenger: Galvanized steel is made by coating steel with a layer of zinc, which provides excellent corrosion resistance. It has a tensile strength of 400–500 MPa, enabling the cable to span up to 50 meters between utility poles. The zinc coating acts as a sacrificial anode, protecting the underlying steel from rust and oxidation, even in humid or coastal environments. The diameter of the galvanized steel messenger is approximately 4.5mm, and it is bonded to the bundled cores using a specialized extrusion process to ensure no relative movement between the messenger and cores.
Aluminum-Clad Steel Messenger: Aluminum-clad steel consists of a steel core coated with a layer of aluminum, combining the high tensile strength of steel (350–450 MPa) with the corrosion resistance of aluminum. It is lighter than galvanized steel (density of 5.8 g/cm³ vs. 7.8 g/cm³ for galvanized steel), reducing the overall weight of the cable. The aluminum coating also provides better resistance to saltwater corrosion than zinc, making it ideal for coastal applications. The diameter of the aluminum-clad steel messenger is approximately 4.8mm, and it is integrated into the bundled structure in the same way as galvanized steel.
The messenger element is positioned either at the center of the two cores or along one side of the bundle, depending on the manufacturer’s design. Its primary function is to bear the weight of the cable when installed between utility poles, reducing stress on the insulated cores and preventing sagging. For variants without a messenger, the maximum span between poles is limited to 30–35 meters, making them suitable only for dense urban or suburban areas where utility poles are closely spaced.
1.2 Distinctive Features and Applications
1.2.1 Unique Features
One of the most distinctive features of this ABC cable is its integrated 2-core bundled design, which eliminates the need for separate bare neutral wires and external support hardware common in traditional overhead systems. Unlike traditional systems, where the phase conductor is a bare wire and the neutral conductor is a separate bare wire strung alongside it, this cable combines the phase and neutral conductors into a single, insulated bundle. This design offers multiple advantages:
Enhanced Safety: The insulated cores prevent accidental contact with live wires, reducing the risk of electrical shocks for utility workers, residents, and wildlife. This is particularly important in residential areas where children or pets may come into contact with power lines.
Reduced Maintenance Costs: The insulation protects the cores from damage caused by vegetation (e.g., tree branches), eliminating the need for frequent tree trimming—a major ongoing cost for utilities. Additionally, the bundled design reduces the risk of conductor damage from wind-induced vibration (known as “galloping”), which can cause mechanical fatigue and premature failure in traditional systems.
Improved Weather Resistance: The insulation and bundled structure reduce wind resistance and ice loading, lowering the risk of cable sag or breakage during storms. In areas prone to heavy snow or ice, the cable’s compact design prevents ice from accumulating on the surface, reducing the weight load on utility poles.
Another key feature is its versatile insulation options (XLPE and PVC), which allow the cable to be tailored to specific environmental conditions. XLPE-insulated variants are ideal for harsh climates (extreme temperatures, coastal areas, industrial zones), while PVC-insulated variants are a cost-effective choice for mild-temperature suburban areas. This versatility makes the cable suitable for a wide range of applications, from rural electrification projects in cold northern regions to residential developments in warm coastal areas.
The cable’s
lightweight and compact design is another standout feature. With a weight per unit length of 0.8–1.3 kg/m, it is significantly lighter than traditional
Overhead Cables (which typically weigh 1.5–2.0 kg/m). This lighter weight reduces the mechanical load on utility poles, extending their lifespan and reducing the need for pole replacement. The compact design (outer diameter of 18–22mm) also means that more cables can be installed on a single utility pole, making it suitable for dense urban areas where space is limited.
1.2.2 Application Scenarios
The versatility of the ABC Aerial Bundled Cable 2 Core 25mm² Insulated Overhead Power Line makes it suitable for a wide range of low-voltage power distribution applications.
Residential Areas:
In urban and suburban residential neighborhoods, this cable is widely used to distribute power from utility poles to individual homes. Its compact design fits easily in areas where utility poles are spaced 30–50 meters apart (the standard spacing in most residential developments), and its insulated cores ensure the safety of residents. For example, in a new suburban development with 100 homes, the cable can be installed along the main roads and branched off to each home, providing a reliable power supply to all residents. The XLPE-insulated variant is preferred in regions with extreme temperatures (e.g., Minnesota in the US, where winter temperatures drop below -20°C), while the PVC-insulated variant is used in mild-temperature regions (e.g., California, where temperatures rarely exceed 35°C).
Rural Electrification Projects:
In rural areas, where utility poles are spaced 40–50 meters apart (due to lower population density), the cable’s integrated messenger element is essential. It enables longer spans between poles, reducing the number of poles needed and lowering infrastructure costs. Rural electrification projects often involve connecting small towns, farms, and rural businesses to the main power grid, and the cable’s durability in harsh weather conditions (e.g., strong winds, heavy rain) ensures reliable power delivery. For example, in a rural farming community in Australia, the cable can be installed to power farmhouses, irrigation systems, and agricultural equipment, improving the quality of life for residents and boosting agricultural productivity.
Small Commercial Applications:
The cable is also ideal for small commercial spaces, such as convenience stores, gas stations, and small offices. Its 100–120 amp ampacity is sufficient to power the lighting, HVAC systems, and equipment in these spaces. The insulated cores protect against damage from commercial activities (e.g., construction work near the power line), and the compact design fits easily in commercial areas where space is limited. For example, in a strip mall with 5 small stores, the cable can be installed along the front of the mall to supply power to each store, ensuring a consistent power supply for business operations.
Renewable Energy Integration:
With the growing shift to renewable energy, this cable is increasingly used to connect small-scale renewable energy systems (such as rooftop solar installations and small wind turbines) to the main power grid. Its insulation protects against the elements (e.g., UV radiation for solar installations), and its ampacity handles the variable output of these systems. For example, a residential neighborhood with 20 homes equipped with rooftop solar panels can use the cable to feed excess solar power back into the grid, reducing reliance on fossil fuels.
1.3 Material Selection and Design Style
1.3.1 Material Selection Rationale
Every material used in the ABC Aerial Bundled Cable 2 Core 25mm² Insulated Overhead Power Line is carefully selected based on its performance, cost-effectiveness, and compatibility with the cable’s intended applications.
Aluminum is chosen as the
Conductor Material for several key reasons. First, aluminum has a superior strength-to-weight ratio compared to copper. With a density of 2.7 g/cm³ (vs. 8.96 g/cm³ for copper), aluminum conductors are 30% lighter, reducing the overall weight of the cable and the mechanical stress on utility poles. For a 25mm² conductor, this lighter weight translates to a 40% reduction in the load on utility poles compared to
Copper Conductors of the same size, extending the lifespan of the poles.
Second, aluminum is significantly more cost-effective than copper. The price of aluminum is approximately 40–50% lower than that of copper, making the cable an economical option for large-scale projects—such as rural electrification initiatives or new residential developments—without compromising on current-carrying capacity. While aluminum has a lower electrical conductivity than copper (377 S/m vs. 598 S/m for copper), the larger cross-sectional area of the 25mm² aluminum conductors compensates for this, ensuring the cable has the same ampacity as a 16mm² copper conductor.
To address the historical issue of aluminum’s susceptibility to corrosion, modern aluminum conductors in this cable are treated with an anti-corrosion coating. The most common coating is zinc, which forms a protective layer on the surface of the conductor. Zinc is more reactive than aluminum, so it corrodes first, protecting the underlying aluminum from oxidation. Another option is an aluminum oxide coating, formed by anodizing the aluminum conductor. This coating is extremely hard and resistant to corrosion, providing long-term protection in harsh environments like coastal areas or industrial zones.
Insulation Materials (XLPE and PVC):
The choice between XLPE and PVC insulation depends on the application environment. XLPE is selected for harsh conditions due to its superior thermal, electrical, and chemical resistance. Its cross-linked structure gives it a higher continuous operating temperature (90°C vs. 70°C for PVC) and better resistance to UV radiation and water absorption. While XLPE is more expensive than PVC (approximately 20–30% higher cost), its longer service life (25–30 years vs. 15–20 years for PVC) makes it a cost-effective choice in the long run.
PVC is chosen for mild-temperature environments where cost is a primary consideration. It is less expensive than XLPE and easier to process, making it ideal for large-scale residential projects with tight budgets. However, its lower thermal and chemical resistance limits its use to regions where extreme temperatures and harsh pollutants are not a concern.
Messenger Materials (Galvanized Steel and Aluminum-Clad Steel):
Galvanized steel is selected for its high tensile strength and cost-effectiveness. It is the most common messenger material for rural and suburban applications, where long spans and moderate corrosion resistance are required. Aluminum-clad steel is chosen for coastal applications, where saltwater spray is a major concern. Its aluminum coating provides better corrosion resistance than zinc, ensuring the messenger remains strong and durable in coastal environments. While aluminum-clad steel is more expensive than galvanized steel (approximately 15–20% higher cost), its superior corrosion resistance justifies the additional expense in coastal areas.
1.3.2 Design Style and Structural Optimization
The design style of the ABC Aerial Bundled Cable 2 Core 25mm² Insulated Overhead Power Line is centered on functionality, durability, and ease of installation—key priorities for overhead power distribution in diverse environments. The cable’s design prioritizes structural symmetry and material efficiency, ensuring it performs reliably while minimizing unnecessary weight or cost.
The two insulated cores are arranged in a symmetrical, side-by-side configuration (or occasionally twisted around a central messenger, if included) to ensure balanced weight distribution. This symmetry eliminates uneven stress on the cable during installation and operation, reducing the risk of sagging or core separation. The twist pitch of the bundled cores (15–20 times the cable’s outer diameter) is carefully calibrated: a tighter pitch (smaller distance between twists) would increase flexibility but reduce structural stability, while a looser pitch would enhance stability but make the cable harder to bend. The 15–20x pitch strikes an ideal balance, allowing the cable to be routed around utility poles or obstacles without compromising its integrity.
Structural optimization also extends to the integration of the optional messenger. When included, the messenger is positioned to bear the majority of the cable’s weight, relieving stress on the insulated cores. For side-mounted messengers, the cores are bonded to the messenger at 10–15cm intervals using a high-strength polyethylene adhesive, ensuring no relative movement between the components. For central messengers, the cores are twisted around the messenger in a helical pattern, creating a unified structure that distributes tension evenly. This optimization allows the cable to span up to 50 meters without additional support, a 40% increase in span length compared to non-messenger variants.
Another key design optimization is the insulation thickness gradient. The insulation on each core is slightly thicker at the points where the cores touch (typically 1.3mm vs. 1.2mm on the outer surfaces) to prevent wear from friction during installation or wind-induced vibration. This localized thickening enhances durability without increasing the cable’s overall diameter or weight, maintaining its compact profile for easy installation on crowded utility poles.
1.4 Production Process
The production of the ABC Aerial Bundled Cable 2 Core 25mm² Insulated Overhead Power Line involves a series of precise, controlled steps to ensure consistency, quality, and compliance with industry standards. From conductor manufacturing to final testing, each stage is monitored by quality control teams to prevent defects and ensure performance.
1.4.1 Conductor Manufacturing
The first step in production is manufacturing the aluminum conductors for the two cores.
Wire Drawing and Stranding:
High-purity aluminum ingots (99.7% purity or higher) are melted in a gas-fired furnace at 660°C, then cast into cylindrical billets. These billets are extruded into solid
Aluminum Wires of 1.3mm diameter— the size required for the 19-strand 25mm² conductor. The extruded wires undergo a cold-drawing process, where they are pulled through diamond dies to refine their diameter and improve tensile strength.
After drawing, the wires are annealed in a nitrogen-filled oven at 300–350°C for 1–2 hours. Annealing softens the aluminum, restoring ductility lost during drawing and making the wires easier to twist into strands. The annealed wires are then fed into a stranding machine, which twists 19 wires together in a helical pattern to form the 25mm² conductor. The stranding machine operates at 120–150 RPM, with a twist pitch of 13–15mm (10–12 times the conductor diameter) to balance flexibility and strength.
Anti-Corrosion Coating:
Once stranded, the conductors are coated with an anti-corrosion layer. For most applications, a zinc coating is applied via hot-dip galvanizing: the conductors are dipped in a molten zinc bath (450°C) for 30–60 seconds, creating a 5–10μm thick protective layer. For coastal applications, an aluminum oxide coating is applied via anodization: the conductors are submerged in an electrolytic solution and subjected to an electric current, forming a hard, 2–3μm thick oxide layer that resists saltwater corrosion.
1.4.2 Insulation Extrusion
After conductor manufacturing, the cores undergo insulation extrusion—either with XLPE or PVC, depending on the variant.
XLPE Insulation Extrusion:
XLPE resin is mixed with additives (cross-linking agents, antioxidants, UV stabilizers) in a high-speed mixer. The mixture is fed into a twin-screw extruder, where it is heated to 160–180°C and melted into a viscous fluid. The molten XLPE is forced through a cross-head die, which coats the aluminum conductor with a uniform 1.2mm thick layer.
The
Insulated Conductor then passes through a curing tube, where it is heated to 200–250°C for 5–10 minutes. This high temperature activates the cross-linking agent (typically dicumyl peroxide), causing the XLPE polymer chains to form covalent bonds and create a three-dimensional network. After curing, the conductor is cooled in a water bath at 20–30°C to solidify the insulation, then dried with compressed air.
PVC Insulation Extrusion:
PVC resin is mixed with plasticizers, stabilizers, and lubricants to enhance flexibility and heat resistance. The mixture is fed into a single-screw extruder, heated to 150–170°C, and extruded over the conductor to form a 1.0mm thick layer. Unlike XLPE, PVC does not require curing— the insulated conductor is immediately cooled in a water bath and dried, reducing production time by 20–30% compared to XLPE variants.
1.4.3 Bundling and Messenger Integration
Once the two cores are insulated, they are bundled together, and the optional messenger is integrated.
Core Bundling:
The two insulated cores are fed into a bundling machine, which twists them together in a helical pattern with a pitch of 300–400mm (15–20 times the cable’s outer diameter). The machine applies a controlled tension of 50–70 N to ensure the cores are tightly bonded without damaging the insulation.
Messenger Integration:
For variants with a galvanized steel or aluminum-clad steel messenger, the messenger wire is fed into the bundling machine alongside the cores. If the messenger is side-mounted, a small amount of molten polyethylene is extruded between the messenger and cores to bond them. If the messenger is central, the cores are twisted directly around it, with the insulation forming a tight seal against the messenger’s surface.
After bundling, the cable is passed through a diameter gauge to ensure it meets the 18–22mm outer diameter specification. Any cables with diameter deviations exceeding ±0.5mm are rejected.
1.4.4 Quality Control and Testing
Every cable undergoes rigorous testing before leaving the factory, in compliance with IEC 60502 and ANSI/ICEA S-94-649 standards.
Conductor Tests:
Insulation Tests:
Final Cable Tests:
Cables that pass all tests are labeled with production details (batch number, date, specifications) and prepared for packaging.
2. General Product Information
2.1 Packaging
The cable’s packaging is designed to protect it during storage, transportation, and handling, while ensuring ease of use for installers.
2.1.1 Packaging Materials
Reels: The cable is wound onto wooden or steel reels. Wooden reels (plywood or pine) are used for domestic shipments; they have an outer diameter of 1.2–1.5m, a hub diameter of 0.4–0.5m, and can hold 500–1000 meters of cable. Steel reels (galvanized carbon steel) are used for international or long-distance shipments; they have a 1.5–1.8m outer diameter and are corrosion-resistant, making them suitable for sea transport.
Protective Layers: Before winding, the cable is wrapped in a 0.1mm thick LDPE (low-density polyethylene) film to prevent moisture and dust intrusion. For XLPE-insulated variants, an additional UV-resistant film is added to protect against sunlight during outdoor storage.
2.1.2 Labeling and Handling Instructions
Each reel is labeled with durable, weather-resistant polyester labels that include:
Specifications: Conductor size (25mm²), insulation type (XLPE/PVC), voltage rating (0.6/1kV), messenger type (if included)
Handling instructions: “Lift only at reel hubs,” “Store in dry, shaded area,” “Do not stack more than 2 reels”
2.1.3 Storage Requirements
Outdoor Storage: For temporary outdoor storage (≤30 days), reels must be covered with a waterproof, UV-resistant tarpaulin. The tarpaulin should be secured tightly to prevent wind damage and moisture ingress.
2.2 Transportation
The cable is transported via road, rail, sea, or air, depending on distance and destination, with strict protocols to prevent damage.
2.2.1 Transportation Modes
Road: For domestic shipments (≤500km), flatbed or enclosed trucks are used. Flatbeds carry 5–10 wooden reels, secured with steel straps (tensioned to 60–80 N·m) and edge protectors to prevent reel damage. Enclosed trucks are used for PVC-insulated variants to avoid UV exposure.
Sea: For international shipments, steel reels are loaded into 20-foot or 40-foot shipping containers. Each container holds 8–12 reels (20-foot) or 18–24 reels (40-foot), secured with load-restraining bars and foam padding.
2.2.2 Loading and Unloading Procedures
Unloading: Upon arrival, the reel is inspected for damage (cracks, torn film) before unloading. The same lifting equipment is used, with a spotter guiding the operator to ensure precise placement.
2.2.3 Documentation
For all shipments, the following documents are provided:
Bill of Lading: A legal receipt from the carrier, detailing shipment details (origin, destination, quantity).
Commercial Invoice: Lists product specifications, quantity, unit price, and total cost for customs clearance.
2.3 Shipping
The shipping process is coordinated to ensure on-time delivery and transparency for customers.
2.3.1 Order Processing and Lead Time
When a customer places an order, the sales team confirms details (insulation type, length, messenger inclusion) and provides a lead time:
The production team schedules manufacturing based on order priority, and the logistics team books transportation 1 week before production completion to avoid delays.
2.3.2 Tracking and Delivery Updates
Once shipped, the customer receives a tracking number via email or SMS. For road/rail shipments, tracking is available via the carrier’s website (e.g., DHL Freight, Union Pacific). For sea shipments, the customer can monitor the container’s location via Maersk Line or Hapag-Lloyd’s tracking tools. The logistics team sends weekly delivery updates until the shipment arrives.
2.3.3 Shipping Costs
Costs vary by mode and distance:
Insurance (1–2% of the cable’s value) is optional but recommended for sea and air shipments to cover damage or loss.
2.4 Samples
Providing samples allows customers to evaluate the cable’s quality and compatibility before placing large orders.
2.4.1 Sample Request Process
Customers can request samples via the manufacturer’s website, email, or sales representative. The request form requires:
Samples are processed within 24 hours. In-stock variants (PVC-insulated, no messenger) are shipped within 1–2 days; custom variants (XLPE-insulated, with messenger) take 3–5 days to produce.
2.4.2 Sample Quality and Documentation
Samples are manufactured to the same standards as full-length cables. Each sample includes:
A Sample Test Report, detailing conductor resistance, insulation resistance, and dielectric strength test results.
2.4.3 Sample Costs and Shipping
Shipping: Domestic shipping is free via courier (e.g., FedEx, UPS); international shipping costs \(20–\)50 (e.g., \(20 to Canada, \)50 to India).
2.5 After-Sales Service
The manufacturer’s after-sales service supports customers throughout the cable’s lifecycle, ensuring optimal performance and satisfaction.
2.5.1 Installation Support
Installation Manual: Every order includes a 40-page manual with step-by-step instructions, diagrams, and safety guidelines (e.g., “How to tension the messenger for 50-meter spans,” “Weatherproofing core connections”).
Technical Hotline: A 24/7 hotline (toll-free) connects customers to certified electrical engineers. Engineers provide real-time support for installation issues (e.g., resolving cable sag, troubleshooting insulation damage).
On-Site Support: For orders ≥1000 meters, the manufacturer dispatches a technical specialist to the job site for 1–2 days. The specialist trains the installation team, inspects the first 100 meters of cable, and addresses on-site challenges.
2.5.2 Warranty
The cable comes with a standard warranty—15 years for XLPE-insulated variants and 10 years for PVC-insulated variants—covering defects in materials and workmanship from the date of installation.
Warranty Coverage:
Material Defects: Issues arising from subStandard Aluminum (e.g., premature corrosion due to impure alloy), faulty insulation (e.g., XLPE cracking before the 15-year mark, PVC softening below 70°C), or defective messenger wires (e.g., galvanized steel rusting within 5 years in non-coastal areas).
Workmanship Errors: Problems caused by poor manufacturing, such as uneven insulation thickness (deviating more than ±0.1mm from the 1.0–1.2mm standard), weak bonding between cores and messenger, or strand breakage in conductors due to improper stranding.
Exclusions:
The warranty does not cover damage from:
Improper Installation: This includes over-tensioning the cable (exceeding 1.5 times the messenger’s tensile strength), installing the cable in underground trenches (it is designed for overhead use), or using incompatible connectors that damage the insulation.
Environmental Extremes: Damage from natural disasters (e.g., tornadoes snapping utility poles, floods submerging the cable), or exposure to chemicals (e.g., industrial solvents splashing on the insulation) beyond the cable’s rated resistance.
Warranty Claim Process:
Notification: The customer must contact the after-sales team within 48 hours of discovering the defect, providing the order number, installation date, and clear photos/videos of the issue.
Assessment: A technical specialist reviews the claim and may request a 1-meter sample of the defective cable for laboratory testing (e.g., checking insulation thickness, conductor purity).
Resolution: If the claim is approved:
For minor defects (e.g., small insulation cracks), the manufacturer ships replacement insulation tape or a 5-meter repair section, along with step-by-step repair guidelines.
For major defects (e.g., conductor breakage, widespread insulation failure), the manufacturer replaces the entire defective cable section free of charge, including shipping and on-site installation by a certified technician (for orders ≥500 meters).
2.5.3 Maintenance and Repair Services
To extend the cable’s lifespan and prevent unexpected failures, the manufacturer offers proactive maintenance and reactive repair services tailored to its design and application.
Preventive Maintenance Packages:
The cost of this service is \(200–\)400 per site, depending on the number of cable spans (e.g., \(200 for 5 spans, \)400 for 15+ spans).
This package costs \(800–\)1,500 per site for 5 years, a 20% discount compared to paying for individual annual services.
Repair Services:
Insulation Tears: For small tears (≤5mm), technicians clean the area with isopropyl alcohol and apply a heat-shrinkable XLPE or PVC patch (matching the cable’s insulation type). The patch is heated to 120–150°C to form a waterproof seal, restoring insulation integrity. This repair takes 30–60 minutes per tear and costs \(100–\)150.
Conductor Damage: If a conductor strand breaks (common due to accidental impact from construction equipment), the damaged section (typically 2–3 meters) is cut out. The remaining ends are stripped of insulation, and a compression connector (made of aluminum to match the conductor material) is used to join them. The joint is then insulated with heat-shrinkable tubing, and electrical tests are conducted to ensure conductivity. This repair takes 3–4 hours and costs \(500–\)700.
Insulation Failure: For widespread insulation failure (e.g., due to chemical exposure), the entire affected cable section is replaced. Technicians remove the old cable, install a new section of matching specifications, and re-terminate it to the existing cable using weatherproof connectors. This repair costs \(1,000–\)2,000 per 100 meters, including the new cable and labor.
Emergency Repair Service: For critical failures (e.g., a cable break causing a power outage in a residential area), the manufacturer offers 24/7 emergency service. A technician team is dispatched within 4–8 hours (depending on location), and the repair is completed within 24 hours to minimize downtime. Emergency repairs cost 50% more than standard repairs (e.g., \(750–\)1,050 for conductor damage), but the cost is waived for customers with the 5-year comprehensive maintenance package.
All maintenance and repair work is documented in a Service Report, which includes before/after photos, test results, and recommendations for future care. This report is stored in the customer’s online account for easy access and can be used to support warranty claims if issues arise later.
