    90° C High-Temp Moisture-Resistant Low-Smoke Cable - Thw-2-Ls 600V Copper Wire, Multiple AWG Sizes (14 to 2/0)

  • تصنيفها：
    سلك البناء
  • يشارك：
  • رمز الاستجابة السريعة:
  • وقت الإصدار：
    2025-08-25 09:21:04
    • التحقيق الفوري

Detailed Introduction to 90°C High-Temp Moisture-Resistant Low-Smoke Cable - THW-2-LS 600V Copper Wire (14 to 2/0 AWG)

1. Product-Specific Details: Core Attributes and Manufacturing Excellence

1.1 Specification Parameters: Precision-Engineered for Diverse Loads

The THW-2-LS 600V Cable is defined by its rigorous specification parameters, which ensure compatibility with low-voltage power systems and adaptability to varying current demands. Every parameter—from voltage rating to conductor size—is calibrated to meet international standards (such as NEC 310.104 and IEC 60227) and address the unique challenges of harsh environments.

1.1.1 Voltage Rating and Electrical Safety

With a rated voltage of 600V, the cable is designed for low-voltage power distribution systems, the backbone of commercial, industrial, and residential electrical networks. This rating refers to the maximum voltage the cable can safely withstand under continuous operating conditions, encompassing both phase-to-phase and phase-to-ground voltages. Importantly, the 600V rating provides a critical safety margin: most low-voltage systems operate at 120V (single-phase) or 240V (three-phase) in North America, and 230V/400V in Europe and Asia. The THW-2-LS cable’s 600V capacity ensures it can handle temporary voltage surges (e.g., from motor startup or power grid fluctuations) without insulation breakdown—a common cause of short circuits and fires.
To validate voltage performance, each batch of cables undergoes a dielectric strength test in accordance with IEC 60243. The cable is submerged in a conductive saltwater bath, and a 2.5kV AC voltage is applied between the conductor and the bath for 5 minutes. A passing cable shows no signs of arcing, leakage current exceeding 0.5mA, or insulation breakdown—confirming its ability to maintain electrical safety even in moist conditions.

1.1.2 AWG Size Range and Current-Carrying Capacity

The cable’s coverage of 14 AWG to 2/0 AWG (American Wire Gauge) makes it a versatile solution for loads ranging from small electrical devices to heavy industrial machinery. AWG size is inversely proportional to conductor cross-sectional area: smaller AWG numbers indicate larger conductors and higher current-carrying capacity. Below is a detailed breakdown of key AWG sizes, their physical dimensions, and performance:
AWG Size
Cross-Sectional Area (mm²)
Stranding Structure (Copper Strands)
Rated Current-Carrying Capacity (90°C, Free Air)
Typical Applications
14 AWG
2.08
1 strand (solid) or 7 strands (0.52mm)
25A
Residential lighting, small appliances (e.g., toasters, routers)
12 AWG
3.31
1 strand (solid) or 7 strands (0.68mm)
30A
Commercial lighting, power outlets, small HVAC fans
10 AWG
5.26
7 strands (0.95mm) or 19 strands (0.58mm)
40A
Air conditioners (1.5-ton), washing machines, electric water heaters (2kW)
8 AWG
8.37
7 strands (1.21mm) or 19 strands (0.76mm)
55A
Industrial pumps, large refrigerators (commercial grade)
6 AWG
13.3
7 strands (1.59mm) or 19 strands (0.99mm)
75A
Small industrial motors (5HP), electric ovens (4kW)
4 AWG
21.2
19 strands (1.24mm) or 37 strands (0.87mm)
95A
Medium industrial motors (10HP), fire pumps (3kW)
2 AWG
33.6
19 strands (1.59mm) or 37 strands (1.09mm)
120A
Large industrial compressors (15HP), data center server racks
1 AWG
42.4
37 strands (1.22mm) or 61 strands (0.94mm)
135A
Heavy-duty motors (20HP), high-capacity HVAC systems
2/0 AWG
67.4
37 strands (1.56mm) or 61 strands (1.21mm)
175A
Industrial machinery (30HP), backup generators (15kW)
The current-carrying capacity values are tested under controlled conditions (90°C ambient temperature, free air installation) and align with NEC 310.15(B)(16) standards. For installations where the cable is bundled, buried in conduit, or exposed to higher ambient temperatures, the capacity is derated to prevent overheating. For example, a 10 AWG Cable installed in a conduit with 3 other cables (bundled) has a derated capacity of 32A—still sufficient for most medium-power appliances.

1.1.3 Temperature and Environmental Ratings

The 90°C continuous operating temperature is a defining feature of the THW-2-LS cable, setting it apart from standard Thw Cables (rated for 75°C). This rating is validated through a long-term thermal aging test: cables are placed in an oven at 135°C (150% of the rated temperature) for 1,000 hours, then tested for insulation integrity and electrical performance. A passing cable retains ≥90% of its original insulation resistance and shows no signs of insulation cracking or conductor oxidation.
In addition to high-temperature resistance, the cable has a low-temperature Flexibility rating of -20°C. At this temperature, the cable can be bent around a mandrel (with a radius 6 times the cable’s outer diameter) 10 times without insulation damage—critical for cold environments such as unheated industrial warehouses or outdoor-to-indoor transition points in cold climates.

1.2 Material and Style: Engineered for Durability and Safety

The THW-2-LS cable’s performance is rooted in its high-quality materials, each selected to address specific environmental stressors: high temperature, moisture, and fire. From the Copper Conductor to the low-smoke insulation, every component is optimized for longevity and safety.

1.2.1 Copper Conductor: High Purity for Conductivity and Corrosion Resistance

The conductor is made of high-purity electrolytic copper (purity ≥99.95%), a material chosen for its exceptional electrical conductivity and resistance to oxidation. Electrolytic copper is produced via an electrolysis process that removes impurities (e.g., iron, zinc, sulfur) which can increase resistance and cause conductor overheating. Compared to lower-purity copper or Aluminum Conductors, it offers:

  • Superior Conductivity: With a conductivity of 58 MS/m at 20°C, electrolytic copper minimizes energy loss. For a 50-meter 10 AWG cable powering a 40A load, the resistance is only ~0.37Ω (calculated using the formula R = ρL/A, where ρ = 1.72×10⁻⁸ Ω·m for copper), resulting in an energy loss of ~5.9W—negligible compared to the load’s power consumption (e.g., 9.6kW for a 240V, 40A device).

  • Corrosion Resistance: High-purity copper forms a thin, stable oxide layer (Cu₂O) when exposed to air, which prevents further oxidation. In moist environments, this layer acts as a barrier against water and humidity, reducing the risk of conductor rusting. Accelerated corrosion tests show that the copper conductor retains ≥95% of its conductivity after 1,000 hours of exposure to 95% relative humidity at 90°C.

  • Mechanical Ductility: Electrolytic copper is highly ductile, allowing it to be drawn into thin strands (for flexible designs) or extruded as a solid conductor (for rigid applications). This ductility ensures the conductor can withstand the mechanical stress of installation—such as pulling through conduit or bending around structural elements—without breaking.

The conductor is available in two styles: solid (for 14-10 AWG) and stranded (for 8 AWG to 2/0 AWG). Solid conductors are rigid and easy to terminate (e.g., in screw terminals), making them ideal for fixed wiring in walls or ceilings. Stranded Conductors, composed of multiple twisted strands, are more flexible—suitable for applications requiring frequent bending (e.g., industrial machinery wiring, portable equipment).

1.2.2 Insulation and Sheath: Low-Smoke, Moisture-Resistant Materials

The cable’s insulation and sheath (for multi-conductor designs) are made of modified cross-linked polyethylene (XLPE) or low-smoke halogen-free (LSHF) polyvinyl chloride (PVC)—materials engineered to deliver low-smoke, moisture-resistant, and high-temperature performance.

  • Low-Smoke 特性 (Low-Smoke Performance): The insulation contains additives (e.g., magnesium hydroxide, aluminum trihydrate) that suppress smoke generation when burned. In accordance with IEC 61034, the cable’s smoke density is measured using a smoke chamber: after 4 minutes of burning, the light transmittance is ≥80% (compared to ≤50% for standard PVC Cables). This high transmittance ensures visibility during a fire, aiding evacuation and rescue. Additionally, the insulation releases ≤50ppm of hydrogen chloride (HCl) gas—far below the 100ppm limit set by EN 50575—reducing respiratory harm to occupants and corrosion damage to equipment.

  • Moisture Resistance: The insulation undergoes a water absorption test (IEC 60811-1-1): samples are immersed in deionized water at 70°C for 24 hours, then tested for insulation resistance. The THW-2-LS cable retains an insulation resistance of ≥10¹²Ω·cm after testing—1,000 times higher than the industry standard of ≥10⁹Ω·cm. This is achieved through a cross-linking process that creates a dense molecular structure, preventing water molecules from penetrating the insulation and reaching the conductor.

  • High-Temperature Stability: Cross-linked XLPE insulation has a melting point of ≥200°C, well above the cable’s 90°C operating temperature. This ensures the insulation does not soften, flow, or degrade when exposed to high temperatures—even for extended periods. For example, in a boiler room with a constant temperature of 85°C, the insulation remains rigid and maintains its electrical properties for over 10 years.

For applications requiring extra mechanical protection (e.g., industrial floors, underground conduit), the cable is available with a Nylon Jacket (thickness: 0.2-0.3mm). The nylon jacket adds abrasion resistance (withstanding 10,000 cycles of rubbing against concrete without damage) and Chemical Resistance (resistant to oils, greases, and weak acids common in industrial settings).

1.3 Featured Applications: Targeted for Harsh and Safety-Critical Environments

The THW-2-LS 600V cable’s combination of high-temperature resistance, moisture resistance, and low-smoke properties makes it ideal for environments where Standard Cables fail. Its applications span commercial, industrial, and special-purpose sectors, each leveraging specific performance attributes.

1.3.1 Commercial and High-Rise Buildings

In commercial buildings (e.g., shopping malls, office towers) and high-rises, the cable addresses two key challenges: vertical wiring (exposed to temperature variations) and fire safety (critical for dense populations).

  • Emergency Systems: Used for emergency lighting, fire alarm systems, and fire pump wiring. The 90°C temperature resistance ensures the cable operates during building fires (where ambient temperatures can rise to 80°C), while the low-smoke feature prevents smoke inhalation during evacuation. For example, in a 50-story office tower, the cable powers emergency lights in stairwells—maintaining functionality even if the building’s HVAC system fails and temperatures spike.

  • Vertical Wiring: Installed in elevator shafts and riser closets, where cables are exposed to temperature differences (e.g., 20°C on lower floors vs. 40°C on upper floors due to heat from elevator motors). The cable’s stable performance across temperatures prevents insulation aging and reduces maintenance costs.

  • Kitchen and Laundry Areas: Used for wiring in commercial kitchens (exposed to steam and high temperatures) and laundry facilities (humid environments). The moisture resistance prevents conductor corrosion, while the high-temperature rating withstands heat from ovens and dryers.

1.3.2 Industrial Facilities

Industrial environments (e.g., factories, power plants) expose cables to extreme temperatures, moisture, and mechanical stress—all addressed by the THW-2-LS cable.

  • Manufacturing Workshops: Used for wiring industrial machinery (e.g., assembly lines, metalworking tools) that generate heat during operation. The 90°C rating handles heat from motor enclosures, while the stranded conductor’s flexibility allows wiring around moving parts.

  • Chemical Plants and Refineries: Installed in areas with high humidity and chemical exposure (e.g., distillation units, storage tanks). The LSHF insulation resists corrosion from chemicals, and the moisture resistance prevents short circuits caused by condensation.

  • Power Generation Facilities: Used for wiring in boiler rooms, turbine halls, and control rooms. The cable’s high-temperature resistance withstands heat from boilers (up to 85°C), and the low-smoke feature ensures safety in enclosed control rooms.

1.3.3 Special-Purpose Environments

In specialized settings where safety and reliability are paramount, the cable’s unique properties provide unmatched value:

  • Hospitals and Healthcare Facilities: Used for wiring in ICU wards, operating rooms, and medical equipment (e.g., MRI machines, ventilators). The low-smoke feature reduces the risk of respiratory harm to patients, while the moisture resistance prevents electrical failures in humid environments (e.g., recovery rooms with humidifiers).

  • Data Centers: Installed in server racks and cooling systems. The 90°C rating handles heat from densely packed servers, and the low-smoke feature protects sensitive equipment from corrosion caused by halogen gases during a fire.

  • Underground and Tunneling Projects: Used for wiring in subway tunnels, underground parking garages, and water treatment plants. The moisture resistance prevents damage from groundwater, and the abrasion-resistant jacket (when specified) withstands contact with soil and rocks.

1.4 Production Process: Rigorous Quality Control for Consistency

The THW-2-LS 600V cable is manufactured through a multi-stage process that adheres to strict quality standards. Every step—from raw material selection to final testing—is monitored to ensure each meter of cable meets performance and safety requirements.

1.4.1 Conductor Manufacturing

  1. Copper Rod Preparation: High-purity electrolytic copper rods (8mm diameter, 99.95% purity) are inspected for surface defects (e.g., scratches, oxidation) using visual inspection and ultrasonic testing. Rods with defects are rejected to avoid conductor flaws.

  1. Drawing: The copper rods are pulled through a series of diamond dies (with decreasing diameters) to form strands of the required AWG size. For example, a 10 AWG strand is drawn from an 8mm rod to a 0.95mm diameter in 5 passes. The drawing process is lubricated with a mineral oil-based lubricant to reduce friction and prevent strand damage.

  1. Annealing: After drawing, the strands are annealed in a continuous furnace at 400-500°C in a nitrogen atmosphere (to prevent oxidation). Annealing softens the copper (reducing hardness from 120HV to 60HV) and improves conductivity by 5-10%.

  1. Stranding: For Stranded Conductors, the annealed strands are twisted together in a planetary stranding machine. The number of strands depends on the AWG size (e.g., 7 strands for 10 AWG, 19 strands for 6 AWG). The stranding lay length (distance of one full twist) is set to 10-15 times the conductor diameter to balance flexibility and stability.

1.4.2 Insulation Extrusion and Cross-Linking

  1. Insulation Compound Preparation: The LSHF PVC or XLPE compound is mixed in a high-speed mixer with additives (flame retardants, antioxidants, plasticizers) at 120-140°C. The mixture is then cooled and granulated into pellets for extrusion.

  1. Extrusion: The copper conductor is fed into a single-screw extruder, where the insulation compound is melted at 160-190°C (depending on material) and extruded around the conductor. The extruder’s crosshead die ensures a uniform insulation thickness (e.g., 0.8mm for 14 AWG, 1.2mm for 2/0 AWG).

  1. Cross-Linking (for XLPE): XLPE insulation undergoes a cross-linking process to improve thermal stability. Two methods are used:

    • Chemical Cross-Linking: The insulation is heated to 180-200°C in a curing tube filled with nitrogen, triggering a chemical reaction that forms covalent bonds between polymer chains. This process takes 5-10 minutes and creates a three-dimensional molecular structure, enhancing the insulation’s heat resistance and mechanical strength.

  • Radiation Cross-Linking: For thinner insulation layers (e.g., 0.8mm for 14 AWG), the cable is exposed to electron beam radiation (10-15 MeV) from a linear accelerator. The radiation breaks polymer chains, which then rejoin to form cross-links—achieving the same structural enhancement as chemical cross-linking but in a faster, more controlled process (30-60 seconds per meter).

  1. Cooling and Sizing: After extrusion or cross-linking, the cable is pulled through a water bath (20-25°C) to rapidly cool the insulation, preventing sagging or deformation. It then passes through a precision sizing die to correct minor dimensional deviations, ensuring the outer diameter meets specifications (e.g., 3.2mm for 14 AWG, 5.8mm for 2/0 AWG).

1.4.3 Sheathing (for Multi-Conductor Cables) and Final Testing

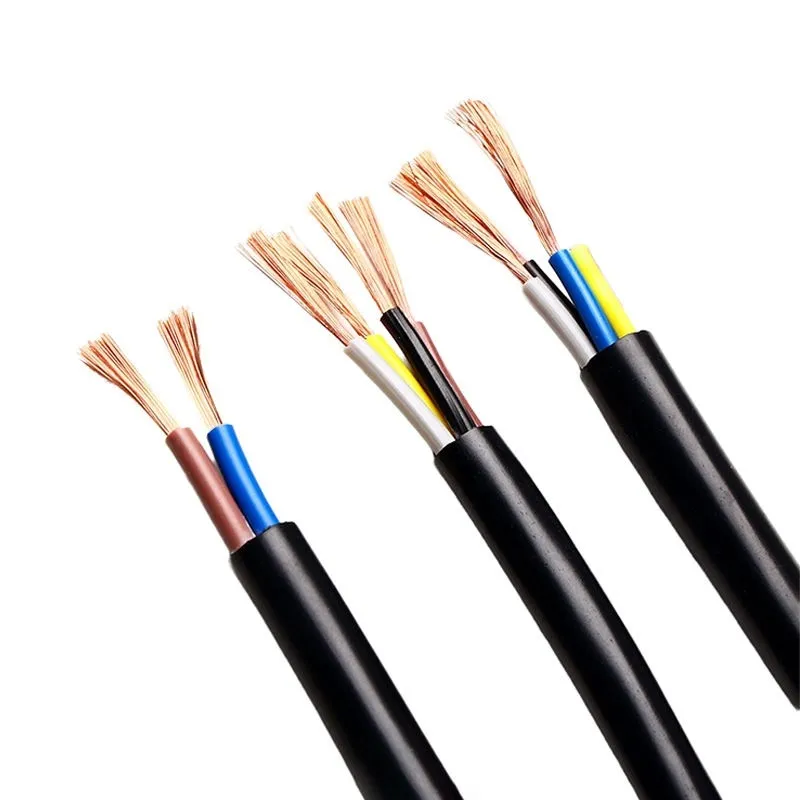

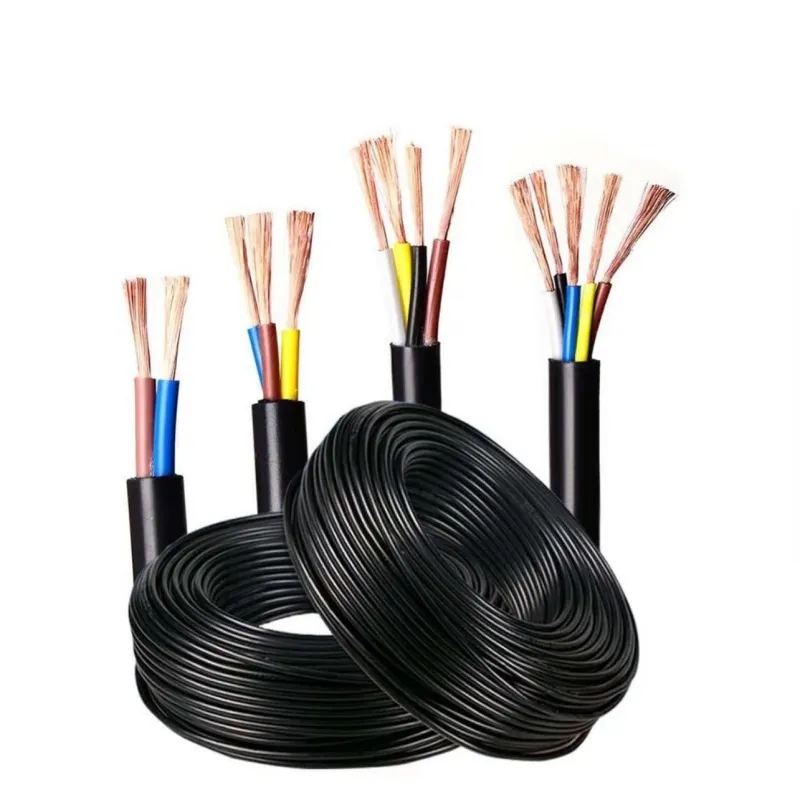

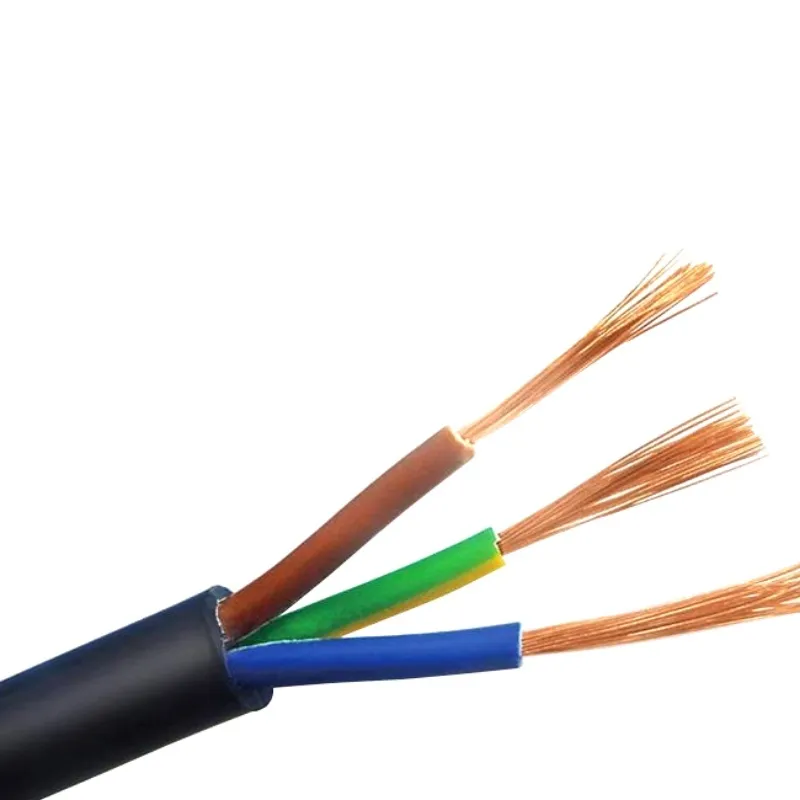

For multi-conductor versions of the THW-2-LS cable (used in three-phase power systems or control circuits), an additional sheathing layer is applied:

  1. Sheath Extrusion: Multiple Insulated Conductors are twisted together (in a cabling machine) to form a cable core, which is then fed into a twin-screw extruder. The LSHF PVC or XLPE sheath compound is melted and extruded around the core, with a thickness of 1.0-1.5mm (depending on cable size) to provide mechanical protection.

  1. Printing and Marking: A laser printer applies permanent markings to the sheath, including the product name (THW-2-LS), AWG size, rated voltage (600V), temperature rating (90°C), standard compliance (e.g., NEC, IEC), and batch number. These markings are visible every 500mm along the cable, aiding installation and traceability.

  1. Final Quality Testing: Every batch of cables undergoes a series of comprehensive tests to ensure compliance with standards:

    • Insulation Resistance Test: Using a megohmmeter, the insulation resistance between the conductor and sheath (or ground) is measured at 20°C. A minimum resistance of 10¹²Ω·cm is required—1,000 times higher than the industry average for standard cables.

    • Low-Smoke and Toxic Gas Test: Samples are burned in a smoke chamber (per IEC 61034) to measure smoke density (light transmittance ≥80%) and toxic gas emissions (HCl ≤50ppm). Any sample failing this test results in the entire batch being rejected.

    • Mechanical Impact Test: The cable is subjected to a 1kg weight dropped from a height of 1m onto a steel anvil. After impact, the cable is tested for insulation integrity—no breakdown or leakage is allowed.

    • Thermal Cycling Test: The cable is exposed to 1,000 cycles of temperature variation (from -20°C to 90°C, with 1 hour at each extreme). After cycling, the insulation must not crack, and the conductor resistance must change by ≤5%.

2. General Product Information: Packaging, Logistics, Samples, and After-Sales Support

2.1 Packaging: Engineered for Protection and Construction Efficiency

The THW-2-LS 600V cable is packaged to withstand the rigors of transportation and construction site storage, while also simplifying handling and installation. Packaging designs vary by cable size and order quantity, but all prioritize protection, usability, and cost-effectiveness.

2.1.1 Primary Packaging: Spools and Reels

For individual cable lengths (100m, 250m, or 500m), the cable is wound onto sturdy spools or reels made of either recycled cardboard (for smaller AWG sizes: 14-8 AWG) or high-density polyethylene (HDPE, for larger AWG sizes: 6 AWG to 2/0 AWG):

  • Cardboard Spools: Used for 14-8 AWG cables (lighter weight, up to 50kg per spool). The spools have a diameter of 30-40cm, a width of 15-20cm, and reinforced flanges (5mm thick) to prevent bending during handling. Each spool is wrapped in a moisture-resistant polyethylene (PE) film (0.15mm thick) to shield the cable from dust, dirt, and condensation—critical for storage in construction site sheds or outdoor areas.

  • HDPE Reels: Designed for 6 AWG to 2/0 AWG cables (heavier weight, up to 200kg per reel). HDPE is impact-resistant, waterproof, and UV-stabilized, making it suitable for long-term outdoor storage (e.g., on construction sites in rainy or sunny climates). The reels have a diameter of 50-80cm and a steel core (for 2/0 AWG) to support the cable’s weight without collapsing.

Both spool types feature a central hole (50-80mm diameter) that fits standard cable dispensers—allowing electricians to unroll the cable smoothly during installation. This eliminates tangling, a common issue with loosely coiled cables that can add 1-2 hours of extra work per project.

2.1.2 Secondary Packaging: Cartons and Pallets

For bulk orders, primary packaging is grouped into secondary packaging to streamline transportation and inventory management:

  • Cartons: For small orders (1-5 spools of 14-8 AWG cable), spools are placed in corrugated cardboard cartons (size: 45cm × 35cm × 25cm). Each carton contains dividers to separate spools, preventing collision damage during transit. The cartons are printed with handling labels (e.g., “This Side Up,” “Keep Dry,” “Maximum Stack Height: 3 Cartons”) to guide logistics personnel.

  • Pallets: For large orders (5+ spools or reels), spools/reels are stacked on wooden or plastic pallets (size: 120cm × 100cm). Wooden pallets are heat-treated (per ISPM 15) to meet international shipping requirements, while plastic pallets are reusable and resistant to rot/mold. Each pallet can hold:

    • 10-15 cardboard spools (14-8 AWG, 100m each)

    • 5-8 HDPE reels (6 AWG to 2/0 AWG, 100m each)

Pallets are wrapped with stretch film (0.05mm thick) to secure the load and protect against dust/moisture. Corner protectors (plastic or metal) are added to pallet edges to prevent damage during loading/unloading with forklifts.

2.1.3 Custom Packaging Options

For specialized projects, custom packaging is available to meet unique needs:

  • Cut-to-Length Packaging: For small-scale projects (e.g., residential wiring requiring 20m of 12 AWG Cable), the cable is cut to the exact length, coiled, and sealed in moisture-resistant PE bags with labels indicating length and AWG size.

  • Weather-Resistant Crates: For outdoor construction sites (e.g., tunnel projects), cables are packed in steel-reinforced wooden crates lined with waterproof foam. These crates protect against rain, snow, and physical damage, and can be locked to prevent theft.

  • Labeled Pallets for Multi-Spec Orders: For projects requiring multiple AWG sizes (e.g., a data center needing 10 AWG for lighting and 2/0 AWG for servers), pallets are labeled with color-coded tags (e.g., red for 2/0 AWG, blue for 10 AWG) to simplify inventory sorting.

2.2 Transportation: Safe Delivery Across Environments

The THW-2-LS 600V cable is transported via a global network of logistics partners, with protocols tailored to protect the cable from temperature extremes, moisture, and mechanical damage—critical for a product used in harsh environments.

2.2.1 Mode of Transport: Matching Order Size and Destination

Transportation is selected based on order volume, delivery timeline, and geographic location:

  • Local Delivery (≤100km): For small orders (1-3 spools), delivery is via climate-controlled vans (temperature range: 5-35°C) equipped with air suspension to minimize vibration. Vans can access narrow construction site roads and deliver directly to the installation area, reducing handling time.

  • Regional Delivery (100-500km): For medium orders (3-10 pallets), transport is via medium-duty trucks with enclosed trailers. Trailers are fitted with load-securing straps (rated for 500kg each) to anchor pallets, and temperature monitors to track internal conditions. Drivers are trained to avoid sudden stops/turns that could shift loads.

  • International Delivery (>500km): For large orders (10+ pallets), two options are available:

    • Sea Freight: The most cost-effective choice for bulk shipments. Pallets are loaded into 20ft or 40ft shipping containers (lined with moisture-absorbing desiccant packs) and secured with dunnage (wooden blocks, airbags). Transit times range from 7-30 days (e.g., China to Europe: 15-20 days; US to Australia: 20-30 days).

    • Air Freight: For urgent orders (e.g., a hospital needing cables for emergency room renovations), air freight is used. Cables are packed in lightweight, shock-resistant containers, with transit times of 1-3 days. Air freight is limited to smaller orders (≤5 pallets) due to weight restrictions (typical air cargo weight limits: 1,000kg per shipment).

2.2.2 Environmental Protection Measures

Given the cable’s use in harsh environments, extra care is taken to protect it during transit:

  • Temperature Control: In extreme weather (temperatures <0°C or >40°C), shipments use temperature-controlled containers. For example, in winter, containers are heated to 10°C to prevent PVC Insulation from becoming brittle; in summer, they are cooled to 25°C to avoid insulation softening.

  • Moisture Protection: Sea freight containers are fitted with humidity sensors (alerting if humidity >60%) and additional desiccant packs (absorbing up to 1kg of moisture each). For coastal regions prone to salt spray, pallets are wrapped in anti-corrosion film to protect metal components (e.g., HDPE reel steel cores).

  • Mechanical Damage Prevention: Pallets are loaded with heavier cables (e.g., 2/0 AWG) at the bottom and lighter ones (e.g., 14 AWG) on top to prevent crushing. Forklift operators are provided with load maps to ensure even weight distribution, and trailers are equipped with rubber mats to reduce friction between pallets.

2.2.3 Documentation and Customs Compliance

All shipments include comprehensive documentation to ensure smooth transit and customs clearance:

  • Commercial Invoice: Details product name, AWG size, quantity, unit price, total value, and payment terms. Required for customs valuation and tax calculation.

  • Packing List: Itemizes each spool/reel (AWG size, length, weight) and total shipment weight/volume. Used by customers to verify order completeness.

  • Certificate of Compliance (CoC): Issued by a third-party laboratory, confirming the cable meets standards (NEC 310.104, IEC 60227) and passed all quality tests. Mandatory for customs clearance in the EU, Australia, and Middle East.

  • Material Safety Data Sheet (MSDS): Outlines hazards (e.g., PVC fumes when burned), safe handling procedures, and first-aid measures. Required for occupational health compliance on construction sites.

For international shipments, the company partners with local customs brokers to navigate regional regulations. For example, in the EU, brokers ensure cables bear the CE mark and provide Declaration of Conformity (DoC) documents; in the US, they verify compliance with UL 44 standards. This support reduces customs delays from an average of 5-7 days to 1-3 days.

2.3 Shipping: Streamlined Processes for On-Time Delivery

Shipping processes are designed to minimize delays—critical for construction projects where material shortages can halt work. The company prioritizes transparency and efficiency, with clear timelines and real-time tracking.

2.3.1 Order Processing and Lead Times

Upon order confirmation, the following steps are initiated:

  1. Inventory Check: The warehouse team verifies stock availability within 24 hours. For in-stock items (14-4 AWG, 100m spools), order processing begins immediately; for out-of-stock or custom items (e.g., 2/0 AWG with nylon jacket), lead times are 5-7 days (production) + 1-2 days (testing/packaging).

  1. Packaging Preparation: Spools/reels are labeled, packaged, and prepared for shipping within 48 hours of inventory confirmation. Custom packaging (e.g., cut-to-length coils) adds 1 day to processing.

  1. Dispatch: Shipments are dispatched within 3-5 days for in-stock orders, and 7-10 days for custom orders. Customers receive a dispatch confirmation email with a tracking number and estimated delivery date.

Lead times vary by destination:

  • Local (≤100km): 1-2 days after dispatch

  • Regional (100-500km): 2-4 days after dispatch

  • International (sea freight): 7-30 days after dispatch

  • International (air freight): 1-3 days after dispatch

2.3.2 Tracking and Notifications

Customers can track shipments in real time via the logistics partner’s platform (DHL, FedEx, UPS, or local carriers) using the provided tracking number. Key updates are sent via email/SMS:

  • Dispatch Alert: Sent when the shipment leaves the warehouse (includes tracking link).

  • In-Transit Update: Sent when the shipment arrives at regional hubs (e.g., “Shipment arrived at Chicago hub, USA”).

  • Delivery Window Notification: Sent 24 hours before delivery (includes 2-hour time slot and driver contact info).

  • Delivery Confirmation: Sent after successful delivery (includes signed proof of receipt).

For large orders, a dedicated account manager is assigned to provide weekly updates—critical for projects with multiple shipments (e.g., a data center requiring 50 pallets of cable).

2.3.3 Issue Resolution

If delays occur (e.g., weather disruptions, customs holds), the logistics team proactively notifies the customer and provides solutions:

  • Weather Delays: For regional shipments affected by storms, the team reroutes via alternative roads or arranges expedited delivery once conditions improve.

  • Customs Holds: Brokers work with customs authorities to resolve documentation issues (e.g., missing CoC) within 24 hours.

  • Damaged Shipments: If cables arrive damaged, the company ships replacements via expedited delivery (free of charge) within 24 hours of receiving damage photos. A return label is provided for damaged goods, and the company handles claims with the logistics partner.

2.4 Samples: Free, Representative Samples for Pre-Purchase Validation

Recognizing that customers need to verify cable performance before bulk purchases, the company offers free 1-2m samples of any AWG size. Samples are sourced from the same production batches as bulk orders, ensuring they accurately represent the final product.

2.4.1 Sample Request Process

Requesting samples is simple and obligation-free:

  1. Request Submission: Customers submit a sample request via the company’s website, email, or phone, providing details (AWG size, quantity, application, delivery address).

  1. Sample Preparation: Samples are cut from the latest production batch, labeled with batch numbers, and packaged in moisture-resistant PE bags. A product brochure and test report summary (insulation resistance, smoke density) are included.

  1. Delivery: Samples are shipped via standard mail (local: 1-2 days; international: 3-5 days) at no cost to the customer. Express delivery (1-day local, 2-day international) is available for urgent requests.

2.4.2 Sample Testing Support

To help customers validate performance, the company provides:

  • Test Guide: A step-by-step document for conducting on-site tests (e.g., bending flexibility at -20°C, insulation resistance measurement with a multimeter).

  • Third-Party Test Reports: Upon request, full test reports (from ISO 17025-accredited laboratories) are provided, including data on temperature resistance, smoke density, and moisture absorption.

  • Technical Consultation: Engineers are available via phone/email to interpret test results and advise on whether the cable fits the customer’s application (e.g., “10 AWG is suitable for your 4kW electric oven, as its 40A capacity exceeds the oven’s 17A draw”).

2.4.3 Benefits of Sample Testing

Sample testing helps customers avoid costly mistakes:

  • Performance Verification: A hospital can test the cable’s low-smoke feature in a small-scale fire drill to ensure it meets patient safety requirements.

  • Compatibility Check: An industrial customer can verify the cable’s flexibility by bending it around machinery components, ensuring it fits tight spaces.

  • Standard Compliance: A construction firm can test insulation resistance to confirm compliance with local electrical codes (e.g., NEC 310.104 in the US), avoiding failed inspections and costly rework.


    2.5 After-Sales Support: Long-Term Protection and Expert Guidance

  • The THW-2-LS 600V cable is designed for long-term use in harsh environments, so the company’s after-sales support focuses on ensuring reliability, resolving issues quickly, and helping customers maximize the product’s lifespan. This support is critical for applications like emergency systems or industrial machinery, where cable failures can cause downtime, safety risks, or financial losses.

  • 2.5.1 Warranty Coverage: Comprehensive Protection Against Defects

  • The cable comes with a 12-year limited warranty—one of the longest in the industry—reflecting the company’s confidence in its durability. The warranty covers manufacturing defects and performance failures under normal use, with clear terms to avoid ambiguity:

  • Covered Defects:

    • Conductor Issues: Defects such as uneven stranding (leading to inconsistent resistance), impure copper (causing excessive heat), or strand breakage due to poor annealing. For example, if a 4 AWG cable’s conductor has a resistance of 10.0Ω/km (exceeding the 9.5Ω/km standard) due to manufacturing errors, the warranty covers a full replacement.

    • Insulation Failures: Problems including insulation cracking (without external damage), poor moisture resistance (leading to leakage current >0.1mA), or low-smoke non-compliance (smoke density <80% in standard tests). If the insulation peels off the conductor during normal installation (not due to excessive force), the cable is eligible for replacement.

    • Sheath Damage: For multi-conductor cables, sheath cracks, tears, or poor adhesion to the insulation layer—issues that compromise mechanical protection or moisture resistance.

  • Excluded Damages:

    • Improper Installation: Damage from pulling the cable with force exceeding 300N (for 2/0 AWG) or bending it below the minimum radius (6× the cable’s outer diameter).

    • Misuse: Using the cable for outdoor applications without weatherproofing, exposing it to temperatures above 90°C or below -20°C, or applying voltages exceeding 600V.

    • Environmental Abuse: Damage from chemical spills (e.g., concentrated acids), rodent chewing, or physical impact (e.g., heavy machinery rolling over the cable).

    • Normal Wear: Insulation aging or conductor resistance increase after 12+ years of use (within industry expectations for low-smoke cables).

  • Warranty Claim Process:

  • Claim Submission: Customers submit a claim via the company’s website or email, including the order number, batch number (from cable markings), photos/videos of the defect, and a description of how the issue occurred.

  • Verification: The technical team reviews the claim within 48 hours, verifying if the defect is covered. For complex cases (e.g., electrical performance failures), the team may request a sample of the defective cable for laboratory testing.

  • Resolution: Approved claims receive one of the following solutions:

    • Replacement: For small orders (≤5 spools), replacement cables are shipped via expedited delivery (free of charge) within 3 business days.

    • Refund: If the customer prefers not to receive a replacement, a full refund (including shipping costs) is processed within 5 business days.

    • On-Site Support: For large projects (e.g., a data center with 50+ defective reels), the company dispatches engineers to the site to assess the issue and coordinate replacements or repairs, minimizing downtime.

  • 2.5.2 Technical Support: 24/7 Expert Assistance

  • The company provides 24/7 technical support to address installation challenges, troubleshooting, and maintenance questions. The support team consists of electrical engineers with 8+ years of experience in high-temperature, low-smoke cables—ensuring they can resolve even complex issues.
  • Support Channels:

  • Phone Support: A toll-free hotline connects customers to engineers within 2 minutes (average wait time) for urgent issues (e.g., a fire pump cable failing during a test).

  • Email/Online Chat: For non-urgent questions (e.g., installation guidelines), responses are provided within 4 hours. The online chat feature allows customers to share photos of wiring setups, helping engineers offer visual guidance.

  • Video Consultation: For complex installations (e.g., wiring in a boiler room with limited space), engineers conduct video calls to review the site, suggest routing solutions, and verify compliance with safety standards.

  • Key Support Services:

  • Installation Guidance: Step-by-step advice on proper cable handling, termination, and routing. For example:

    • Guiding electricians on stripping the LSHF insulation without damaging the conductor (using specialized tools like adjustable wire strippers set to 1.2mm depth for 14 AWG).

    • Advising on conduit sizing (e.g., a 2/0 AWG cable requires a 25mm diameter conduit to allow easy pulling and heat dissipation).

  • Troubleshooting: Diagnosing and resolving common issues:

    • Overheating: If a cable runs hot during use, engineers help calculate the actual current draw (using the appliance’s power rating) and check if the AWG size is sufficient. For example, if a 10 AWG cable powering a 5kW air conditioner (20.8A) overheats, the team may discover the cable is bundled with 4 other cables—advising to derate the capacity to 32A (from 40A) or switch to an 8 AWG cable.

    • Moisture Leakage: If a megohmmeter detects low insulation resistance (≤10⁹Ω·cm), engineers guide customers to check for insulation damage (e.g., scratches from conduit edges) or improper storage (e.g., spools left in rain). They may recommend repairing small scratches with heat-shrink tubing or replacing severely damaged sections.

  • Maintenance Recommendations: Customized maintenance plans based on the application:

    • Industrial Facilities: Advising quarterly inspections of cables near heat sources (e.g., boiler rooms) to check for insulation discoloration or hardening.

    • Hospitals: Recommending annual insulation resistance tests for cables in ICU wards to ensure no moisture has penetrated the insulation.

    • Underground Projects: Suggesting bi-annual checks for sheath damage (using cable fault locators) to prevent groundwater from reaching the conductor.

  • 2.5.3 Feedback and Continuous Improvement

  • The company views customer feedback as a critical tool for enhancing the THW-2-LS cable and its services. A structured feedback loop ensures insights from customers are translated into product or process improvements.
  • Feedback Collection Methods:

  • Post-Purchase Surveys: Sent 30 days after delivery, the survey asks customers to rate product performance (e.g., “How well did the cable withstand high temperatures?”) and service quality (e.g., “Was the technical support helpful?”). Response rates average 65%, providing a large dataset for analysis.

  • On-Site Reviews: For large projects (e.g., a new power plant), the company conducts annual on-site reviews with the customer’s engineering team to assess cable performance, identify pain points (e.g., “The HDPE reels are too heavy for our workers to move”), and collect improvement suggestions.

  • Industry Partnerships: The company collaborates with construction firms, hospitals, and industrial associations to understand emerging needs (e.g., “We need a cable with 100°C resistance for new high-efficiency boilers”) and adapt the product accordingly.

  • Improvement Implementation:
  • Feedback is reviewed monthly by a cross-functional team (engineering, production, sales) to prioritize actions:

  • Product Enhancements: For example, after multiple customers reported that the 2/0 AWG cable’s sheath was difficult to strip, the team modified the sheath compound to reduce hardness by 10% (from 85D to 75D Shore hardness), making stripping easier without compromising durability.

  • Service Improvements: When customers complained about long wait times for international sample delivery, the company partnered with regional logistics providers to reduce delivery times from 5-7 days to 3-4 days.

  • Documentation Updates: If electricians frequently asked about derating factors for Bundled Cables, the company added a detailed derating chart (for 1-10 bundled cables) to the product manual and website.

  • Customers are notified of improvements via email newsletters and social media—ensuring they know their feedback drives positive change. For example, customers who suggested the 14 AWG cable needed a more flexible stranded option were informed when the company launched a 14 AWG stranded version (7 strands of 0.52mm) in 2024.

  • 3. Conclusion: A Trusted Solution for Harsh and Safety-Critical Environments

  • The THW-2-LS 600V 90°C high-temp moisture-resistant low-smoke cable stands out as a versatile, durable, and safe choice for a wide range of applications—from commercial high-rises to industrial power plants. Its core strengths—90°C temperature resistance, exceptional moisture protection, low-smoke emissions, and multi-AWG coverage—address the most pressing challenges of harsh environments, while its rigorous production process and comprehensive testing ensure consistent quality.
  • From a product perspective, the cable’s high-purity copper conductor minimizes energy loss, the LSHF insulation enhances safety, and the flexible stranding (for larger AWG sizes) simplifies installation. From a customer experience perspective, the robust packaging protects the cable during transit, the streamlined shipping process ensures on-time delivery, and the free samples allow for pre-purchase validation. The 12-year warranty and 24/7 technical support provide long-term peace of mind, making the cable a cost-effective investment despite its premium price.
  • Whether powering emergency systems in a hospital, wiring machinery in a chemical plant, or supporting data centers’ critical infrastructure, the THW-2-LS cable delivers the reliability, safety, and performance that customers demand. It is not just a cable—it is a critical component that ensures electrical systems operate safely and efficiently, even in the most challenging conditions. As industries continue to prioritize safety, energy efficiency, and durability, the THW-2-LS 600V cable is well-positioned to remain a leading choice for low-voltage, high-performance wiring solutions.
العلامات ذات الصلة： Copper Wire High-Temp Wire Moisture-Resistant Wire
فحص جودة الإنتاج
  • ورشة عمل الكابل
    ورشة عمل الكابل
  • جهاز تصوير القياس الذكي
    جهاز تصوير القياس الذكي
  • منطقة بثق الكابل
    منطقة بثق الكابل
  • ورشة عمل
    ورشة عمل
    • تعرف على المزيد حول منتجات الكابلات
    اتصل بـ Hongtai Cable Technology Co. ، Ltd
    اتصل بنا

    شركة Hongtai Cable Technology Co. ، Ltd

    البريد الإلكتروني: export@qlcables.com

               sales@qlcables.com

    Tel/Whatsapp:+86-18032066271

    إضافة ： منطقة التنمية الصناعية Xiaokou ، مقاطعة نينغجين ، مدينة Xingtai ， مقاطعة Hebei ، الصين

    حقوق الطبع والنشر © Hongtai Cable Technology Co. ، Ltd  الدعم الفني:Ronglida Technology


    خريطة الموقع

    يستخدم هذا الموقع ملفات تعريف الارتباط لضمان حصولك على أفضل تجربة على موقعنا.

    يقبل يرفض
