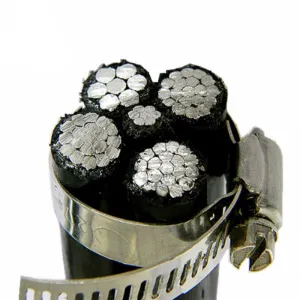

    11kv 70mm2 Al/Sc/XLPE/Sc/Cut/PVC 3+1 Aerial Bundeled Conductor Cable

  • تصنيفها：
    الأسلاك الخطية المعزولة العلوية
  • يشارك：
  • رمز الاستجابة السريعة:
  • وقت الإصدار：
    2025-08-06 06:25:30
    • التحقيق الفوري
11kv 70mm² Al/Sc/XLPE/Sc/Cut/PVC 3+1 Aerial Bundled Conductor Cable Detailed Introduction
1. Introduction: Revolutionizing Medium-Voltage Overhead Distribution
In the realm of electrical power distribution, medium-Voltage Cables serve as the critical link between high-voltage transmission networks and low-voltage end-user connections. The 11kv 70mm² Al/Sc/XLPE/Sc/Cut/PVC 3+1 Aerial Bundled Conductor Cable represents a pinnacle of engineering innovation in this category, designed to address the evolving demands of modern power grids. This cable combines advanced materials science, precision manufacturing, and functional design to deliver a solution that excels in safety, efficiency, and durability.
The designation "11kv 70mm² Al/Sc/XLPE/Sc/Cut/PVC 3+1" encapsulates the cable's core attributes: 11kV voltage rating, 70mm² conductor cross-section, a layered construction of aluminum (Al), semiconducting layers (Sc), cross-linked polyethylene insulation (XLPE), copper Tape Shielding (Cut), and PVC outer sheath, with a "3+1" configuration of Three Phase Conductors and one neutral conductor. This comprehensive specification reflects a deliberate engineering approach that balances electrical performance, mechanical robustness, and environmental resilience.
As global electricity demand grows—driven by urbanization, industrialization, and the integration of renewable energy sources—the need for reliable medium-voltage infrastructure has never been greater. This aerial Bundled Cable meets this need by offering enhanced safety compared to bare conductors, reduced maintenance requirements, and improved performance in diverse environmental conditions. Its bundled design eliminates the risk of phase-to-phase short circuits, while its layered construction ensures protection against environmental stressors, making it an ideal choice for modern distribution networks.
2. Design Philosophy and Engineering Principles
2.1 Core Design Objectives
The development of the 11kv 70mm² Aerial Bundled Conductor Cable is guided by four fundamental engineering objectives:

  • Electrical Performance Excellence: The cable must efficiently transmit 11kV power with minimal losses, while maintaining dielectric integrity and electromagnetic compatibility with surrounding systems.

  • Mechanical Reliability: It must withstand the physical stresses of overhead installation, including tension, wind load, and thermal expansion/contraction, across spans up to 80 meters.

  • Environmental Resilience: The cable must resist degradation from UV radiation, moisture, temperature extremes, and chemical exposure, ensuring a service life of 30+ years.

  • Safety Optimization: The design prioritizes protection against electrical hazards, including short circuits, insulation breakdown, and electromagnetic interference, while facilitating safe installation and maintenance.

These objectives are achieved through a sophisticated layered structure, where each component contributes specific functional properties to the overall performance of the cable.
2.2 Evolution of Aerial Bundled Cables
Aerial Bundled Cables (ABC) represent a significant advancement over traditional bare conductor systems, which require separate insulators and are prone to weather-related faults. The first generation of ABCs, introduced in the 1960s, featured simple polyethylene insulation and basic conductor designs. Modern cables like the 11kv 70mm² Al/Sc/XLPE/Sc/Cut/PVC 3+1 have evolved through several key innovations:

  • Material Advancements: The transition from polyethylene to XLPE insulation has doubled thermal resistance and improved dielectric strength.

  • Shielding Technology: Integration of semiconducting layers and metallic shielding has enhanced electrical safety and reduced electromagnetic interference.

  • Structural Optimization: Bundled designs with integrated sheathing have improved mechanical stability and simplified installation.

  • Performance Testing: Rigorous testing protocols, including accelerated aging and environmental exposure, have ensured reliability in diverse conditions.

These advancements have resulted in a cable system that reduces outage rates by up to 70% compared to traditional bare conductor systems, significantly lowering operational costs for utility providers.
3. Structural Components and Material Science
3.1 Aluminum Conductors: The Current-Carrying Core
At the heart of each conductor in the 3+1 configuration lies a high-performance aluminum conductor, meticulously engineered for optimal electrical and mechanical properties:

  • Alloy Composition: Conductors are manufactured from 1350-H19 series aluminum, a high-purity alloy (99.5% aluminum) with trace elements (<0.5%) of silicon and iron. This composition achieves a conductivity rating of 61% IACS (International Annealed Copper Standard), striking an ideal balance between electrical performance and mechanical strength.

  • Stranding Configuration: Each 70mm² conductor consists of 19 strands of 2.1mm diameter Aluminum Wire, twisted in a concentric lay pattern. This configuration offers several advantages:

  • Flexibility: Enables bending to tight radii during installation, particularly important when routing around obstacles.

  • Strength: The stranded design distributes mechanical stress evenly, increasing tensile strength compared to solid conductors.

  • Current Distribution: Minimizes skin effect (the tendency of AC current to flow near the conductor surface), reducing resistance at 50/60Hz.

  • Mechanical Properties:

  • Tensile strength: 160-180MPa

  • Elongation at break: 2-3%

  • Weight: 195g/m per 70mm² conductor

  • Surface Treatment: Each strand undergoes a three-step surface treatment process:

  1. Cleaning: Chemical etching removes oxides and contaminants to ensure proper bonding between strands.

  1. Annealing: Controlled heating at 340°C relieves internal stresses from the drawing process, enhancing flexibility.

  1. Corrosion Inhibition: Application of a thin chromate conversion coating (0.5μm) to prevent oxidation during storage and installation.

The neutral conductor, while identical in size (70mm²) to the phase conductors, features a distinct color coding (typically gray) for easy identification during installation.
3.2 Semiconducting Layers: Electric Field Management
Each aluminum conductor is encased in two semiconducting layers that play a critical role in managing electric fields within the cable:

  • Inner Semiconducting Layer:

  • Material Composition: Carbon-black filled ethylene propylene rubber (EPR) with a volume resistivity of 50-100Ω·cm.

  • Function: Eliminates air gaps between the conductor and insulation, ensuring uniform electric field distribution and preventing partial discharges. The semiconducting material matches the conductor's potential, smoothing field gradients at conductor irregularities.

  • Outer Semiconducting Layer:

  • Material Composition: Similar to the inner layer but with higher carbon black content (volume resistivity 20-50Ω·cm) for improved conductivity.

  • Thickness: 0.6mm, applied over the XLPE insulation.

  • Function: Serves as a stress relief cone at the insulation-shield interface, distributing electrical stress evenly and preventing corona discharge. It also provides a smooth surface for bonding with the Copper Tape Shield.

Both layers are extruded in a continuous process with the conductor and insulation, ensuring complete adhesion and eliminating interfaces that could trap air or moisture.
3.3 XLPE Insulation: The Dielectric Barrier
The cross-linked polyethylene (XLPE) insulation forms the critical dielectric barrier that enables safe 11kV operation:

  • Material Properties: XLPE is produced by cross-linking polyethylene molecules using a peroxide curing process, creating a three-dimensional molecular structure. This transformation enhances several key properties compared to conventional polyethylene:

  • Dielectric strength: 25-30kV/mm (vs. 18-20kV/mm for PE)

  • Operating temperature: -40°C to +90°C continuous (vs. -40°C to +70°C for PE)

  • Thermal stability: Resistant to melting or flow under overload conditions

  • Thickness and Dimensions:

  • Nominal thickness: 1.6mm for 70mm² conductors

  • Tolerance: ±0.1mm to ensure consistent dielectric performance

  • Overall diameter after insulation: 12.3mm per conductor

  • Manufacturing Process: The insulation is applied using a tandem extrusion process:

  1. Inner semiconducting layer is extruded onto the conductor.

  1. XLPE insulation is extruded over the inner semiconducting layer.

  1. Outer semiconducting layer is extruded over the insulation.

  1. The assembly undergoes continuous vulcanization at 200-250°C to cross-link the XLPE molecules.

This process ensures complete bonding between layers, eliminating voids that could cause electrical breakdown.
3.4 Copper Tape Shielding: Electromagnetic Containment
A thin copper tape shield provides critical electromagnetic shielding and fault current handling:

  • Material Specifications:

  • Copper grade: C11000 (99.9% pure) for high conductivity

  • Thickness: 0.15mm

  • Application Method: The copper tape is helically wrapped around the outer semiconducting layer with 100% coverage, ensuring complete electromagnetic containment. The overlap is bonded using conductive adhesive to maintain electrical continuity.

  • Functional Roles:

  • Electromagnetic Shielding: Contains the electric field within the cable, reducing interference with nearby communication lines by >90%.

  • Fault Current Path: Provides a low-impedance path for fault currents to flow to ground, enabling protective devices to operate quickly.

  • Static Shielding: Prevents external electric fields from inducing voltages in the cable.

3.5 PVC Outer Sheath: Environmental Protection
The entire bundle of three phase conductors and one neutral conductor is encased in a robust PVC Sheath that provides the final layer of protection:

  • Material Formulation:

  • Base polymer: Polyvinyl chloride compound with a Shore hardness of 85±5

  • Additives:

  • UV stabilizers (2-3% by weight) to prevent degradation from sunlight

  • Flame retardants (5-7% by weight) meeting IEC 60332-1

  • Antioxidants to resist thermal aging

  • Impact modifiers to enhance low-temperature flexibility

  • Thickness and Dimensions:

  • Nominal thickness: 1.4mm

  • Overall dimensions of bundled cable: 32mm x 28mm (width x height)

  • Mechanical Properties:

  • Tensile strength: >15MPa

  • Elongation at break: >150%

  • Impact resistance: Passes -20°C cold impact test (IEC 60811-1-2)

  • Application Process: The PVC sheath is extruded over the bundled conductors in a single pass, with internal ribs that separate and support each conductor, preventing contact and ensuring mechanical stability.

4. Performance Characteristics and Technical Specifications
4.1 Electrical Performance Metrics
The 11kv 70mm² Aerial Bundled Cable delivers exceptional electrical performance under diverse operating conditions:

  • Voltage Ratings:

  • Rated voltage (U0/U): 6.3kV/11kV (phase-to-ground/phase-to-phase)

  • Lightning impulse withstand voltage: 75kV (1.2/50μs waveform)

  • Power frequency withstand voltage: 30kV for 10 minutes (dry) and 25kV for 10 minutes (wet)

  • Partial discharge level: <10pC at 1.73U0 (11kV)

  • Current-Carrying Capacity (Ampacity):

  • At 30°C ambient temperature: 240A per conductor (free air)

  • At 40°C ambient temperature: 215A (10% derating)

  • At 50°C ambient temperature: 190A (20% derating)

  • Short-term overload (1 hour): 300A (25% above rated)

  • Resistance Characteristics:

  • DC resistance at 20°C: 0.289Ω/km per conductor

  • AC resistance at 50Hz: 0.305Ω/km per conductor (including skin effect)

  • Reactance: 0.35Ω/km at 50Hz

  • Impedance: 0.46Ω/km at 50Hz

  • Loss Characteristics:

  • Conductor losses at full load: 17.6W/m (total for 3+1 conductors)

  • Dielectric losses: <0.5W/m at rated voltage

  • Total losses: <18.1W/m, ensuring high energy efficiency

4.2 Mechanical Performance Characteristics
The cable's mechanical design ensures reliability in overhead installations:

  • Tensile Strength:

  • Breaking load of complete cable: 9.2kN

  • Maximum recommended operating tension: 3.7kN (40% of breaking load)

  • Flexibility and Bending:

  • Minimum installation bending radius: 12 times overall diameter (384mm)

  • Minimum operating bending radius: 15 times overall diameter (480mm)

  • Bending test: Withstands 10 cycles of bending to installation radius without damage

  • Impact Resistance:

  • Resists impact from 2kg weight dropped from 1m height (IEC 60811-503)

  • No damage to sheath or internal components after impact

  • Vibration Resistance:

  • Withstands 10 million cycles of vibration at 10-50Hz (amplitude ±1mm) without fatigue failure

  • Critical for areas with high wind activity

4.3 Environmental Resistance and Durability
The cable is engineered to withstand extreme environmental conditions:

  • Temperature Range:

  • Continuous operating temperature: -40°C to +90°C

  • Short-term operating temperature (1 hour): +130°C (overload)

  • Temperature cycling: Withstands 1000 cycles between -40°C and +90°C without degradation

  • Weather Resistance:

  • UV resistance: After 2000 hours of UVB-313 exposure (equivalent to 20 years outdoors), sheath retains >80% of original tensile strength

  • Ozone resistance: Unaffected by ozone concentrations up to 200ppm (IEC 60811-404)

  • Water resistance: Insulation resistance remains >1000MΩ·km after 1000 hours immersion at 70°C

  • Chemical Resistance:

  • Resistant to:

  • 5% sulfuric acid and 10% hydrochloric acid (1000 hours exposure)

  • 10% sodium hydroxide and 10% ammonia solutions (1000 hours exposure)

  • Petroleum products, lubricating oils, and agricultural chemicals

  • Suitable for installation in industrial zones, agricultural areas, and coastal regions

  • Service Life Expectancy:

  • 30+ years in normal operating conditions

  • 20+ years in severe environments (coastal, industrial, extreme temperature variations)

  • Supported by accelerated aging tests showing <20% property loss after 10,000 hours at 135°C
