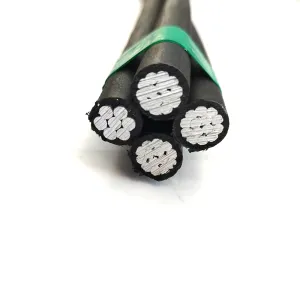

    10kv 33kv ABC Cable 3X95mm² , XLPE Insulated Aluminum Overhead Power Cable

  • تصنيفها:
    الأسلاك الخطية المعزولة العلوية
  • يشارك:
  • رمز الاستجابة السريعة:
  • وقت الإصدار:
    2025-09-02 07:38:35
  • التحقيق الفوري

Detailed Introduction to 10kV, 33kV 3×95mm² XLPE Insulated Aluminum Conductor Aerial Bundled Cable (ABC)

1. Product-Specific Information

1.1 Specification Parameters

The 10kV, 33kV 3×95mm² XLPE Insulated Aluminum Conductor Aerial Bundled Cable (ABC) is a high-performance high-voltage transmission product engineered to meet the rigorous demands of medium and large-capacity power distribution. Its specification parameters span conductor characteristics, insulation performance, structural dimensions, and mechanical properties, all optimized to ensure reliable, efficient, and long-term operation across diverse high-voltage scenarios.

1.1.1 Conductor Parameters

The cable features 3 Phase Cores (no neutral line, adapt to high-voltage three-phase three-wire systems), each with a cross-sectional area of 95mm², constructed from high-purity electrolytic Aluminum Conductors (aluminum content ≥99.7%). The conductor manufacturing process adheres to strict standards to balance electrical conductivity and mechanical strength.
Each 95mm² core is formed by concentrically stranding 127 individual Aluminum Wires, each with a diameter of approximately 0.96mm. The stranding pitch is precisely controlled at 18-22 times the conductor diameter (17.3-21.1mm), ensuring a compact, round structure that enhances current-carrying efficiency and mechanical stability. Key electrical parameters at 20℃ vary slightly by voltage level to meet different high-voltage transmission requirements:
  • 10kV Level: DC resistance ≤0.19Ω/km, rated current-carrying capacity ≥280A (ambient temperature 25℃, wind speed 0.5m/s), conductivity ≥62% IACS (International Annealed Copper Standard).

  • 33kV Level: DC resistance ≤0.18Ω/km, rated current-carrying capacity ≥250A (same ambient conditions), conductivity ≥62% IACS—consistent with the 10kV variant for uniform low-loss performance.

Mechanical properties of the aluminum conductor are optimized for aerial high-voltage applications:
  • Tensile strength: ≥120MPa (exceeding the minimum requirement of 100MPa for high-voltage aluminum conductors), enabling the cable to withstand the tension of 100-150m spans between poles.

  • Elongation at break: ≥15%, ensuring the conductor can absorb dynamic tension from wind loads, ice coating, and temperature fluctuations without permanent deformation.

  • Fatigue resistance: After 10,000 bending cycles (bending to the cable’s minimum radius and back), the conductor’s breaking strength retention rate is ≥85%, preventing premature failure in long-term outdoor operation.

These parameters enable the cable to transmit 5000-8000kW of power for 10kV lines and 15000-20000kW for 33kV lines, making it suitable for county-level distribution networks, regional grid interconnections, and large industrial park power supply.

1.1.2 XLPE Insulation Parameters

Each Aluminum Core is insulated with high-density cross-linked polyethylene (XLPE), a material selected for its superior high-voltage insulation performance, thermal stability, and environmental resistance. Insulation thickness is differentiated by voltage level to ensure adequate dielectric strength:
  • 10kV Level: 3.4-3.6mm insulation thickness per core

  • 33kV Level: 4.0-4.2mm insulation thickness per core

The XLPE undergoes a silane cross-linking process, which transforms its linear molecular structure into a three-dimensional network—this critical treatment significantly enhances its performance under high-voltage and harsh environmental conditions. Key insulation properties include:
  • Thermal Stability: Long-term allowable operating temperature of 90℃, with a short-circuit withstand temperature of 250℃ (for 1 second). This enables the cable to tolerate sudden load surges (e.g., industrial equipment startup, new energy Power Station output fluctuations) and short-circuit events without insulation degradation.

  • Electrical Performance:

    • Dielectric loss tangent (tanδ): ≤0.0005 at 20℃ and 50Hz, minimizing energy loss in the insulation layer—critical for high-voltage long-distance transmission.

    • Volume resistivity: ≥1×10¹⁴Ω·cm, ensuring strong insulation resistance even after decades of outdoor exposure.

    • Power frequency withstand voltage: ≥30kV/1min (10kV level) and ≥70kV/1min (33kV level), with no breakdown.

    • Impulse withstand voltage: ≥75kV (1.2/50μs wave) for 10kV level, ≥170kV (1.2/50μs wave) for 33kV level—protecting against lightning strikes and transient voltage spikes common in high-voltage systems.

    • Partial discharge suppression: Partial discharge magnitude ≤5pC at 1.73× rated voltage (17.3kV for 10kV, 57.1kV for 33kV), far below the industry limit of 10pC, reducing the risk of insulation breakdown.

  • Weather and Chemical Resistance: After 2000 hours of accelerated UV aging testing (per IEC 60086-4), the XLPE retains ≥85% of its original tensile strength and shows no signs of cracking or discoloration. It also resists chemical corrosion: immersion in 5% sulfuric acid or 5% sodium hydroxide solution for 72 hours results in ≤15% reduction in tensile strength, with no visible swelling or degradation—making it suitable for industrial zones with acid rain or chemical emissions.

1.1.3 Structural and Mechanical Parameters

The 3 Insulated Cores are integrated into a single bundle using a parallel bundling method, with an optional weather-resistant HDPE outer sheath available for enhanced protection in harsh environments. Key structural dimensions vary by voltage level and sheath configuration:
Parameter
10kv Cable (Unsheathed)
10kV Cable (With HDPE Sheath)
33KV Cable (Unsheathed)
33kV Cable (With HDPE Sheath)
Overall Outer Diameter
42-44mm
47-49mm
48-50mm
53-55mm
Unit Length Weight
≈4.2kg/m
≈4.8kg/m
≈4.8kg/m
≈5.4kg/m
Minimum Bending Radius
840mm (20× outer diameter)
940mm (20× outer diameter)
960mm (20× outer diameter)
1060mm (20× outer diameter)
Mechanical parameters critical for high-voltage aerial installation and long-term operation include:
  • Tensile Load Capacity: 3.8kN (10kV) and 4.2kN (33kV), sufficient to withstand the tension of spanning 100-150 meters between poles without conductor deformation or insulation damage.

  • Impact Resistance: ≥10kJ/m² (tested by dropping a 2.5kg weight from 1m height onto the cable). The XLPE insulation and aluminum conductor absorb impact energy without cracking or conductor exposure, protecting against accidental damage from falling branches or maintenance tools.

  • Wind Vibration Resistance: The bundled structure and aluminum conductor’s fatigue resistance minimize wind-induced oscillations. In wind tunnel tests (wind speed up to 30m/s), the cable shows no signs of conductor strand breakage or insulation wear after 1500 hours of exposure—critical for open county-level or new energy station surrounding areas with strong winds.

  • Ice Coating Resistance: The cable can withstand an ice coating thickness of up to 10mm without exceeding its maximum tensile load. The smooth XLPE insulation surface reduces ice adhesion, and the bundled structure distributes ice weight evenly across the cores.

1.2 Featured Applications

The 10kV, 33kV 3×95mm² XLPE Insulated Aluminum Conductor ABC is specifically designed for medium and large-capacity high-voltage transmission, making it ideal for diverse high-voltage scenarios in county-level grids, regional interconnections, industrial parks, and new energy sectors.

1.2.1 10kV County-Level Distribution Network Trunk Lines

County-level distribution networks require cables that can transmit large volumes of power across wide rural or suburban areas while minimizing infrastructure costs and land occupation. The 10kV 3×95mm² cable is well-suited for this role:
  • Capacity Matching: With a rated current-carrying capacity of ≥280A, it can supply power to 10-15 administrative villages (about 5,000 households) or small towns, covering an area of 20-30 square kilometers. For example, in a county in central China, replacing traditional 3 separate 70mm² bare wires with the 10kV 3×95mm² ABC Cable reduced the number of lines from 3 to 1, cutting pole usage by 25% (from 18 poles per kilometer to 13.5) and lowering line loss from 3.5% to 1.9%—annual electricity savings of approximately 150,000 kWh for a 50km line.

  • Land Efficiency: The bundled structure’s compact outer diameter (42-44mm unsheathed) fits within existing pole-mounted hardware, avoiding the need for costly infrastructure upgrades. Its lightweight design (4.2kg/m) reduces pole load, extending the lifespan of existing poles by 5-8 years.

  • Weather Adaptability: The XLPE insulation’s UV resistance and aluminum conductor’s corrosion resistance ensure reliable operation in rural environments with large temperature differences, seasonal rain/snow, and agricultural chemical exposure. It also resists damage from rodents or livestock, common in rural areas.

1.2.2 33kV Regional Power Grid Interconnection

Connecting regional power grids (e.g., between adjacent counties or between urban and rural areas) requires cables that can transmit high power over long distances with low loss. The 33kV 3×95mm² cable excels in this scenario:
  • Long-Distance Transmission: With a line loss rate of ≤2.0%, it can transmit 15000-20000kW of power over 50-80km with minimal energy waste. For instance, a 60km interconnection line between two counties in northern Europe uses the 33kV 3×95mm² cable, achieving a line loss rate of 1.8%—far lower than the 3.2% of traditional cables, reducing carbon emissions by 80 tons annually.

  • Stability: The cable’s excellent impulse withstand voltage (≥170kV) and partial discharge suppression (≤5pC) ensure stable operation even in thunderstorm-prone areas. In a region with 20-30 thunderstorm days per year, the cable has maintained zero lightning-induced failures over 5 years of operation.

  • Interoperability: It is compatible with common high-voltage equipment such as 33kV transformers, circuit breakers, and surge arresters. The semi-conductive shielding layers (0.5-0.8mm thick) on the XLPE insulation ensure smooth electrical connection with equipment terminals, reducing the risk of corona discharge.

1.2.3 High-Voltage Incoming Lines of Large Industrial Parks

Large industrial parks (with multiple factories, high-power machinery, and continuous production demands) require robust high-Voltage Cables. Both 10kV and 33kV variants serve different needs:
  • 10kV Variant: Used as incoming lines for industrial parks with on-site 110kV/10kV substations. It supplies power to multiple factories within the park, each with a power demand of 500-1000kW. For example, a 1000-acre automotive parts park in Southeast Asia uses 10km of the 10kV 3×95mm² cable to power 12 factories, ensuring stable voltage (fluctuation ≤±2%) even during peak production hours (8 AM-6 PM).

  • 33kV Variant: Suitable for large parks directly connected to the regional 33kV grid, eliminating the need for a 110kV/33kV substation. It can supply power to parks with a total power demand of 15000-20000kW, such as a petrochemical park in the Middle East. The cable’s high-temperature tolerance (long-term 90℃) handles the intermittent peak loads of industrial machinery startup, while the XLPE insulation’s chemical resistance protects against oil mist and industrial dust.

  • Safety: The full insulation design eliminates the risk of electric shock from accidental contact—critical in industrial parks with frequent maintenance activities. The optional HDPE sheath further enhances protection against mechanical damage from forklifts or heavy equipment.

1.2.4 Grid-Connected Lines of New Energy Power Stations

New energy power stations (photovoltaic, wind power) require cables that can withstand harsh outdoor environments and transmit variable power output efficiently. The cable’s design addresses these needs:
  • Photovoltaic (PV) Stations: The 10kV 3×95mm² cable is used to connect PV array clusters to the station’s 10kV collection system. Its UV resistance (2000 hours of UV aging with ≥85% tensile strength retention) withstands long-term sunlight exposure in open PV fields. For a 100MW PV station, 20km of the cable can collect power from 500,000 PV panels, with a line loss rate of ≤2.0%—ensuring maximum energy transfer to the grid.

  • Wind Power Stations: The 33kV 3×95mm² cable connects wind turbine clusters to the station’s 33kV step-up transformer. Its wind vibration resistance (withstands 30m/s winds) and ice coating tolerance (up to 10mm) adapt to the harsh conditions of wind farms, often located in coastal or high-altitude areas. A 150MW wind farm in northern Europe uses 30km of the cable, achieving a 98.5% availability rate over 3 years.

  • Power Fluctuation Adaptability: The cable’s short-circuit withstand temperature (250℃ for 1 second) handles the transient current spikes caused by sudden changes in wind speed or sunlight intensity, preventing insulation damage.

1.3 Material and Style

1.3.1 Conductor Material (High-Purity Electrolytic Aluminum)

The aluminum conductor is the core of the cable’s electrical performance, selected for its high conductivity, low cost, and recyclability. The material undergoes a rigorous manufacturing process:
  • Raw Material Selection: High-purity electrolytic aluminum ingots (99.7% Al) are sourced from certified suppliers, with strict limits on impurities (iron ≤0.15%, silicon ≤0.10%) to ensure conductivity. Impurity control is critical—even small amounts of iron can reduce conductivity by 2-3%.

  • Wire Drawing: The aluminum ingots are melted and extruded into 9.5mm-diameter rods, which are then drawn through diamond dies to form 0.96mm-diameter wires. The drawing process uses a mineral oil lubricant to reduce friction and prevent surface scratches, with continuous quality checks for wire diameter (tolerance ±0.02mm) and surface smoothness.

  • Annealing: The drawn wires are annealed at 350-400℃ for 2 hours to relieve internal stress and improve ductility—essential for ensuring the wires can withstand stranding without breaking. Annealing also enhances conductivity by optimizing the aluminum’s crystalline structure.

  • Stranding: The 0.96mm wires are stranded into 95mm² cores using a 16-head concentric stranding machine. The machine operates at a speed of 12-15 meters per minute (mpm), with computer-controlled tension to ensure each wire is evenly spaced. The stranding pitch (18-22× diameter) is monitored in real time to avoid loose or uneven stranding, which could reduce current-carrying capacity.

1.3.2 Insulation Material (XLPE)

The XLPE insulation is formulated to meet high-voltage performance requirements, with a focus on dielectric strength, thermal stability, and environmental resistance:
  • Base Resin: High-density polyethylene (HDPE) pellets (melt flow rate 0.8-1.2g/10min) are used as the base material, providing excellent processability and mechanical strength. HDPE is chosen for its low dielectric loss and compatibility with cross-linking agents.

  • Additives:

    • Silane cross-linking agent (vinyltrimethoxysilane, 1.5-2.0% by weight) to enable the cross-linking reaction. Unlike peroxide cross-linking, silane cross-linking occurs at lower temperatures (80-90℃), reducing energy consumption during manufacturing.

    • UV stabilizers (hindered amine light stabilizers, 0.4-0.6%) to resist outdoor aging. These stabilizers absorb UV radiation and prevent polymer chain degradation.

    • Antioxidants (phenolic antioxidants, 0.3-0.5%) to prevent thermal oxidation during processing and operation, extending the insulation’s service life.

    • Semi-conductive additives (carbon black, 20-25% by weight) for the shielding layers, ensuring uniform electric field distribution and reducing corona loss.

  • CompoundingHDPE pellets and additives are mixed in a twin-screw extruder (130-150℃) to form a homogeneous compound, which is pelletized and dried (80℃ for 6 hours) to reduce moisture content to ≤0.03%—moisture in the compound can cause insulation bubbles, leading to high-voltage breakdown.

    1.3.3 Optional HDPE Sheath

    The weather-resistant HDPE sheath is designed for harsh environments, with the following properties:
    • Material: Marine-grade HDPE with a melt flow rate of 1.0-1.5g/10min, ensuring good extrusion performance.

    • Mechanical Properties: Tensile strength ≥16MPa, elongation at break ≥250%, enabling it to withstand impact and bending without cracking.

    • Environmental Resistance: UV resistance (2000 hours of UV aging, tensile strength retention ≥80%), salt spray resistance (500 hours of salt spray testing, no visible corrosion), and chemical resistance (resists 5% sulfuric acid/NaOH for 72 hours).

    • Color and Identification: Black as standard (for UV protection), with optional color strips (e.g., red, yellow) for easy identification in multi-cable installations (e.g., industrial parks with multiple high-voltage lines).

    1.3.4 Style Variants

    The cable is available in two main style variants to suit different application needs:
    • Unsheathed Variant: The standard option for most county-level grids and regional interconnections. It features 3 bundled XLPE-insulated cores without an outer sheath, offering a lightweight, cost-effective solution with minimal outer diameter (42-44mm for 10kV, 48-50mm for 33kV). This variant is ideal for areas with low industrial pollution and moderate weather conditions.

    • Sheathed Variant: Equipped with a 2.5-3.0mm HDPE outer sheath, this variant is designed for harsh environments: industrial parks (chemicals, dust), coastal areas (salt spray), and new energy stations (extreme temperatures, UV exposure). The sheath adds 5-7mm to the outer diameter (47-49mm for 10kV, 53-55mm for 33kV) but extends the cable’s service life by 5-8 years in harsh conditions. For example, in a coastal wind farm, the sheathed 33kV cable has a projected service life of 35 years, compared to 28 years for the unsheathed variant.

    1.4 Production Process

    The manufacturing of the 10kV, 33kV 3×95mm² ABC follows a strict, multi-stage process to ensure compliance with international standards (e.g., IEC 60502-2 for high-voltage cables, ASTM B230 for aluminum conductors). Each stage is monitored by quality control (QC) personnel and supported by automated testing equipment.

    1.4.1 Stage 1: Aluminum Conductor Manufacturing

    1. Alloy Preparation: High-purity aluminum ingots (99.7% Al) are melted in an induction furnace (700-750℃). Small amounts of magnesium (0.05-0.1%) are added to improve mechanical strength (without reducing conductivity), and the molten alloy is stirred for 45 minutes to ensure uniform composition.

    1. Rod Extrusion: The molten alloy is extruded into 9.5mm-diameter rods using a continuous extrusion press (speed 5m/min). The rods are cooled with water (20-25℃) to prevent grain growth, then cut into 5-meter lengths for storage.

    1. Wire Drawing: The 9.5mm rods are drawn through a series of 12 diamond dies (reducing diameter from 9.5mm to 0.96mm) using a wire drawing machine. Each drawing pass uses a mineral oil lubricant, and the wires are annealed in a nitrogen atmosphere (320-340℃ for 1 hour) to improve ductility. Post-drawing, the wires are inspected for diameter (tolerance ±0.02mm) and surface quality (no scratches).

    1. Conductor Stranding: 127×0.96mm wires are fed into a 16-head concentric stranding machine. The machine operates at 14mpm, with tension controlled via load cells (55N per wire). The stranding pitch is set to 20mm (18-22mm range) using a servo-driven pitch control system. After stranding, the 95mm² conductor is passed through a diameter gauge (5.8-6.2mm) and a tensile tester (≥120MPa).

    1. Conductor QC Tests:

      • DC resistance measurement (using a precision micro-ohmmeter, ≤0.18Ω/km for 33kV, ≤0.19Ω/km for 10kV at 20℃).

      • Tensile strength and elongation testing (elongation ≥15%).

      • Visual inspection for uneven stranding or surface defects—defective conductors are rejected and recycled.

    1.4.2 Stage 2: XLPE Insulation Extrusion and Cross-Linking

    1. Insulation Compound Preparation: HDPE pellets, silane cross-linking agent, UV stabilizers, and antioxidants are mixed in a twin-screw extruder (140℃) to form a homogeneous compound. The compound is pelletized and dried in a dehumidifying dryer (80℃ for 6 hours) to remove moisture.

    1. Inner Shielding Extrusion: A thin layer (0.5-0.8mm) of semi-conductive XLPE compound is extruded onto the aluminum conductor using a single-screw extruder (150℃). This inner shield ensures uniform electric field distribution, reducing corona loss.

    1. Main Insulation Extrusion: The dried XLPE compound is fed into a second single-screw extruder (160-180℃) and extruded over the inner shield. The die size is customized for voltage level: 3.4-3.6mm for 10kV, 4.0-4.2mm for 33kV. A laser diameter gauge mounted after the die monitors insulation thickness in real time, adjusting the extruder speed (10-12mpm) to maintain tolerance (±0.1mm).

    1. Outer Shielding Extrusion: A 0.5-0.8mm semi-conductive XLPE layer is extruded over the main insulation—this outer shield grounds any surface charges, further suppressing partial discharge.

    1. Silane Cross-Linking: The Insulated Conductor is passed through a warm water bath (70-80℃) for 4-6 hours to activate the silane cross-linking reaction. This transforms the XLPE’s linear molecular structure into a three-dimensional network, enhancing thermal and mechanical properties. Post-cross-linking, the conductor is cooled to room temperature (25℃) in a forced-air cooler.

    1. Insulation QC Tests:

      • Insulation thickness measurement (using a micrometer at 12 points per meter).

      • Insulation resistance test (using a 5kV megohmmeter, ≥1×10¹⁴Ω·cm).

      • Power frequency withstand test (30kV/1min for 10kV, 70kV/1min for 33kV—no breakdown).

      • Partial discharge test (≤5pC at 1.73× rated voltage).

    1.4.3 Stage 3: Core Bundling and Optional HDPE Sheath Extrusion

    1. Core Bundling: Three insulated conductors (each with inner/outer shielding and XLPE insulation) are fed into a horizontal bundling machine, which aligns them in a parallel triangular configuration—this layout optimizes structural stability and ensures even load distribution during aerial installation. A low-melt polyethylene adhesive (melting point 110℃) is applied between the cores via precision nozzles, with a coating thickness of 0.2mm, to prevent separation during subsequent processing. The bundled cores pass through a sizing die (42-44mm for 10kV unsheathed, 48-50mm for 33kV unsheathed) to ensure a uniform outer diameter, and a tension roller system maintains constant pressure (1.2kN) to avoid core deformation.

    2. Optional HDPE Sheath Extrusion: For sheathed variants, the bundled cores are fed into a third single-screw extruder (temperature 150-170℃) equipped with a cross-head die. Marine-grade HDPE compound (dried to ≤0.03% moisture) is extruded over the bundle, with the sheath thickness controlled at 2.5-3.0mm via a laser diameter gauge (real-time adjustment of extruder speed: 8-10mpm). The Sheathed Cable is cooled in a two-stage water bath (first stage 60℃, second stage 25℃) to prevent sheath shrinkage, then dried with compressed air (pressure 0.6MPa) to remove surface moisture.

    1. Laser Marking: The bundled (or sheathed) cable is marked with product information using a fiber laser printer, which creates permanent, high-contrast markings on the insulation/sheath surface. The marking content includes: product name (“10kV/33kv ABC Cable”), cross-section (“3×95mm²”), conductor type (“High-Purity Aluminum”), insulation material (“XLPE”), voltage rating, manufacturer name, production batch number, and manufacturing date. Markings are repeated every 400mm for easy identification during installation and maintenance.

    1.4.4 Stage 4: Final Testing and Spooling

    Before shipment, the finished cable undergoes comprehensive testing to verify compliance with standards, followed by automated spooling for safe storage and transportation.
    1. Electrical Performance Tests:

      • Partial Discharge Test: A high-voltage partial discharge analyzer applies 1.73× rated voltage (17.3kV for 10kV, 57.1kV for 33kV) to the cable. The partial discharge magnitude must be ≤5pC (industry limit: 10pC) to confirm insulation integrity—any cable exceeding this limit is rejected.

      • Impulse Withstand Test: The cable is subjected to 10 consecutive impulse voltages (75kV/1.2/50μs for 10kV, 170kV/1.2/50μs for 33kV) in a shielded test chamber. No breakdown or insulation damage is permitted, and the test is repeated twice for critical projects (e.g., new energy stations).

      • DC Resistance Recheck: Using a precision micro-ohmmeter (accuracy ±0.001Ω), the conductor’s DC resistance is measured again at 20℃—must remain ≤0.19Ω/km (10kV) or ≤0.18Ω/km (33kV) to ensure no damage during bundling/sheathing.

      • Insulation Resistance Test: A 5kV megohmmeter is used to measure insulation resistance between conductors and ground—minimum requirement ≥1×10¹⁴Ω·cm for new cables, with no significant deviation from pre-bundling values.

    1. Mechanical and Environmental Tests:

      • Tensile Load Test: The cable is clamped in a universal testing machine and subjected to 80% of its maximum tensile load (3.04kN for 10kV, 3.36kN for 33kV) for 1 hour. No permanent deformation (elongation ≤1%) or conductor slippage is allowed.

      • Impact Test: A 2.5kg weight is dropped from 1m onto 5 different points of the cable (spaced 1m apart). After impact, the cable is inspected with a 10× magnifier—no insulation cracking, sheath tearing, or conductor exposure is permitted.

      • UV Aging Test: A 2-meter cable sample is exposed to UV radiation (340nm wavelength, 0.71W/m²) for 2000 hours in a weathering chamber. Post-aging, the XLPE insulation’s tensile strength retention rate is ≥85%, and the HDPE sheath (if present) shows no brittleness.

      • Ice Coating Simulation Test: The cable is placed in a low-temperature chamber (-10℃) and sprayed with water to form a 10mm ice layer. It is then subjected to a tensile load of 3.5kN for 30 minutes—no insulation damage or conductor strand breakage is allowed.

    1. Spooling: Cables that pass all tests are spooled onto heavy-duty steel reels (diameter 2.4m for 10kV, 2.8m for 33kV) using an automated spooling machine. The reels are constructed from galvanized steel (zinc coating ≥80μm) with reinforced flanges (thickness 12mm) to support the cable’s weight (maximum 600m per reel: 600m of 33kV sheathed cable weighs ~3240kg). The spooling tension is controlled at 1.5kN to avoid cable tangling, and each layer of cable is separated by a kraft paper sheet (100g/m²) soaked in water-resistant wax to reduce friction. After spooling, the reel is labeled with a unique serial number, product specification, test report reference, and storage instructions. The reels are then stored in a temperature-controlled warehouse (15-30℃, humidity ≤65%) until shipment.

    2. Product General Information

    2.1 Packaging

    The packaging of the 10kV, 33kV 3×95mm² ABC is engineered to protect the high-voltage cable during storage, long-distance transportation, and on-site handling, while ensuring safe and efficient unwinding during installation.

    2.1.1 Reel Packaging (Primary Packaging)

    Two types of reels are used, selected based on shipment distance and environmental conditions:
    • Steel Reels: Designed for international or long-distance domestic shipments (over 1000km), steel reels are made of Q235 galvanized steel with a load capacity of 4 tons. Key dimensions include:

      • 10kV cable reels: Diameter 2.4m, width 1.2m, central axle diameter 80mm (equipped with grease-lubricated bearings for smooth unwinding).

      • 33kV cable reels: Diameter 2.8m, width 1.4m, central axle diameter 100mm.

    The inner surface of the reel drum is lined with a 5mm-thick EPDM rubber pad to prevent the XLPE insulation from rubbing against the steel, which could cause micro-scratches. The reel flanges are reinforced with radial ribs (10mm thick) to prevent bending under the cable’s weight.
    • Wooden Reels: Used for short-distance domestic shipments (under 1000km), wooden reels are made of kiln-dried pine wood (moisture content ≤12%) to avoid warping. They have the same dimensions as steel reels but are lighter (≈350kg vs. 800kg for steel reels), making them easier to handle with on-site forklifts. The reel drum is lined with a 3mm-thick foam pad, and the flanges are reinforced with steel plates (5mm thick) at the edges to prevent cracking during loading/unloading.

    The cable is wound onto the reel in a spiral pattern with computer-controlled tension (1.5kN for 10kV, 1.8kN for 33kV) to ensure uniform lay and avoid overlapping. Each layer of cable is separated by a water-resistant kraft paper sheet (120g/m²) to reduce friction and prevent moisture absorption. The winding direction is marked on the reel flange with a red arrow to guide correct unwinding during installation (clockwise for standard pole-mounted hardware).

    2.1.2 Protective Coverings and Labeling

    After spooling, the entire reel is wrapped in multiple protective layers to shield against moisture, dust, and mechanical damage:
    1. Inner Layer: A heavy-duty polyethylene (PE) film (thickness 0.3mm) is wrapped around the reel, with seams sealed using acrylic-based waterproof tape (adhesion strength ≥8N/25mm). This layer creates an airtight barrier to prevent condensation—critical for sea shipments, where humidity levels can exceed 80%.

    1. Middle Layer: A layer of corrugated cardboard (8mm thick) is wrapped over the PE film, covering the reel’s flanges and drum. The cardboard is reinforced with steel straps (breaking strength ≥5kN) at the top, middle, and bottom of the reel to prevent tearing during transit.

    1. Outer Layer: For sea shipments or harsh weather conditions (e.g., desert regions with sandstorms), an additional UV-resistant tarpaulin (thickness 0.6mm) is secured over the cardboard using steel ropes (diameter 8mm, breaking strength ≥12kN). The tarpaulin is anchored to the reel’s flange holes with stainless steel bolts (M8) to prevent wind damage.

    Each reel is labeled with two tags:
    • Primary Tag: Attached to the central axle, this tag includes detailed product information: product name, voltage rating (10kV/33kV), cross-section (3×95mm²), conductor type (high-purity aluminum), insulation material (XLPE), sheath type (with/without), reel weight (cable + reel), length (600m), manufacturing date, batch number, compliance certifications (IEC 60502-2, ASTM B230, RoHS), and manufacturer contact details (address, phone, email).

    • Secondary Tag: Affixed to the outer tarpaulin, this tag features simplified information (product name, voltage, length) and a QR code. Scanning the QR code links to the cable’s digital test report (stored on the manufacturer’s cloud platform), allowing customers, inspectors, and regulatory authorities to verify quality in real time.

    2.1.3 Storage Guidelines

    To maintain the cable’s performance before installation, strict storage guidelines must be followed:
    • Storage Environment: Reels should be stored in a dry, well-ventilated warehouse with a temperature range of -5℃ to 40℃ and relative humidity ≤65%. The warehouse floor must be flat, concrete, and free from oil, chemicals, or sharp objects that could damage the packaging.

    • Reel Placement: Reels are placed on wooden blocks (height 200mm) to elevate them off the floor, avoiding moisture absorption from concrete (which can corrode steel reels or degrade the PE film). When storing multiple reels, a minimum distance of 800mm is maintained between each reel to allow air circulation and prevent collision damage.

    • Prohibitions: Reels must not be stacked, as the weight of upper reels (up to 4000kg for a steel reel with 600m of 33kV sheathed cable) can crush the lower reels, damaging the cable windings or cracking the flanges. The warehouse must also be free from direct sunlight (which can age the PE film) and heat sources (e.g., heaters, furnaces) that could exceed the cable’s maximum storage temperature (40℃).

    • Storage Period: The recommended maximum storage period is 24 months from the manufacturing date. If storage exceeds 24 months, the cable must undergo re-testing before installation:

      • Insulation resistance measurement (≥1×10¹³Ω·cm, a slight reduction from the original ≥1×10¹⁴Ω·cm due to long-term storage).

      • Visual inspection of the XLPE insulation and HDPE sheath (if present) for cracks, discoloration, or brittleness.

      • Partial discharge test (≤8pC at 1.73× rated voltage, higher than the original 5pC but still below industry limits).

    For temporary outdoor storage (e.g., due to warehouse space shortages), reels are covered with an additional waterproof tarpaulin and inspected twice weekly for signs of moisture ingress (e.g., damp PE film) or physical damage. Outdoor storage must not exceed 2 months.

    2.2 Transportation

    Transporting the 10kV, 33kV 3×95mm² ABC requires specialized planning to ensure the high-voltage cable arrives at the destination in optimal condition. The choice of transportation mode is based on distance, destination, and order quantity, with strict handling procedures to minimize damage.

    2.2.1 Mode of Transportation

    Four primary transportation modes are used, each with customized protocols to protect the cable:
    • Road Transportation: Ideal for domestic shipments within 800km. Heavy-duty flatbed trucks (load capacity 40 tons) are used, equipped with steel rails (height 400mm) and adjustable steel chocks (thickness 150mm) to secure the reels. Each truck can carry 8-10 wooden reels or 4-6 steel reels, depending on weight. The reels are placed parallel to the truck’s length, and steel straps (breaking strength ≥15 tons) are tightened over the reel flanges—three straps per steel reel, two per wooden reel—to prevent lateral movement. Rubber anti-slip pads (thickness 20mm) are placed between the reels and the truck bed to reduce vibration (vibration levels monitored via sensors: ≤0.3g) and avoid insulation wear. The maximum speed for road transport is limited to 60km/h on highways and 30km/h on rural roads; drivers are required to make stops every 2 hours to inspect reel security, especially during rain or snow.

    • Rail Transportation: Suitable for domestic long-distance shipments (over 800km) or cross-border transport within rail-connected regions (e.g., EU, North America). Specialized freight railcars (load capacity 60 tons) with reinforced floors (thickness 20mm) and lashing points are used. Reels are secured using the same steel strap and anti-slip pad method as road transport, but with additional steel bracing (80mm thick) welded to the railcar floor to prevent longitudinal movement during train acceleration or braking. Rail transport offers lower vibration than road transport (≤0.2g) and faster transit times—for example, a shipment of 12 steel reels from France to Germany (1000km) takes 36 hours by rail, compared to 60 hours by road.

    • Sea Transportation: The primary mode for international shipments. Reels are loaded into 40-foot high-cube shipping containers (internal height 2.7m, sufficient for 2.8m diameter reels) that can hold 8 steel reels or 12 wooden reels of 600m cable. Before loading, the container floor is lined with moisture-absorbing desiccants (silica gel packets, 2kg each, placed every 1m) to control humidity below 60%—critical for preventing condensation that could corrode steel reels or cause XLPE insulation to absorb moisture. Reels are secured to the container’s internal lashing rings using steel chains (breaking strength ≥20 tons) and turnbuckles, tightened to eliminate slack. For shipments to high-humidity regions (e.g., Southeast Asia) or extreme-temperature areas (e.g., Middle East), the container is fitted with a temperature-humidity logger that records conditions every 1 hour. This data is provided to the customer upon delivery to verify the cable was transported in suitable environments (temperature 0℃-35℃, humidity ≤85%). Sea transport transit times vary by route: a shipment from China to Australia takes 25-30 days, while a shipment from the U.S. to Brazil takes 35-40 days.

    • Air Transportation: Rarely used for full-size reels due to weight and volume constraints (a single steel reel with 600m of 33kV sheathed cable weighs ~4000kg, exceeding most airline cargo limits of 3500kg per piece). However, it may be used for small quantities (e.g., 100-200 meters) or emergency replacements (e.g., repairing a damaged high-voltage line in a critical industrial park). The cable is cut into 50-meter lengths and packaged in heavy-duty fiberboard boxes (lined with 10mm foam) to meet airline weight limits (≤80kg per box). Air freight is costly—10-12 times more than sea transport—but offers fast delivery: a shipment from the U.K. to Japan takes 4-5 days, compared to 45 days by sea.

    2.2.2 Handling Procedures and Safety Compliance

    All handling of cable reels requires specialized equipment and trained personnel to avoid damage to the high-voltage cable or injury to workers.
    • Loading/Unloading Equipment: Forklifts with heavy-duty drum clamps (capacity ≥5 tons) or cranes with soft polyester slings (width 200mm) are used—sharp hooks or chains are strictly prohibited, as they can puncture the PE film, scratch the HDPE sheath, or damage reel flanges. When lifting a reel, the equipment must be centered on the reel’s axle to prevent tilting; the maximum lifting angle is 35 degrees to avoid putting excessive stress on the reel (which could crack flanges). For steel reels, a lifting beam (with adjustable hooks spaced to match the reel’s width) is used to distribute weight evenly, preventing flange deformation. All equipment is inspected daily for wear—for example, forklift drum clamps are checked for rubber pad damage (replaced if wear exceeds 3mm), and crane slings are inspected for fraying (rejected if any strands are broken).

    • Personnel Safety Protocols: Workers involved in handling must complete a 2-day training program covering reel lifting, load securing, and emergency procedures. They are required to wear personal protective equipment (PPE) at all times:

      • Safety helmets (impact resistance ≥10kN) to protect against falling debris.

      • Steel-toe boots (compression resistance ≥200kN) to prevent foot injuries from reel tipping.

      • Cut-resistant gloves (level 5 protection) to avoid scratches from reel edges or cable insulation.

      • High-visibility vests (fluorescent orange) to ensure visibility in busy yards or construction sites.

    • Before any handling operation, a safety briefing is conducted to review the lift plan, identify hazards (e.g., uneven ground, Overhead Power Lines), and assign roles (operator, spotter, ground crew). A dedicated spotter stands at a 45-degree angle to the forklift/crane to guide the operator, using hand signals to communicate (e.g., “lift,” “lower,” “stop”).
    • Pre-Transport Inspection Checklist: Before departure, a certified inspector conducts a 15-point inspection to verify reel security and packaging integrity:

      • Reels are centered on the transport vehicle (no overhang beyond the vehicle’s edges).

      • Steel straps/chains are tight (no slack, measured with a tension gauge: ≥80% of breaking strength).

      • Anti-slip pads are intact and properly positioned (no shifting).

      • PE film has no tears or holes (sealed with waterproof tape if minor damage is found).

      • Cardboard covering is reinforced at seams (no peeling).

      • Tarpaulin (if used) is secured with steel ropes (no loose ends).

      • Labels are legible and not damaged (replaced if smudged or torn).

      • Reel flanges are free from dents or cracks (measured with a straightedge: no deformation >2mm).

      • Cable windings are uniform (no overlapping or tangling).

      • Vehicle tires are properly inflated (pressure ≥800kPa for heavy-duty trucks).

      • Vehicle brakes are tested (stopping distance ≤10m at 30km/h).

      • Vibration sensors (for road/rail transport) are calibrated and active.

      • Temperature-humidity logger (for sea transport) is turned on and recording.

      • Emergency equipment (fire extinguisher, first-aid kit) is on board and accessible.

      • Driver/crew has a copy of the shipping schedule and emergency contact list.

    • Any issues identified are resolved before departure—for example, loose straps are retightened, damaged packaging is repaired, or defective equipment is replaced. A digital inspection report with photos is generated and shared with the customer via the manufacturer’s portal.
    • Regulatory Compliance: All transport operations adhere to local and international safety standards to avoid legal penalties and ensure cargo safety:

      • Road Transport: Complies with the UN Economic Commission for Europe (UNECE) Regulation 107 (cargo securing) and national speed limits (e.g., 60km/h on EU highways, 55mph on U.S. interstates). Drivers hold a commercial driver’s license (CDL) with a hazardous materials (HazMat) endorsement (required for high-voltage cables in some regions).

      • Rail Transport: Follows the International Union of Railways (UIC) Code 574-2 (cargo securing for rail) and regional rail safety regulations (e.g., FRA Part 231 in the U.S., CER Part III in Canada). Railcars are inspected annually for structural integrity.

      • Sea Transport: Meets the International Maritime Organization (IMO) SOLAS Convention Chapter VI (cargo safety) and the International Chamber of Shipping (ICS) Code of Safe Practice for Cargo Stowage and Securing. Containers are certified to ISO 1496-1 (shipping container standards) and inspected for damage before loading.

      • Air Transport: Complies with the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) for shipping high-voltage equipment. Packages are labeled with “High-Voltage Cable” and “Handle With Care” stickers, and airlines are notified of the cargo type in advance.

    • 2.3 Shipping

    • The shipping process encompasses order processing, scheduling, customs clearance, and delivery tracking, designed to ensure timely, transparent delivery to the customer while maintaining cable quality.
    • 2.3.1 Order Processing and Scheduling

    • Upon receiving a customer order, the manufacturer’s logistics team follows a structured workflow to minimize delays and ensure accuracy:
    • Order Confirmation: Within 24 hours of order receipt, the team sends a confirmation email to the customer, verifying:

      • Quantity of reels (e.g., 10 reels of 33kV sheathed cable).

      • Product specifications (voltage, cross-section, sheath type).

      • Reel material (steel/wooden).

      • Delivery address (with GPS coordinates for remote sites).

      • Desired transport mode (road/rail/sea/air).

      • Special requirements (e.g., expedited shipping, custom labeling).

      • Total cost (including shipping and insurance).

    • The customer is asked to review and sign the confirmation within 48 hours to finalize the order.
    • Stock and Production Coordination: The team checks inventory levels—if the cable is in stock, shipment is scheduled within 5-7 business days; if it needs to be manufactured, the lead time is 21-28 business days (consistent with the 1.4 production process). The team coordinates with the production department to prioritize orders based on customer needs—for example, emergency orders (e.g., replacing a damaged cable in a hospital’s power grid) are fast-tracked, with production starting within 48 hours.

    • Shipping Schedule Creation: A detailed schedule is created using the manufacturer’s logistics management software, including:

      • Pre-Shipment Phase:

        • Material preparation (day 1-2): Reels, packaging materials, and labels are prepared.

        • Cable spooling and packaging (day 3-4): Cables are spooled onto reels and wrapped in protective layers.

        • Final inspection (day 5): The 15-point pre-transport inspection is conducted.

      • Transport Phase:

        • Pickup by carrier (day 6): The carrier collects the reels from the manufacturer’s warehouse.

        • Transit (varies by mode): Road (2-5 days for 800km), rail (3-7 days for 1500km), sea (25-40 days for intercontinental), air (4-7 days international).

      • Delivery Phase:

        • Customs clearance (if international, 4-7 days): Documents are processed, and duties are paid.

        • Final delivery (1-2 days after clearance): The reels are delivered to the customer’s site.

    • The schedule is shared with the customer via the portal, with real-time updates if there are delays (e.g., port congestion, bad weather).
    • Expedited Shipping Arrangements: For urgent orders, the team arranges expedited transport at an additional cost (typically 40-60% above standard rates):

      • Road: Uses a two-driver team (no rest stops) to reduce transit time—for example, a 1000km domestic shipment takes 24 hours instead of 48.

      • Rail: Books a dedicated railcar (instead of shared) to avoid delays from other cargo.

      • Sea: Uses a fast container ship (speed 25 knots vs. 18 knots) and priority unloading at the destination port.

      • Air: Charter a small cargo plane if full-size reels cannot be shipped via commercial airlines.

    • The customer is notified of the additional cost and revised ETA before confirming the expedited service.
    • 2.3.2 Customs Clearance for International Shipping

    • International shipments require extensive documentation and compliance with destination country regulations to avoid delays. The manufacturer’s export team manages this process with support from local customs brokers:
    • Documentation Preparation: The team prepares a complete set of documents (in English and the destination country’s language, if required) within 3 business days of order confirmation:

      • Commercial Invoice: Details the product description (“10kV/33kV 3×95mm² XLPE Insulated Aluminum Conductor ABC Cable”), quantity, unit price, total value (in USD/EUR/GBP), currency, terms of sale (e.g., FOB Shanghai, CIF Rotterdam, DDP New York), and payment terms (e.g., 30% advance, 70% on delivery).

      • Packing List: Specifies the number of reels, reel material (steel/wooden), weight per reel (cable + reel), total weight, container number, reel dimensions (diameter × width), and cable length per reel (600m).

      • Certificate of Origin (COO): Issued by a local chamber of commerce (e.g., China Council for the Promotion of International Trade, British Chambers of Commerce), verifying the cable was manufactured in the stated country. This document is required for tariff calculation and to qualify for trade agreements (e.g., EU GSP, USMCA, ASEAN Free Trade Area).

      • Compliance Certificates: Includes:

        • IEC 60502-2 (international standard for high-voltage cables).

        • ASTM B230 (standard for aluminum conductors).

        • RoHS Certificate (restriction of hazardous substances: lead, mercury, cadmium <1000ppm).

        • Country-specific certifications (UL for the U.S., CSA for Canada, TÜV for Germany, BIS for India, INMETRO for Brazil).

      • Phytosanitary Certificate: For wooden reels, issued by the national plant protection organization (e.g., USDA in the U.S., CFIA in Canada) to confirm the wood is pest-free and heat-treated (to ISPM 15 standards) to prevent the spread of insects/ fungi.

      • Bill of Lading (B/L): For sea transport, issued by the shipping line, serving as a contract of carriage, receipt of goods, and document of title. For air transport, an Air Waybill (AWB) is used (non-negotiable, serves as a receipt).

      • Customs Declaration: A document filed with the destination country’s customs authority, listing the cargo details, tariff classification (HS code: 7326.90 for Power Cables), and duty amount.

    • Customs Broker Collaboration: The export team partners with a licensed customs broker in the destination country to navigate local regulations and ensure smooth clearance:

      • Broker Selection: Brokers are chosen based on their expertise in high-voltage equipment, local market knowledge, and track record of fast clearance (average 4-7 days). For example, in Brazil, the broker is registered with INMETRO (National Institute of Metrology, Quality, and Technology) to assist with product registration (mandatory for Electrical Cables).

      • Document Submission: The broker receives the documents 5-7 days before the shipment arrives, reviews them for accuracy (e.g., no mismatches between the commercial invoice and packing list), and submits them to customs electronically (via the destination country’s customs portal, e.g., ACE in the U.S., ATLAS in the EU).

      • Duty and Tax Calculation: The broker calculates the applicable duties (varies by country: 0-10% for most developed countries, 15-25% for some developing countries) and taxes (VAT/GST: 10-25%), and coordinates with the customer to arrange payment (the manufacturer can also pay on the customer’s behalf, adding the amount to the invoice).

      • Inspection Coordination: If customs requires a physical inspection (10-15% of shipments), the broker schedules it with the customs authority, arranges access to the warehouse/port, and provides a representative to accompany the inspector. The inspection typically checks the cargo against the documents (quantity, specification, packaging) and verifies compliance with safety standards (e.g., insulation thickness, conductor resistance).

    • Clearance Timeline and Updates: The export team provides weekly updates to the customer during clearance:

      • Pre-Arrival: Confirms document submission and estimated clearance start date.

      • In-Progress: Updates on duty payment, inspection status (if applicable), and any requests for additional documents (e.g., technical drawings, test reports).

      • Completion: Notifies the customer when clearance is approved, provides the release order, and coordinates with the carrier for final delivery.

    • Delays (e.g., missing documents, extended inspections, port congestion) are communicated to the customer within 24 hours, with a revised ETA and action plan (e.g., resubmitting corrected documents, paying expedited inspection fees).
    • 2.3.3 Delivery Tracking and Confirmation

    To ensure transparency and customer satisfaction, the manufacturer provides end-to-end shipment tracking and a structured delivery confirmation process:
    1. Real-Time Tracking Tools:

      • Carrier Portals: The customer receives a unique tracking number from the carrier (e.g., Maersk’s Track & Trace, DHL’s Express Tracking) to monitor the shipment’s location and status:

        • Sea Transport: Tracks the container’s voyage (e.g., “Departed Shanghai on 15th October,” “Arrived at Rotterdam Port on 5th November,” “Unloaded from vessel on 7th November”).

        • Road/Rail Transport: Shows real-time location (via GPS), speed, and ETA (updated every 30 minutes). For example, a road shipment from Germany to Poland may show “Currently near Berlin, ETA at Warsaw: 18th November 14:00.”

        • Air Transport: Displays flight status (e.g., “Flight LH123 departed Frankfurt on time,” “Arrived at Tokyo Haneda Airport,” “Cargo cleared for delivery”).

      • Manufacturer’s Portal: The customer can also track the shipment via the manufacturer’s online portal, which integrates data from the carrier, customs broker, and logistics team. The portal shows a timeline of key events (order confirmation, shipment departure, customs clearance, delivery) and allows the customer to download documents (e.g., B/L, COO, inspection reports) at any time.

    1. Automated Notifications: The logistics team sends email and SMS alerts to the customer at critical stages of the shipment:

      • Shipment Departure: Sent when the cargo leaves the manufacturer’s warehouse (e.g., “Your 10 reels of 33kV ABC cable departed Shanghai Port on 15th October. Tracking number: MSCU1234567. ETA at Rotterdam: 5th November”).

      • In-Transit Update: Sent halfway through the journey (e.g., “Your shipment is currently mid-ocean, en route to Rotterdam. Weather conditions are favorable—ETA remains 5th November”).

      • Arrival at Destination Port: Sent when the container arrives at the discharge port (e.g., “Your shipment arrived at Rotterdam Port on 5th November. Customs clearance has started—broker will provide an update in 2 days”).

      • Customs Clearance Completion: Sent when the cargo is released by customs (e.g., “Your shipment has cleared Dutch customs. Delivery to your site in Amsterdam is scheduled for 8th November”).

      • Final Delivery Alert: Sent 48 hours before delivery (e.g., “Your cable reels will be delivered to your site on 8th November between 9:00 and 11:00. Driver name: John Smith. Contact number: +31 6 1234 5678”). On the delivery day, the driver calls the customer 1 hour before arrival to confirm access to the site (e.g., “Is the gate to your warehouse open? We need a forklift to unload the reels”).

    1. Delivery Inspection and Confirmation:

      • On-Site Inspection: Upon delivery, the customer is required to inspect the reels for visible damage (e.g., cracked flanges, torn PE film, dented HDPE sheath) and verify the quantity and specification against the packing list. The customer should use a checklist provided by the manufacturer, which includes:

        • Number of reels (e.g., 10 reels received, matching the order).

        • Reel condition (no flange deformation, packaging intact).

        • Cable specification (voltage, cross-section, sheath type—verified via laser markings).

        • Cable windings (no tangling or overlapping).

      • Damage Documentation: If damage is found, the customer must:

        • Note the damage on the Delivery Receipt (e.g., “Reel 3 has a 5cm tear in the PE film; cable insulation appears undamaged”).

        • Take clear photos of the damage (close-ups of the affected area, wide shots of the entire reel) and video footage if possible.

        • Submit the damaged receipt and photos to the manufacturer’s claims department within 24 hours of delivery.

      • Acceptance and Sign-Off: If no damage is found, the customer signs the Delivery Receipt, confirming the cargo has been received in good condition. The manufacturer sends a digital copy of the signed receipt to the customer via email, and the shipment is marked as “Delivered” in the portal.

    1. Post-Delivery Follow-Up: The logistics team follows up with the customer 3 days after delivery to:

      • Confirm the cable is in good condition and ready for installation.

      • Address any questions about storage or handling (e.g., “How should we store the reels if installation is delayed for 2 months?”).

      • Collect feedback on the shipping process (e.g., “Was the delivery on time? Were the tracking updates helpful?”).

    2.4 Samples

    Providing high-quality samples is a critical step in the sales process, allowing customers to verify the cable’s performance, quality, and compatibility with their high-voltage systems before placing a full order. The manufacturer offers a structured sample program tailored to the 10kV, 33kV 3×95mm² ABC’s technical requirements.

    2.4.1 Sample Specifications and Preparation

    The standard sample is a 15-meter length of the selected cable variant (10kV/33kV, sheathed/unsheathed), which is sufficient for conducting key electrical, mechanical, and environmental tests. The sample is manufactured using the same materials and production processes as full-length cables—this ensures the aluminum conductor has the same purity (≥99.7%), the XLPE insulation has the same thickness (3.4-3.6mm for 10kV, 4.0-4.2mm for 33kV) and cross-linking degree, and the HDPE sheath (if present) meets the same weather-resistant standards.
    Before shipping, the sample undergoes rigorous quality control (QC) testing to confirm compliance with specifications:
    1. Electrical Tests:

      • DC Resistance Measurement: Using a precision micro-ohmmeter (accuracy ±0.001Ω), the sample’s DC resistance is measured at 20℃—must be ≤0.19Ω/km (10kV) or ≤0.18Ω/km (33kV).

      • Insulation Resistance Test: A 5kV megohmmeter is used to measure insulation resistance between the conductor and ground—minimum requirement ≥1×10¹⁴Ω·cm.

      • Power Frequency Withstand Test: The sample is submerged in a water bath (25℃) for 24 hours, then subjected to 30kV AC (10kV sample) or 70kV AC (33kV sample) for 1 minute—no breakdown or leakage is allowed.

      • Partial Discharge Test: A high-voltage partial discharge analyzer applies 1.73× rated voltage (17.3kV for 10kV, 57.1kV for 33kV) to the sample. Partial discharge magnitude must be ≤5pC.

      • Impulse Withstand Test: The sample is exposed to 10 consecutive impulse voltages (75kV/1.2/50μs for 10kV, 170kV/1.2/50μs for 33kV)—no breakdown is permitted.

    1. Mechanical Tests:

      • Tensile Strength Test: The aluminum conductor is pulled using a universal testing machine—tensile strength ≥120MPa, elongation at break ≥15%.

      • Impact Test: A 2.5kg weight is dropped from 1m onto 3 points of the sample. After impact, the insulation is inspected with a 10× magnifier—no cracking or conductor exposure.

      • Bending Test: The sample is bent to its minimum radius (840mm for 10kV, 960mm for 33kV) and back 10 times. Post-test, the DC resistance is measured—no increase of more than 2% from the initial value.

      • Sheath Adhesion Test (for sheathed samples): A strip of HDPE sheath is peeled from the insulation, and the adhesion force is measured—minimum 15N/100mm to ensure the sheath does not separate during installation.

    1. Environmental Tests:

      • UV Aging Test: The sample is exposed to UV radiation (340nm, 0.71W/m²) for 1000 hours. After aging, the XLPE insulation’s tensile strength retention rate is ≥85%.

      • Chemical Resistance Test: The sample is immersed in 5% sulfuric acid or 5% sodium hydroxide for 48 hours. Post-immersion, insulation resistance is ≥1×10¹³Ω·cm.

    The approved sample is packaged in a custom wooden crate (50cm×50cm×160cm) lined with 10mm-thick foam to prevent damage during transit. The crate includes:
    • A signed QC test report (with all test results and graphs).

    • A product data sheet (detailing specifications, application guidelines, and installation recommendations).

    • A small toolkit for on-site testing: digital micrometer (to measure insulation thickness), portable megohmmeter (1kV range), and a Shore D durometer (to check sheath hardness).

    • A sample request form for customizations (e.g., thicker sheath, different conductor material).

    2.4.2 Sample Request and Delivery


    Customers can request samples through multiple channels, with a simplified process to minimize delays and ensure clarity:
    1. Request Channels:

      • Online Portal: The manufacturer’s customer portal features a dedicated “Sample Request” tab, where customers input details such as company name, project type (e.g., “33kV regional grid interconnection”), desired cable variant (10kV sheathed/33kV unsheathed), intended tests (e.g., “partial discharge, UV aging”), and delivery address. The portal also allows customers to upload project drawings or specifications to help the team tailor the sample.

      • Email/Phone: Customers can send a request to the sales team via email (sample@abcable.com) or call the toll-free hotline (+1-800-ABC-CABLE). The sales representative will confirm the request by sending a pre-filled form for the customer to sign, ensuring no details are missed.

      • On-Site Meetings: For large-scale projects (e.g., 100km+ 33kV cable orders), the sales team can discuss sample needs during on-site meetings, collecting requirements and arranging sample preparation on the spot.

    1. Eligibility and Cost:

      • Qualified Customers: Utility companies, engineering firms, and industrial park developers are eligible for free samples. Small contractors or individual buyers may be required to pay a nominal fee (\(200-\)300 per sample), which is refundable if a full order (≥5 reels) is placed within 3 months.

      • Shipping Costs: Customers cover shipping costs, with options tailored to urgency:

        • Express Courier (DHL/FedEx): 3-5 business days for international delivery, 1-2 days for domestic. Cost varies by destination (e.g., $150 for a 15m 33kV sheathed sample from China to Germany).

        • Standard Logistics: 7-10 business days for international, 3-4 days for domestic. 30% cheaper than express, ideal for non-urgent testing.

        • On-Site Delivery: For customers within 150km of the manufacturer’s facility, the sales team delivers the sample in person, accompanied by a technical engineer who can explain test procedures—this option is free for qualified customers.

    1. Delivery Tracking and Confirmation:

      • Once the sample is shipped, the customer receives a tracking number via email/SMS, allowing real-time monitoring through the carrier’s portal.

      • The manufacturer sends a “Sample Shipment Confirmation” email with a copy of the packing list and QC report, so the customer can verify details before delivery.

      • Upon receipt, the customer is asked to sign a “Sample Acceptance Form” (included in the crate) and return a scanned copy within 48 hours. If the sample is damaged during transit, the customer follows the same damage documentation process as full shipments (photos + signed receipt), and a replacement sample is sent free of charge.

    2.4.3 Sample Feedback and Customization

    The manufacturer actively collects feedback to refine the sample and support full-order decisions, with a structured process for customization:
    1. Feedback Collection:

      • Post-Delivery Follow-Up: The sales team follows up 1 week after sample delivery to:

        • Confirm the sample arrived in good condition and testing has started.

        • Address questions about test procedures (e.g., “How to set up the partial discharge analyzer for the 33kV sample?”).

      • Feedback Survey: 2 weeks after delivery, the customer receives an online survey covering:

        • Performance in tests (e.g., “Did the sample meet your insulation resistance requirements?”).

        • Compatibility with existing systems (e.g., “Does the cable fit your pole-mounted transformers?”).

        • Suggestions for improvements (e.g., “Thicker sheath for coastal use”).

      • Test Report Submission: Customers are encouraged to share their test reports with the technical team, who review the data to identify potential optimizations (e.g., “If the sample’s partial discharge was 8pC instead of 5pC, we can adjust the XLPE cross-linking process”).

    1. Customization Process:

      • Feasibility Evaluation: If the customer requests customization (e.g., “33kV cable with 4.5mm XLPE insulation, 3.0mm HDPE sheath”), the R&D team evaluates technical feasibility within 3 business days. They consider factors such as:

        • Material availability (e.g., flame-retardant XLPE may require 1-week lead time).

        • Impact on performance (e.g., thicker insulation may reduce current-carrying capacity by 5-8%).

        • Cost implication (e.g., 10% higher material cost for halogen-free insulation).

      • Proposal Submission: The team sends a customization proposal to the customer, including:

        • Technical changes (e.g., “Insulation thickness increased from 4.0mm to 4.5mm; sheath material upgraded to marine-grade HDPE”).

        • Cost breakdown (e.g., \(350 per sample, \)50 per reel for full orders).

        • Lead time (7-10 business days for customized samples, 21-28 days for full production).

      • Customized Sample Production and Testing: Once approved, the customized sample is manufactured using modified processes (e.g., adjusting extruder die size for thicker insulation). It undergoes additional tests relevant to the customization—for example, a flame-retardant sample is subjected to the IEC 60332-1 flame test (no flame spread beyond 500mm). The sample is delivered with a “Customization Test Report” detailing how changes affect performance.

    2.5 After-Sales Service

    The manufacturer’s after-sales service is designed to ensure long-term reliability of the 10kV, 33kV 3×95mm² ABC, with 24/7 support and comprehensive solutions for installation, maintenance, and troubleshooting.

    2.5.1 Technical Support

    A dedicated team of high-voltage engineers (10+ years of ABC cable experience) provides multi-channel support to address customer needs:
    1. Support Channels:

      • 24/7 Hotline: The toll-free hotline (+1-800-ABC-SUPPORT) is staffed by engineers fluent in English, Spanish, Mandarin, and French. For urgent issues (e.g., “33kV cable insulation breakdown during installation”), engineers provide real-time guidance, with 90% of calls resolved within 30 minutes.

      • Video Call Troubleshooting: For complex issues (e.g., “unexpected partial discharge in a 10kV span”), the team arranges video calls using secure software (Zoom for Business), where engineers can view the site via the customer’s camera, analyze the problem, and demonstrate solutions (e.g., “How to repair a minor sheath tear with heat-shrink tape”).

      • On-Site Support: For critical failures (e.g., “33kV cable outage affecting an industrial park”), the manufacturer dispatches engineers to the site within 24-48 hours (domestic) or 48-72 hours (international). Engineers bring specialized equipment (partial discharge analyzers, ultrasonic flaw detectors) to diagnose and resolve the issue, with all travel and labor costs covered under warranty.

    1. Key Support Services:

      • Installation Guidance:

        • Custom 3D installation drawings for large projects (e.g., 50km 33kV regional grid), showing pole spacing (120-150m), cable tension (3.8-4.2kN), and termination details.

        • Step-by-step video tutorials (hosted on the manufacturer’s portal) covering cable unwinding, tensioning, and termination—viewable on mobile devices for on-site reference.

        • Pre-installation training sessions (virtual or on-site) for the customer’s team, covering safety protocols (e.g., “Lockout/tagout for high-voltage lines”) and tool operation (e.g., “Using a tension meter to set correct cable tension”).

      • Performance Optimization:

        • Annual performance reviews: The technical team analyzes the customer’s maintenance data (insulation resistance, line loss) to identify optimization opportunities—for example, “If line loss increased from 1.8% to 2.2%, we recommend cleaning the cable surface to remove industrial dust.”

        • Load adjustment recommendations: For cables operating near maximum capacity (e.g., 33kV cable carrying 240A, close to the 250A limit), the team suggests load redistribution (e.g., “Shift 10A from Span 5 to Span 3”) to extend service life.

    2.5.2 Maintenance Guidance

    A comprehensive maintenance manual is provided with every order, supplemented by digital tools and periodic reminders to ensure proper care:
    1. Structured Maintenance Schedule:

    Frequency
    Tasks
    Tools Required
    Acceptance Criteria
    Monthly
    1. Visual inspection of insulation/sheath for damage.  2. Check pole clamps for tightness.  3. Clear vegetation within 1.5m of the cable.
    Binoculars, torque wrench (30-60N·m), pruning shears
    1. No insulation damage >0.5mm; sheath intact.  2. Clamp torque: 40-50N·m.  3. No vegetation contact.
    Quarterly
    1. Measure insulation resistance.  2. Record conductor temperature during peak load.  3. Inspect terminations for corrosion.
    5kV megohmmeter, infrared thermometer, corrosion tester
    1. Insulation resistance ≥1×10¹³Ω·cm.  2. Temperature ≤90℃.  3. No green/white corrosion.
    Annual
    1. Partial discharge testing on 15% of spans.  2. Tension measurement.  3. Sheath hardness test (for sheathed cables).
    Partial discharge analyzer, tension meter (0-10kN), Shore D durometer
    1. Partial discharge ≤8pC.  2. Tension within 3.8-4.2kN.  3. Sheath hardness: 60-70 Shore D.
    Every 5 Years
    1. Full electrical test (DC resistance, impulse withstand).  2. Ultrasonic insulation inspection.  3. Replace aging clamps/dampers.
    Micro-ohmmeter, 170kV impulse tester, ultrasonic flaw detector
    1. DC resistance ≤0.20Ω/km (10kV), ≤0.19Ω/km (33kV); no breakdown.  2. No internal voids >0.1mm.  3. New clamps meet tensile strength ≥120MPa.
    1. Environment-Specific Guidance:

      • Coastal Areas:

        • Rinse the cable with fresh water every 2 months to remove salt deposits, focusing on terminations.

        • Apply a zinc-rich coating to clamp bolts annually to prevent galvanic corrosion.

      • Industrial Zones:

        • Clean the cable surface with a pH-neutral detergent every 3 months to remove chemical deposits.

        • Conduct monthly corrosion tests on terminations (using a salt spray test kit) to detect early rust.

      • Cold Climates:

        • Avoid maintenance during temperatures < -15℃; warm the cable to 5℃ with heated air before handling.

        • Install ice shields on spans >120m to prevent ice accumulation (reduces tension by 30-40%).

    1. Digital Maintenance Tools:

      • The manufacturer’s mobile app (ABC Cable Maintenance) allows customers to:

        • Set maintenance reminders (e.g., “Quarterly insulation test due on 15th March”).

        • Log test results (automatically syncing with the manufacturer’s portal for review).

        • Access video tutorials for repair tasks (e.g., “How to replace a damaged termination lug”).

    2.5.3 Warranty Claims

    The 10kV, 33kV 3×95mm² ABC comes with a standard 15-year warranty from the date of installation, covering defects in materials and workmanship. The warranty is transferable to subsequent owners if notified within 30 days of ownership change.
    1. Coverage Scope:

      • Conductor Defects: Aluminum conductor strand breakage (not due to over-tensioning), abnormal corrosion (not from environmental factors), or DC resistance exceeding 0.22Ω/km (10kV) / 0.21Ω/km (33kV) within 15 years.

      • Insulation Failures: XLPE insulation breakdown (without external damage), premature aging (cracking within 8 years), or partial discharge >20pC during normal operation.

      • Sheath Issues: HDPE sheath cracking, peeling, or thickness reduction >40% of original (for sheathed cables) within 10 years.

    1. Claim Process:

      • Submission: The customer submits a claim via the portal or email, including:

        • Completed warranty claim form (with project name, cable serial number, installation date).

        • Photos/videos of the defect (close-ups of damage, wide shots of the affected span).

        • Maintenance records (to prove proper care).

        • Test reports (e.g., insulation resistance, partial discharge) conducted after discovering the defect.

      • Review: The claims team reviews the submission within 3 business days. For complex cases (e.g., 1km of 33kV cable with insulation failure), an independent inspector is dispatched to verify the defect and determine the cause.

      • Resolution: Approved claims are resolved within 7-10 days:

        • Replacement: Free replacement of defective cables, including shipping and on-site installation by the manufacturer’s team.

        • Repair: For localized damage (e.g., 50m span with sheath tear), the team provides repair materials (heat-shrink sleeves, new clamps) and on-site guidance.

        • Refund: Full or partial refund if the defect cannot be repaired (e.g., widespread insulation breakdown in a 10kV reel).

    1. Exclusions:

      • The warranty does not cover damage from:

        • Improper installation (e.g., bending beyond minimum radius, over-tensioning).

        • Negligence (e.g., ignoring maintenance, allowing vegetation to damage the cable).

        • Natural disasters (earthquakes, hurricanes) or vandalism.

        • Unauthorized modifications (e.g., stripping insulation, adding non-manufacturer-approved sheaths).

    Conclusion

    The 10kV, 33kV 3×95mm² XLPE Insulated Aluminum Conductor Aerial Bundled Cable (ABC) combines advanced technical design with comprehensive support services to meet the demands of high-voltage medium and large-capacity transmission. From its high-purity aluminum conductor and cross-linked XLPE insulation to its weather-resistant HDPE sheath, every component is optimized for performance, durability, and cost-effectiveness. The structured approach to packaging, transportation, and shipping ensures the cable arrives in optimal condition, while the sample program and after-sales service provide end-to-end support—from initial testing to long-term maintenance. Whether used in county-level distribution networks, regional grid interconnections, industrial parks, or new energy stations, this cable delivers reliable, efficient power transmission, making it a critical asset for modern high-voltage infrastructure.
    العلامات ذات الصلة: Power Cable 10kv ABC Cable 33kv Overhead Power Cable
    تعرف على المزيد حول منتجات الكابلات
    اتصل بـ Hongtai Cable Technology Co. ، Ltd
    اتصل بنا

    شركة Hongtai Cable Technology Co. ، Ltd

    البريد الإلكتروني: export@qlcables.com

               sales@qlcables.com

    Tel/Whatsapp:+86-18032066271

    إضافة : منطقة التنمية الصناعية Xiaokou ، مقاطعة نينغجين ، مدينة Xingtai , مقاطعة Hebei ، الصين

    حقوق الطبع والنشر © Hongtai Cable Technology Co. ، Ltd  الدعم الفني:Ronglida Technology


    خريطة الموقع

    يستخدم هذا الموقع ملفات تعريف الارتباط لضمان حصولك على أفضل تجربة على موقعنا.

    يقبل يرفض
